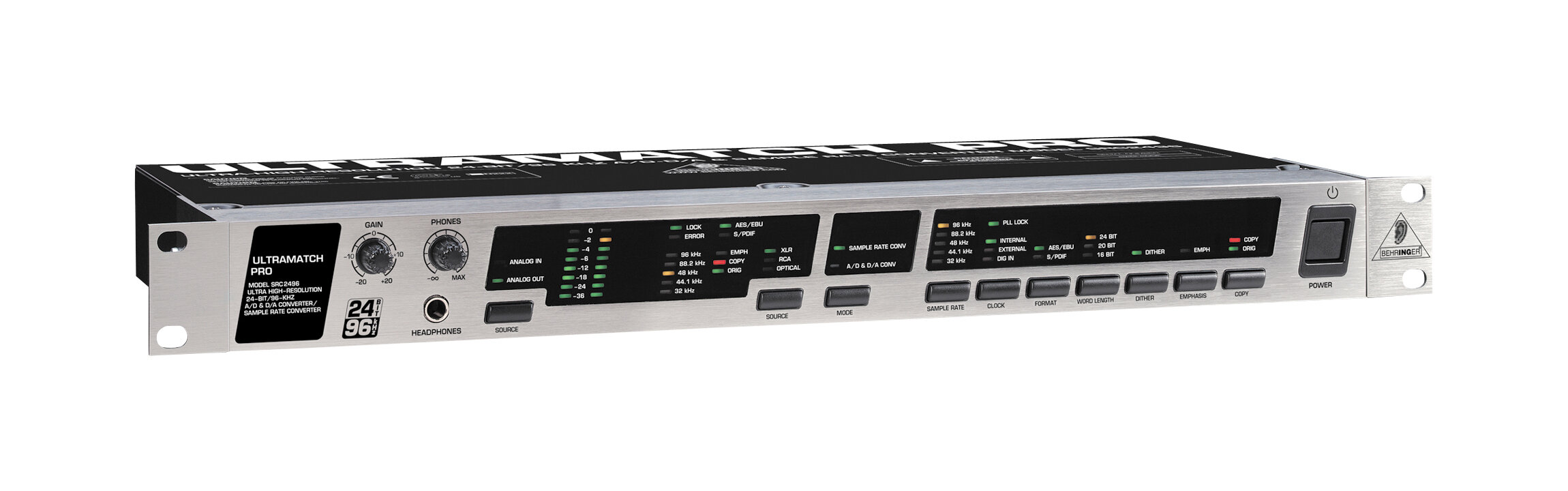

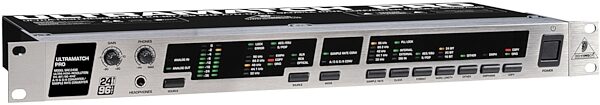

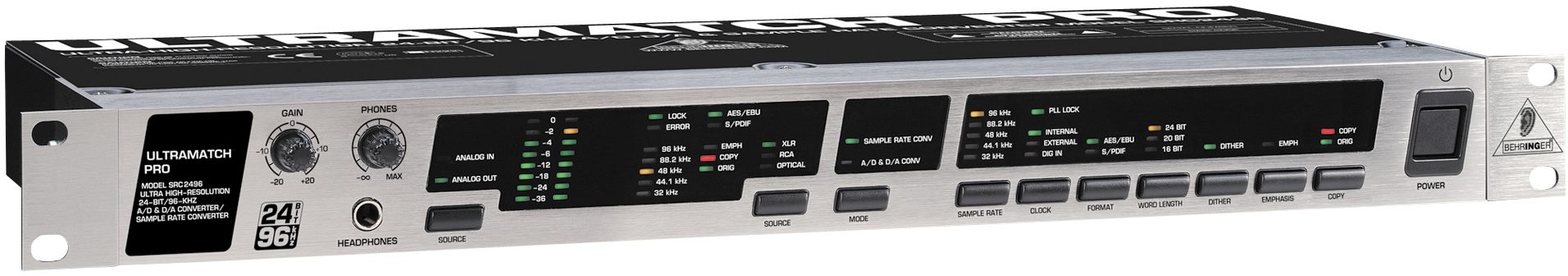

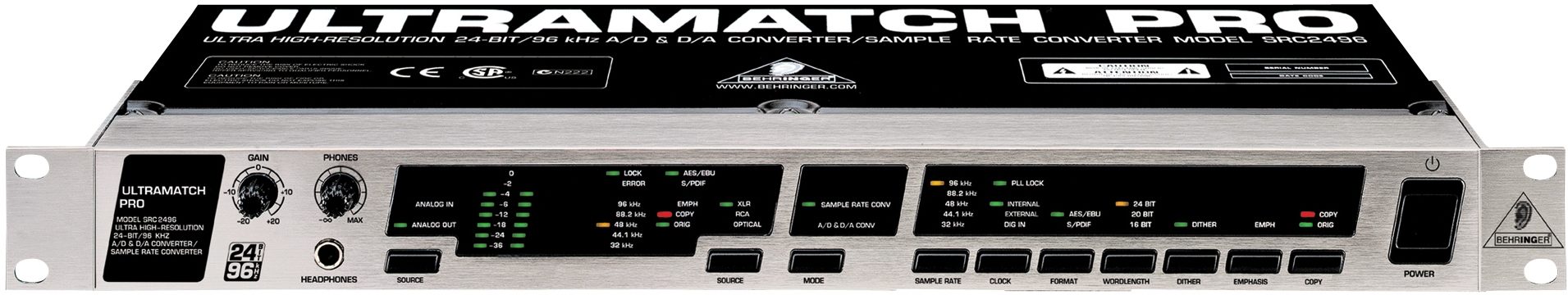

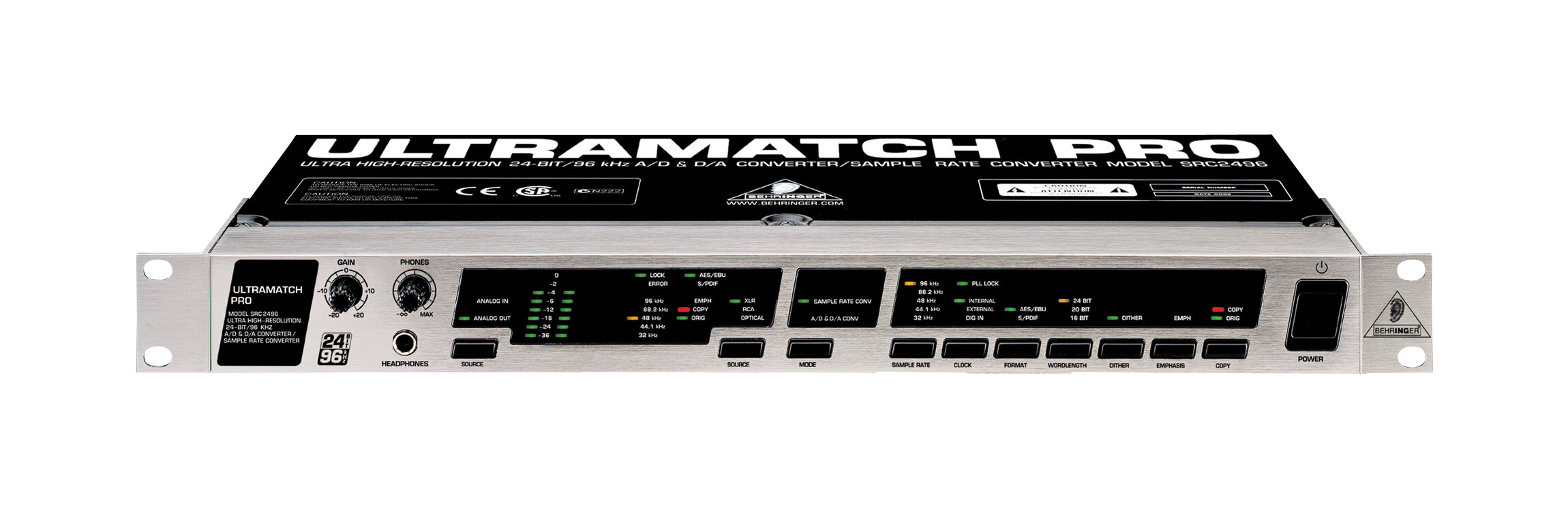

Like its predecessor, Behringer's new Ultramatch enables you to transfer digital audio signals between devices with different sample rates, formats or interfaces, disable SCMS for 1:1 digital copies and remove dropouts or jitter from digital media. Simultaneously operable outputs offer splitter functionality, and the 24-bit/96-kHz compatible SRC2496 now offers A/D and D/A conversion.
Features:
Format conversion between AES/EBU and S/PDIF (coaxial or optical)
Converts 30 kHz to 100 kHz sample rates into 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz or 96 kHz
High-quality signal output with 16-, 20- or 24-bit resolution
Universal sample rate synchronization via wordclock or digital input
Allows parallel A/D and D/A conversion at identical sample rate
Removes jitter and corrects incorrect sample rates
Allows direct manipulation of emphasis and copy-protection bits

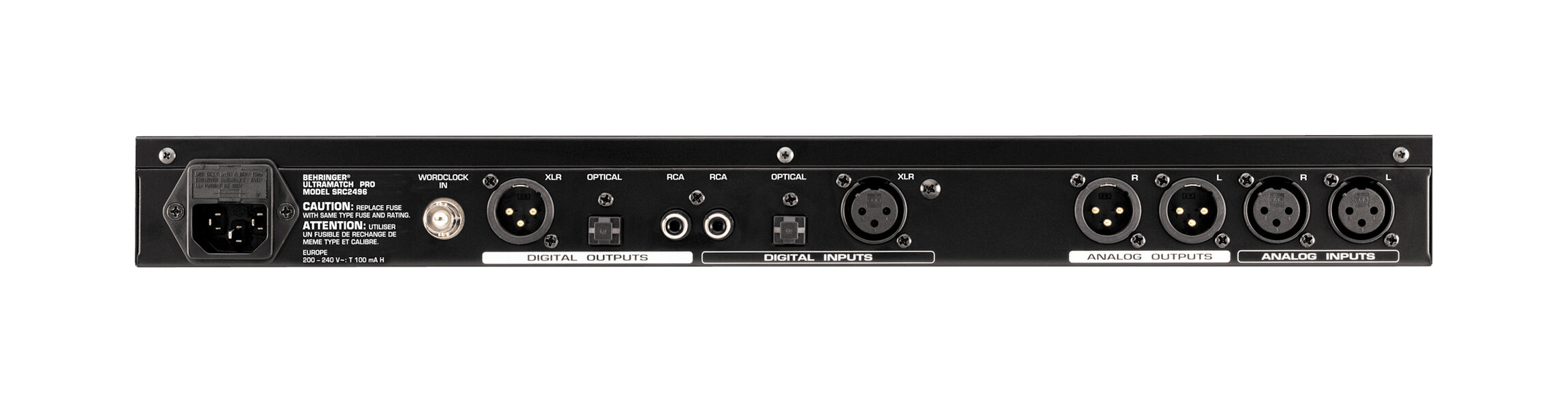

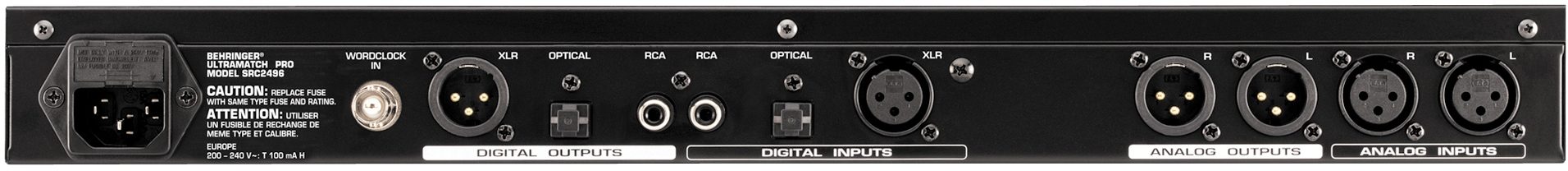

XLR, RCA and optical outputs simultaneously operational, inputs separately selectable
Combine multiple digital sources with this versatile format converter! Automatic conversion between S/PDIF and AES/BU files. Unifies sample rates from 30 kHz to 100 kHz to preset rate or wordclock sync. Selectable bit-depth output. Simultaneous operation of XLR, RCA, and optical outs.
