Behringer HA4700 Powerplay Pro XL Headphone Amplifier

Product Description

An articulate headphone mix can make a tremendous difference to the outcome of a recording session. The four-channel Behringer HA4700 features superior performance, routing and mixing functions to accommodate the most discerning set of ears. When a conditioned mix has to reach multiple listeners, the Behringer HA4700 delivers in style.

Altogether Now

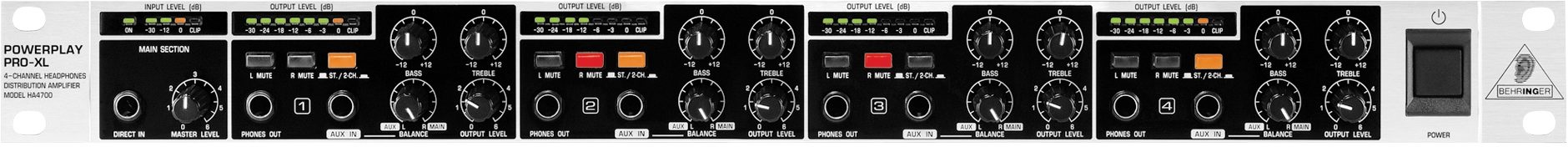

The Behringer HA4700 offers four high-power amplifiers that can drive loads down to 8 Ohms. Each amplifier features its own two-band EQ, 8-digit LED output meter, left and right Mute switches, a ST./2-CH switch to toggle between stereo or double mono, and a 1/4" stereo AUX input to mix in any instrument or sound source. The front panel gives you one Phones Out 1/4" jack per channel. A Main section features a 5-segment LED output meter, Direct In 1/4" jack and Master Level dial.

Connections

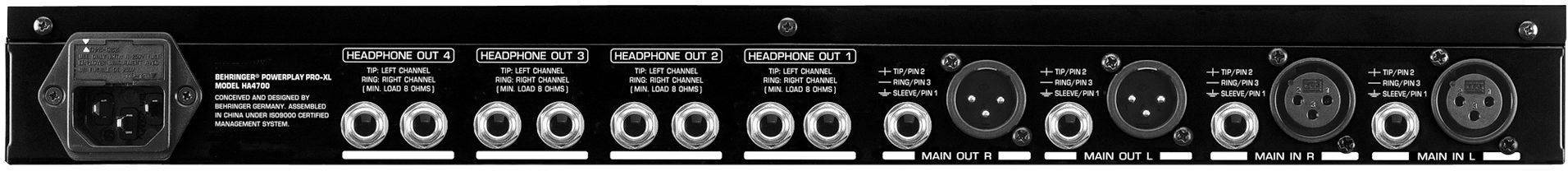

On the back panel you'll find two additional 1/4" outputs per channel. That means up to 12 pairs of headphones can listen to four separate mixes at once. The back panel also features stereo 1/4" and XLR inputs and outputs so you can connect multiple HA4700 units for even greater listening capacity. Meanwhile, ultra low-noise 4580 operational amplifiers deliver outstanding audio quality.

Great Sound and a Great Value

When a recording session calls for everyone's heads and ears to be in the game, the Behringer HA4700 is essential. Hearing is believing.

Features

- Professional, multi-purpose headphones amplifier system for stage and studio applications
- Highest sonic quality with virtually all types of headphones >8 Ohms even at maximum volume
- Four independent high-power amplifier sections provide up to four stereo mixes with individual balancing
- Each input/aux section can be separately set to capture individual demands for 'more me mixing'
- Stereo Aux input for each channel allows you to mix in any instrument or sound source
- Multi-functional Stereo/2-channel switch on each channel allows for either stereo playback or double mono operation
- Ultra-musical High and Low EQ per channel for perfect sound adaptation
- Output level control with accurate 8-digit LED output meter per channel
- Left & right mute switches for each channel allow two different mixes in mono mode
- One front and two rear 1/4' TRS output connectors on each channel
- Direct front panel input connector for easy connection of any sound source
- Paralleled Main outputs allow cascading of several headphones amplifiers
- Servo-balanced, gold-plated XLR and 1/4" TRS inputs and outputs
- Toroidal transformer for lowest noise interference and highest audio quality
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by Behringer Germany zZounds is an authorized dealer of Behringer products.

Specifications

Funtion Controls

Input Level: Variable
Balance per channel: Mix between Aux and Main signals / Balance between right and left channel
Output Level per channel: Variable
Treble: Cutoff frequency: 6 kHz; range +/- 12 dB
Bass: Cutoff frequency: 200 Hz, range +/- 12 dB

Function Switches

Stereo/2-Channel: Switches between stereo mode and 2-channel mode
Left Mute: Mutes the left signal of the respective channel
Right Mute: Mutes the right signal of the respective channel
DISPLAYS
Input Level: 4-digit LED-display: -30/-12/0 dB/CLIP
Output Level: 8-digit LED-display: -30/-24/-18/-12/-6/-3/0 dB/CLIP

Power Supply

Mains voltage: USA/Canada 120 V~, 60 Hz
Power consuption: 34 W
Fuse: 100 - 120 V~: T 630 mA H
Mains connection: Standard IEC receptacle

Dimensions and Weight

Dimensions (H x W x D): Approximately 1-3/4 in. x 19 in. x 8-1/2 in. (approx. 44.5 x 482.6 x 217 mm)
Weight: Approx. 5.08 lbs (approx. 2.3 kg)

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 8 lbs

Shipping Dimensions: 21 x 12 x 5 in

with 4 x Nady HP03 Headphones

Shipping Weight: 10 lbs
