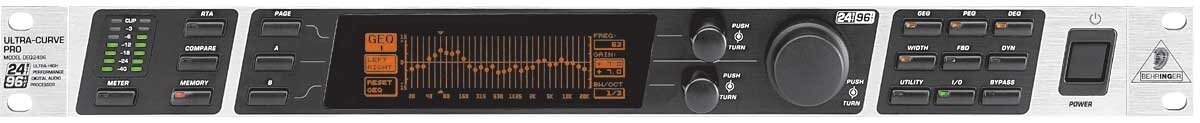

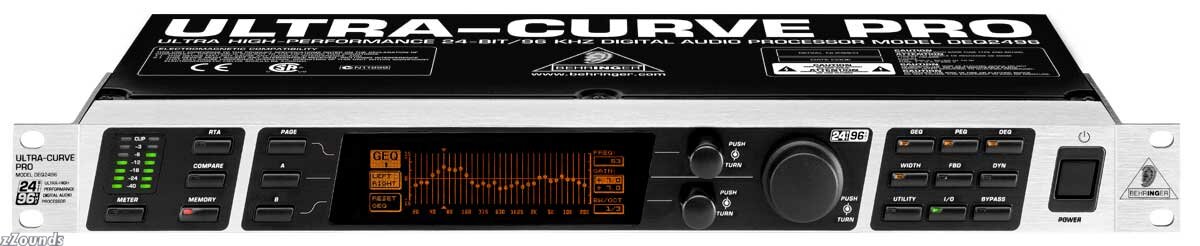

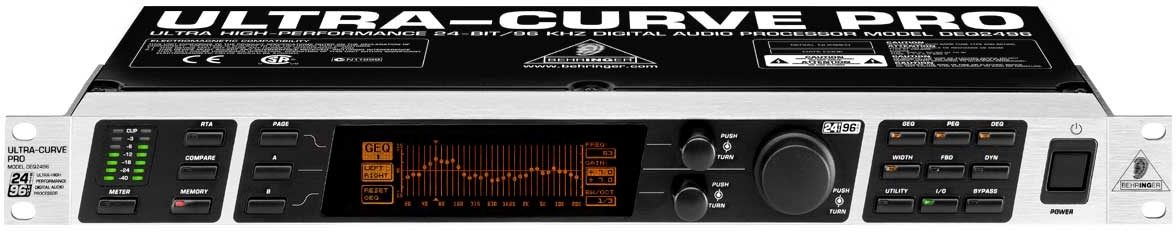

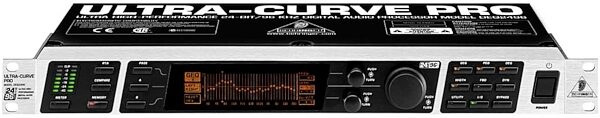

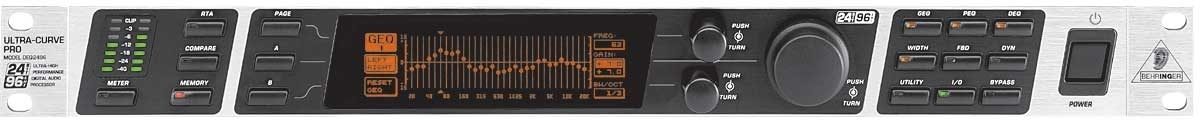

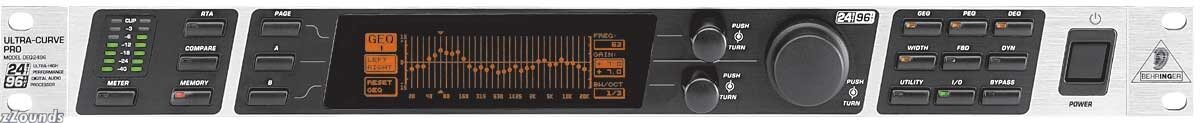

Behringer DEQ2496 Ultra Curve Pro

Ultra High-Precision Digital 24-Bit/96 kHz EQ/RTA Mastering Processor
The Ultra-Curve Pro DEQ2496 is an ultra high-precision digital 24-bit/96 kHz EQ/RTA mastering processor. Its extremely high audio performance makes it ideal for audiophile mastering and PA purposes. There are 4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer and three dynamic EQs per channel).

Another highlight is the additional 61-band RTA that can run simultaneously with the EQ section. The DEQ2496 features high-quality AKM® 24-bit/96 kHz A/D and D/A converters and two high-performance 32/40-bit floating-point SHARC® digital signal processors for ultimate sonic resolution and 113 dB dynamic range. There are also multi-functional level meters (peak/RMS, VU and SPL meter with dBA/dBC weighting via RTA mic input) plus 64 user memories for complete setups and/or individual module configurations. You get a separate RTA mic/line input with phantom power, a professional wordclock input and MIDI connections for full remote control, preset dumps and system updates.

The DEQ2496 also boasts balanced inputs and servo balanced outputs with gold-plated XLR connectors, stereo aux output, AES/EBU and S/PDIF inputs and outputs (XLR and optical). The internal switch-mode power supply assures maximum flexibility (100 - 240 V~), noise-free audio, superior transient response and lowest possible power consumption. Like all Behringer products, the DEQ2496 was manufactured under ISO9000 certified management.

Features:
Ultra high-resolution processor for all EQ, RTA and dynamic applications, especially for PA and audiophile mastering

4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer plus three Dynamic EQs per stereo channel)

Flexible Compressor/Expander function with Peak Limiter per stereo channel as well as additional Stereo Imager and Stereo Delay for delay line applications

Unique VPQ (Virtual Paragraphic EQ) option allows parametric control of graphic EQs

Ultra high-resolution 61-band real-time FFT Analyzer with additional auto EQ function for room and loudspeaker equalization

Multi-functional level meters (peak/RMS, VU and SPL meter with dBA/dBC weighting via RTA mic input)

64 user memories for complete setups and/or individual module configurations

Separate RTA mic/line input with phantom power, professional wordclock input and MIDI connections for full remote control, preset dumps and system updates

Ultra high-quality AKM® 24-bit/96kHz A/D and D/A converters (113 dB dynamic range)

Open architecture allowing future software updates via MIDI

Two high-performance 32/40-bit floating-point SHARC® digital signal processors for ultimate sonic resolution

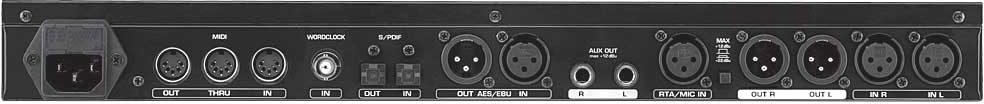

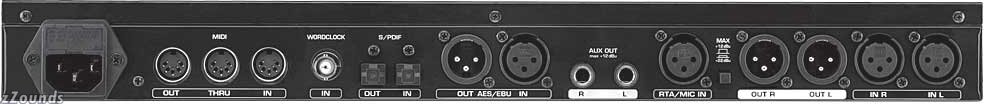

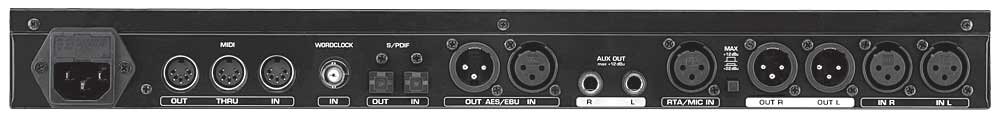

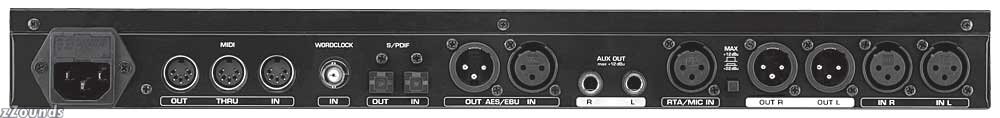

Balanced inputs and servo-balanced outputs with gold-plated XLR connectors, stereo aux output, AES/EBU and S/PDIF inputs and outputs (XLR and optical)

Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response and lowest possible power consumption

Manufactured under ISO9000 certified management system

A 24-bit, 96kHz digital toolbox! Its effects include compression, expansion, limiting, and alignment delay. Choose from several types of EQ. It's also an RTA with measurement mic input. Connections include balanced analog, S/PDIF, and more.
