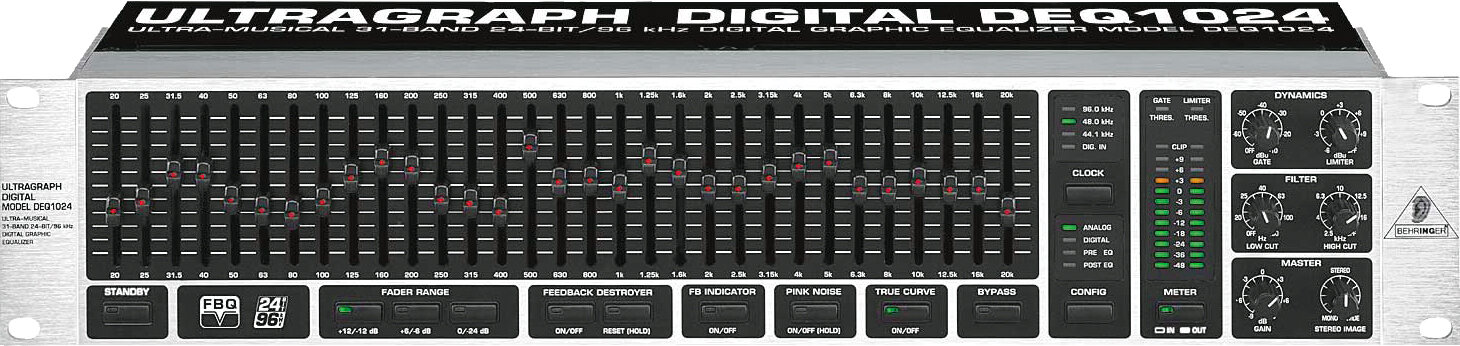

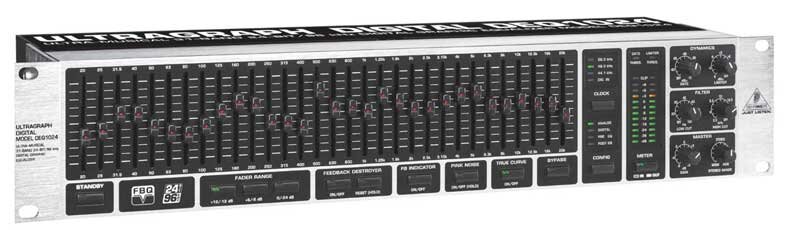

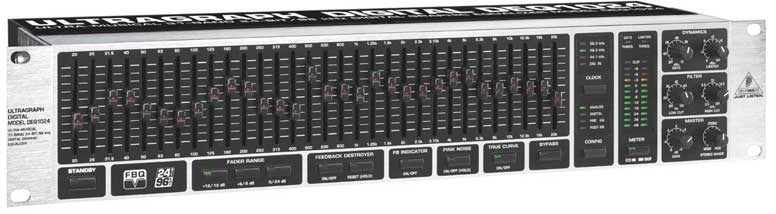

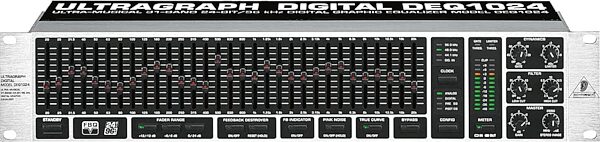

Behringer DEQ1024 Ultragraph Digital Stereo 31 Band Equalizer

The DEQ1024 combines unmatched digital performance with straightforward and intuitive analog-like operation. Its FBQ Feedback Detection System instantly detects feedback and can also be used as an audio analyzer, making the DEQ1024 a real must-have. The EQ section features selectable +/-12dB, +/-6dB and +0/-24dB ranges and 31 illuminated 45mm faders. The switchable True Curve function precisely translates fader positions into an exact "WYSIWYG" frequency response. The DEQ1024 features sweepable low cut and high cut filters, an "inaudible" Noise Gate/Peak Limiter and Pink Noise generator plus a stereo imager for unbelievable spatial enhancement and improved imaging. A digital AES/EBU and S/PDIF interface allows 44.1, 48 and 96 kHz sample rates. The DEQ1024 features servo balanced I/Os on gold-plated XLR and 1/4 in. TRS connectors.

Features:
Ultra high-resolution processor for all EQ, RTA and dynamic applications, especially for PA and audiophile mastering

Unique TRUE CURVE Function-what you see on the faders is what you get as frequency response

Revolutionary FBQ Detection system instantly reveals critical frequencies and can be also used as Audio Analyzer

Automatic and ultra-fast Feedback Destroyer plus feedback indication via faders LEDs

"Inaudible" Noise Gate/Peak Limiter function plus amazing Stereo Imager for spatial enhancement

Additional sweepable high and low cut filters for removal of unwanted frequencies like floor rumble and high frequency noise

Integrated Pink Noise generator for perfect room and loudspeaker equalization

Digital AES/EBU and S/PDIF interface and selectable sample rates (44.1, 44, 96 kHz)

Ultra high-resolution 24-bit/96kHz A/D and D/A converters and high performance 24/48-bit MOTOROLA DSP for ultimate sonic resolution

Relay-controlled hard-bypass with an auto-bypass function during power failure (failsafe relay)

Highly accurate 2x12 digit LED meters for easy input and output level setting

Ultra high-quality, illuminated 45mm faders, sealed rotary controls and illuminated switches

Servo-balanced inputs and outputs on gold-plated XLR and 1/4 in. TRS connectors

Internal switch-mode power supply for maximum flexibility (100-240V~), noise free audio, superior transient response and lowest possible power consumption

Extremely rugged construction ensures long life even under the most demanding conditions

Designed in Germany. Manufactured under ISO9000 certified management system

Technical Info

Analog Inputs
- Connector: XLR
- Impedance: 22k ohms @ 1 kHz
- Maximum Input Level: +12 or +22 dBu, switchable

Analog Outputs
- Connector: XLR
- Impedance: 100 ohms @ 1 kHz
- Maximum Output Level: +12 or +22 dBu, switchable

Frequency Response: 15 Hz to 35 kHz, +/- 3 dB

Signal to Noise Ratio: 104 dBu, a-weighted, 22 Hz-22kHz

Bypass: Relay, hard bypass in case of power failure

Digital Inputs
- Type: XLR
- Standard: AES/EBU or S/PDIF
- Input Impedance: 110 ohms
- Nominal Input Level: 0.2-5V peak to peak

Digital Outputs:
- Type: XLR
- Standard: AES/EBU or S/PDIF
- Impedance: 110 ohms
- Output Level: 2-5V peak to peak

Digital Processor Converter: 24 bit Delta Sigma, 64/128 oversampling

Sample Rate: 44.1 kHz, 48 kHz, 96 kHz

Graphic Equalizer:
- Type:XLR transformer balanced
- Frequency Range: 20Hz to 20kHz 31 1/3 octave bands according to ISO frequencies
- Bandwidth: 1/3 octave
- Control Range: +/-6, +/-12 dB or 0/-24dB (switchable)

Feedback Destroyer:
- Type: Digital signal analysis for feedback identification
- Filter: Maximum 10 digital notch filters per channel, automatic feedback suppression system
- Frequency Range: 20Hz - 20kHz
- Bandwidth: 1/10 octave
- Control Range: -48dB in 6 dB steps

Master:
- Gain: -9dB to +9dB

Filter:
- Low Cut: 20Hz to 160 Hz (12dB/oct)
- High Cut: 2.5 kHz to 16kHz (12dB/oct)

Dynamics:
- Type: Gate and limiter with digital IGC (Interactive Gain Control)
- Threshold: variable -60 to -10 dB (gate), variable -6 to +9dB (limiter)

Function Switches:
- Bypass: switch, to deactivate equalizer functions
- Meter in/out: selects between input and output metering
- Fader Range: Sets the maximal cut/boost for the 31 bands
- Standby: switches into standby mode
- Pink Noise: -48 dB to 0 dB
- FB Indicator: recognition of frequency band intensity
- True Curve: Algorithm for achieving filter curve linearity

Dimensions (H x W x D): 3.5 x 19 x 5.3 in.

Weight: 5 lbs

Digital performance, analog-style operation! With 31 bands and selectable boost/cut range. Feedback destroyer built-in. High and low-cut filters. Gate and limiter. Analog XLR I/O; AES/EBU and S/PDIF 24-bit, 96kHz I/O.
