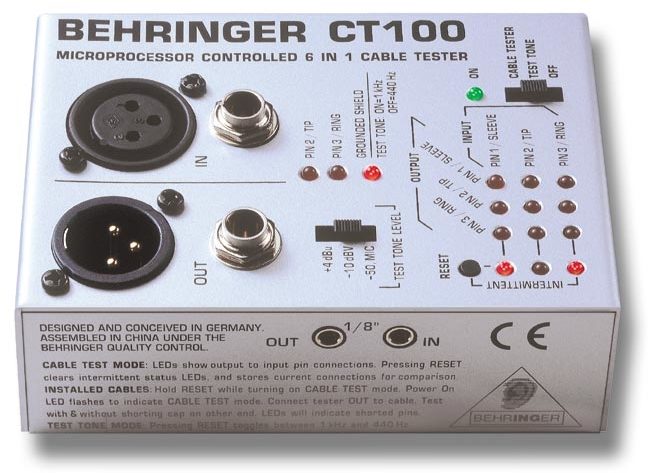

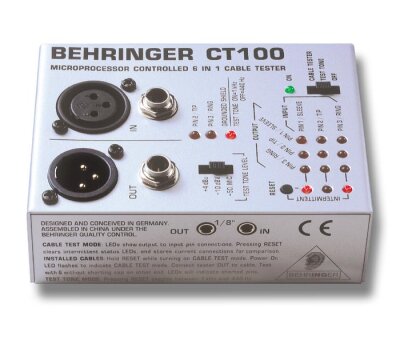

The intelligent, CPU-controlled CT100 accepts virtually any connector type: XLR, mono and TRS phone (1/4 in., 1/8 in., TT), RCA and MIDI. It shows which input pin is connected to which output pin. Separate LEDs indicate proper shield connection and phantom power presence. The CT100 also offers an installed cable test mode and a continuity check plus a test tone generator.
Features
3 modes: cable test mode, installed cable test mode, and test tone mode
Accepts XLR, mono and stereo TRS phone (1/4 in., 1/8 in., TT), RCA and MIDI Connectors
Continuity check
Intermittent detect
Phantom power detect
Grounded shield detect
Test tone generation (1 kHz and 440 Hz)
Battery operation (requires 2 AA alkaline batteries)
At this price, there's no excuse not to get a cable tester! Tests XLR, 1/4", 1/8", RCA, and MIDI cables for continuity, phantom power, and ground.
