Need to convert a digital signal to analog, or vice versa? The Behringer ADA8000 digital converter is sublimely easy to operate and fits neatly into a single rack space. The integrated A/D and D/A converters ensure optimal signal conversion without any distortion or signal deterioration.

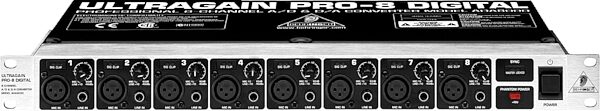

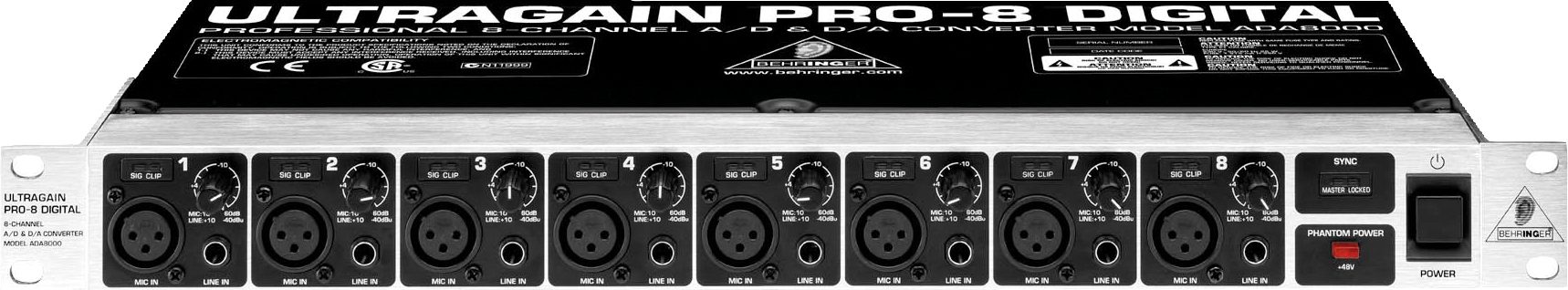

The ADA8000 is a state-of-the-art 8-channel A/D (Analog to Digital) and D/A converter with 8 built-in IMP (Invisible Microphone Preamps) microphone preamps. You can plug in your favorite mics (ADA8000 even includes +48V phantom power for studio-grade condenser mics) and record directly to your multi-track or computer-based recorder, thanks to the built-in ADAT(r) interface. Conversely, the ADA8000 can also be used to convert digital signals, from soundcards and other multi-track devices, back into analog audio.
The Technical Stuff
Signal conversion in the ADA8000 can take place at either 44.1 or 48 kHz with 24-bit resolution. The ADAT inputs and outputs can be operated independently, as long as there is an identical wordclock signal. Frequency range is an ultra-wide 10 Hz to 21 kHz at a 48 kHz sampling rate.
The Ins and Outs

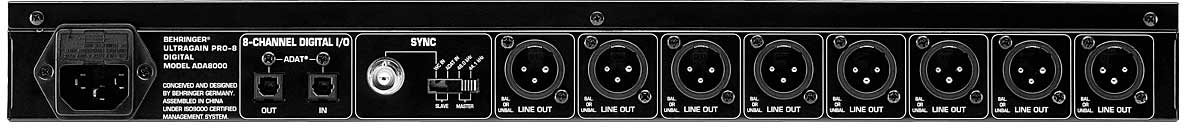

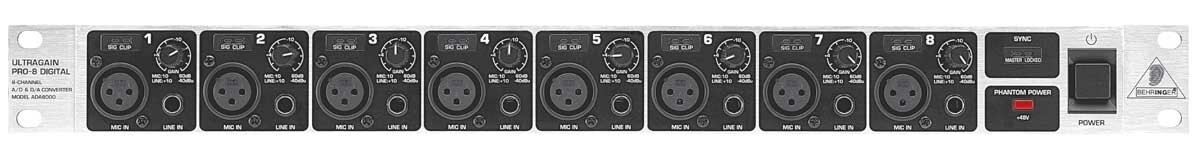

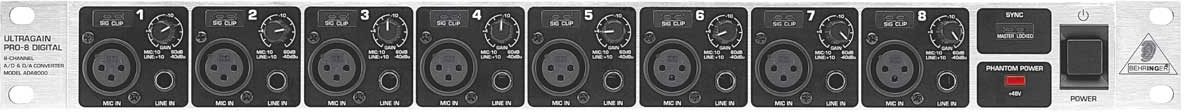

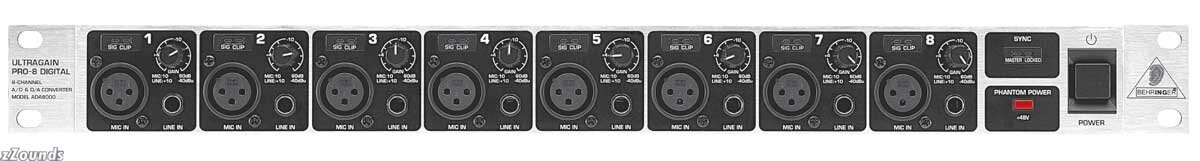

Connections are provided for balanced XLR and 1/4" TRS, as well as unbalanced 1/4" TS inputs. Line Out connectors provide either balanced or unbalanced connectivity. Digital I/O is handled via a TOSLINK optical socket, which supports up to eight (8) channels of data.
You can trust all your digital ones and zeros to the ADA8000, at an ultra-affordable price that will amaze you. Join the digital revolution or continue to languish in analog obscurity.
- Ultra-high quality 8-channel A/D and D/A converter for virtually any digital recording/mixing environment
- 8 state-of-the-art, studio-grade IMP "Invisible" Mic Preamps
- Phantom power on all microphone inputs
- The perfect expansion for Behringer's digital mixing console DDX3216
- High-end 24-bit A/D and D/A converters for ultimate signal integrity
- Processes 44.1 and 48 kHz sample rates
- External sample rate synchronization via word clock or ADAT input
- Optical ADAT in/out interface for ultimate compatibility
- ADAT input can be routed to all Line outputs
- All Mic/Line inputs are routed to the ADAT output
- Master/Locked (Sync) LED display easily visible on the front panel
- High-quality components and exceptionally rugged construction ensure long life
- Conceived and designed by Behringer Germany
zZounds is an authorized dealer of
Product DescriptionHigh-End 8-Channel A/D & D/A Converter with Premium Mic Preamplifiers and ADAT(r) Interface
The ADA8000 is a state-of-the art 8-channel A/D and D/A converter with 8 built-in IMP microphone preamplifiers. This ultra-compact 19 in. unit gives you the opportunity to connect analog audio signals directly to a multi-track recorder or similar equipment via the integrated ADAT interface -- and needs only 1 rack space for this purpose! In return, you can even connect the digital signal of a multi-tracker via ADAT to the 8 analog line outputs of your ADA8000.
Of course, the ADA8000 is a perfect expansion of Behringer's digital mixing console DDX3216, and lets you turn your DDX3216 into a full-fledged 32-channel console. Signal conversion can be processed at 44.1 or 48 kHz with 24-bit resolution. The ADAT inputs and outputs can be operated independently as long as there is an identical wordclock signal. The integrated A/D and D/A converters ensure optimal signal conversion without any distortion or signal deterioration.
Ultra high-quality 8-channel A/D & D/A converter for virtually any digital recording/mixing environment
8 new state-of-the-art, studio-grade IMP 'Invisible' Mic Preamps
Phantom power on all microphone inputs
The perfect expansion for Behringer's digital mixing console DDX3216
High-end 24-bit A/D and D/A converters for ultimate signal purity
Processes 44.1 and 48 kHz sample rates
External sample rate synchronization via wordclock or ADAT input
Optical ADAT In/Out interface for ultimate compatibility
ADAT input can be routed to all line outputs
All mic/line inputs are routed to the ADAT output
Master/locked (slave) LED display easily visible on the front panel
Extremely rugged construction ensures long life even under the most demanding conditions
Manufactured under ISO9000 certified management system
