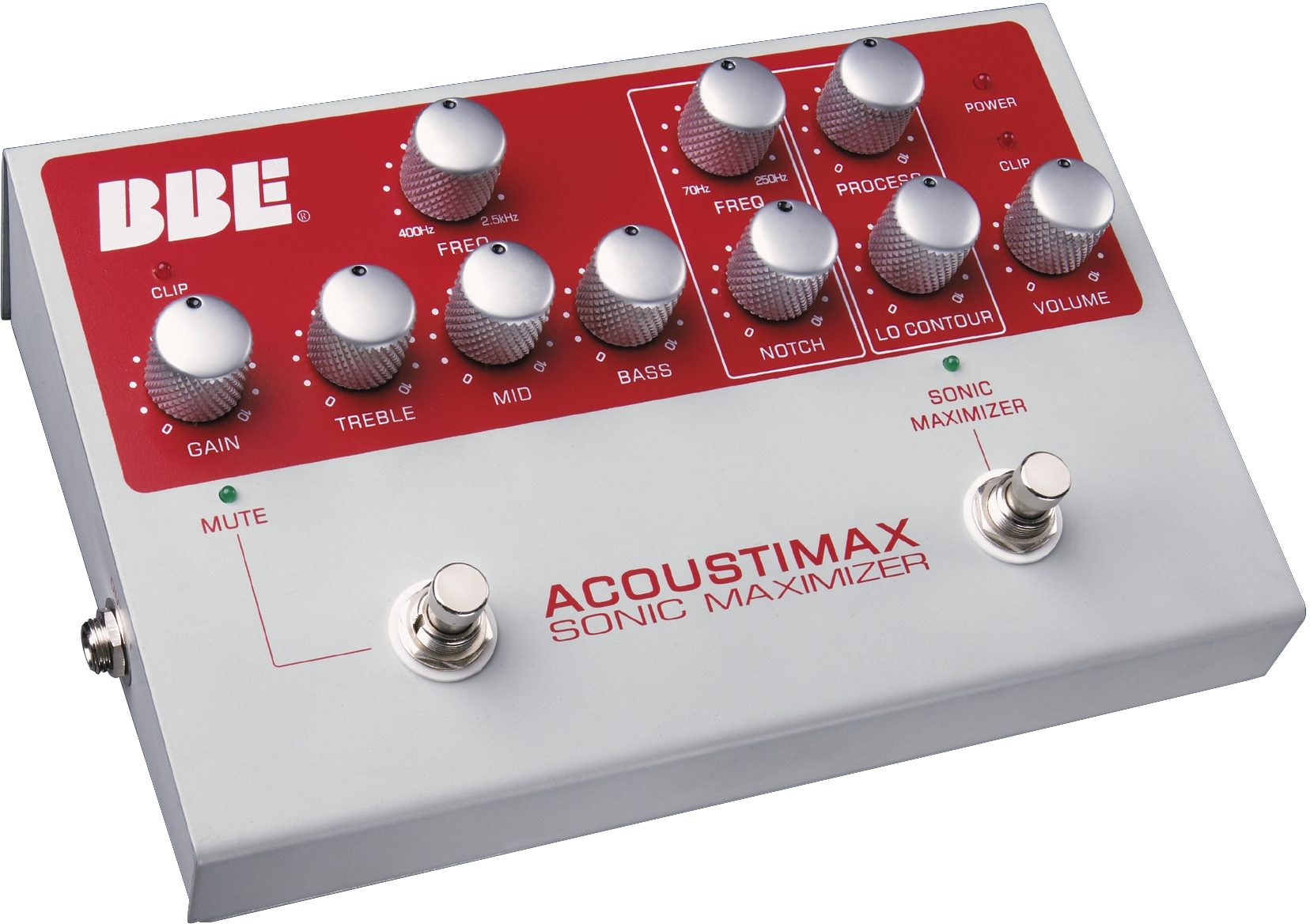

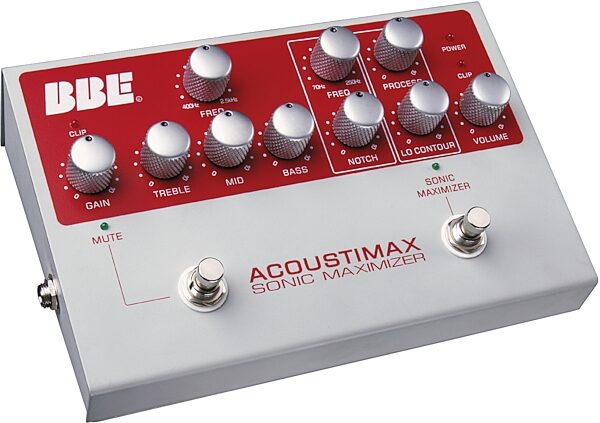

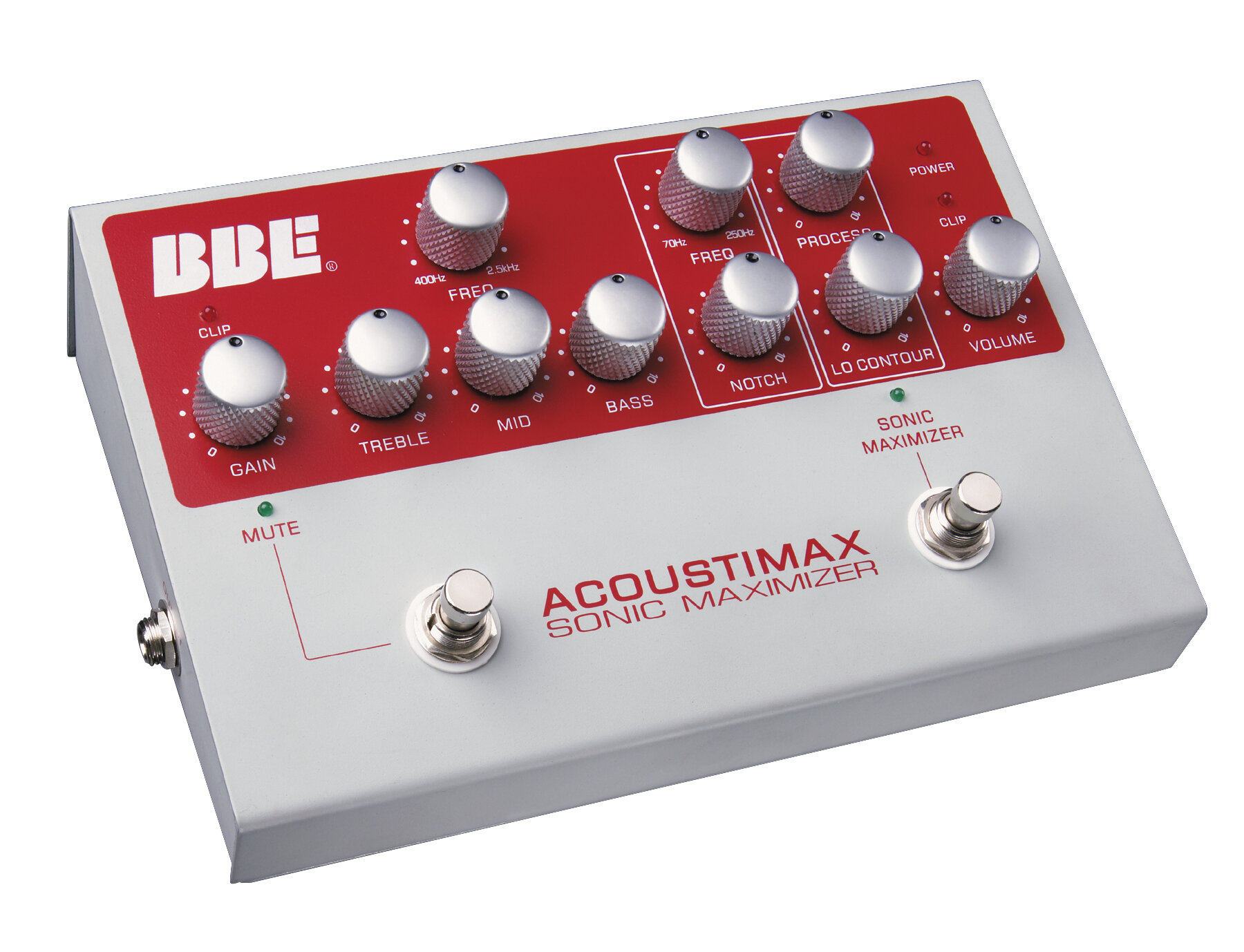

BBE Acoustimax Acoustic Guitar Preamp

BBE is at the forefront of audio technology which allows amplified music to sound more natural, and the latest generation of BBE High Definition Sound technology is a vital element to the new Acoustimax acoustic preamp. In the four years since BBE last offered its award winning 386 acoustic preamp, BBE's design and engineering team studied the serious acoustic player's needs for both recording and sound reinforcement.

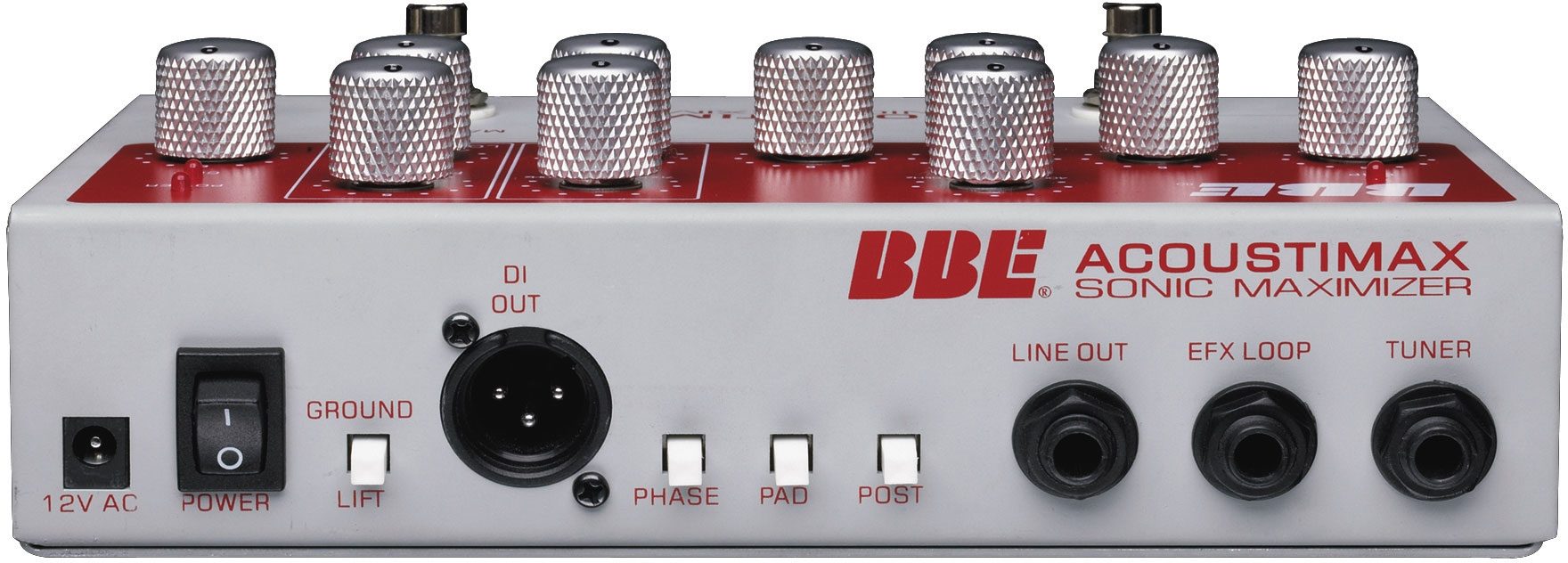

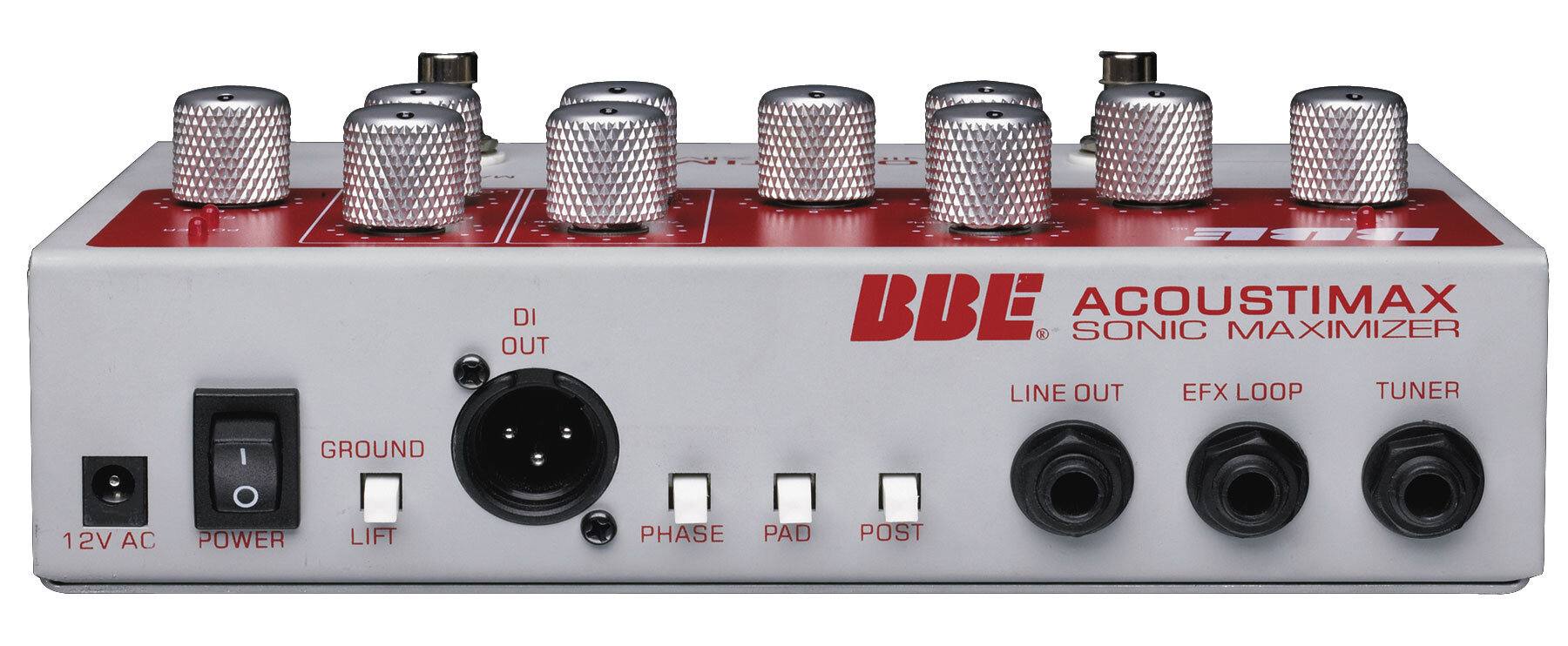

The result is Acoustimax, a foot pedal style (or "stomp box style) acoustic preamp which raises the bar for amplified acoustic instrument sound quality. Acoustimax is packed with features including three band, recording console quality EQ with a sweepable mid-range band, low frequency notch filter, phase reversal, ground lift, line level out, dedicated tuner out and TRS effects loop, even a pre/post switchable balanced DI output with pad. Other features include hard wired bypass, non-slip rubber bottom and the included 12v power supply.

Technical Info

Frequency Response: 50Hz - 20kHz

Treble: +/- 12dB @ 10kHz

Mid: +/- 12dB @ 400Hz - 2.5kHZ

Bass: +/- 12dB @ 60Hz

Notch: 0 to 12 dB @ 70Hz - 250 Hz

BBE:
Low Contour: +15dB @ 50Hz
Process: +15dB @ 10Khz

Noise:
Instrument Jack: -98dBv (unity gain)
Line Out: -88dBv (+10dB gain)

Max. Output: +10dBu @ Instrument Jack

THD: 0.05% at 1 kHz

Impedances:
Input: 2.2 MEG Ohm
Tuner Out: 2k Ohm
Line Out: 1k Ohm
Instrument Out: 2k Ohm
XLR Out: 600 Ohm

* 0dBu = 0.775Vrms

Power Requirements: DC inlet +12VAC min. 200ma
