Audio-Technica VM750SH Shibata Nude Stereo Turntable Cartridge

Outfit your turntable with the Audio-Technica VM750SH cartridge, which includes a Shibata stylus for extremely high accuracy and detailed treble frequencies.

The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica's VM cartridge line -- a line that harks back to A-T's early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today's advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge's Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.

Features:

- VM dual magnet cartridge with Shibata stylus
- Aluminum tapered cantilever

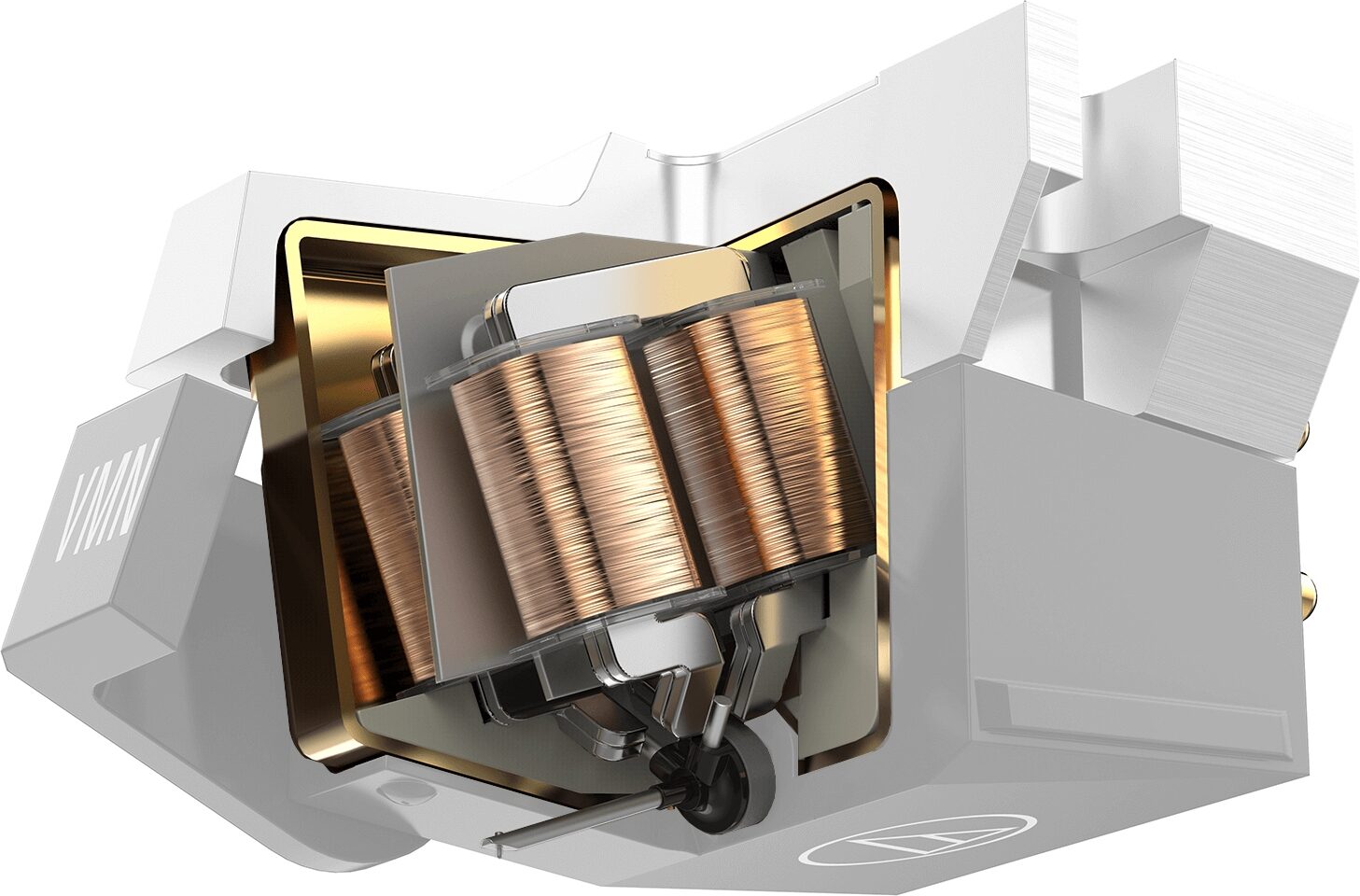

- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Frequency Response: 20-27,000 Hz
- Channel Separation: 30 dB (1 kHz)
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Nude square shank
- Recommended Load Impedance: 47,000 ohms
- Output: 4.0 mV (at 1 kHz, 5 cm/sec)
- Channel Balance: 1.0 dB (1 kHz)

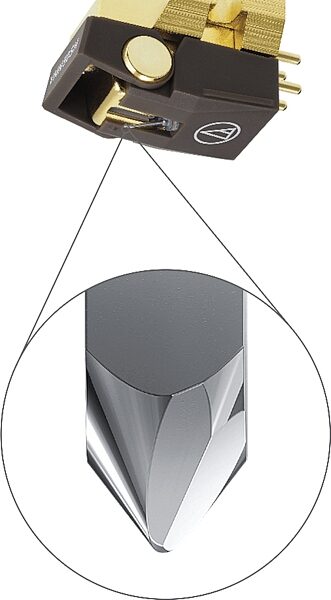

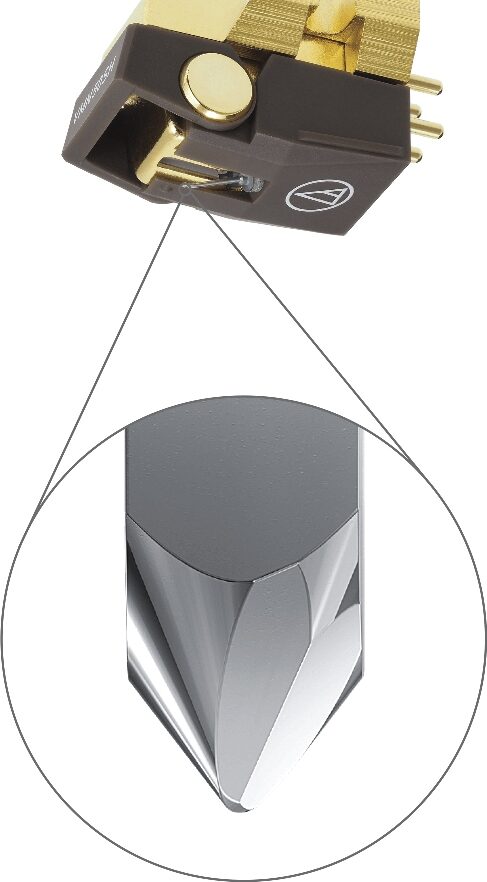

- Stylus Shape: 2.7 x 0.26 mil Shibata
- Cantilever: Aluminum tapered pipe
- Mount: Half-inch
- Replacement Stylus: VMN50SH
- Coil Impedance: 2,700 ohms (1 kHz)
- DC Resistance: 800 ohms
- Load Capacitance: 100-200 pF
- Coil Inductance: 460 mH (1 kHz)
- Static Compliance: 40 x 10-6 cm/dyne
- Dynamic Compliance: 10 x 10-6 cm/dyne (100 Hz)
- Vertical Tracking Angle: 23*
- Dimensions: 17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D
- Weight: 8.0 g (0.3 oz)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.39 lbs
Shipping Dimensions: 4 x 4 x 2 in
Manufacturer Part Number (MPN): VM750SH
