Audio-Technica PRO-501/H Pro Series 5 UHF Wireless Headset Microphone System

No longer available at zZounds
Usable with 8 selectable frequency-coordinated UHF channels, this wireless headset system is a great choice for presenters, teachers, drummers, and more.

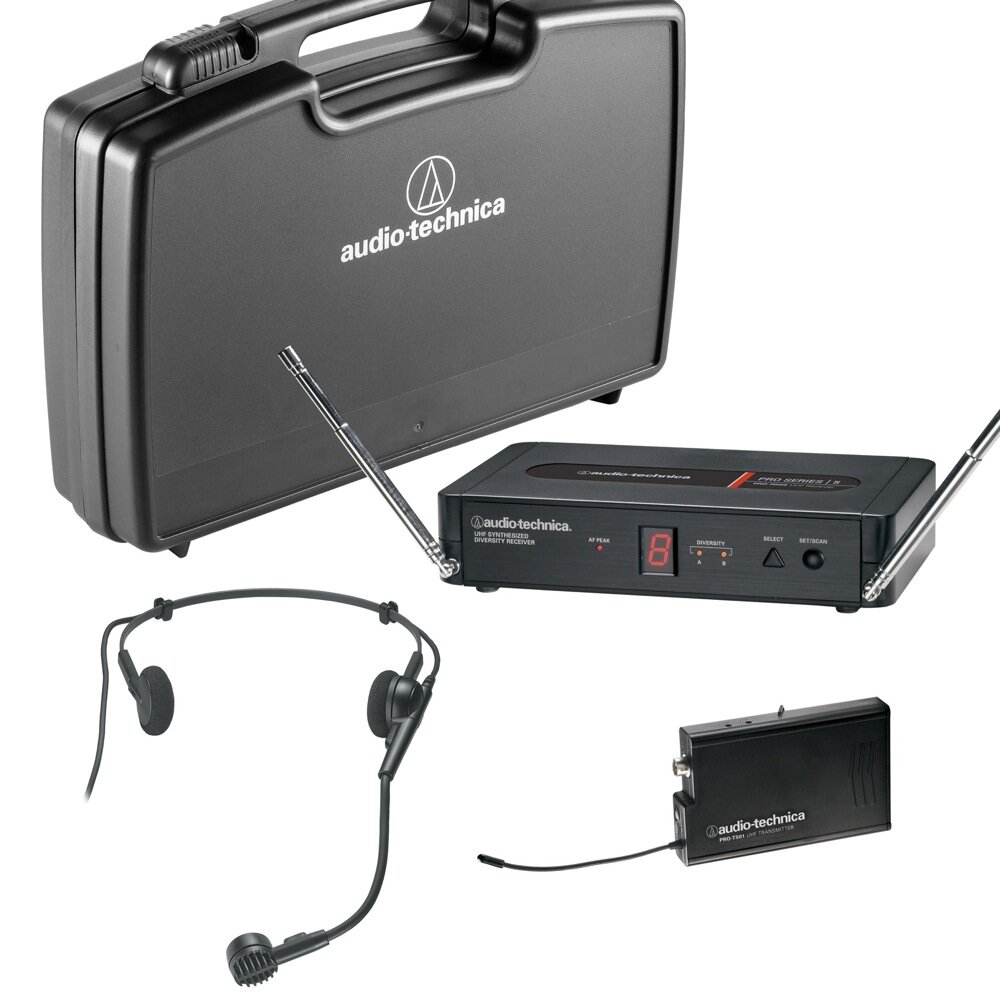

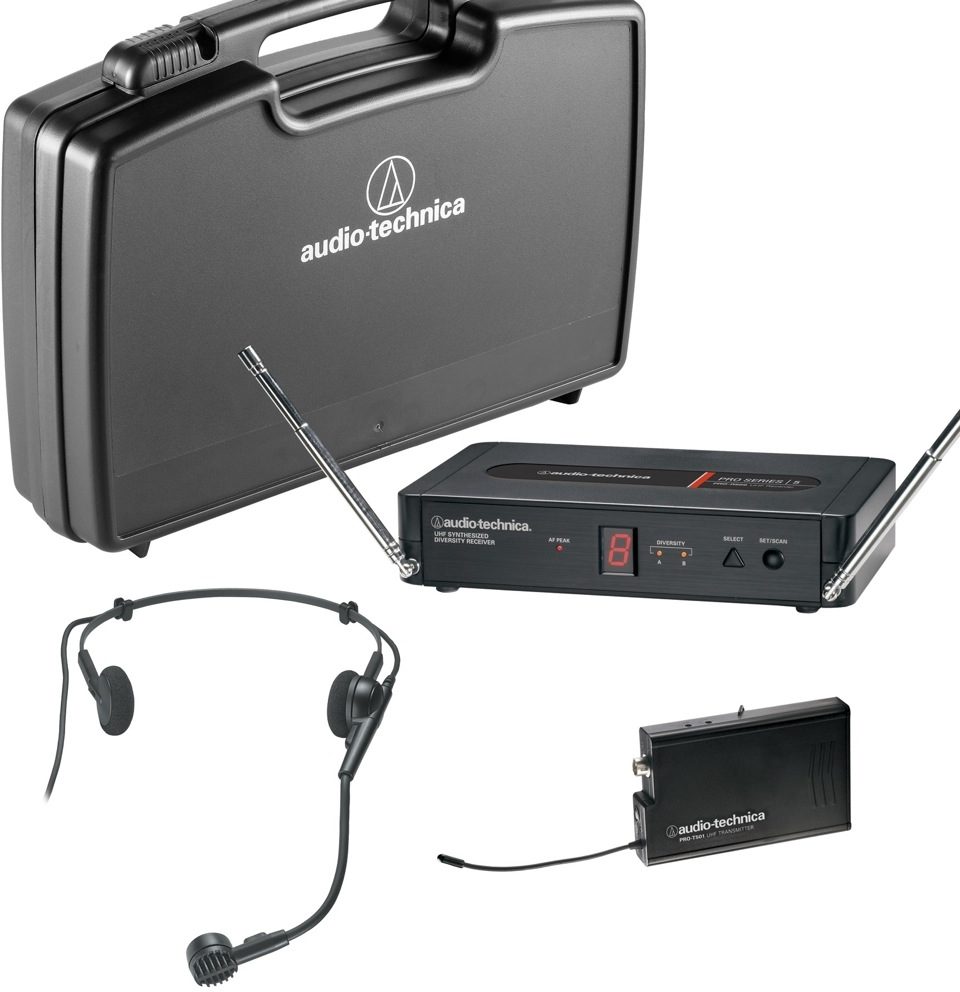

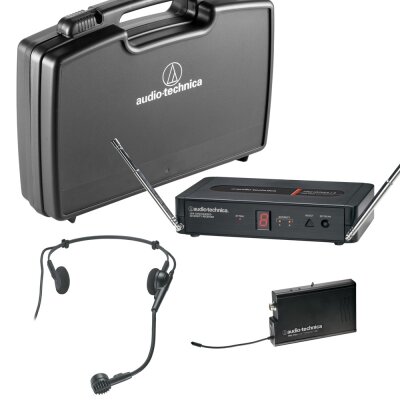

The Audio-Technica PRO-501/H Pro Series 5 UHF wireless headset microphone system includes a PRO-R500 receiver and a PRO-T501 UniPak transmitter with PRO 8HEcW headworn microphone. Also included is a system storage case. Ideal for the musician on the go, Audio-Technica's Pro Series 5 wireless delivers outstanding sound quality, automatic frequency scanning, and a convenient rugged case for storage and use on the road.

These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock(TM) squelch and more.

Features:

- Includes rugged storage/road case designed to fit all components
- Eight selectable frequency-coordinated UHF channels
- Use up to eight simultaneous systems -- all channels compatible
- Automatic frequency scanning
- Diversity operation for increased range/reliability
- LED Channel display plus Antenna, AF Peak indicators
- Balanced XLR and unbalanced 1/4" output connectors
- Tone Lock(TM) squelch system eliminates interference when transmitter is off
- UniPak(R) transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation
- Pro Series 5 body-pack systems are compatible with all Audio-Technica Wireless Essentials(R) microphones and cables

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, read more operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
read less

System Specifications:
- Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz
- Number of Channels: 8
- Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
- Modulation Mode: FM
- Maximum Deviation: +/-25 kHz
- Operating Range: 200' typical
- Operating Temperature Range: 40* F (4* C) to 110* F (43* C)
- Frequency Response: 100 Hz to 12 kHz

Receiver Specifications:
- Receiving System: Antenna-switching diversity
- Image Rejection: 55 dB minimum
- Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz
- Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
- Sensitivity: 25 dBuV (S/N 60 dB at 10 kHz deviation, IEC-weighted)
- Audio Output: Unbalanced: 211 mV (-13.5 dBV) (1 kHz modulation, 10 kHz deviation)
- Balanced: 150 mV (-16.5 dBV) (1 kHz modulation, 10 kHz deviation)
- Output Connectors: Unbalanced: 1/4" TS ("mono") phone jack
- Balanced: XLRM-type
- Power Supply: 100-240V AC (50/60 Hz) to 12 DC 1A (center positive) switched mode, external power supply
- Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D
- Weight: 12.9 oz (365 g)
- Accessory Included: Power supply

Body-Pack Transmitter Specifications:
- RF Power Output: High: 10 mW; Low: 5 mW
- Spurious Emissions: Under federal regulations
- Dynamic Range: >100 dB, A-weighted
- Input Connections: High impedance, low impedance, bias
- Batteries: Two 1.5V AA alkaline (not included)
- Current Consumption: High: 140 mA; Low: 130 mA, typical
- Battery Life: Approximately 8 hours (High); 10 hours (Low), depending on battery type and use pattern
- Dimensions: 2.56" (65.0 mm) W x 4.13" (105.0 mm) H x 0.73" (18.5 mm) D
- Net Weight: 2.8 oz (80 g)
