Audio Technica ATW2120 Handheld Wireless System

The new 2000 Series UHF True Diversity Wireless Microphone Systems are Audio-Technica's latest entry in its extensive line of professional wireless systems. The 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses, and places of worship. It offers true diversity operation, easy setup, automatic frequency scanning with interference-free performance, and all the advantages of a high-quality, professional wireless system at an extremely affordable price.

Operating in the 600 MHz frequency band (656.125-678.500 MHz, TV channels 45-48) with 10 selectable frequencies and true diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency (open channel) -- particularly useful when employing multiple wireless systems, thereby avoiding interference and intermodulation. When there is a need to utilize multiple wireless systems simultaneously, any of the 2000 Series 10 channels may be used together without any frequency coordination problems or group selection issues. Additionally, the 2000 Series incorporates Audio-Technica's digital Tone Lock squelch plus an easy-to-read LCD information display, which provides convenient visual indications of settings and operation status.

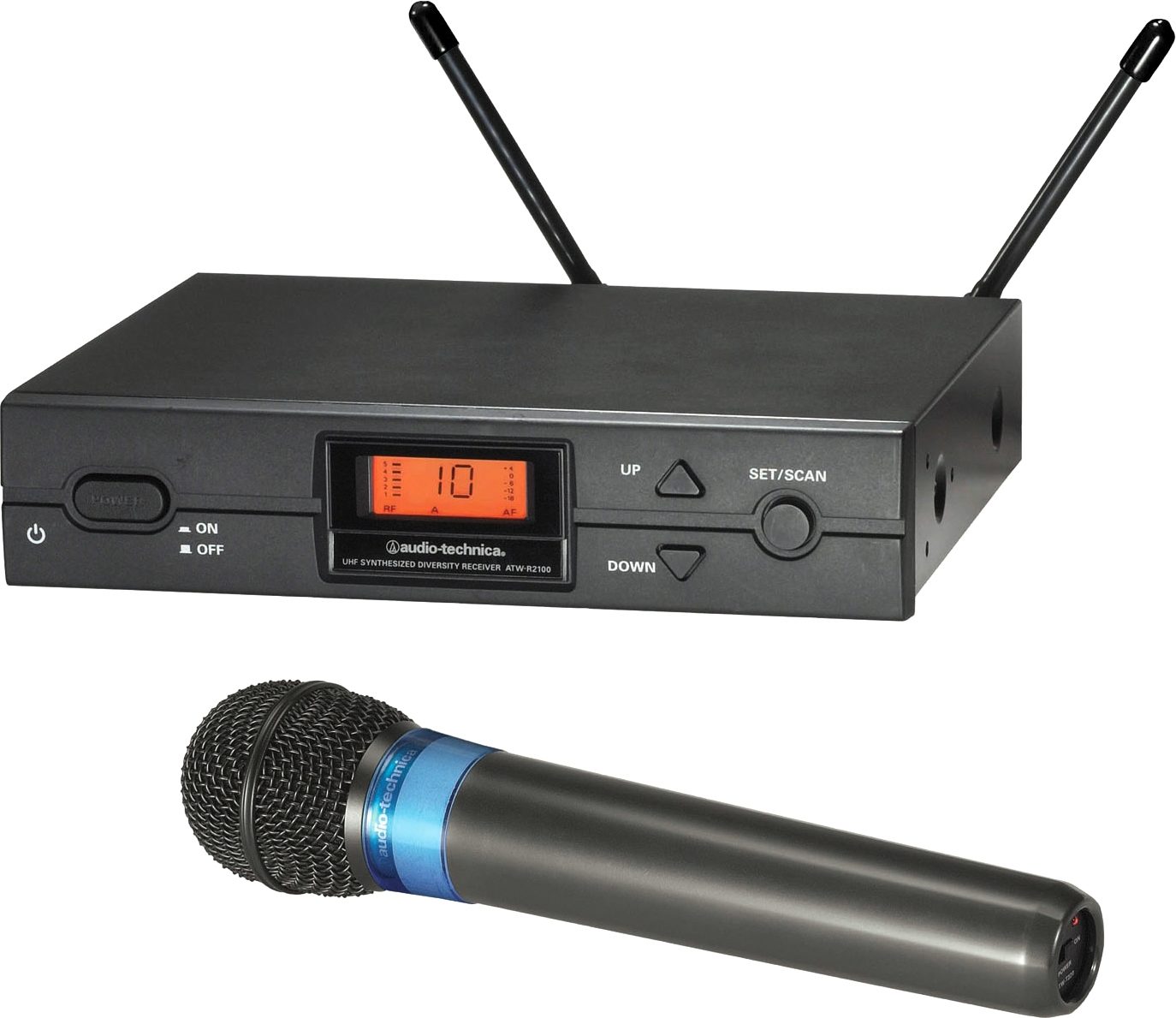

The ATW-2120 UHF Handheld Dynamic Microphone System includes the ATW-R2100 receiver, plus the ATW-T220 handheld microphone/transmitter. The ATW-T220 microphone is engineered with the same capsule as Audio-Technica's acclaimed PRO 41 microphone, providing a focused vocal pickup while offering superior gain before feedback.

The true diversity ATW-R2100 half-rack receiver features an all-metal housing for superb shielding, as well as dual independent receiver sections. Its true diversity operation selects the best signal from the two independent receiver sections, thus reducing dropouts and minimizing multipath distortion. The ATW-R2100 offers 10 PLL-synthesized UHF frequencies, advanced digital Tone Lock squelch, soft-touch controls with LCD information display, detachable UHF antennas, plus a rack-mount kit. Also included is a transmitter battery indicator LED, XLRM-type balanced and 1/4 in. unbalanced outputs, plus a ground-lift switch.

The ATW-T220 handheld microphone/transmitter features the same resilient capsule as A-T's popular PRO 41 Cardioid Dynamic Microphone. This element assembly, part of the R & D for A-T's acclaimed PRO Series, was specifically designed with high-performance specifications in mind for clarity, volume, and durability. Providing a natural, focused vocal pickup while supplying excellent feedback rejection, its internal shock mounting reduces handling noise, making the ATW-T220 ideal for close-up vocal use in live performance settings. Whether used as a handheld mic or mounted on a microphone stand, the ATW-T220 handheld microphone/transmitter excels by virtue of its rugged metal construction, the included AT8456a Quiet-Flex stand clamp, and extended battery life -- approximately nine hours, powered by two 1.5V AA batteries.

Features
Serious advances in affordable professional wireless

Clear sound quality and rock-solid, dependable performance

Automatic frequency scanning finds an open channel at the touch of a button

All 10 user-switchable channels are compatible--for easy use with multiple systems; no confusing frequency groups

True Diversity operation selects the better signal from the two receiver sections, reducing dropouts

Tone Lock tone squelch system fights interference

Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering

Balanced XLR and unbalanced 1/4 in. output jacks enable use with a wide variety of audio gear

Includes rack-mount kit and detachable UHF antennas

Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

ATW-T220 Handheld Microphone/Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound

Technical Info

Handheld Microphone System:
-- ATW-2120: ATW-R2100 receiver and ATW-T220 handheld unidirectional dynamic microphone/transmitter.

Overall system
Operating frequency: UHF band, 656.125 MHz to 678.500 MHz

Number of channels: 10 total

Frequency stability: +/- 0.005%, Phase Lock Loop frequency control

Modulation mode: FM

Normal deviation: +/- 5 kHz

Operating range: 300 ft. typical

Operating temperature range: 41 degrees F (5 degrees C) to 113 degrees F (45 degrees C)

Frequency response: 100 Hz to 15 kHz

ATW-R2100 receiver
Receiving system: dual independent receivers, automatic-switching diversity

Image rejection: 55 dB nominal, 50 dB minimum

Signal-to-noise ratio: >100 dB at 40 kHz deviation (A-weighted), maximum modulation 40 kHz

Total harmonic distortion: <1% (+/- 10 kHz deviation at 1 kHz)

Sensitivity: 20 dBuV (S/N 60 dB at 5 kHz deviation, IEC-weighted)

Intermediate frequency: 65.75 MHz, 10.7 MHz

Audio output (AF level set at "0"):
-- Unbalanced: 25 mV (at 1 kHz, +/- 5 kHz deviation, 100k ohm load)

-- Balanced: 12.5 mV (at 1 kHz, +/- 5 kHz deviation, 100k ohm load)

Output connectors
-- Unbalanced: 1/4 in. phone jack

-- Balanced: XLRM-type

Power supply: 120V AC 60 Hz, or 12-18V DC, 350 mA, with external supply

Dimensions (W x H x D): 8.27 x 1.73 x 6.39 in.

Net weight: 2.2 lbs

Accessories included: two flexible UHF antennas, rack-mount adapters, AC adapter

ATW-T220 Handheld Transmitter
RF power output: 12 mW

Spurious emissions: under federal regulations

Microphone element: dynamic, unidirectional

Batteries (not included): two 1.5V AA alkaline

Current consumption: 150 mA typical

Battery life: approximately 9 hours (depending on battery type and use pattern)

Dimensions: 9.02 in. long, 2.11 in. maximum diameter

Net weight (without batteries): 7.81 oz

Accessory included: AT8456a Quiet-Flex stand clamp
