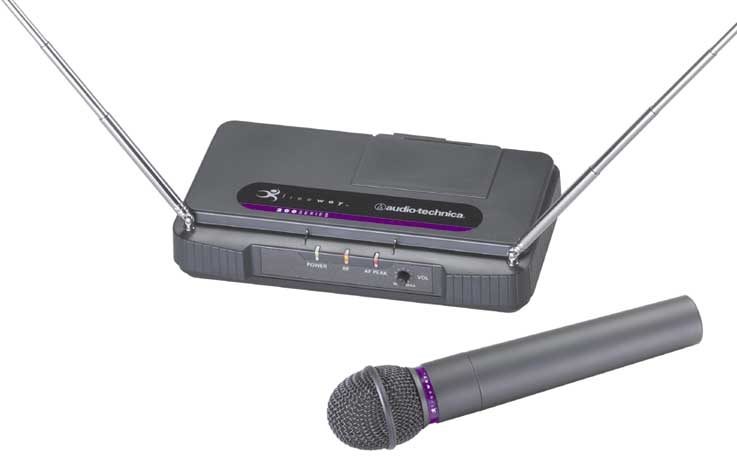

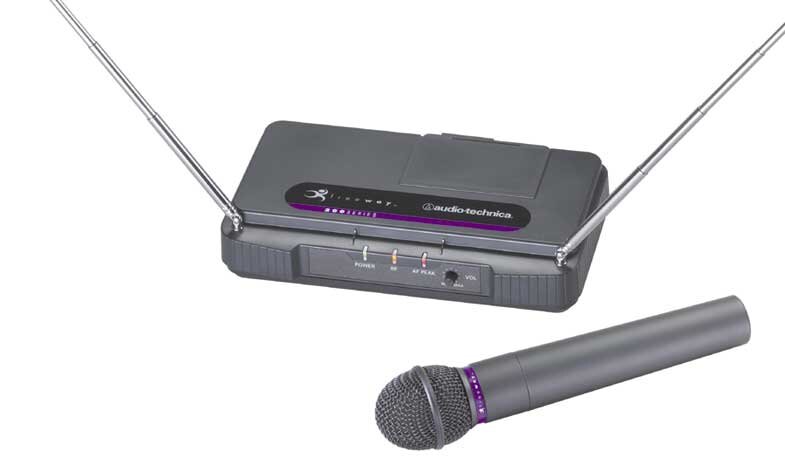

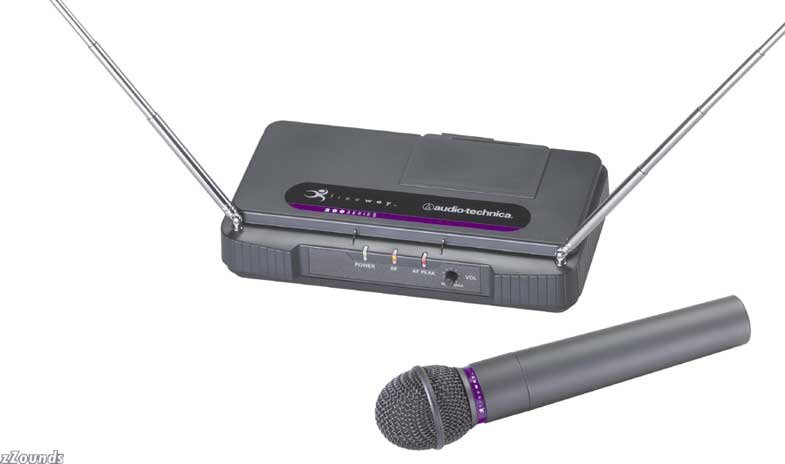

AudioTechnica is breaking new ground in affordable VHF wireless. This is a single-channel receiver with an advanced dipole antenna design and features a unique removable docking power supply that slides into the receiver. The receiver also offers squelch and volume controls along with AF Peak, RF& Power indicator lights, and a 1/4 in. output. This handheld system includes an ATW202 dynamic vocal microphone complete with a variable Trim control.
Features:
Advanced dipole antenna system
Available in three traveling frequencies
Removable docking power supply inserts into back of receiver
Adjustable squelch control
ATW-T201 UniPak transmitter includes variable microphone/guitar trim control
Technical Info
Overall System
Operating Frequencies VHF band, 169.505, 170.245, 171.905 MHz
Frequency Stability ±0.005%
Modulation Mode FM
Maximum Deviation ±15 kHz
Operating Range 200' minimum
Operating Temperature Range 40° F (4° C) to 110° F (43° C)
Frequency Response 80 Hz to 13 kHz
ATW-R200 Receiver
Receiving System Non-diversity, single-channel dual antenna system
Image Rejection 50 dB minimum
Signal-to-noise Ratio 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
Sensitivity 20 dBµV for 60 dB S/N (IEC-weighted)
Audio Output 350 mV (at 1 kHz, ±10 kHz deviation, 100 k ohm load)
Output Connector 1/4 in. phone jack
Power Supply 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply
Dimensions 8.27 in. (210.0 mm) W x 1.72 in. (43.5 mm) H x 4.73 in. (120.0 mm) D
Net Weight 18.9 oz (536 grams); without AC adapter, 11.9 oz (336 grams)
Accessories Included AD1202A 120V docking AC adapter; 120V AC IEC cordset
ATW-T202 Handheld Transmitter
RF Power Output 10 mW (High) and 2 mW (Low) typical
Spurious Emissions Under federal regulations
Dynamic Range >=90 dB, A-weighted
Microphone Element Dynamic unidirectional
Battery (not included) 9V (NEDA type 1604) alkaline
Current Consumption 30 mA typical
Battery Life Approximately 15 hours (High) and 20 hours (Low)
Dimensions 9.50 in. (241.3 mm) long, 2.10 in. (53.3 mm) diameter
Net Weight (without battery) 12.7 oz (360 grams)
Accessory Included AT8456a stand clamp
