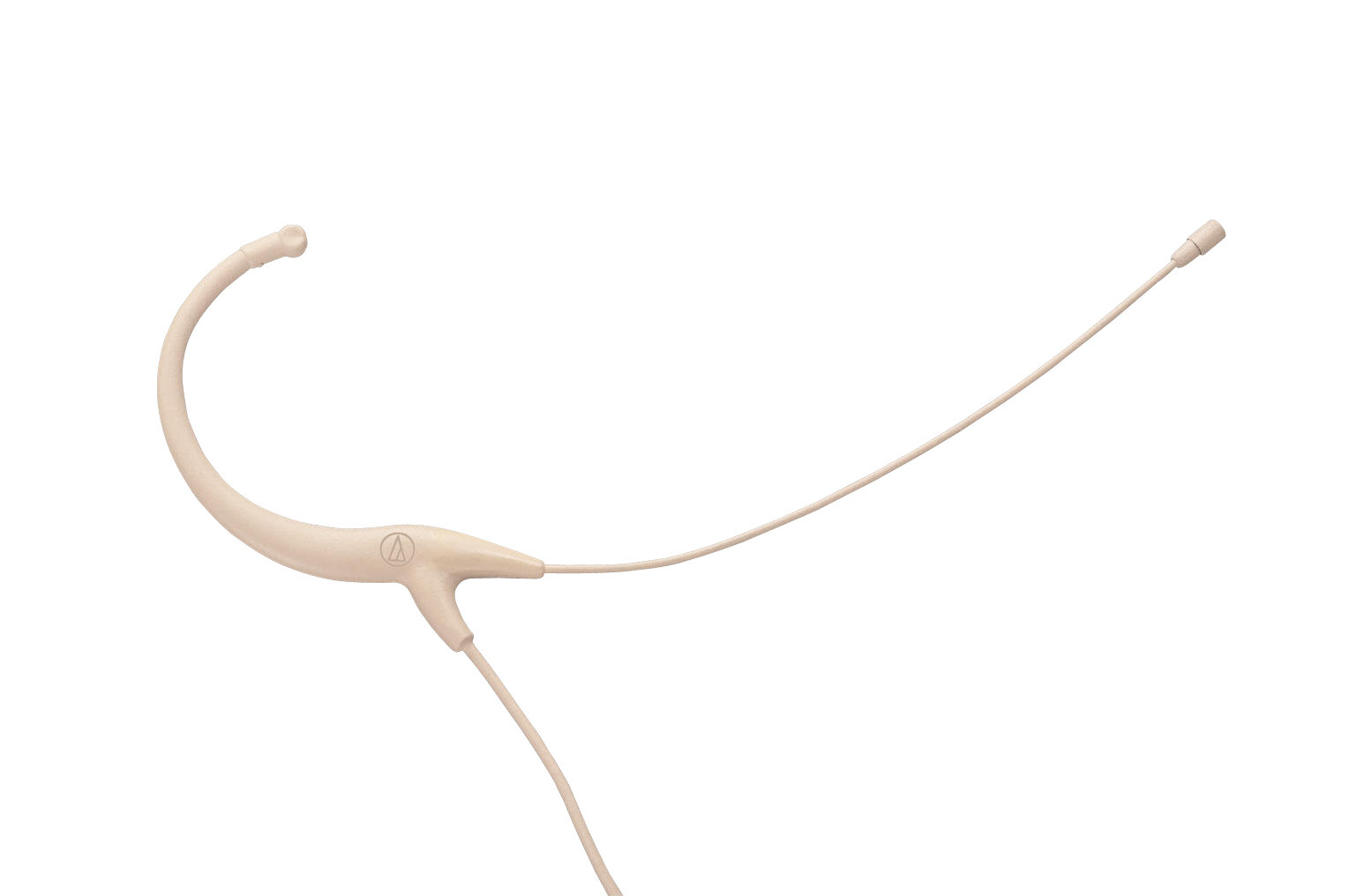

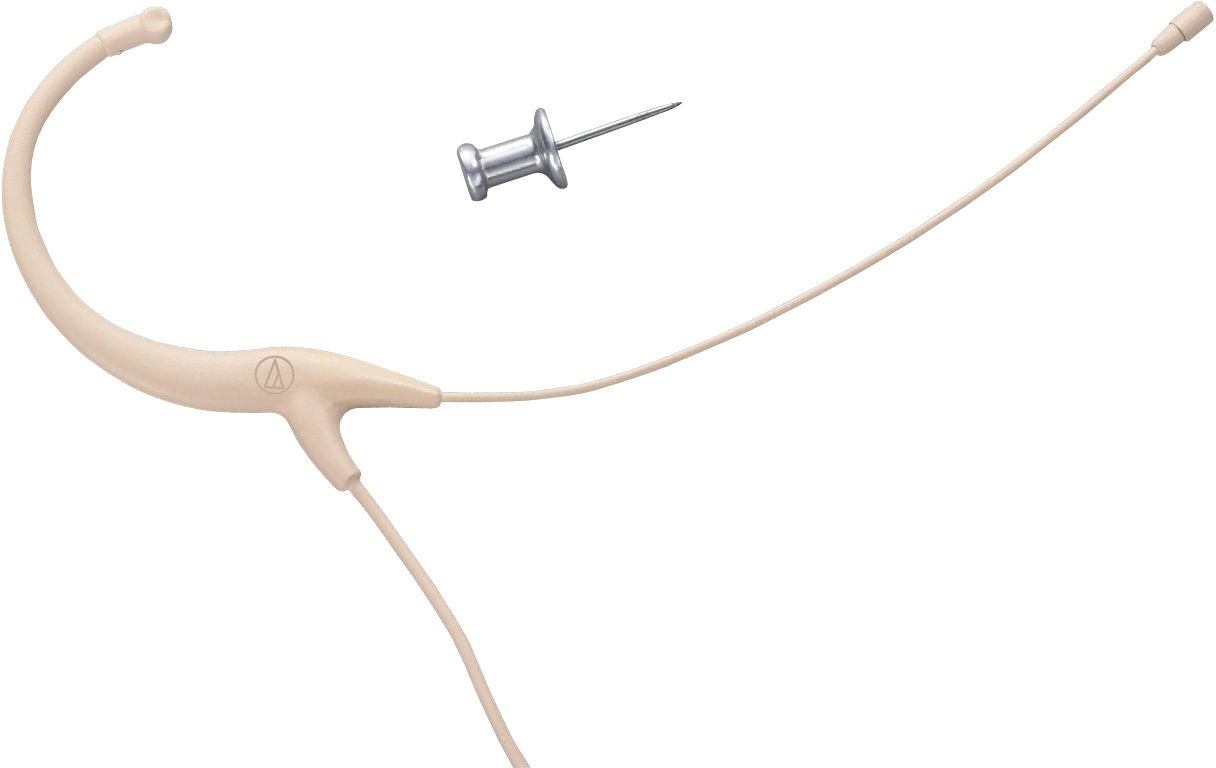

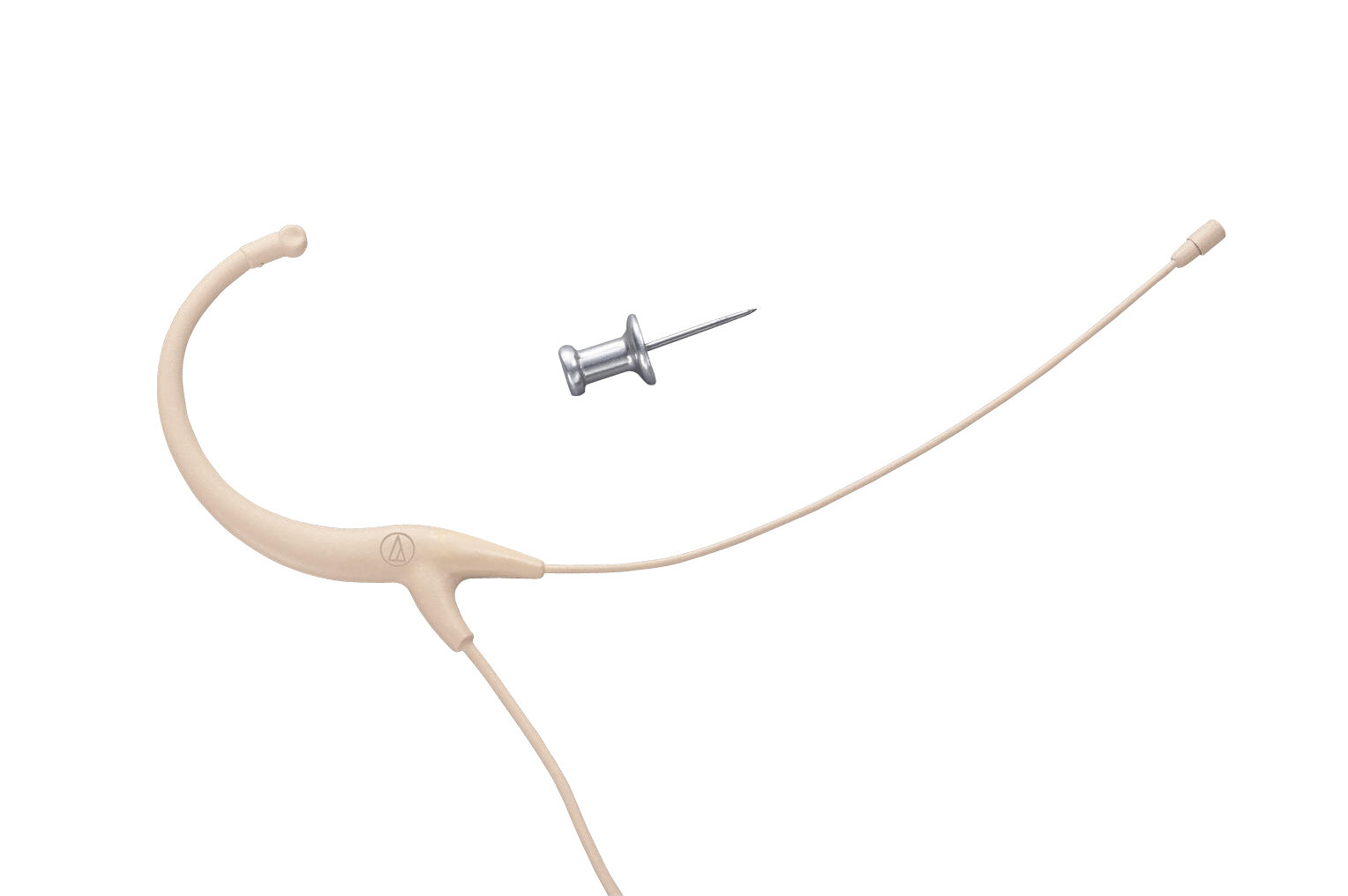

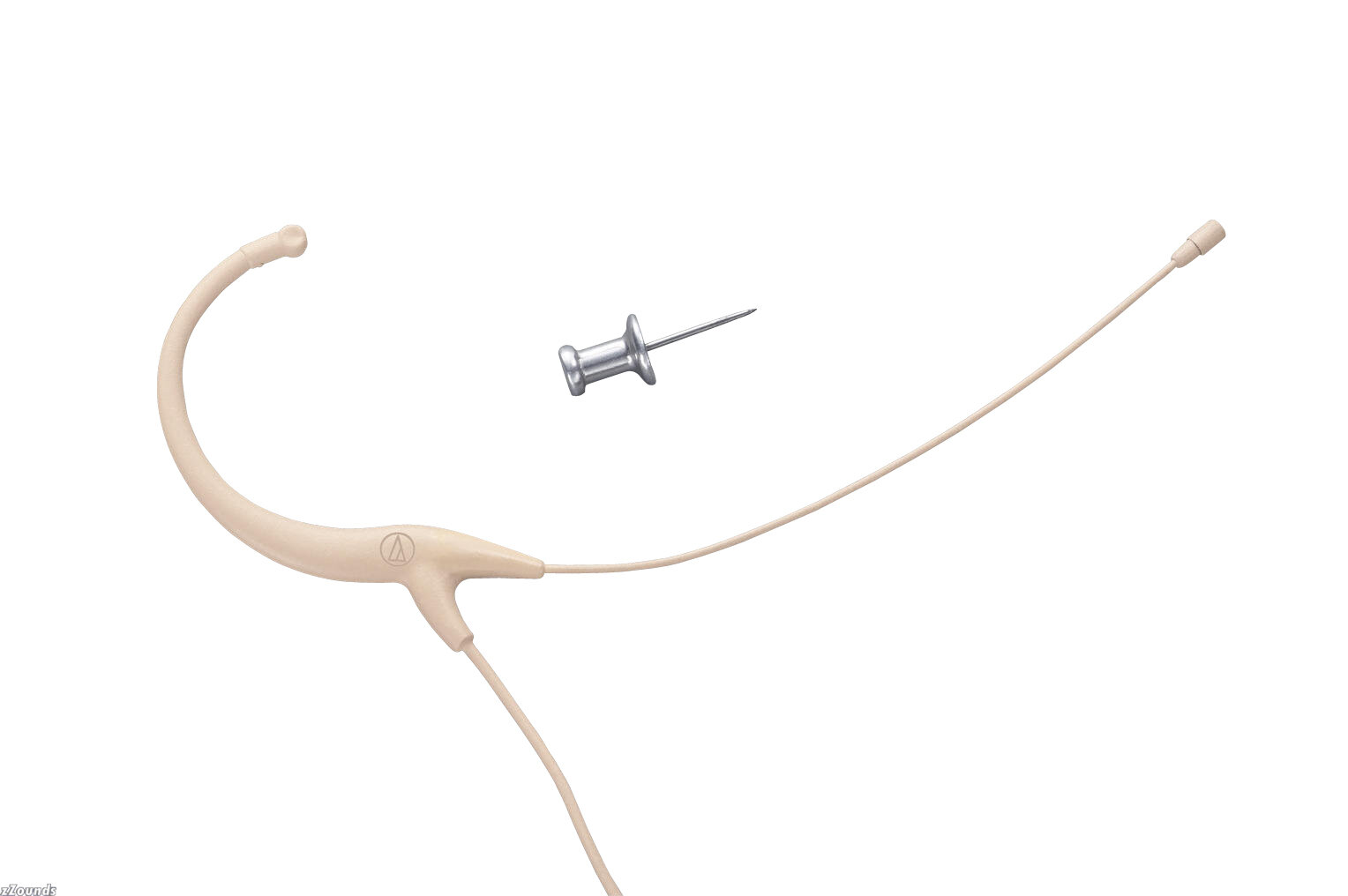

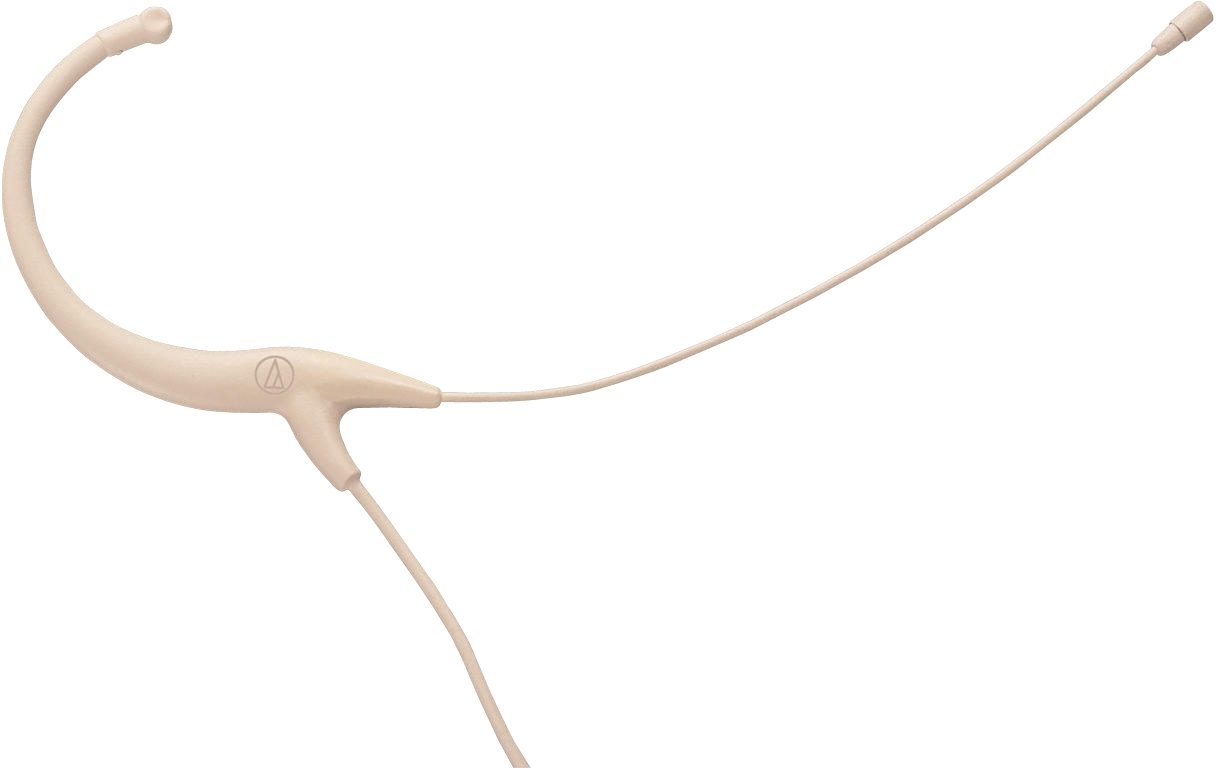

Audio Technica AT892TH Omnidirectional Headset Microphone

Introducing a giant stride in the technology of inconspicuous sound. With a capsule diameter of just 2.5 mm, the new MicroSet provides the ultimate in low-profile, high-performance audio. This innovative omnidirectional condenser headworn mic offers an ergonomic under-ear design: its flexible, lightweight contoured loop hooks behind either ear for an ultra-secure, comfortable fit with or without glasses.

Features
The new quality/wearability standard for micro headset technology

Capsule diameter of just 2.5 mm for the ultimate in low-profile, high-performance audio

Inconspicuous, lightweight headset is ideal for applications requiring minimum visibility

Ergonomic under-ear design--flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses

Industry-standard sound quality--extremely intelligible natural audio for stage and television talent, lecturers and houses of worship

Rugged construction designed to meet the challenges of day-to-day use in production and theater settings

Technical Info

Element: Condenser

Polar Pattern: Omnidirectional

Frequency Response: 20-20,000 Hz

Low Frequency Roll-Off: 80 Hz, 18 dB/Octave

Open Circuit Sensitivity: -44 dB (6.3 Mv) Re 1v At 1 Pa

Impedance: 250 Ohms

Maximum Input Sound Level: 122 dB Spl, 1 kHz At 1% T.H.D.

Dynamic Range (Typical): 88 dB, 1 kHz At Max SPL

Signal-To-Noise Ratio: 60 dB, 1 kHz At 1 pA

Phantom Power Requirements: 11-52v DC, 2 ma Typical

Weight (Microphone): Microphone, Boom & Earpiece: 2.4 G (0.08 Oz)

Weight (Power Module): 2.4 G (0.08 Oz)

Dimensions:
- Microphone: 8.1 mm (0.32 in.) Long, 2.7 mm (0.11 in.) Diameter
- Boom: 98.4 mm (3.87 in.) Long, 1.07 mm (0.042 in.) Boom Diameter

Dimensions (Power Module): 97.6 Mm (3.84 in.) Long, 18.9 Mm (0.74 in.) Diameter

Output Connector (Power Module): Integral 3-Pin XLRM-Type

Cable: 1.4 m (55 in.) Long (Permanently Attached To Microphone) 1.6 mm (0.06 in.) Diameter, 2-Conductor Shielded Cable With Locking 4-Pin Connector

Accessories Furnished: AT8539 Power Module; Two AT8157 Windscreens; Two AT8156 Element Covers; AT8440 Clothing Clip; Moisture Guard; Belt Clip; Carrying Case

Audio-Technica Case Style: M31
