Audiotrak MAYA 1010 PCI Audio Interface
No longer available at zZounds
For PC. 8 channel analog I/O. 2 channel digital I/O. 1 channel MIDI I/O.
Overview
MAYA 1010 is a unique PCI multimedia digital audio interface with a breakout box. The MAYA 1010 provides many powerful functions that will satisfy both beginners and professionals looking for high-quality digital audio solutions.
Hi-end VIA Envy24 (ICE1712) Controller
MAYA 1010 utilizes the VIA Envy24 (ICE1712) -- a versatile professional PCI multi-channel I/O controller -- providing a stable and full-featured high-performance solution. With a integrated 36-bit wide digital mixing power of ENVY24, MAYA1010 can meet the most demanding playback and recording requirements.
Noiseless recording with hi-end volume controller
The MAYA 1010 has Wolfson Microelectronics' WM8816 volume controller which provides clean line-input recording and level gain (applied for inputs 1/2 and up to 0dB for the rest channels).
Supports up to 24Bit / 96kHz sampling rate
The MAYA 1010 supports up to 96kHz sampling rate for digital recording. Full 24Bit/192kHz resolution DAC (96kHz bandwidth) with full-duplex operation is available over 10 simultaneous inputs and outputs. The MAYA 1010 will prove its value in multi-track recording, mastering or DVD audio applications.
Dual mic-ins and headphone-outs
MAYA1010 provides two microphone inputs and headphone outputs with zero latency direct monitoring when you record. The two headphone outputs are equipped with high grade headphone amps and the microphone inputs provide +12V phantom power.
Professional digital recording device
With 8 analog channels… read more and 2 digital channels (for a total of 10 channels of simultaneous inputs and outputs), the MAYA 1010 is a professional digital recording device for hard disk recording applications. Each channel's outputs are equipped with powerful op amps. The MAYA 1010 is fully compatible with multi-track recording software such as Sonar/Cakewalk, Cubase, Logic, and Nuendo; mastering software such as Sound Forge and Wave Lab; software sampler like GigaStudio, EXS, and Halion and most Virtual Instruments such as Reason and Reactor.
E-WDM driver and DirectWire 3.0 support
Audiotrak's E-WDM driver: Broad compatibility, access to professional audio tools. Current software driver technology limits audio cards to processing only the audio streams delivered from Microsoft's WDM driver to the audio hardware. Audiotrak's engineers developed E-WDM enhanced drivers that break the boundaries of the Microsoft WDM kernel's processing limitations. Audiotrak's E-WDM drivers leverage the power of today's CPUs to apply virtual sounds and effects in real time to audio streams -- just like the pros do it -- within the E-WDM driver level. E-WDM drivers provide Audiotrak's MAYA44 MKII card broad compatibility with professional quality tools (WDM, ASIO 2.0, GSIF, and more) and the ability to exceed professional latency levels.

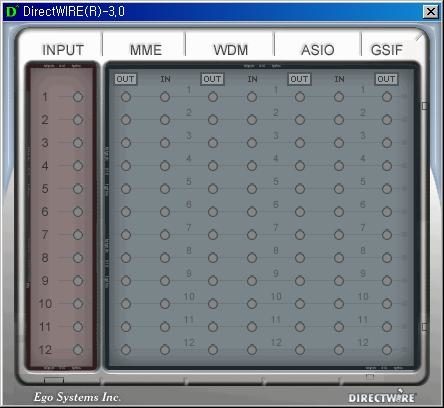

DirectWIRE 3.0: Audiotrak's unique application that allows you to virtually patch all of your digital audio between various software programs internally. In this latest version, support for patching hardware inputs and mixing multiple audio streams at the inputs has been added. With E-WDM, MAYA 1010 can simplify the hassles of wiring externally for inter-driver/inter-application audio data transfer. Especially when you use software synthesizers or virtual instruments, DirectWIRE 3.0 will help simplify your setup.

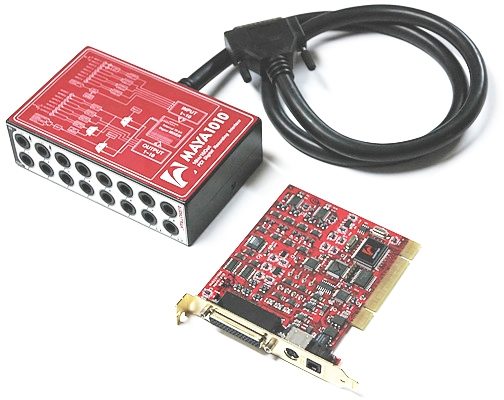

One PCI card providing all-in-one versatile connections

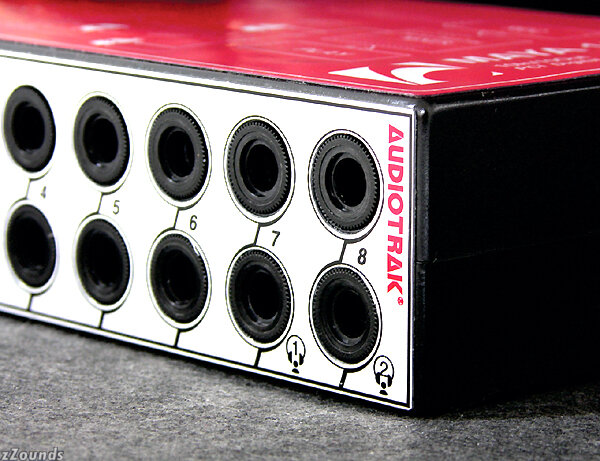

The MAYA 1010 provides the classic ESI-type professional breakout box for all analog inputs and outputs. Plus, the MIDI I/O, digital I/O cable connector will complete the MAYA1010 as true all-in-one recording card solution.
Multimedia / 7.1channels surround sound device
The MAYA 1010 delivers ultra high-quality sound and adds unique features to your Windows audio system. MAYA1010 supports all popular audio formats such as MPEG, MP3, WAV, and multimedia formats such as DVD, Video CD, Flash and Internet broadcasting. Digital audio is becoming more and more popular and with MAYA 1010. You can complete your desktop music production system easily. The MAYA 1010 will be the center of your DTMP system; providing professional studio quality sound, and easy access to the world of digital music and multimedia.

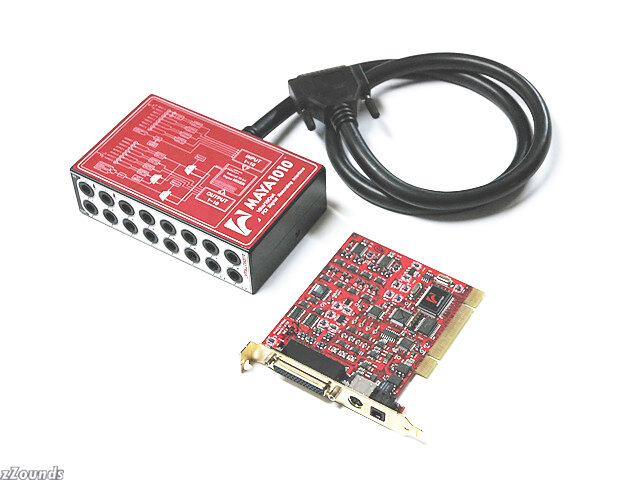

The MAYA 1010 package contains the following:

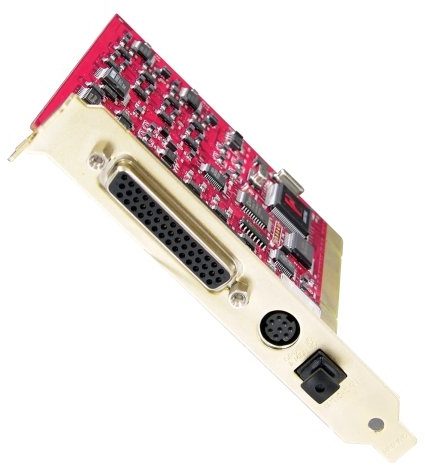

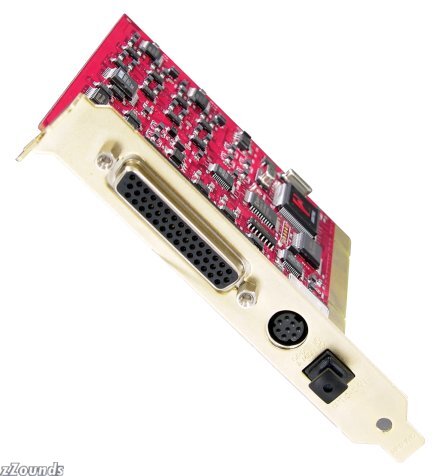

MAYA1010 PCI Interface Card
MAYA1010 Breakout Box
MIDI I/O, Digital I/O Cable Connector
User's Manual
Driver Software CD
Minimum System Requirements
Intel PentiumIII 800MHz or equivalent Intel Celeron/ Pentium4 / AMD Athron / AMD AthronXP / AMD Duron CPU
Motherboard with Intel chipsets (BX,820,815 and so on) or VIA chipsets
At least 256MB of RAM
One available PCI slot
Microsoft Windows 98SE, Windows 2000 or Windows XP operating system
Ultra DMA66/100 and 5400rpm hard disk drive
The MAYA 1010 is a multimedia digital audio device with many functions, not just a simple sound card. So although MAYA 1010 has low CPU dependability, to take full advantage of MAYA 1010, your computer needs to meet the minimum system requirements. Faster CPU, faster hard disk, and larger amounts of RAM are generally recommended.
Recommended System Requirements
Intel Pentium4 2GHz or better
Motherboard with Intel chipsets
At least 512MB of RAM
A PCI slot with no IRQ sharing
Microsoft Windows XP
UDMA 100/133, 7200RPM read less
Hi-end VIA Envy24 (ICE1712) Controller
MAYA 1010 utilizes the VIA Envy24 (ICE1712) -- a versatile professional PCI multi-channel I/O controller -- providing a stable and full-featured high-performance solution. With a integrated 36-bit wide digital mixing power of ENVY24, MAYA1010 can meet the most demanding playback and recording requirements.
Noiseless recording with hi-end volume controller
The MAYA 1010 has Wolfson Microelectronics' WM8816 volume controller which provides clean line-input recording and level gain (applied for inputs 1/2 and up to 0dB for the rest channels).
Supports up to 24Bit / 96kHz sampling rate
The MAYA 1010 supports up to 96kHz sampling rate for digital recording. Full 24Bit/192kHz resolution DAC (96kHz bandwidth) with full-duplex operation is available over 10 simultaneous inputs and outputs. The MAYA 1010 will prove its value in multi-track recording, mastering or DVD audio applications.
Dual mic-ins and headphone-outs
MAYA1010 provides two microphone inputs and headphone outputs with zero latency direct monitoring when you record. The two headphone outputs are equipped with high grade headphone amps and the microphone inputs provide +12V phantom power.
Professional digital recording device
With 8 analog channels… read more and 2 digital channels (for a total of 10 channels of simultaneous inputs and outputs), the MAYA 1010 is a professional digital recording device for hard disk recording applications. Each channel's outputs are equipped with powerful op amps. The MAYA 1010 is fully compatible with multi-track recording software such as Sonar/Cakewalk, Cubase, Logic, and Nuendo; mastering software such as Sound Forge and Wave Lab; software sampler like GigaStudio, EXS, and Halion and most Virtual Instruments such as Reason and Reactor.
E-WDM driver and DirectWire 3.0 support
Audiotrak's E-WDM driver: Broad compatibility, access to professional audio tools. Current software driver technology limits audio cards to processing only the audio streams delivered from Microsoft's WDM driver to the audio hardware. Audiotrak's engineers developed E-WDM enhanced drivers that break the boundaries of the Microsoft WDM kernel's processing limitations. Audiotrak's E-WDM drivers leverage the power of today's CPUs to apply virtual sounds and effects in real time to audio streams -- just like the pros do it -- within the E-WDM driver level. E-WDM drivers provide Audiotrak's MAYA44 MKII card broad compatibility with professional quality tools (WDM, ASIO 2.0, GSIF, and more) and the ability to exceed professional latency levels.
DirectWIRE 3.0: Audiotrak's unique application that allows you to virtually patch all of your digital audio between various software programs internally. In this latest version, support for patching hardware inputs and mixing multiple audio streams at the inputs has been added. With E-WDM, MAYA 1010 can simplify the hassles of wiring externally for inter-driver/inter-application audio data transfer. Especially when you use software synthesizers or virtual instruments, DirectWIRE 3.0 will help simplify your setup.
One PCI card providing all-in-one versatile connections
The MAYA 1010 provides the classic ESI-type professional breakout box for all analog inputs and outputs. Plus, the MIDI I/O, digital I/O cable connector will complete the MAYA1010 as true all-in-one recording card solution.
Multimedia / 7.1channels surround sound device
The MAYA 1010 delivers ultra high-quality sound and adds unique features to your Windows audio system. MAYA1010 supports all popular audio formats such as MPEG, MP3, WAV, and multimedia formats such as DVD, Video CD, Flash and Internet broadcasting. Digital audio is becoming more and more popular and with MAYA 1010. You can complete your desktop music production system easily. The MAYA 1010 will be the center of your DTMP system; providing professional studio quality sound, and easy access to the world of digital music and multimedia.
The MAYA 1010 package contains the following:
MAYA1010 PCI Interface Card
MAYA1010 Breakout Box
MIDI I/O, Digital I/O Cable Connector
User's Manual
Driver Software CD
Minimum System Requirements
Intel PentiumIII 800MHz or equivalent Intel Celeron/ Pentium4 / AMD Athron / AMD AthronXP / AMD Duron CPU
Motherboard with Intel chipsets (BX,820,815 and so on) or VIA chipsets
At least 256MB of RAM
One available PCI slot
Microsoft Windows 98SE, Windows 2000 or Windows XP operating system
Ultra DMA66/100 and 5400rpm hard disk drive
The MAYA 1010 is a multimedia digital audio device with many functions, not just a simple sound card. So although MAYA 1010 has low CPU dependability, to take full advantage of MAYA 1010, your computer needs to meet the minimum system requirements. Faster CPU, faster hard disk, and larger amounts of RAM are generally recommended.
Recommended System Requirements
Intel Pentium4 2GHz or better
Motherboard with Intel chipsets
At least 512MB of RAM
A PCI slot with no IRQ sharing
Microsoft Windows XP
UDMA 100/133, 7200RPM read less
Specs
Analog Audio
1. Analog inputs
-- Connector Type: 1/4 in. female TRS-type, balanced or unbalanced (ch 1~8)
-- Peak level: 0dBFS @ +6.5dBV (-10dBV nominal)
-- Impedance: 10k ohms minimum
-- Att. & gain control: -60dB ~ +15dB (0.5dB step size *ch 1 and 2 only
2. Analog outputs
-- Connector type: 1/4 in. female TS-type, unbalanced(ch 1~8)
-- Peak level: +6.2dBV @ 0dBFS (-10dBV nominal)
-- Impedance: 100 ohms
-- Attenuation Control: -60dB ~ 0dB (0.5dB step size)
3. Mic preamplifier
-- Peak level: 0dBFS @ -40dBV
-- Gain adjustment: gain +31dB up + -60 ~ +15dB (0.5dB step size)
-- +12V phantom power supply
4. Headphone amplifier
-- Load impedance range: 32-300 ohm (for the best performance)
-- Output power: 125mW @ 32ohm per channel
Digital Audio

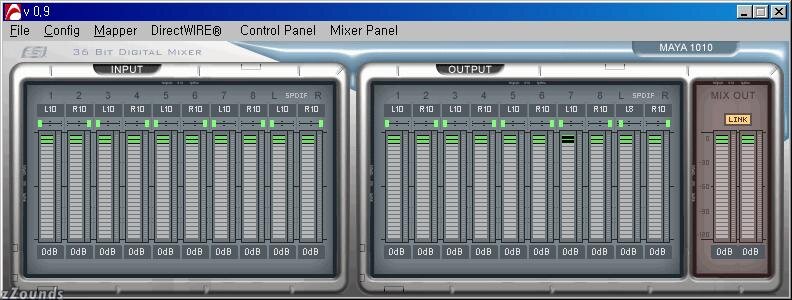

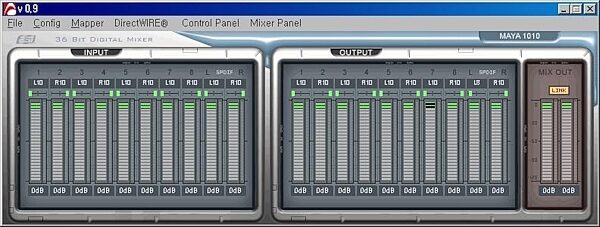

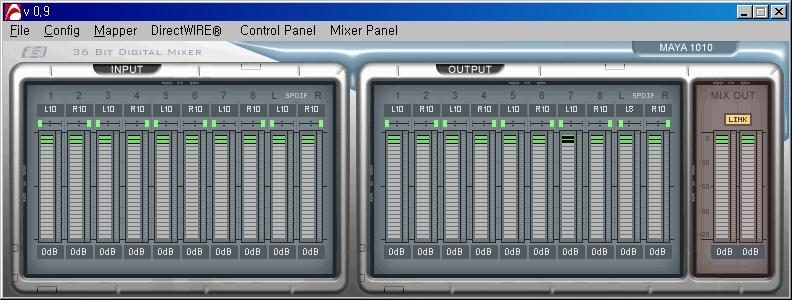

1. Internal 20ch / 36-bit digtal mixer (input 10ch / output 10ch)
2. Sample rate supports: (22.05, 24)*, 32, 44.1, 48, 88.2, 96KHz *analog only
3. A/D converter
-- Signal to noise ratio: 107dB (A-weighted) @ fs=48kHz
-- Dynamic range: 107dB (-60dBFS with A-weighted) @ fs=48kHz
-- S/(N+D)(-1dB): 100dB @ fs=48kHz
-- Interchannel isolation: -110dB
-- Resolution: 24-Bit
4. D/A converter
-- Signal to noise ratio: 112dB (A-weighted) @ fs=44.1kHz
-- Dynamic range (S/N): 112dB (60dBFS with A-weighted) @ fs=44.1kHz
-- THD+N: -94dB @ fs=44.1kHz
-- Interchannel isolation: -100dB
-- Resolution: 24-bit
5. Digital input
-- Connector type: RCA (provided via breakout cable)
-- Format: IEC-60958 consumer
-- Sampling rate : 32, 44.1, 48, 88.2, 96KHz
-- Resolution: 24-bit
6. Digital output
-- Connector type: RCA (provided via breakout cable), optical(on-board)
-- Format: IEC-60958 Consumer
-- Sampling rate: 32, 44.1, 48, 88.2, 96KHz
-- Resolution: 24-Bit
7. MIDI I/O
-- 1-in, 1-out 16 MIDI channels in and out
-- Connector type: Standard MIDI 5-pin DIN (provided via breakout cable) cable
1. Analog inputs
-- Connector Type: 1/4 in. female TRS-type, balanced or unbalanced (ch 1~8)
-- Peak level: 0dBFS @ +6.5dBV (-10dBV nominal)
-- Impedance: 10k ohms minimum
-- Att. & gain control: -60dB ~ +15dB (0.5dB step size *ch 1 and 2 only
2. Analog outputs
-- Connector type: 1/4 in. female TS-type, unbalanced(ch 1~8)
-- Peak level: +6.2dBV @ 0dBFS (-10dBV nominal)
-- Impedance: 100 ohms
-- Attenuation Control: -60dB ~ 0dB (0.5dB step size)
3. Mic preamplifier
-- Peak level: 0dBFS @ -40dBV
-- Gain adjustment: gain +31dB up + -60 ~ +15dB (0.5dB step size)
-- +12V phantom power supply
4. Headphone amplifier
-- Load impedance range: 32-300 ohm (for the best performance)
-- Output power: 125mW @ 32ohm per channel
Digital Audio
1. Internal 20ch / 36-bit digtal mixer (input 10ch / output 10ch)
2. Sample rate supports: (22.05, 24)*, 32, 44.1, 48, 88.2, 96KHz *analog only
3. A/D converter
-- Signal to noise ratio: 107dB (A-weighted) @ fs=48kHz
-- Dynamic range: 107dB (-60dBFS with A-weighted) @ fs=48kHz
-- S/(N+D)(-1dB): 100dB @ fs=48kHz
-- Interchannel isolation: -110dB
-- Resolution: 24-Bit
4. D/A converter
-- Signal to noise ratio: 112dB (A-weighted) @ fs=44.1kHz
-- Dynamic range (S/N): 112dB (60dBFS with A-weighted) @ fs=44.1kHz
-- THD+N: -94dB @ fs=44.1kHz
-- Interchannel isolation: -100dB
-- Resolution: 24-bit
5. Digital input
-- Connector type: RCA (provided via breakout cable)
-- Format: IEC-60958 consumer
-- Sampling rate : 32, 44.1, 48, 88.2, 96KHz
-- Resolution: 24-bit
6. Digital output
-- Connector type: RCA (provided via breakout cable), optical(on-board)
-- Format: IEC-60958 Consumer
-- Sampling rate: 32, 44.1, 48, 88.2, 96KHz
-- Resolution: 24-Bit
7. MIDI I/O
-- 1-in, 1-out 16 MIDI channels in and out
-- Connector type: Standard MIDI 5-pin DIN (provided via breakout cable) cable
