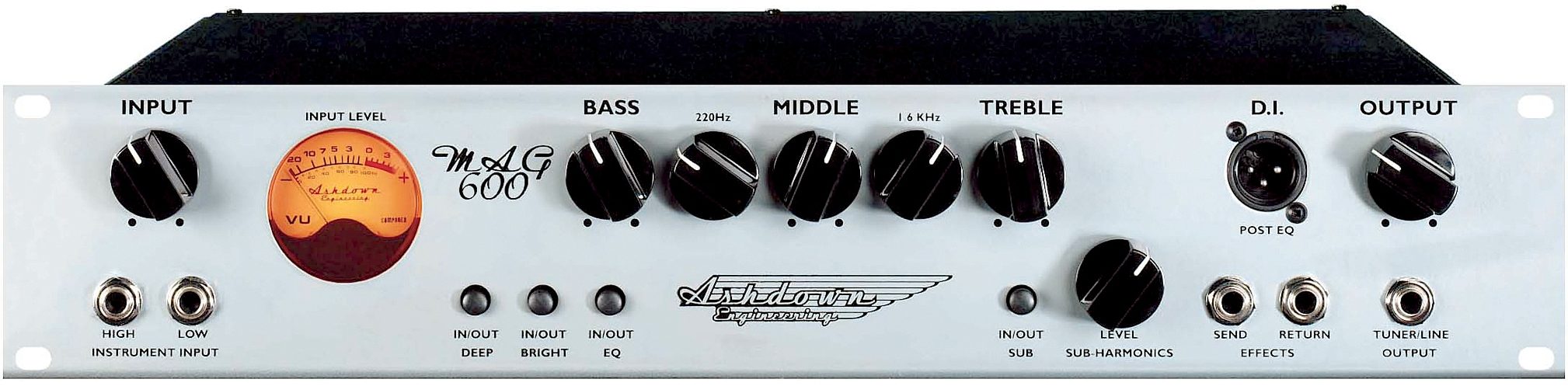

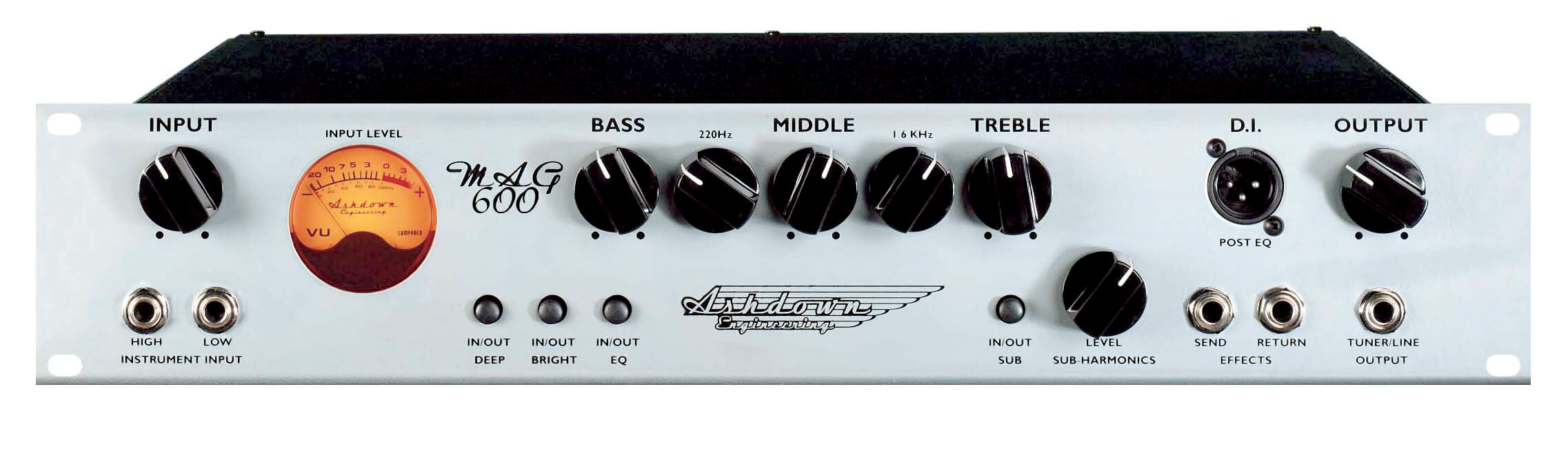

Ashdown MAG 600R Rackmount Bass Amplifier Head (600 Watts)

Designed for the busy semi-pro player who doesn't require all the sophisticated tone shaping and connectivity of the ABM range, the MAG range nonetheless delivers classic Ashdown tone all the way.

Bigger brother to the MAG300 model, the MAG 600R rack-mounting amplifier head features a potent new fan-cooled 575W RMS power section. Rotary bass, middle and treble controls are supplemented by smaller rotary controls providing 15dB of cut and boost at 220Hz and 1.6kHz, providing a comprehensive 5 band EQ section. Additionally, front panel push switches for Bright and Deep settings provide instant access to attacking and warm, rounded sounds respectively and, on the subject of low-end response, the trademark Ashdown sub-harmonic generator is ready and able to deliver truck loads of earth moving tone if called upon. inputs are provided for active and passive instruments and the front panel also features an effects send and return, a tuner/line output and a balanced DI output for direct connection to a mixing console.

Technical Info

Power output: 575W RMS

High input: impedance 3.9 megohms / input range 150mV - 20V p-p

Low input: impedance 10 kilohms / input range 300mV - 40V p-p

Line input: impedance 22 kilohms / input level 0dBu nominal

Effects return: impedance 22 kilohms / level 0dBu nominal

Tuner output: impedance 22 kilohms / level 0dBu nominal

Effects send: impedance 22 kilohms / level 0dBu nominal

DI output: 600 ohms balanced / level -20dBu nominal

Speaker outputs: minimum impedance 4 ohms

Bass: +/-15dB @ 100Hz

Lo mid: +/-15dB @ 220Hz

Middle: +/-15dB @ 660Hz

Hi mid: +/-15dB @ 1.6kHz

Treble: +/-15dB @ 7kHz shelving

Deep: +8dB @ 50Hz

Bright: +10dB @ 10kHz

Signal to noise: better than 80dB (EQ flat)

Distortion: less than 0.5% THD

Frequency response: -3dB at 17Hz and 30KHz

Power requirements: 230 /115v

H x W x D: 7.68 x 20.67 x 15.16 in.

Weight: 20.94 lbs
