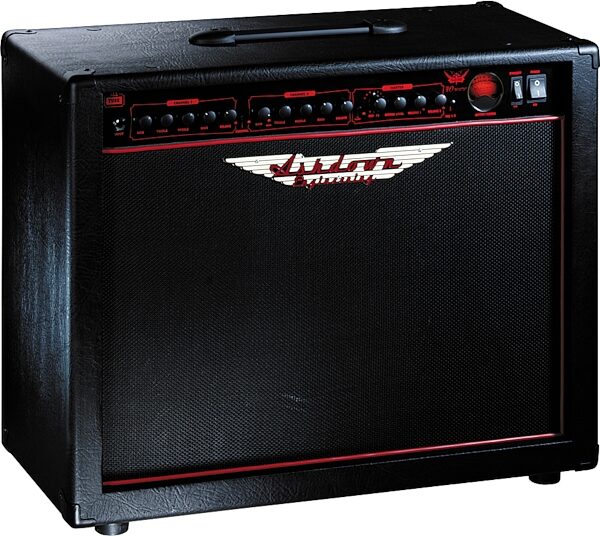

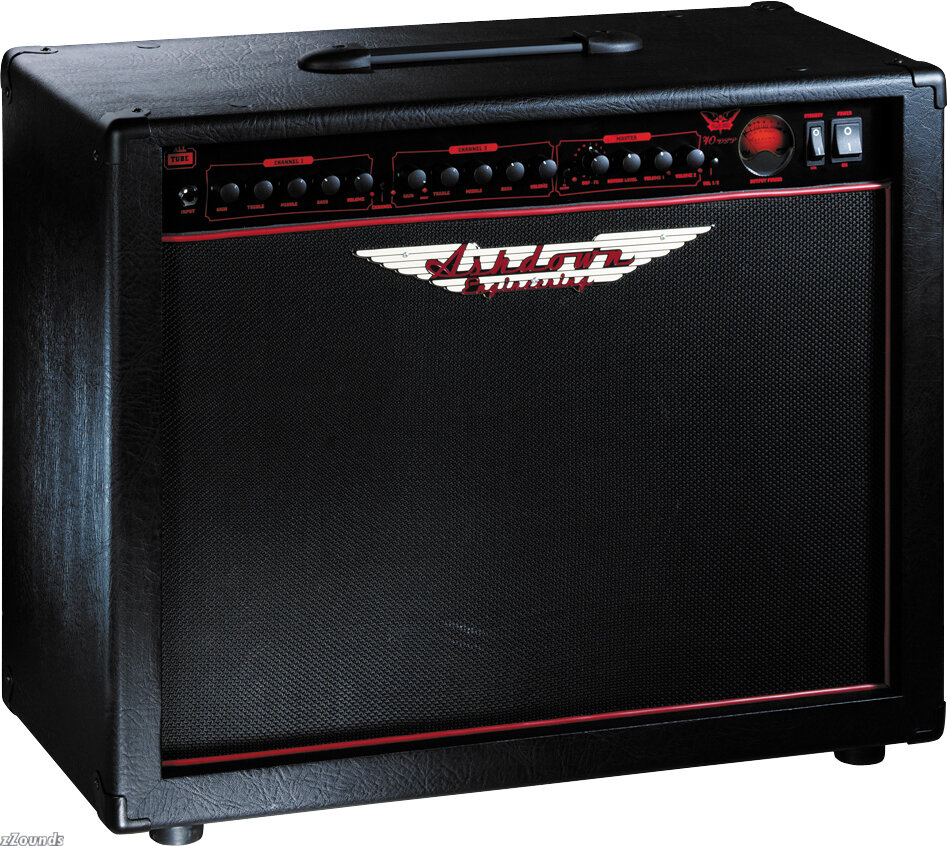

Ashdown Fallen Angel FA40 DSP Guitar Combo Amplifier (40 Watts, 1x12 in.)

40W 1 x 12 in. all tube combo with DSP FX.

With the ability to deliver powerful, harmonically rich overdrives with a fat, articulate bottom end for bone crunching power chords, and soaring, saturated solo voicings for lead guitar, Fallen Angel has become standard issue for the new breed of guitarist. Now, with the inclusion of state-of-the-art digital processing, the Fallen Angel DSP All-Tube series opens up an almost limitless range of tonal possibilities.

The FA 40 DSP All-Tube combo combines a dual-channel all-tube 40-Watt amp section (feeding 1 x 12 in. speaker) with 16 internal DSP effects -- including four chorus, four flanger and eight delay programs, plus an internal DSP reverb section. Both channels offer flexible gain and EQ controls for a wide range of clean and crunch tones.

Equally at home on stage or in the studio, the FA 40 DSP All-Tube combo includes a 4-way footswitch to select channel 1/2, boost on/off, effects on/off and dual master volumes, and a speaker emulation circuit on the line level recording output.

Technical Info

Power output (RMS): 40W into 4, 8 or 16 ohms

Speaker configuration: 1 x 12 in.

Line input: impedance 1 megohm, level 100mV to 1V

Effects send: impedance 4.7 kilohms, level nominal 0dBu

Effects return: impedance 50 kilohms, level 0dBu adjustable

Speaker emulated line output: impedance 4.7 kilohms, level nominal 0dBu

Treble, middle, bass: traditional passive, interactive tone control network providing classic guitar tonal adjustment

Pre-amp tubes: 4 x 12AX7 with DC heaters for low noise

Output tubes: 4 x EL84 fixed bias

Power requirement: 80 watts at rated supply voltage
