Ashdown Electric Blue bass amplification loads legendary Ashdown tone into an affordable new amp head and a pair of high-performance, high-value combos.

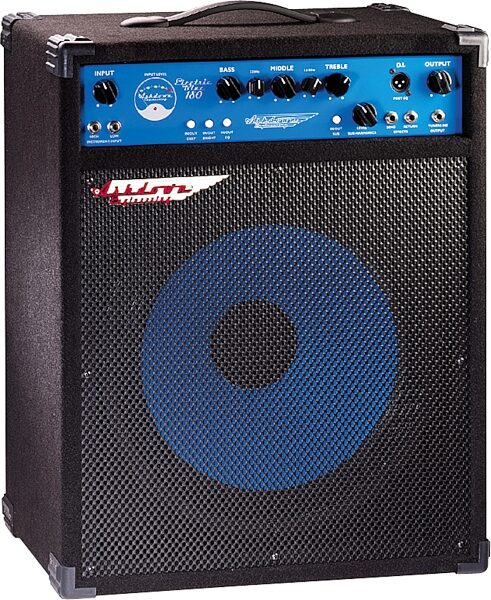

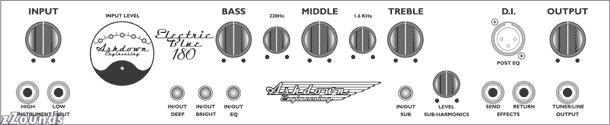

The EB 15-180 1 x 15 in. combo uses a 180 Watts RMS fan-cooled fast-transient power stage, and a fully-featured bass preamplifier with inputs for both active and passive instruments, a 'VU style' LED input level meter, 5 band EQ with Bright and Deep switches, a front panel-mounted balanced DI output for connection to a PA or recording console, an FX loop, a tuner/line output and the classic Ashdown sub-harmonic generator.
A high-performance Ashdown BlueLine bass driver ensures exceptional attack, clarity and low-end performance, while an extension speaker output can be used to connect an additional cabinet for use in larger venues. The cabinet is finished in a tough, scuff-proof carpet covering with protective corners and a kick-proof metal grille.
Technical Info
Specifications
Power Output: 180 watts RMS
Speaker Configuration: 15 in. BlueLine speaker
Height: 581mm (22.9 in.)
Width: 474mm (18.7 i in.)
High Input: Impedance 3.9MOhms / Input range 150mV - 20V p-p
Low Input: Impedance 10KOhms / Input range 300mV - 40V p-p
Line Input: Impedance 22kOhms / Input level 0dBu nominal
Effects Return: Impedance 22kOhms / Level 0dBu nominal
Tuner Output: Impedance 22kOhms / Level 0dBu nominal
Effects Send: Impedance 22kOhms / Level 0dBu nominal
DI Output: 600 Ohms balanced / Level -20dBu nominal
Speaker Outputs: Minimum impedance 4 Ohms
Bass: 15dB @ 100Hz
Lo Mid: 15dB @ 220Hz
Middle: 15dB @ 660Hz
Hi Mid: 15dB @ 1.6kHz
Treble: 15dB @ 7kHz shelving
Deep: +8dB @ 50Hz
Bright: +10dB @ 10kHz
Signal to Noise: Better than 80dB (EQ flat)
Distortion: Less than 0.5% THD
Frequency Response: -3dB at 33Hz and 25KHz
This Ashdown Electric Blue amp is affordable. 180 watts and a 15" speaker.
