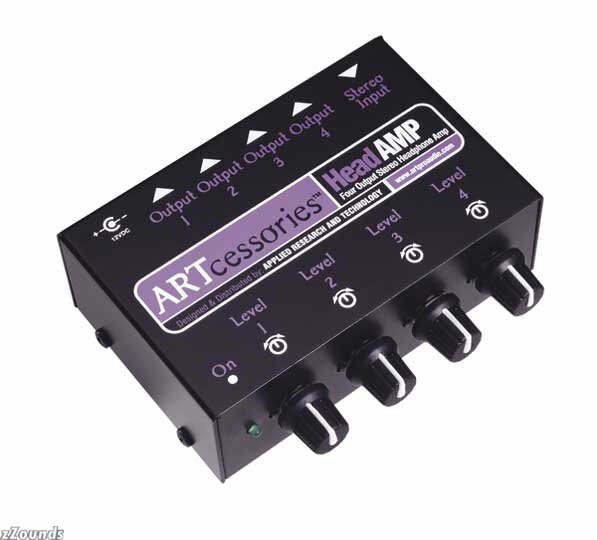

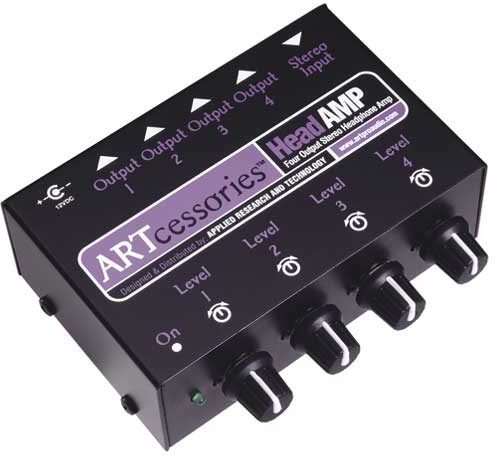

Most home recordings involve from 1 to 4 people, any or all of whom are going to need headphone monitoring. The monitor amp would be connected to the tape deck's headphone output or a mixer output so that the performers can hear themselves and each other. Of course the same application can apply to band rehearsals and even home entertainment. HeadAMP provides amplification and individual volume control for up to 4 headsets. It can be driven by either line-level or headphone amplifier signals (mono or stereo).
ARTcessories Overview
The ARTcessories line includes direct boxes, headphone amplifiers, small mixers, mic cable combiner/splitters and much more. The ARTcessories line is designed to deliver solutions for a number of audio needs - like having phantom power, having 1 or 2 more mixing channels, testing cables, headphone processing, preamplification for microphones & turntables, and many more real-world applications. ARTcessories are a 'must have' for stage and studio, and will satisfy the needs of working musicians and sound engineers everywhere.
Technical Info
Signal To Noise Ratio: >90dB
IMD (SMPTE): 0.01%
Maximum Input Level: +14dBV
Maximum Output Level: 20dB per channel
Output Impedance: 51 Ohms per channel
Output Connectors: Four stereo 1/4 in. headphone outputs
Power Requirements: 12V DC (Adapter included)
Total Harmonic Distortion: <0.01%
Power: Power on LED
Dimensions: 4.5 x 2.875 x 1.5 in. (150mm x 75mm x 38mm)
Weight: 1.3 lbs. (590g)
