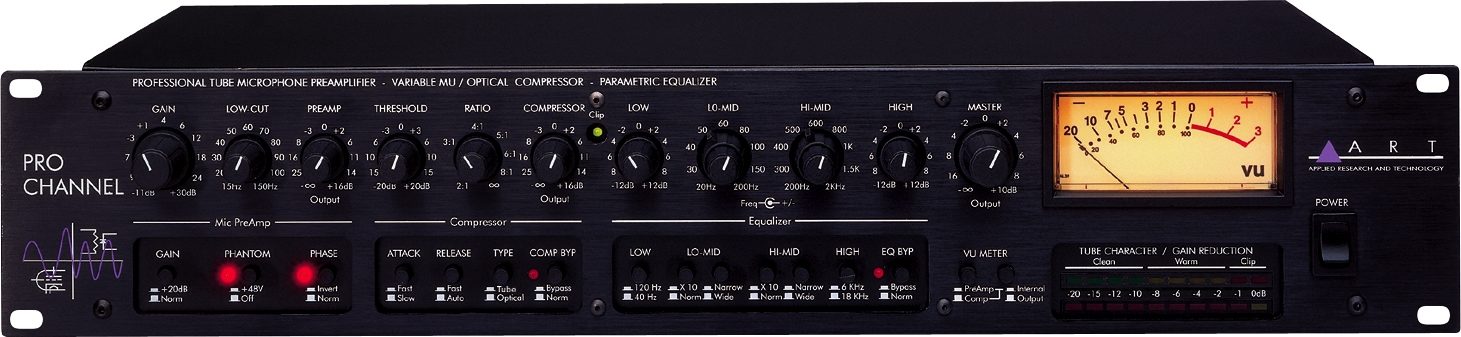

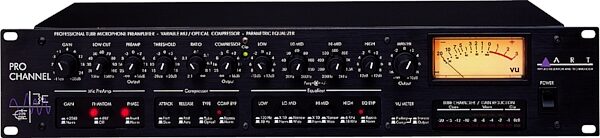

ART Pro Channel Microphone Preamp and Compressor (Model 215)

Professional tube-based microphone/line recording channel. 3 independent world-class modules: tube mic pre, switchable optical compressor, and tube EQ. Warm, smooth, and silky sound quality.

Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs
From Our Catalog
The Pro Channel from ART is the latest offering from the world's most popular tube dynamics processing manufacturer. ART engineers have combined the world-renowned Pro MPA, Pro VLA, and Tube EQ into a single product - creating the world's best-sounding and most affordable professional recording channel.


The four-band parametric equalizer has selectable Q for the two sweepable mid-bands. As with all design elements of the Pro Channel, these Q options were fine-tuned by some of the industry's top studio and live-sound engineers. Likewise, all new additions were made without compromise to the sound of the original designs (Pro MPA, Pro VLA, Tube EQ), which have become standards in professional studios and FOH rigs around the globe.

The Pro Channel defines the term channel strip. The Pro Channel is an impressive package from the world-wide leaders in tube dynamics signal-processing gear. Pick one up and catch your own tube-buzz at your favorite ART dealer today.

Features
Professional, tube-based microphone/line recording channel.

3 independent world-class modules: tube mic pre, switchable optical compressor, and tube EQ.

Warm, smooth, and silky sound quality.

Precision detented potentiometers.

Selectable VU Metering (mic pre out, compressor out, or Main Out)

Tube Character and Gain Reduction LED Arrays

Balanced XLR and unbalanced 1/4 inch inputs and outputs

Insert Points between Preamp and Compressor, and Compressor and EQ

3 hand-selected vacuum tubes

Professional signal processing for use with any analog or digital recording format

Exceptional processing channel for any line or instrument level signal

5-year warranty

Applications
Professional recording studios, project studios, and home studios

DI Box for instruments

FOH Sound Systems

Digital Audio Workstations and Computer Recording

MIDI recording and samplers

Voice-Over, Broadcast, and Edit Suites

Technical Info

Maximum Gain: XLR to XLR: 83dB; 1/4 in. to 1/4 in.: 65dB

Dynamic Range: >100dB (20-20KHz)

Frequency Response: 10Hz to 20KHz (± .5dB)

Low-Cut Filter Variable: -3dB@10Hz to 250Hz

Input/Output Connections: XLR balanced & 1/4 in. unbalanced

Insert Connections: 1/4 in. unbalanced

Input Impedance: 1.67k ohms (XLR), 1M ohm (1/4 in.)

Output Impedance: 600 ohms (XLR), 300 ohms (1/4 in.)

Maximum Input Level: +15dBu (XLR), +21dBu (1/4 in.)

Maximum Output Level:+27dBu (XLR), +22dBu (1/4 in.)

Equivalent Input Noise: -130dBu (XLR to XLR, "A" weighted)

Phantom Power: +48v DC (switchable)

Compression
Ratio Variable: 2:1 to >10:1
Attack Time
- Fast: 2ms (optical), 0.5ms (tube)
- Slow: 15ms (for 20dB of comp)
Release Time Fast: 300ms, Auto: 100ms-3sec
Maximum Compression: 30 dB (optical), 23dB (tube)

EQ
Frequency Bands
- Low Shelf: 40Hz/120Hz selectable
- Low-Mid: Sweepable 20Hz to 200Hz/ 200Hz to 2KHz
- Low-Mid Q: Wide/Narrow selectable
- High-Mid Sweepable: 200Hz to 2KHz/ 2KHz to 20KHz
- High-Mid Q: Wide/Narrow selectable
- High Shelf: 6KHz/18KHz selectable
Boost and Cut/Frequency Band: ±12dB (wide), ±20dB (narrow)
Total Harmonic Distortion (THD): <0.1% (typical)

Tubes: 3 hand-selected

Power Requirements: 100-125 VAC, 30W (Export units configured for country of destination)

Dimensions (D x W x H): 6.5 x 19 x 3.50 in.

Weight: 12.0 lbs
All of your ART favorites in a single channel strip! The tube preamp of the Pro MPA, the optical/tube compressor of the Pro VLA, and the 4-band parametric Tube EQ are all here, with the warm, silky sound you've come to expect. XLR and 1/4" I/O.

What Our Customers Say About zZounds

"Your service is outstanding. I ordered the item and received it the next day. Thanks everyone!" - customer on January 25, 2010

Call 800.ZZOUNDS (996.8637) and mention priority code: 8ZXKW2T
Item: ART215

In Stock
Will Ship Wednesday
$319.00
List: $799.00 SAVE 60%
Free Ground Shipping

related accessories


from $9.95

$179.95

from $219.95

from $24.95

from $139.95


ART Pro Channel Microphone Preamp and Compressor (Model 215) Reviews

50 People rated this product :
           9 out of 10
           9 out of 10
"Do your homework - Then Listen"
Quality:
Rugged and roadworthy.

Value:
Well worth the price in comparison to equivalent units. Specs are good or better than others. You won't be disappointed when you hear it.

Sound:
Very Quiet and lots of gain. Pre sounds musical and EQ is acceptable. I use in studio and live. Dependable. Always can get desired result. NICE comp in unit well worth the money alone.

Overall:
I am very satisfied with the Pro Channel. I own 2 and find them very versitile from drums, guitars and Vox. Your only limit is your imagination.

Submitted: 06/24/2004
Style of Music: All
2 of 2 people (100%) found this review helpful. Did you?
Thanks for your opinion!
           8 out of 10
  zZounds has verified that this customer bought this product from us.
"The best bang for the buck in its price range."
Feature:
It definitely has the best feature set in its price range - legitimate tube preamp with HPF, double-duty compressor (either tube or optical mode for different sounds and applications), and legitimate tube EQ with two sweepable mids. Each section would be a great unit on its own, and in fact they were before Art combined them as a channel strip. I like that they've kept a modular design - you can patch into or out of each individual section, or even re-patch them to re-route the signal flow (like if you'd rather have the signal go from the preamp to the EQ before going into the compressor). I've found that I like to have a few different compressors available to choose from for different applications, and I can easily bypass the internal compressor before coming back into the unit for EQ. My one complaint is that the compressor doesn't have variable attack or release times - instead, you have a button that chooses "fast" or "slow" for attack, and "fast" or "auto" for release. I have to admit that these options work for 90% of applications, but for control freaks who really want to fine-tune their compression (like me), it's a bummer. That's why I keep an FMR Really Nice Compressor sitting on top of this unit to patch into and out of. The VU meter sucks, though - there's no defending it. It's far too sluggish to have any meaningful use, and while it looks cool, I wish they had used the space for attack and release knobs for the compressor.

Quality:
It feels nice, smells nice, and looks nice. I knocked it off of the table once onto a hardwood floor and it hasn't had a single problem (cosmetic or function-wise) since.

Value:
The absolute best bang-for-the-buck in its price range. You'd have to spend significantly more (around $1,000 or more) to get a significantly better channel strip.

Desirability:
It looks clean and nice - not too techy and not fake-vintage.

Sound:
Great sound for the price range - it's very clean and the tube pre doesn't color the sound much (can be a good thing or bad thing depending on what you want out of it) until you really drive it. It's a legitimate tube-based design in a world of "just stick a tube in there somewhere and it'll sell" products, and it sounds great and clean. I've heard that swapping out the tubes for better ones can make the sound even better, but I have no complaints thus far.

Ease of Use:
The manual is pretty solid, and anyone who already knows what they're doing shouldn't have much of an issue with it. You have to MAKE SURE that you set up your gain staging correctly, or it'll be noisy, especially if you're using a lot of make-up gain coming out of the compressor. This isn't an issue with the unit as much as an issue with proper gain staging - when I first got it, I was bummed that the compressor section was "so noisy" until I learned to set it up properly (get a good signal coming from the pre, get the compressor zero'd vs. the original signal, then use the master output for whatever makeup gain you might need). The actual interface is perfectly usable.

Support:
I haven't needed any support yet, but the manual is nice and helpful. I wish the manual/company was a little friendlier about encouraging swapping out the tubes, but I understand that they have to cover their butts if someone fries their own unit.

Overall:
I'll use it until I can afford something significantly better. And then I'll still use it.

Submitted: 08/04/2007
Style of Music: synthesizer pop
9 of 10 people (90%) found this review helpful. Did you?
Thanks for your opinion!
