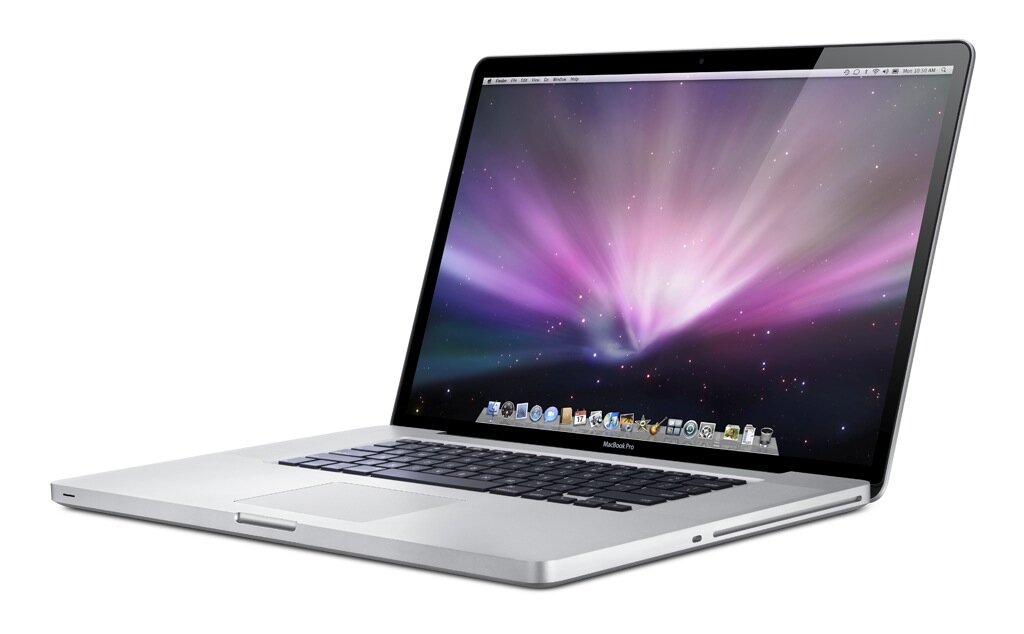

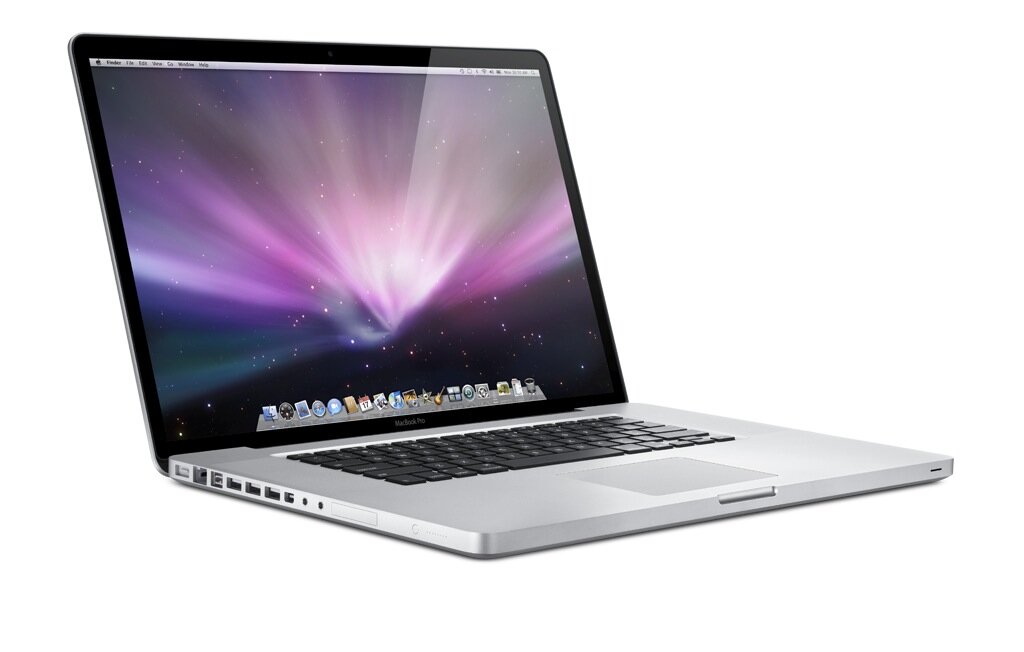

Power takes shape.
The new MacBook Pro is meticulously designed for maximum performance in a minimum size. Bare minimum, in fact. It's 5.4 pounds of unparalleled portable power in only one inch. Encased in sleek and sturdy aluminum, MacBook Pro is just as ingenious on the outside.

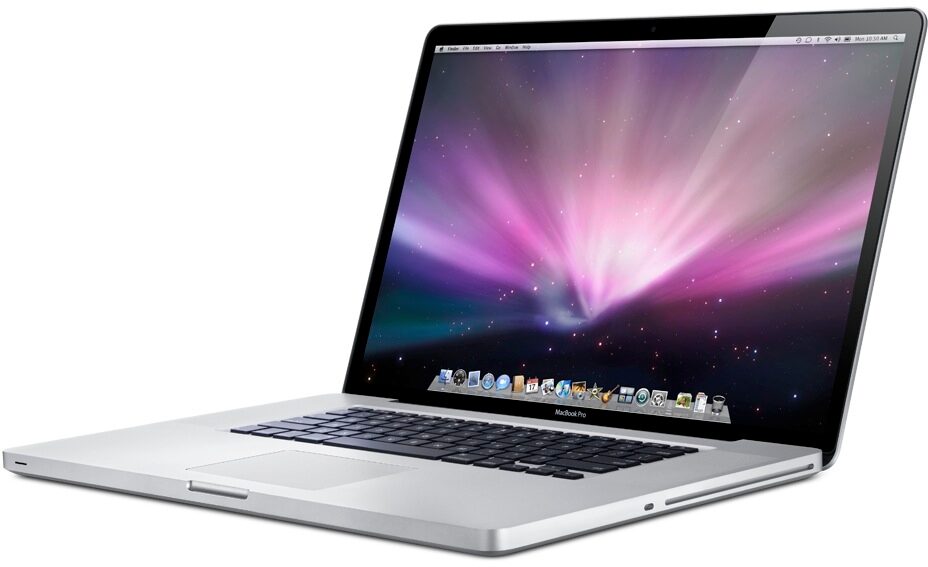

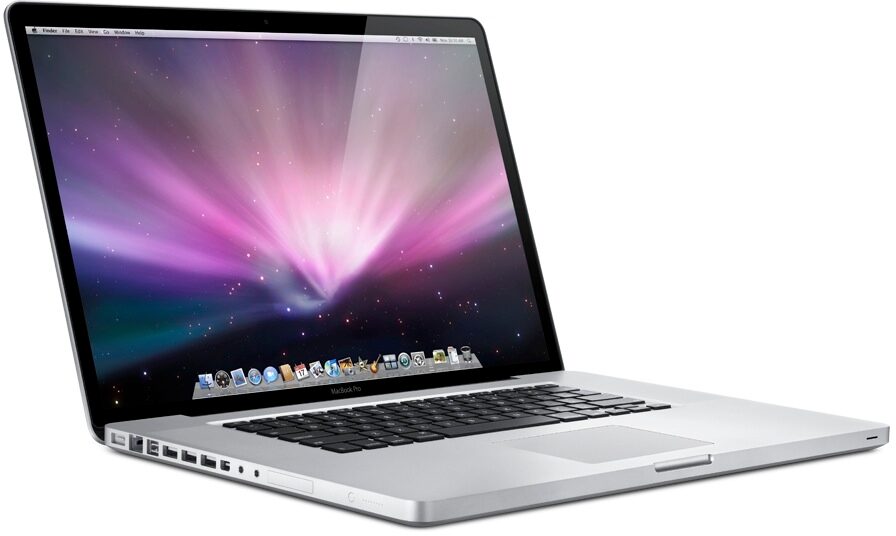

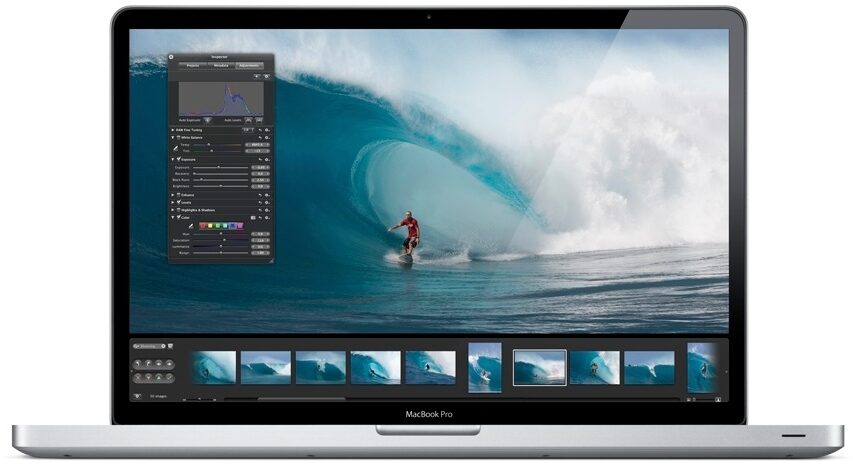

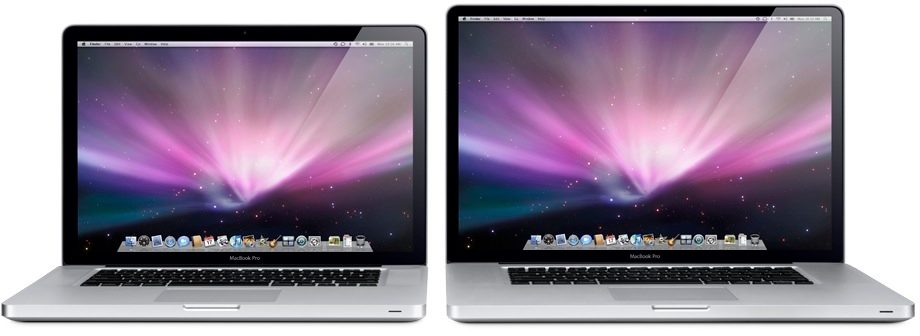

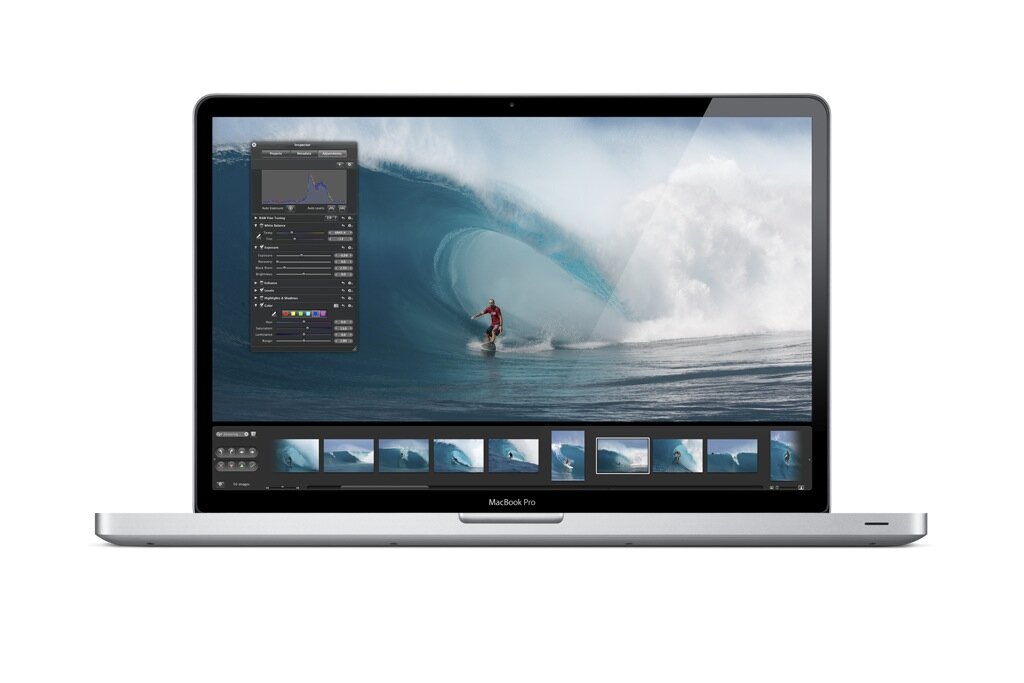

Spectacular display.

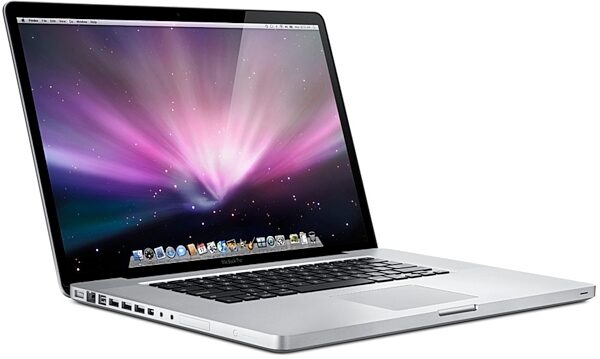

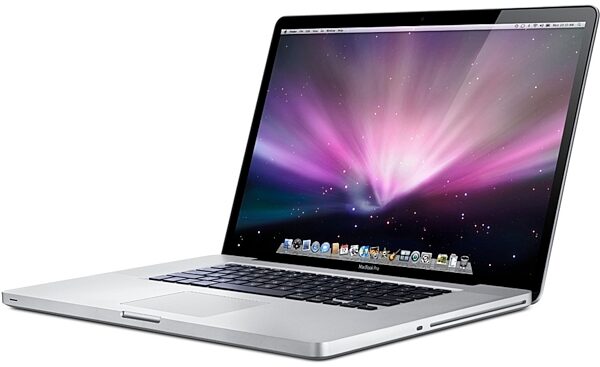

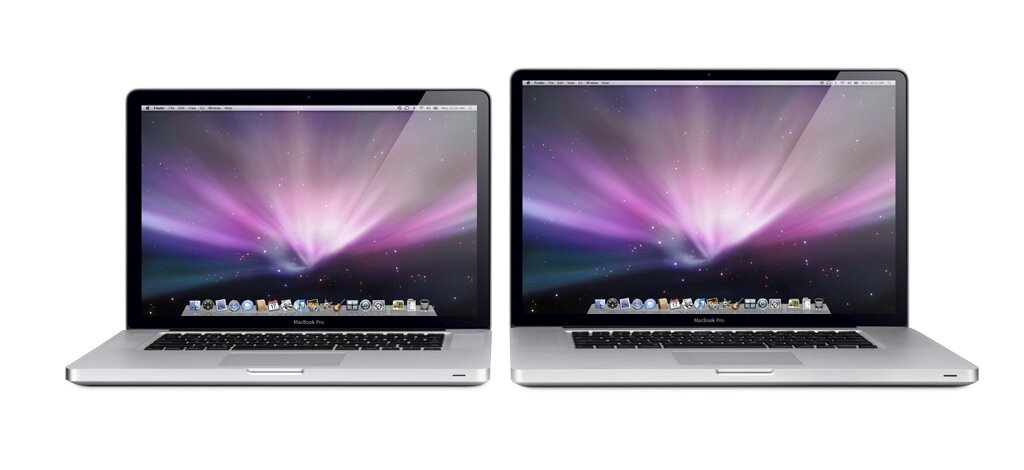

MacBook Pro makes your ideas even more brilliant with a sharp, high-resolution screen. Choose the 15.4-inch, 1440-by-900-pixel or the 17-inch, 1680-by-1050-pixel digital display, with glossy and antiglare options. Or choose the new, optional high-resolution 17-inch LED backlit model for the optimal viewing experience. The 15-inch and 17-inch LED backlit displays are lighter, more power efficient, and they deliver full screen brightness the instant you turn them on. Both LED backlit displays are mercury-free — and the 17-inch high resolution display is also arsenic-free — so they're better for the environment.

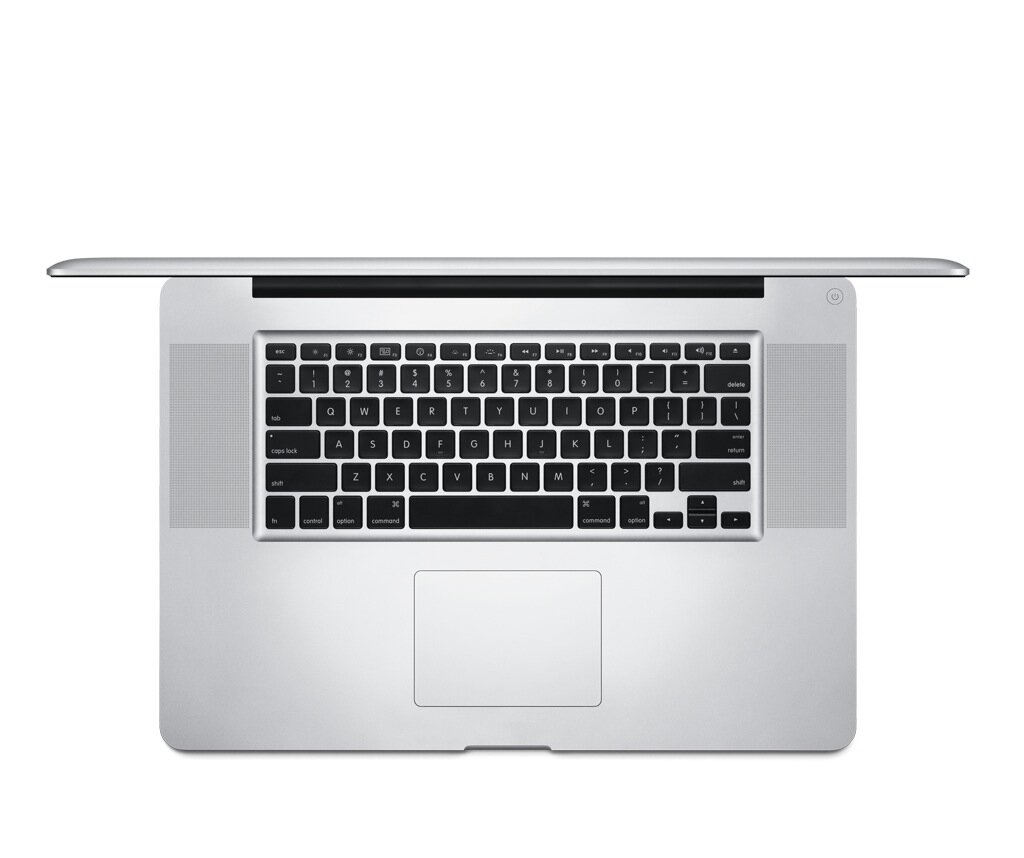

Smart touch.
MacBook Pro features an advanced trackpad with amazing Multi-Touch technology. You can flip through photos, enlarge text, and adjust an image using just your fingers. And your hands have room to spread out on the full-size keyboard with crisp, responsive keys. MacBook Pro has a built-in ambient light sensor that adjusts the keyboard and display brightness so it’s easy to work in low-light settings such as airplanes and conference rooms.
Design:
Multi-Touch meets MacBook Pro.
Multi-Touch technology from iPhone, iPod touch, and MacBook Air comes to MacBook Pro in an amazing new Multi-Touch trackpad. Now you can pinch, swipe, or rotate to enlarge text, advance through photos, or adjust an image.
Room for more.
MacBook Pro has a standard hard drive up to 250GB and up to 4GB of RAM. So there’s more room for even bigger ideas.
Power duo.
The new Intel Core 2 Duo processors run at speeds up to 2.6GHz on a groundbreaking 45-nm process technology with up to 6MB L2 cache. Which means you can encode video, render effects, and open and manipulate large images that much faster.

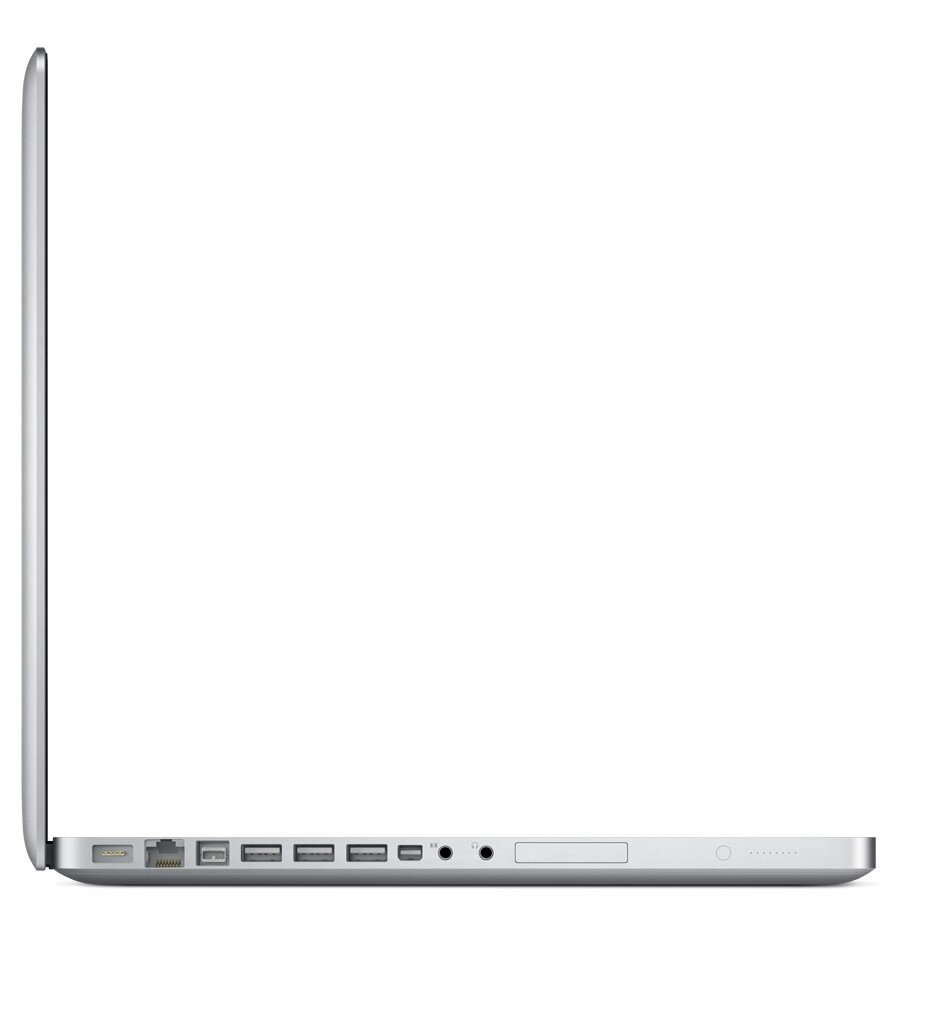

Ins and outs.

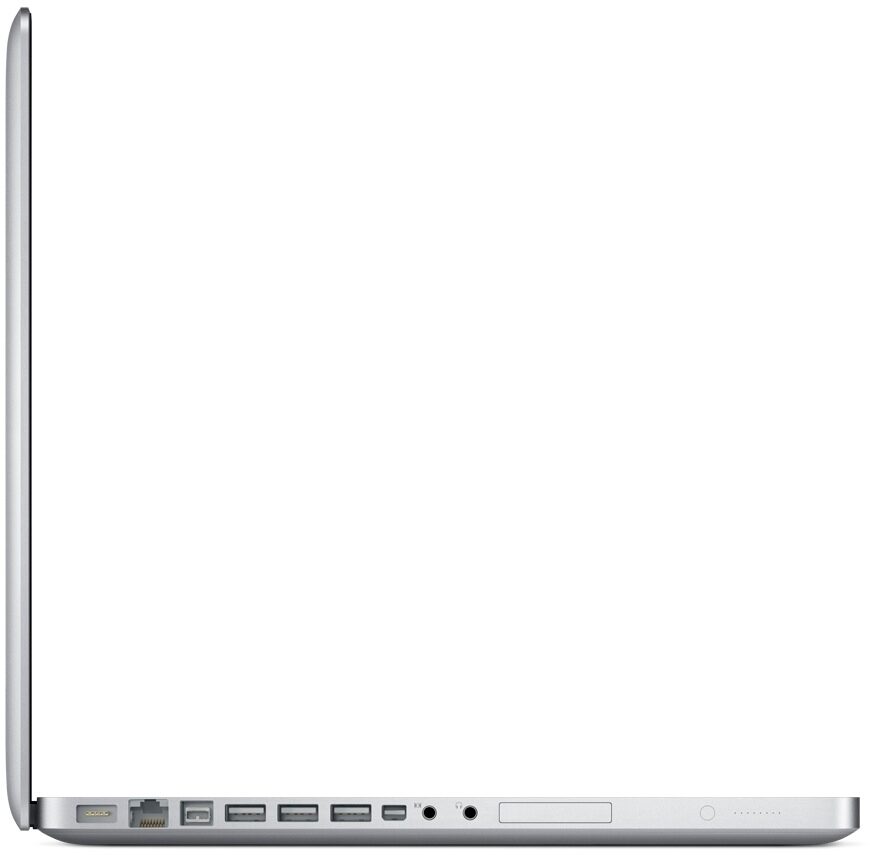

Connect storage, multimedia devices, and high-speed peripherals to your MacBook Pro. Along the sides, you’ll find a FireWire 400 port, a FireWire 800 port, a DVI port, optical audio in and out ports, and an ExpressCard slot. There are three USB 2.0 ports on the 17-inch MacBook Pro and two on the 15-inch models.

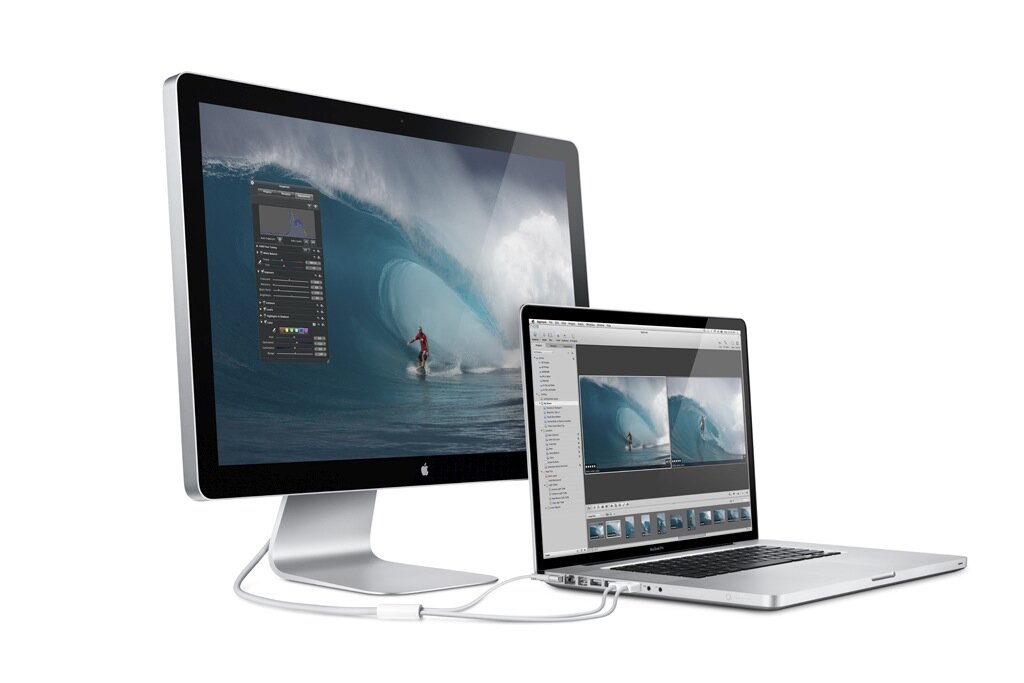

Supersized display.

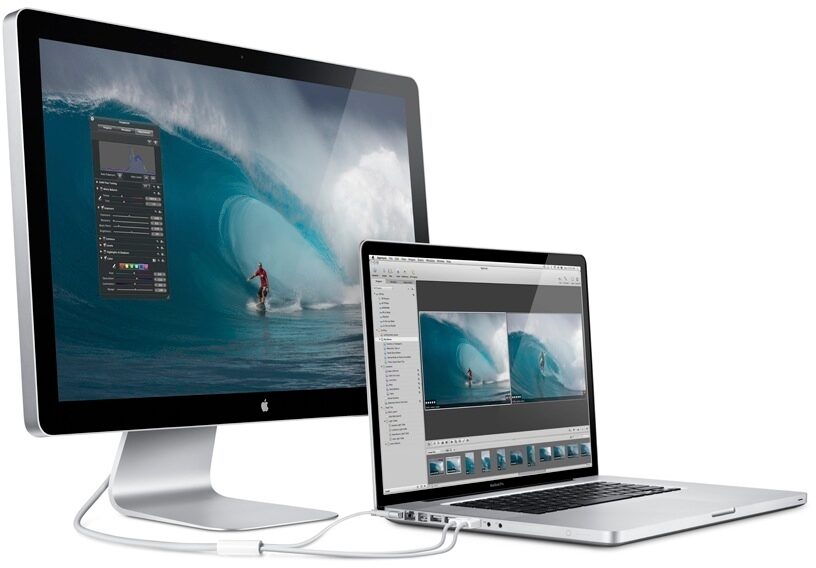

Connect an Apple Cinema Display to expand your desktop and lose nothing in translation. That’s because the DVI connection gives you a pure digital signal from system to display. View more than 4 million pixels on a 30-inch Apple Cinema HD Display, powered by the NVIDIA GeForce 8600M GT graphics processor.
Even the power cord is a feature.
The MacBook Pro power adapter with MagSafe connector is a magnetic connection instead of a physical one. So, if you happen to trip over the power cord, you won’t send MacBook Pro flying. The cord simply disconnects, without damage to either the cord or the notebook.
Sounds all around.
MacBook Pro sounds as good as it looks, with unprecedented attention to audio detail. For musicians on the go, MacBook Pro offers pristine sound through crisp, clear stereo speakers, a built-in microphone, and optical digital audio on both input and output.
Built-in iSight.
Strategically placed in the center of the MacBook Pro display bezel is a small but powerful iSight camera. Wherever you go, you can video conference with iChat, make a movie with iMovie, and experiment in Photo Booth.
Wireless:
The wireless standard.
Freedom. It’s the incredible invisible feature of the MacBook Pro. With the latest wireless technology built in, you can do everything you need to do, wherever you need to do it. Wi-Fi networks show up right on your desktop. Just click and connect, and surf the web from a cafe, video chat from a hotel, share files at the airport, and take on the wireless world.
Wireless backup.
MacBook Pro ships with Mac OS X Leopard, which brings you Time Machine — the built-in application that automatically backs up files to an external drive. With Time Capsule, Apple’s revolutionary new back up device and server-grade hard drive, you can back up everything wirelessly through Time Machine. So you’ll never have to worry about losing your digital files and hours of work.
Wireless printing.
Print a layout from the studio or a script from the couch. With wireless printing through AirPort Extreme, AirPort Express, or Time Capsule, access to a printer goes where you go.
The virtual conference room.
Talk to anyone, anywhere with iChat. iChat video conferencing is integrated into your iChat buddy list, so initiating a video conference is easy. Just click the meeting attendees on your buddy list and each colleague steps into your virtual office. View their faces as if they’re all sitting around a table with you. Make your multiway video conference full screen and instantly turn your hotel room into a conference room — without paying for a single phone call.
Bonjour, Bonjour.
With Bonjour networking technology built into every MacBook Pro, the possibilities for wirelessly sharing files, printers, and data are nearly limitless. Your computer discovers other computers and peripherals on the same network. From there, you can print and share with secure simplicity.
3G wireless cards.
No Wi-Fi? No problem. With the ExpressCard slot in MacBook Pro and a 3G wireless card, connect to the Internet anywhere there's a cellular network.
Back to My Mac.
Let’s say you’re at work and you left an important file on your computer at home. With Back to My Mac, a feature of .Mac, you can get to any Leopard-based Mac remotely with just a click. .Mac finds your Mac computers over the Internet and displays them in the Leopard Finder on the Mac you’re using. So wherever you go, your Mac comes along.
Performance:
Applied performance. Intel chip.
The new MacBook Pro features the latest mobile processor from Intel. The Intel Core 2 Duo runs on 45-nm process technology at speeds up to 2.6GHz with up to 6MB of L2 cache. Its SSE4 vector engine handles 128-bit computations in a single clock cycle, accelerating data manipulation by simultaneously applying a single instruction to multiple data. That means you can get more done in less time.
Supporting the superfast Intel Core 2 Duo is an advanced system architecture with up to 4GB of 667MHz DDR2 memory, an 800MHz frontside bus, and 16-lane PCI Express graphics.
The new Intel processor and advanced system architecture make MacBook Pro one of the most sophisticated notebooks on the planet.
More powerful, less power.
The Intel Core 2 Duo uses Intel’s groundbreaking 45-nanometer process — resulting in transistors so small, you could fit a hundred inside a single human cell. With smaller distances for electrons to travel, and two execution cores designed to share resources and conserve power, the Intel Core 2 Duo achieves higher levels of performance without using more power. This is what helps make MacBook Pro just one inch thin.
Image is everything. NVIDIA chip.
MacBook Pro features the color and clarity of NVIDIA GeForce 8600M GT graphics with up to 512MB of GDDR3 memory. The combination of a 16-lane PCI Express architecture and the powerful graphics processor brings a new level of realism to MacBook Pro users. The 16x full-screen anti-aliasing, 128-bit High Dynamic Range rendering, and texture fill rate of up to 8.2 billion textured pixels per second provide unrivaled picture quality and lifelike contrast and tone for next-generation 3D animation and games. The new MacBook Pro graphics performance is up to 2.3 times faster than that of the original Core Duo-based MacBook Pro.
The MacBook Pro 15- or 17-inch display is ideal for viewing high-resolution Photoshop images or HD movies. The optional 1920-by-1200 resolution on the 17-inch MacBook Pro offers a 30 percent increase in viewable area over the 1680-by-1050-resolution display. With more than half a million extra pixels at your disposal, you can view 1080- resolution HD video in all its glory — no need to resize the window to fit the screen.
Serial ATA hard drives.
For the big ideas to come, MacBook Pro comes with larger Serial ATA hard drives in every configuration. In the 15-inch MacBook Pro, you can choose a 200GB or 250GB 5400-rpm hard drive or a 200GB 7200-rpm drive. In the 17-inch model, choose a 250GB 5400-rpm, 200GB 7200-rpm, or 300GB 4200-rpm hard drive.
AppleCare Included
The AppleCare Protection Plan extends the complimentary coverage on your Mac to three years of world-class support. The plan includes expert telephone assistance, onsite repairs for desktop computers,* global repair coverage for portable computers, web-based resources, and TechTool Deluxe from Micromat - all for one economical price.
Apple Computers products are available for shipment to locations in the USA only (including Hawaii and Alaska).
Three years of security
Every Mac comes with 90 days of telephone support and one year of service coverage at an Apple-authorized repair center. By purchasing the AppleCare Protection Plan with your Mac, you can extend your coverage to three years.
Comprehensive coverage
The AppleCare Protection Plan covers your Mac, as well as an AirPort Card, an AirPort Base Station, and Apple RAM purchased for your Mac. Power Mac and PowerBook customers can also enroll one Apple display for coverage, provided the Mac and display are purchased together.
Features
Comprehensive service and support Extends telephone support from 90 days to three years
Adds two years of hardware repair coverage to the one-year limited warranty, including:
- Onsite service for desktop computers(1)
- Global repair coverage for portable computers
Provides dedicated access to web-based support resources(2)
Includes powerful diagnostic tools (TechTool Deluxe from Micromat)
Assistance with the complete Apple solution
Apple hardware products(3)
- An Apple computer
- An Apple mouse and keyboard when included with a covered computer
- An Apple display when purchased and enrolled with a covered Power Mac or PowerBook computer
- An AirPort Card, AirPort Base Station, and Apple RAM when used with a Mac covered by the AppleCare Protection Plan
The Mac OS
Many Apple-branded consumer applications, including:
- iCal
- iDVD
- iMovie
- iPhoto
- iTunes
- AppleWorks
- QuickTime
***Note - Florida consumers will not be able to register AppleCare. Businesses with Florida State Sales Tax Certificate or Federal Tax IDs are the exceptions.
Technical Info
Size and weight
15.4-inch MacBook Pro:
- Height: 1.0 inch (2.59 cm)
- Width: 14.1 inches (35.7 cm)
- Depth: 9.6 inches (24.3 cm)
- Weight: 5.4 pounds (2.45 kg)
Connections and expansion
One FireWire 400 port at up to 400 Mbps
One FireWire 800 port at up to 800 Mbps
15-inch MacBook Pro: Two 480-Mbps USB 2.0 ports
ExpressCard/34 slot
Kensington cable lock slot
Communications
802.11n
Built-in AirPort Extreme Wi-Fi wireless networking (based on IEEE 802.11n draft specification); IEEE 802.11a/b/g compatible
802.11n
Built-in Bluetooth 2.1 + EDR (Enhanced Data Rate)
Built-in 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)
Audio
Built-in stereo speakers
Built-in omnidirectional microphone (located under left speaker grille)
Combined optical digital audio input/audio line in (minijack)
Combined optical digital audio output/audio line out (minijack)
Input

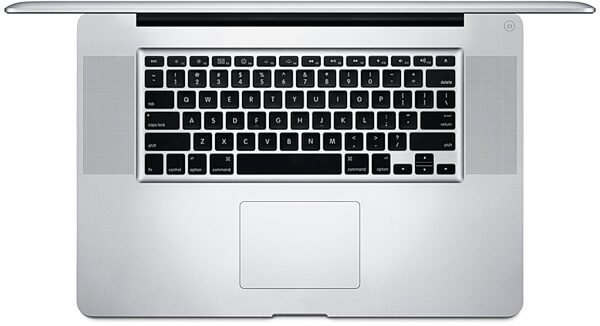

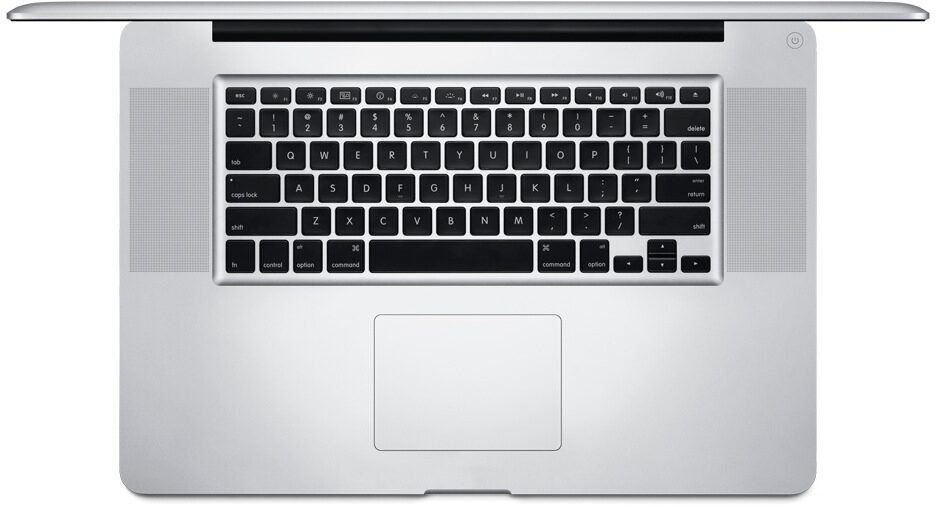

Built-in full-size keyboard with 78 (U.S.) or 79 (ISO) keys, including 12 function keys and 4 arrow keys (inverted “T” arrangement)
Backlit keyboard with ambient light sensor for automatic adjustment of keyboard illumination and screen brightness
Solid-state trackpad with Multi-Touch gesture support for precise cursor control; supports two-finger scrolling, pinch, rotate, swipe, tap, double-tap, and drag capabilities
Environmental status
Majority of circuit board laminates are free of brominated flame retardants
ENERGY STAR logo.Majority of internal cables are PVC-free
Meets ENERGY STAR requirements
MacBook Pro received a Silver rating from EPEAT

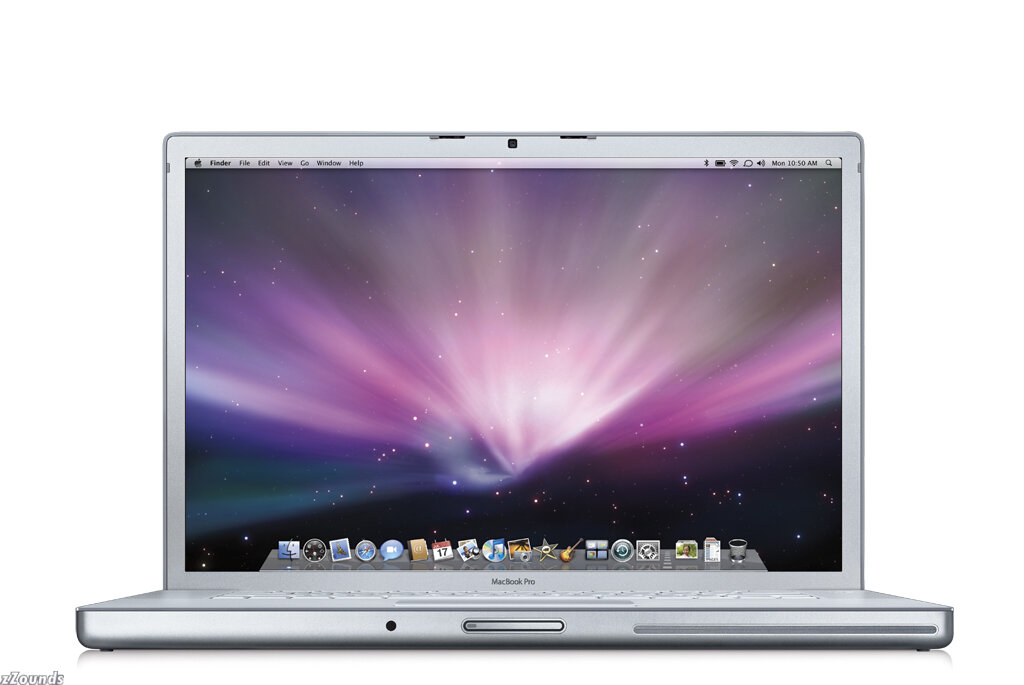

Display - 15-inch MacBook Pro
15.4-inch (diagonal) antiglare widescreen TFT LED backlit display with support for millions of colors; optional glossy widescreen display
Supported resolutions: 1440 by 900 (native), 1280 by 800, 1152 by 720, 1024 by 640, and 800 by 500 pixels at 16:10 aspect ratio; 1024 by 768, 800 by 600, and 640 by 480 pixels at 4:3 aspect ratio; 1024 by 768, 800 by 600, and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched
Graphics and video support NVIDIA processor.
- Model MB133LLA
NVIDIA GeForce 8600M GT graphics processor with dual-link DVI support; 256MB of GDDR3 memory on 2.4GHz configuration
Dual display and video mirroring: Simultaneously supports full native resolution on the built-in display and up to 2560 by 1600 pixels on an external display, both at millions of colors
DVI output port
VGA output using included DVI to VGA adapter
iSight camera. Built-in iSight camera
- Model MB134LLA
NVIDIA GeForce 8600M GT graphics processor with dual-link DVI support; 512MB of GDDR3 memory on 2.5GHz and 2.6GHz configurations
Dual display and video mirroring: Simultaneously supports full native resolution on the built-in display and up to 2560 by 1600 pixels on an external display, both at millions of colors
DVI output port
VGA output using included DVI to VGA adapter
iSight camera. Built-in iSight camera
Processor and memory
- Model MB133LLA
2.4GHz Intel Core 2 Duo processor with 3MB on-chip shared L2 cache running 1:1 with processor speed
2GB (two 1GB SO-DIMMs) of PC2-5300 (667MHz) DDR2 memory; two SO-DIMM slots support up to 4GB
800MHz frontside bus
- Model MB134LLA
2.5GHz Intel Core 2 Duo processor with 6MB L2 cache
2GB (two 1GB SO-DIMMs) of PC2-5300 (667MHz) DDR2 memory; two SO-DIMM slots support up to 4GB
800MHz frontside bus
Storage - 15-inch MacBook Pro
200GB or 250GB 5400-rpm Serial ATA hard drive
8x slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)
Maximum write: 8x DVD-R, DVD+R; 4x DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD-R; 10x CD-RW
Maximum read: 8x DVD-R, DVD+R, DVD-ROM; 6x DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD
Battery and power
5 hours of wireless productivity.
60-watt-hour lithium-polymer battery
85W MagSafe Power Adapter with cable management system
MagSafe power adapter port
Electrical and operating requirements
Line voltage: 100V to 240V AC
Frequency: 50Hz to 60Hz
DC input: 18.5 Vdc, 4.6A maximum
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: -13° to 113° F (-24° to 45° C)
Relative humidity: 0% to 90% noncondensing
Maximum operating altitude: 10,000 feet
Maximum storage altitude: 15,000 feet
Maximum shipping altitude: 35,000 feet
Installed software
Mac OS X v10.5 Leopard (includes Time Machine, Quick Look, Spaces, Spotlight, Dashboard, Mail, iChat, Safari, Address Book, QuickTime, iCal, DVD Player, Photo Booth, Xcode Developer Tools)
iLife ’08 (includes iTunes, iPhoto, iMovie, iDVD, iWeb, GarageBand)
What’s in the box
MacBook Pro
Display cleaning cloth
85W MagSafe Power Adapter, AC wall plug, and power cord
Lithium-polymer battery
DVI to VGA adapter
Install/restore DVDs
Printed and electronic documentation
