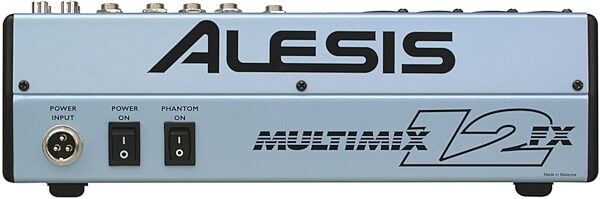

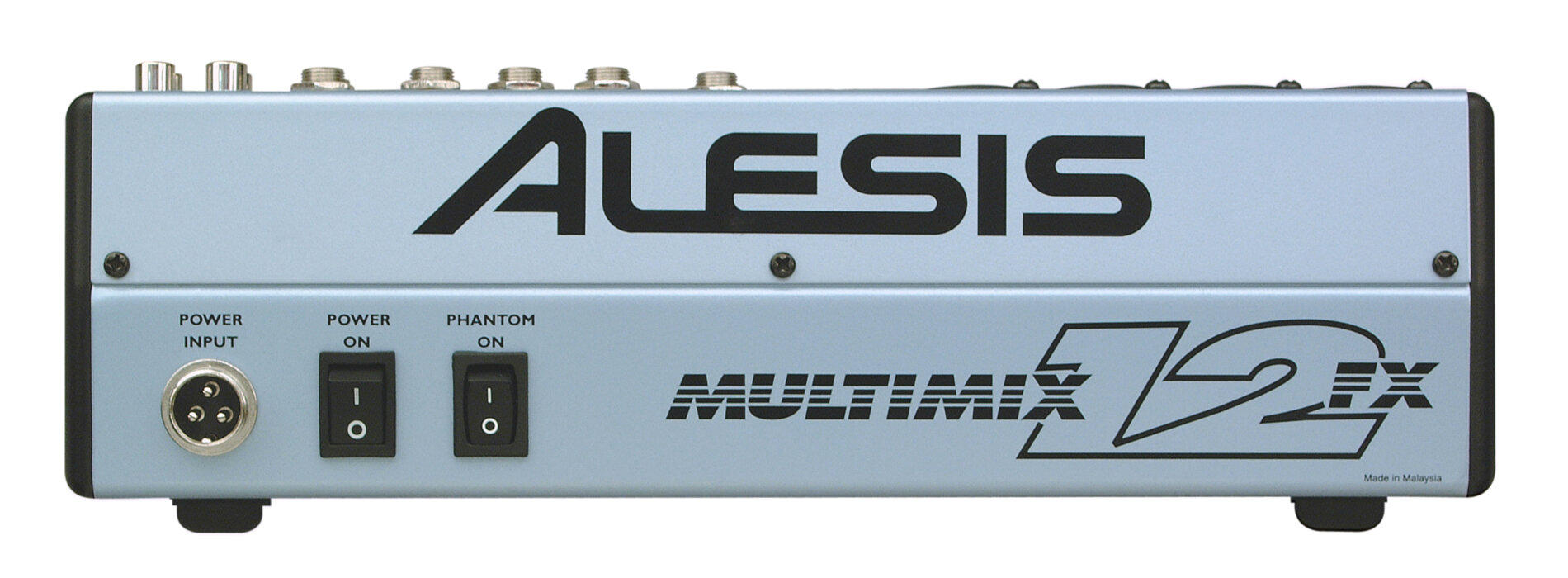

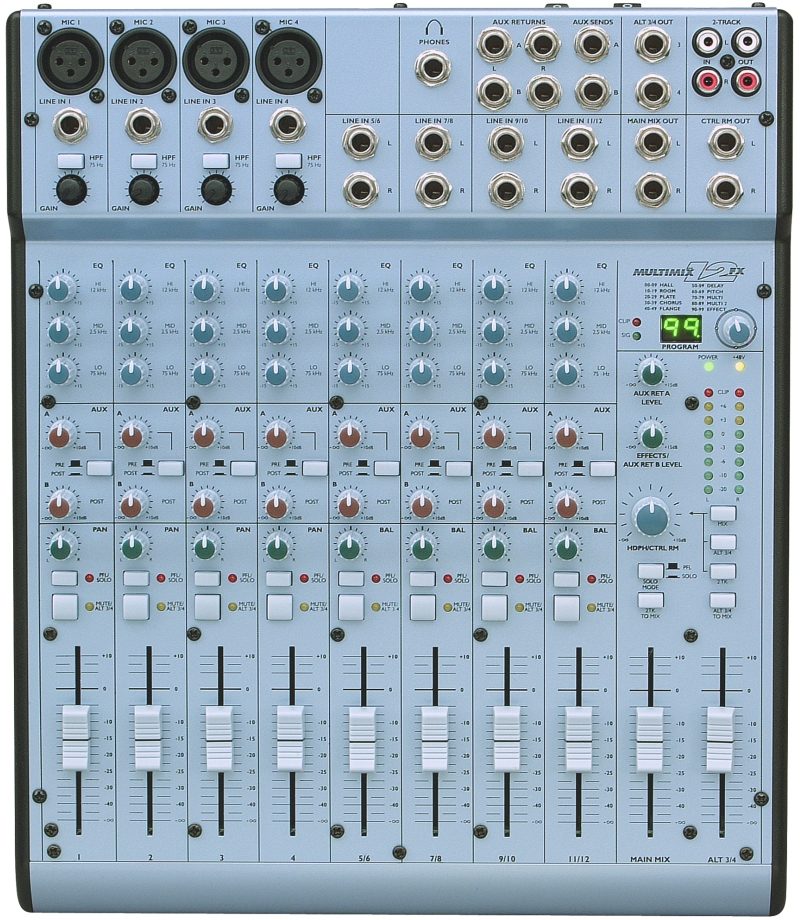

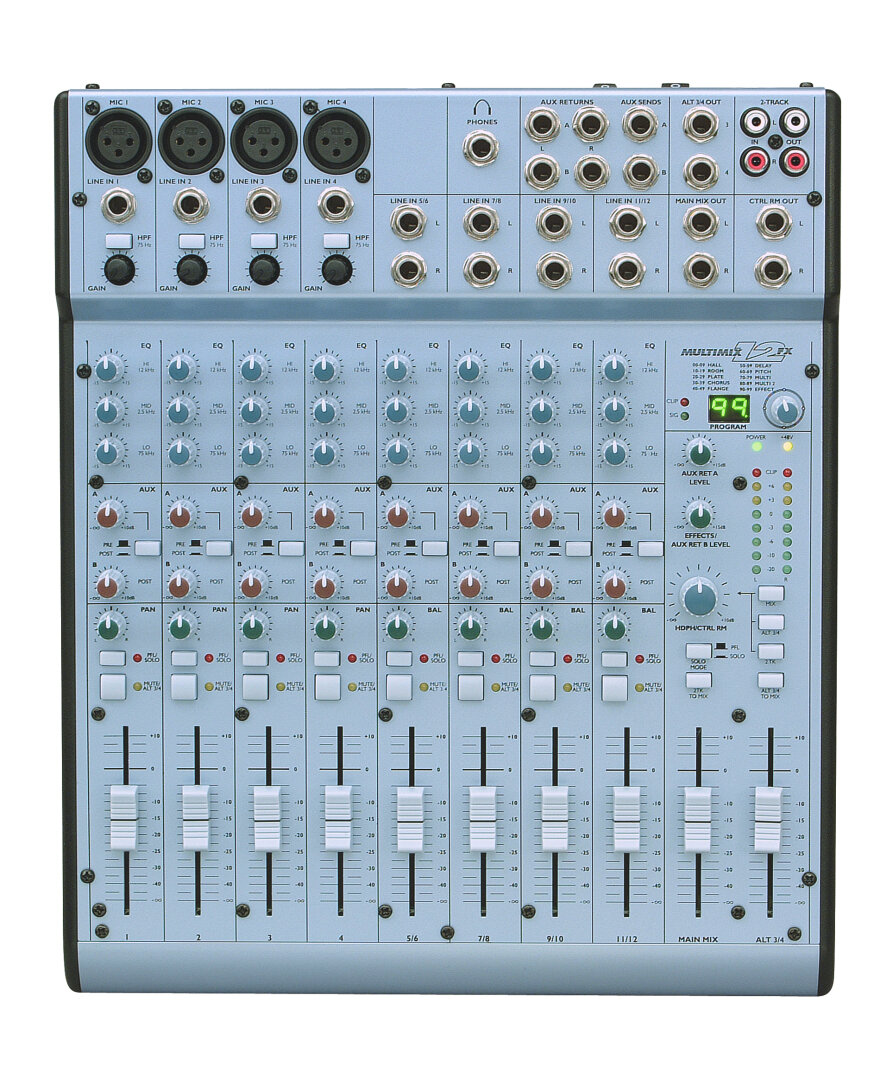

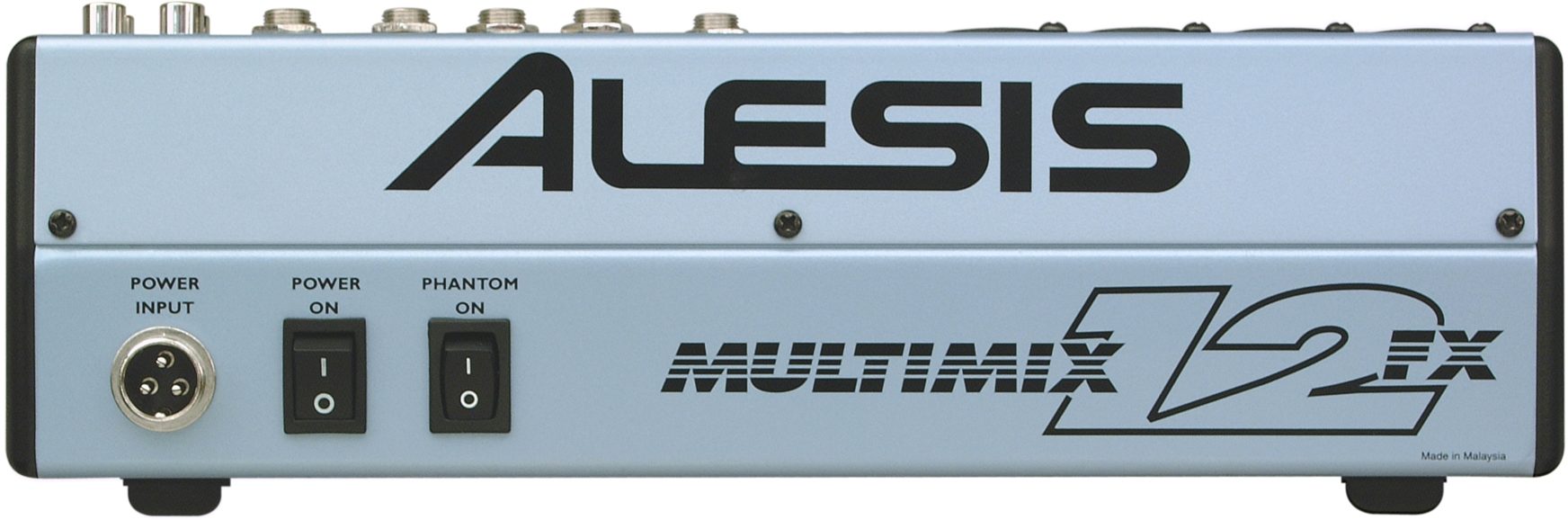

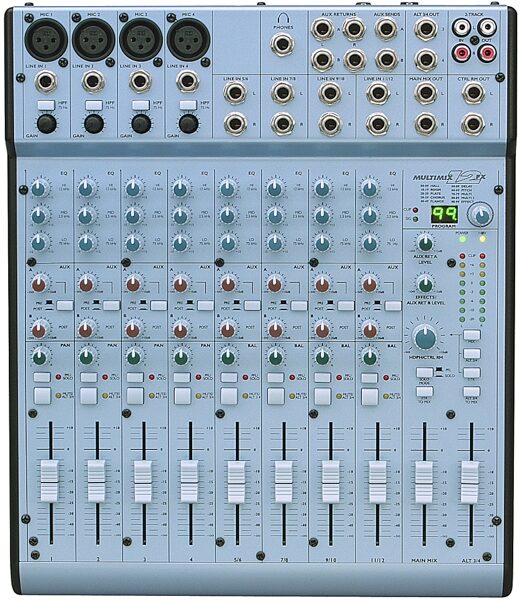

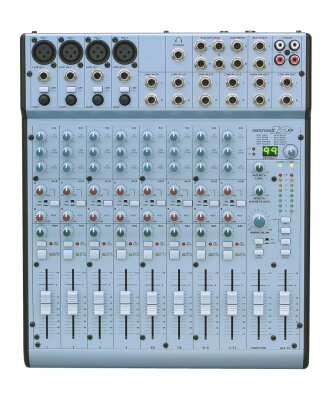

Alesis MultiMix 12FX 12-Channel Mixer with Effects

Alesis MultiMix 12FX 12-Channel Mixer with Effects
This portable analog mixer can handle a wide range of PA and recording applications, such as live performances for small bands, ensembles, and general PA, or recording applications such as live to 2-track, simple multi-track, etc. The affordable MultiMix 12FX is a powerful solution for mixing performances or recording. The MultiMix 12FX includes a 12-input, 4-buss analog mixer featuring 4 mic preamps with switchable 75Hz high-pass filters, 4 stereo line channels, a 3 band EQ on each channel, 99 high quality 24-bit Alesis digital effects, and much more.

Features

Compact, affordable 12-channel, 4-buss analog mixer

99 high quality 24-bit Alesis digital effects

4 mic/line inputs, 4 stereo line inputs

3-band EQ per channel

60mm linear faders on each channel

Technical Info

Specifications

Input Channels
Mic In Sensitivity Range: -60dBu to -+10dBu nominal, +5dBu maximum
Line In Sensitivity Range: -40dBu to -+10dBu nominal, +25dBu maximum
Mic/Line Gain Range: +10 to +60dB

Equalization
High-Pass Filter: 75Hz, 18dB/octave
High Shelving: 12kHz, +/- 15dB
Mid Bandpass/Band Reject: 2.5 kHz, +/- 15dB
Low Shelving: 80Hz, +/- 15dB

Aux Sends
Aux Send A & B Gain Range: -Infinity to +10dB

Aux Returns
Aux Return A Gain Range: -Infinity to +15dB
Effects Level/Aux Return B Gain Range: -Infinity to +15dB

Channel Levels
Channel Level Gain Range: -Infinity to +10dB

Master Levels
Main Mix, Ctrl Room Gain Range: -Infinity to +10dB
1/4 in. Inputs
Stereo Aux Return Level: +4dBu nominal, +20dBu maximum

RCA Inputs
Tape In Level: -10dBV nominal, +5dBV maximum

1/4 in. Outputs
Main Mix, Ctrl Room, Aux 3/4, Ext Aux Send Level: +4dBu nominal, +20dBu maximum
Headphone Output: 75 ohm output impedance
>105mW into 75 ohms, > 40mW into 600ohms

RCA Outputs
Tape Out Level: -10dBV nominal, +5dBV maximum
