The Midiverb 4 is the perfect effects processor for professional project studios and musicians who require an affordable solution for fully-programmable, high-fidelity effects. Its excellent effects algorithms produce dense, natural reverb, rich chorus, flange, delay, pitch effects, and up to 3 simultaneous multi-effects.
The MidiVerb 4 offers 18-bit A/D and D/A converters and 24-bit internal processing for a 20Hz-20kHz bandwidth and 90dB dynamic range, making it ideal for digital recording. Plus, its valuable Auto Level SensingÈ feature can instantly set the optimum input levels...a great time-saver. MidiVerb 4's 32 effects algorithms give you a complete arsenal of fully programmable effects, many using true stereo parallel processing.
You can take advantage of the 256 powerful programs with 128 spaces for user-created effects. With its easy-to-use graphic interface, programming your own effects is a snap. And by using MidiVerb 4's MIDI controller routing and assignable footswitch input, you'll have complete creative control over every aspect of your sound.
Technical Info
Frequency Response: 20Hz - 20kHz ±1dB
Dynamic Range: >90dB
Harmonic Distortion: .01% typical @1kHz @ 0dBV
Digital Conversion Scheme: 18-bit Delta Sigma
Processor Speed: 3 million instructions per second
Sampling Frequency: 48kHz
Inputs: 2 channels on 1/4" jacks, Nominal Level +4dBu, Maximum Level +20dBV, Impedance 1Mohms per channel in stereo, 500kohms in mono
Outputs: 2 Channels on 1/4" jacks, Matrixed Stereo, Maximum Level +14dBV (Effect), +20dBV (Direct), Impedance 1K ohms

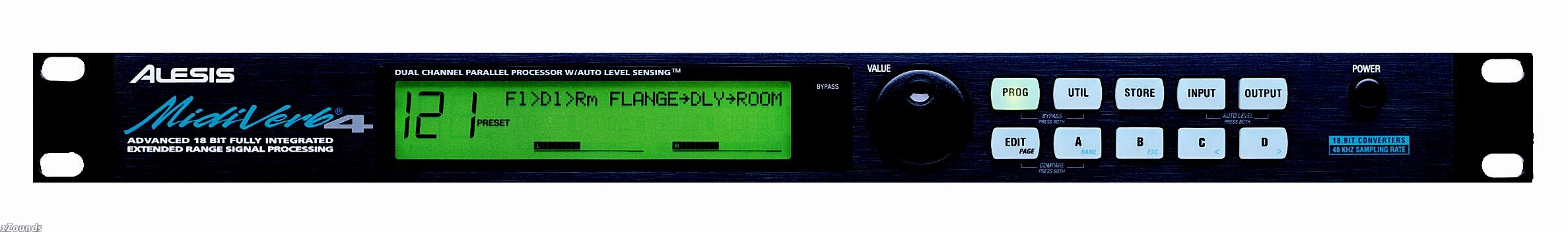

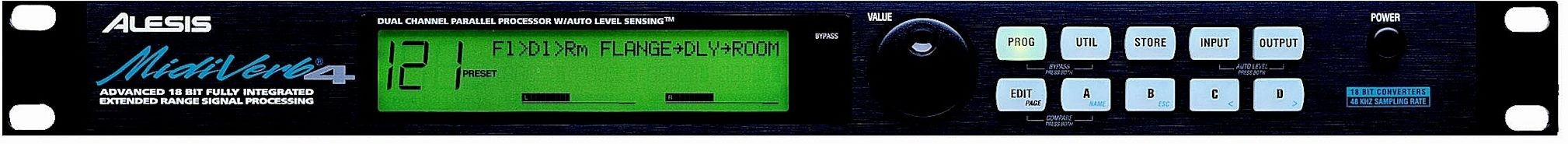

Front Panel: Input, Output, and Programming buttons, Value Wheel, Custom LCD Display
Rear Panel: Input L/R, Output L/R, Footswitch, Power, MIDI In, MIDI Out/Thru
Power: 9 VAC External Transformer, UL and CSA Approved
Dimensions (W x H x D): 19 x 1.75 x 7 in.
Weight: 4.5 lbs.
Dual-channel effects processor capable of dense, natural reverb, as well as chorus, flange, delay, and more! In all, there are 32 different effects algorithms, up to 3 of which can be used at once. Dual 1/4" I/O; MIDI in/out/thru.
