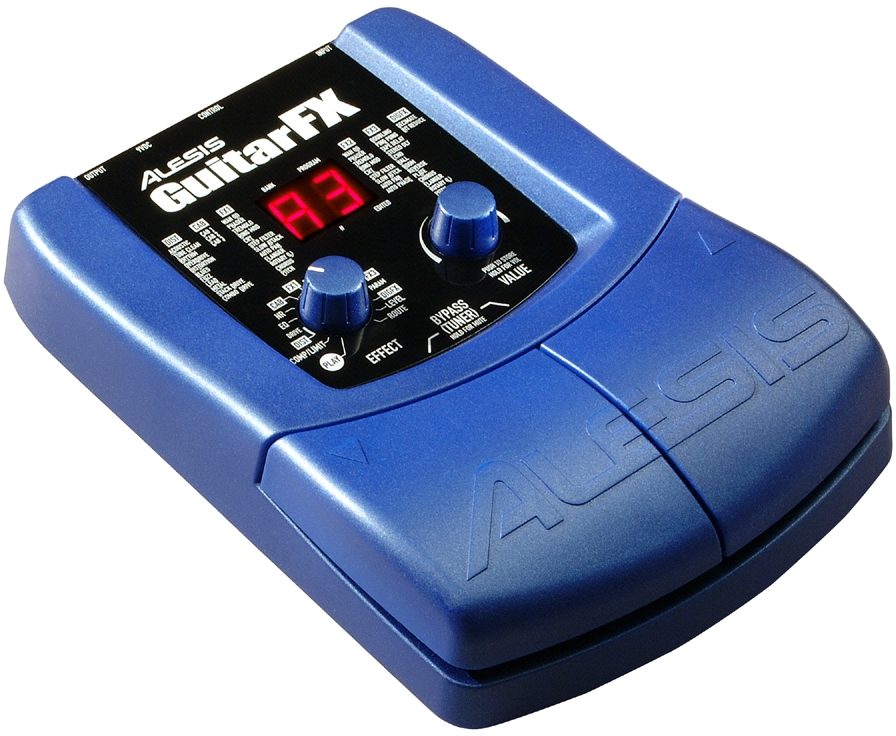

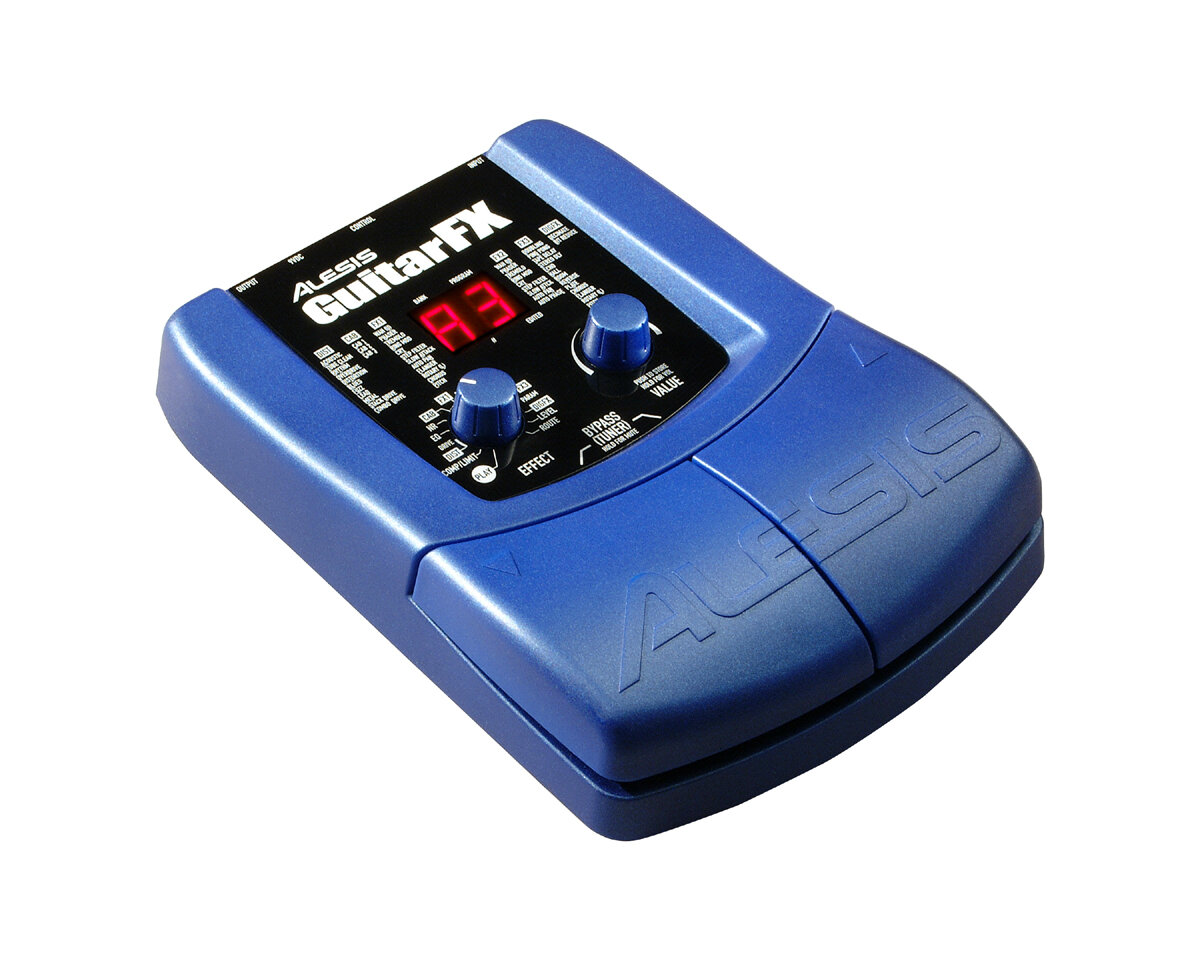

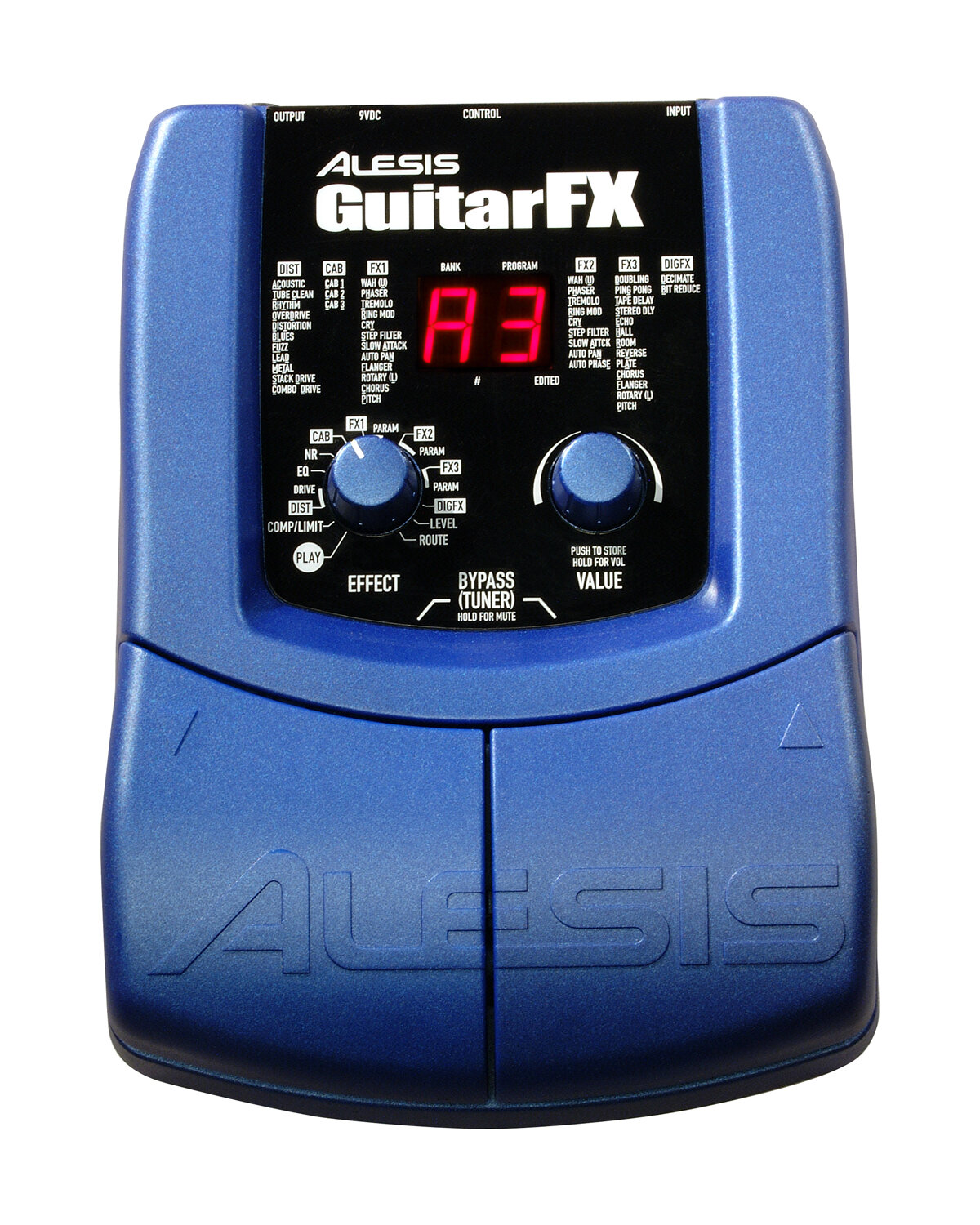

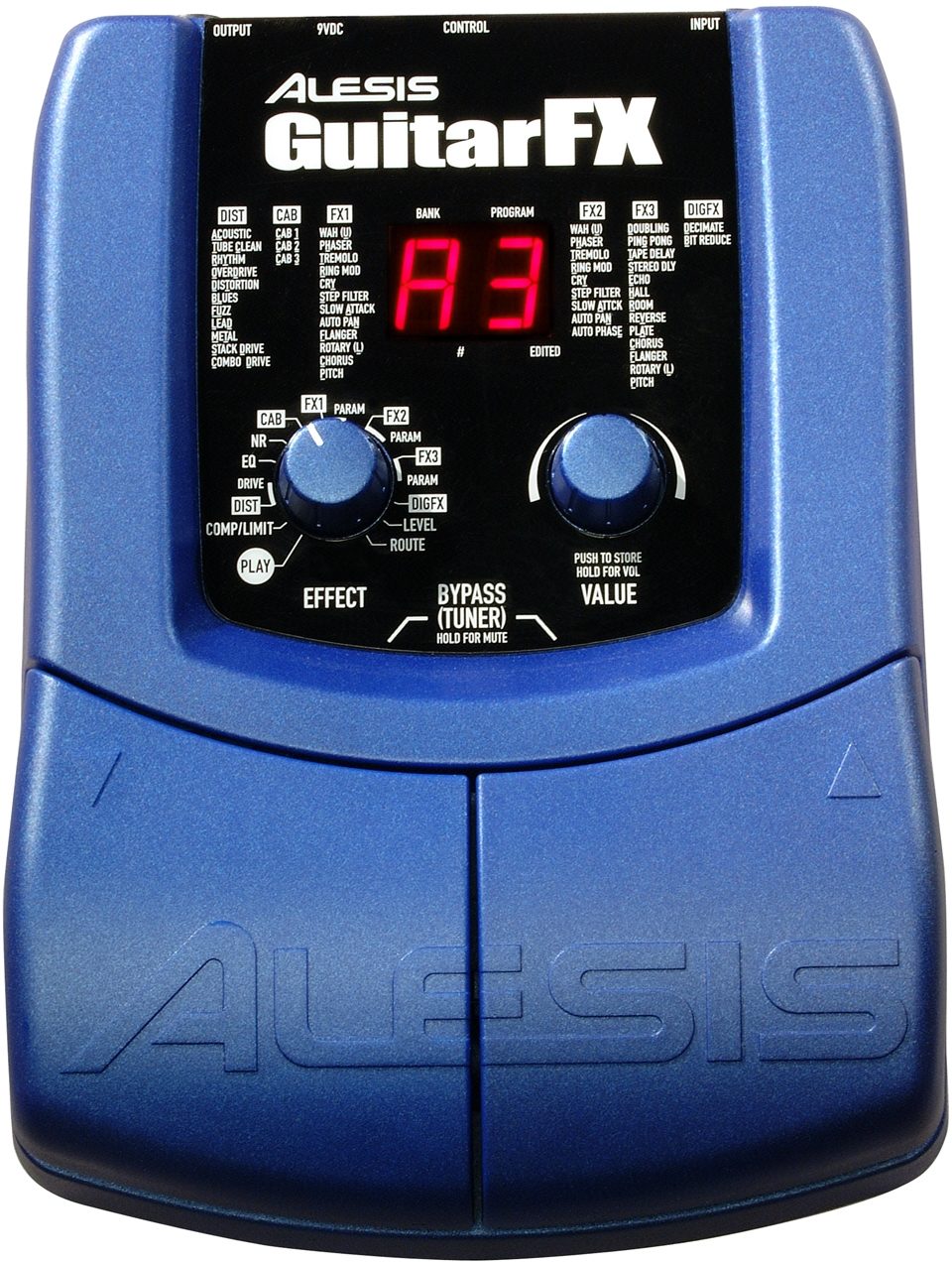

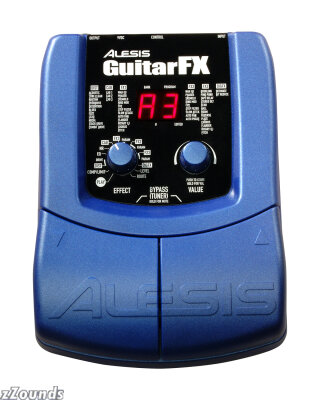

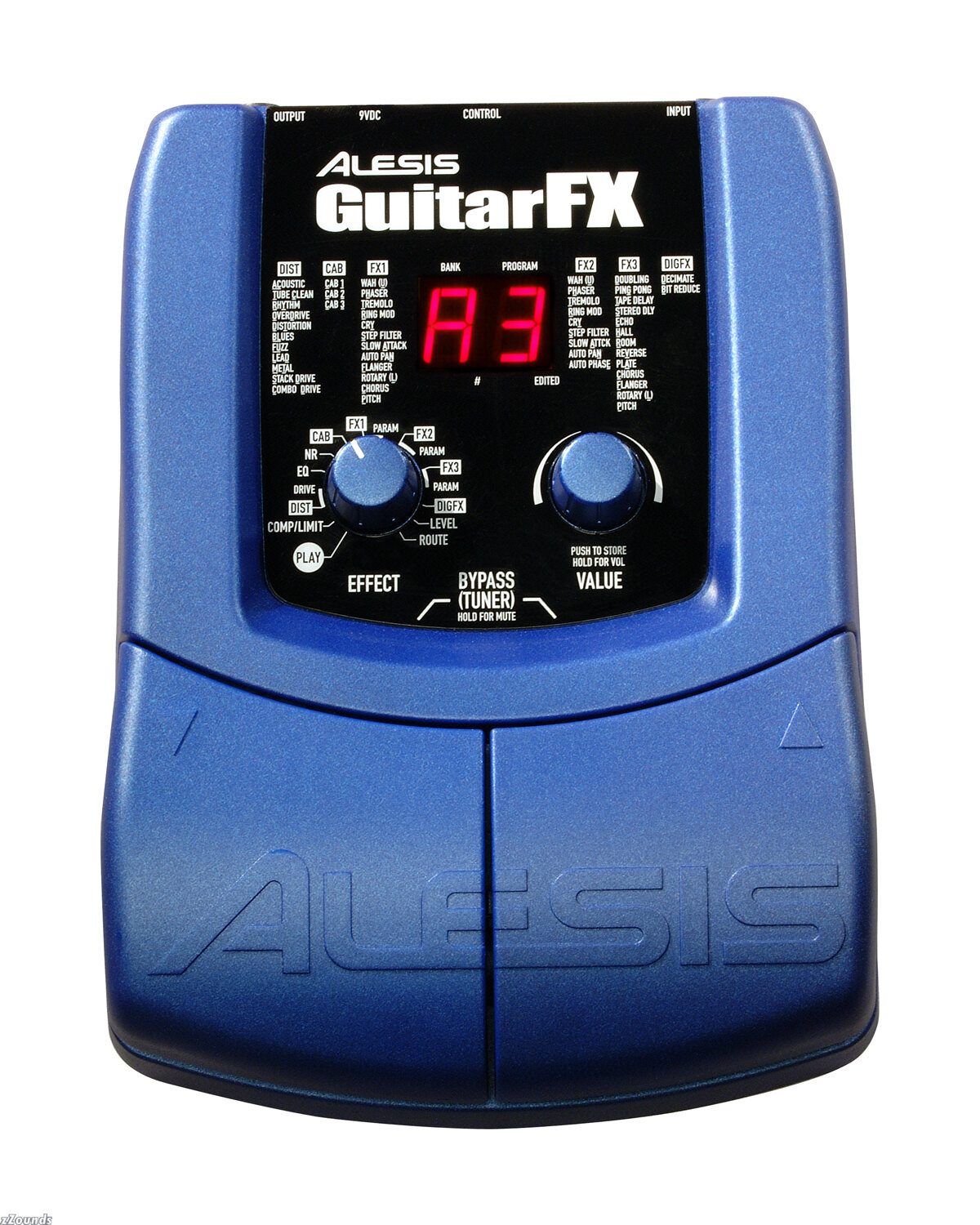

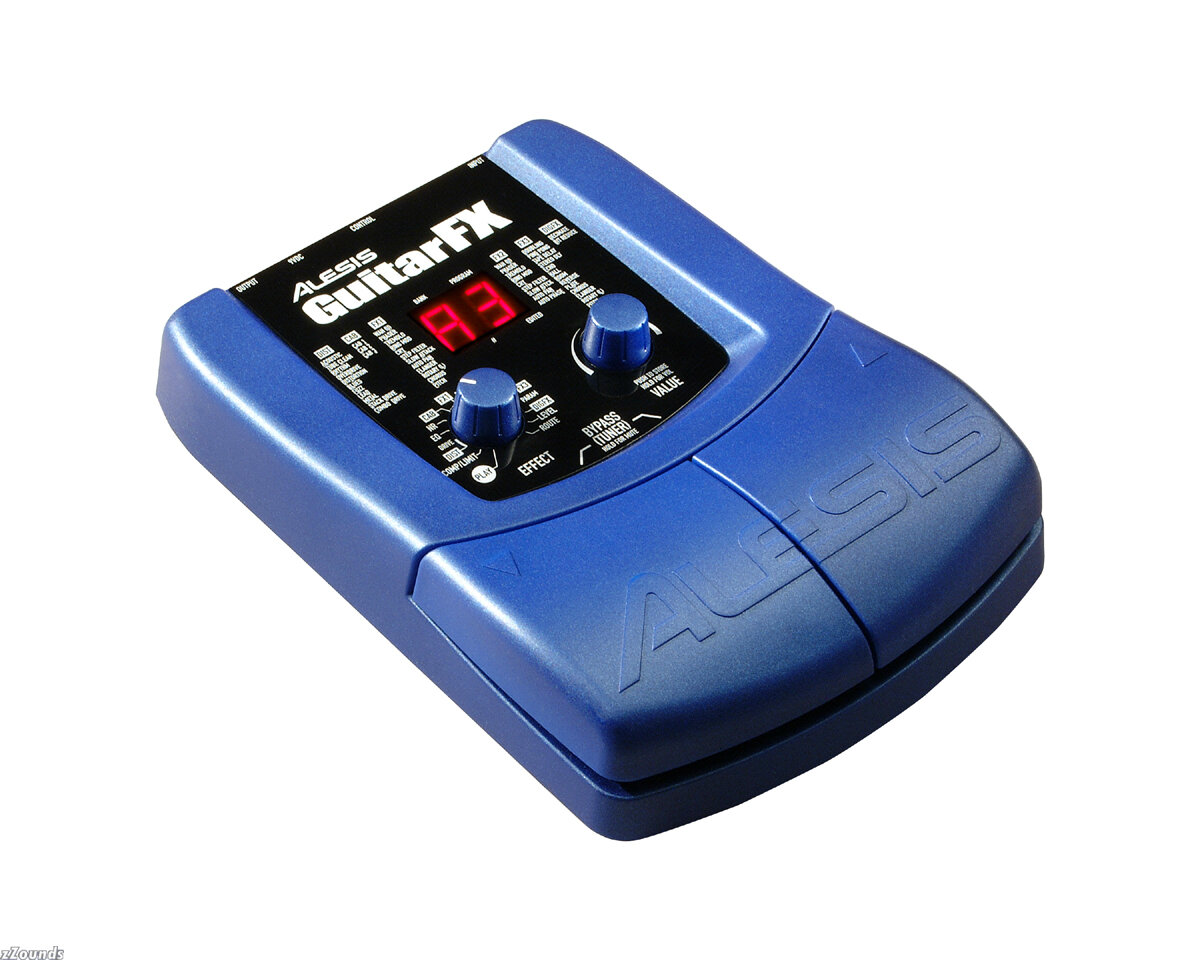

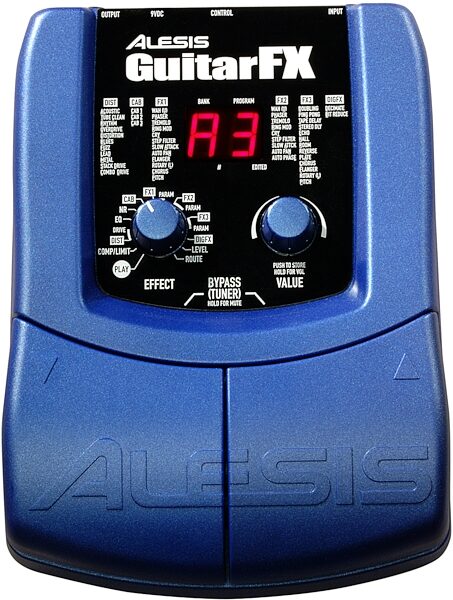

Alesis has introduced its new GuitarFX Processor, a floor multi-effects unit, which puts powerful effects processing technology beneath the feet of guitarists worldwide. GuitarFX is a full-featured DSP toolbox designed to give guitarists incredible-sounding distortion, amplifier modeling, modulation effects, delays and reverbs--all in a compact, easy-to-use pedalboard for stage and studio applications.
GuitarFX's extremely intuitive user interface delivers Alesis' DSP technology in the form of 100 Preset/User programs, taking guitarists from high-gain distortion mayhem to subtle overdriven sounds, modulation effects, lush reverb and more. Each of GuitarFX's 28-bit effects and amplifier models were carefully chosen from Alesis' extensive DSP arsenal, and can be completely customized via simple front panel controls.
Large Increment/Decrement pedals and an expression pedal input make GuitarFX perfectly suited for live use, while a built-in auto-chromatic tuner provides for fast tuning on stage; battery or 9VDC operation means GuitarFX is ready to travel. GuitarFX connections include Guitar input, Stereo Line/Headphone output, and Expression Pedal input.
The GuitarFX is covered by Alesis' full warranty.
Technical Info
Distortion: Acoustic, Tube Clean, Rhythm, Overdrive, Distortion, Blues, Fuzz, Lead, Metal, Stack Drive, Combo Drive
Cabinets: Cab 1, Cab 2, Cab 3
Processing: EQ, Comp/Limiter
Effects:
10 amplifier modeling algorithms, 30 effects, 9 module effects, 8 signal routing options. 80 preset/user programs (8 banks x 10 programs). Wah, Phaser, Tremolo, Ring Mod, Cry, Step Filter, Slow, Attack, Auto Pan, Auto Phase, Flanger, Rotary, Chorus, Pitch, Doubling, Ping Pong, Tape Delay, Stereo Delay, Echo, Hall, Room, Reverse, Plate, Decimate, Bit Reduce
Controls: Effect selector knob, value knob. Increment/decrement/bypass pedals
Display: 2-character LED readout
Input Connector: 1/4 in. mono phone jack
Input levels: -15dBV nominal, +3.5dBV maximum
Max. Input Level: 7.6dBu
Input Impedance: 470kOhm
Output Connector: 1/4 in. stereo phone jack (line and headphone)
Max. Output Level: 1.9dBu w/ 10kHOhm or more load impedance 0.25 dBu w/ 63 Ohm load impedance
Control Input Connector: 1/4 in. stereo phone jack, Tip = 1.5V, Ring = Input, Sleeve = GND
A/D Converter: 20-bit/31.25kHz, 64 times oversampling
D/A Converter: 20-bit/31.25kHz, 128 times oversampling
Sample Rate: 31.25kHz
Internal DSP: 28-bit resolution
Frequency response: 20Hz-15kHz +/- 0.5dB
Signal-to-noise ratio: 80dB (A-weighted)
Distortion: 0.06% THD+N
Power:
Batteries: 4 IEC R6 (size AA) batteries
AC Adapter (sold separately): Alesis P6 - 9VDC (center minus), 300mA
Battery Life: Approximately 30 hours continuous operation with high-drain alkaline batteries
Dimensions (H x W x D): 7.5 in. x 5.5 in. x 1.6 in. (190mm x 140mm x 61mm)
Weight (Without Batteries): 15.7 oz. (445g)
