Go Out on Stage and Let It Rip!
If your first wireless system must provide excellent sound and your budget is limited, consider the professional WMS 40. It operates in the UHF (Ultra-High Frequency) band from 710 MHz to 865 MHz and is ideally suited for small stages, clubs, touring, places of worship, hotels, fitness centers, etc. The WMS 40 uses highly selective SAW filters and advanced circuitry to ensure interference-free operation and excellent audio even under difficult conditions. Each WMS 40 operates on a fixed frequency and is extremely easy to set up.

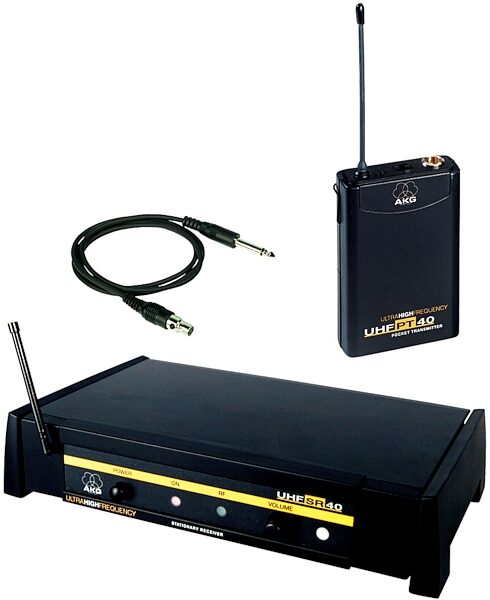

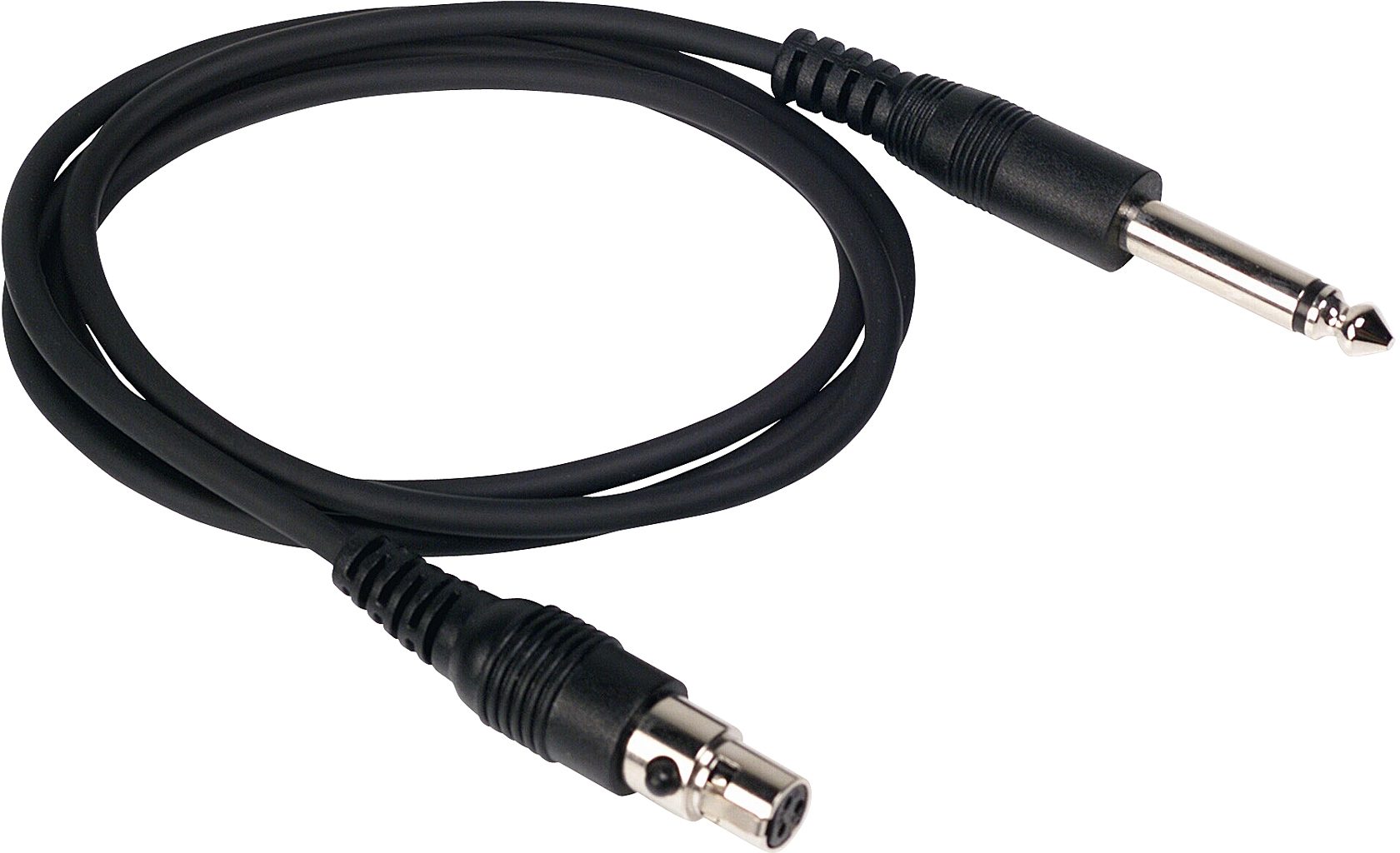

System Includes: PT40 Bodypack, SR40 Receiver, MKG/L Instrument Cable.
Features
Operates for more than 35 hours off the same set of batteries
Lowest operating cost in its class
SAW filters for interference-free operation
Adjustable squelch for noise-free reception
Comprehensive indicators for easy status monitoring
Professional XLR and Õ in. jack outputs
Easy to mount in any 19 in. rack using optional rack mount kit
SR 40 Receiver
Rugged half-rack case
SAW filters for interference-free operation. Adjustable squelch for noise-free reception
Power, RF, and mute LEDs for easy status monitoring
Professional outputs including a balanced XLR connector and unbalanced TS Õ in. jack
Output level adjustable from mic to line level
Easy to mount in any 19 in. rack using optional rack mount kit

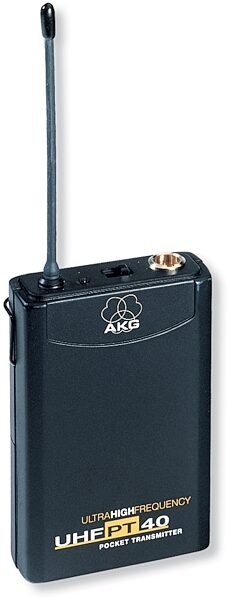

PT 40 Bodypack Transmitter
Rugged plastic case
Professional mini XLR connector
Extended audio bandwidth for optimum transmission of microphone as well as guitar and bass signals.
Controls include on/mute/off switch and battery status LED
Mic/line selector and input level control for exceptional flexibility
Uses 1.5 V AA size dry or rechargeable batteries for low operating cost
Battery life exceeds 35 hours
AC/DC converter maintains constant transmission quality throughout battery life
Recommended Microphones for the PT 40: C 417 L, C 419 L, C 420 L, C 444 L, MKG/L instrument cable.
HT 40 Handheld Transmitter
D 880 microphone element for brilliant voice reproduction
Integrated antenna for optimized RF output and optimum transmission quality
Battery life in excess of 35 hours. Uses 1.5 V AA size dry or rechargeable batteries for low operating cost
DC/DC converter maintains constant transmission quality throughout battery life
Controls include on/mute/off switch and battery status LED
Replaceable color code clip for channel identification
Technical Info

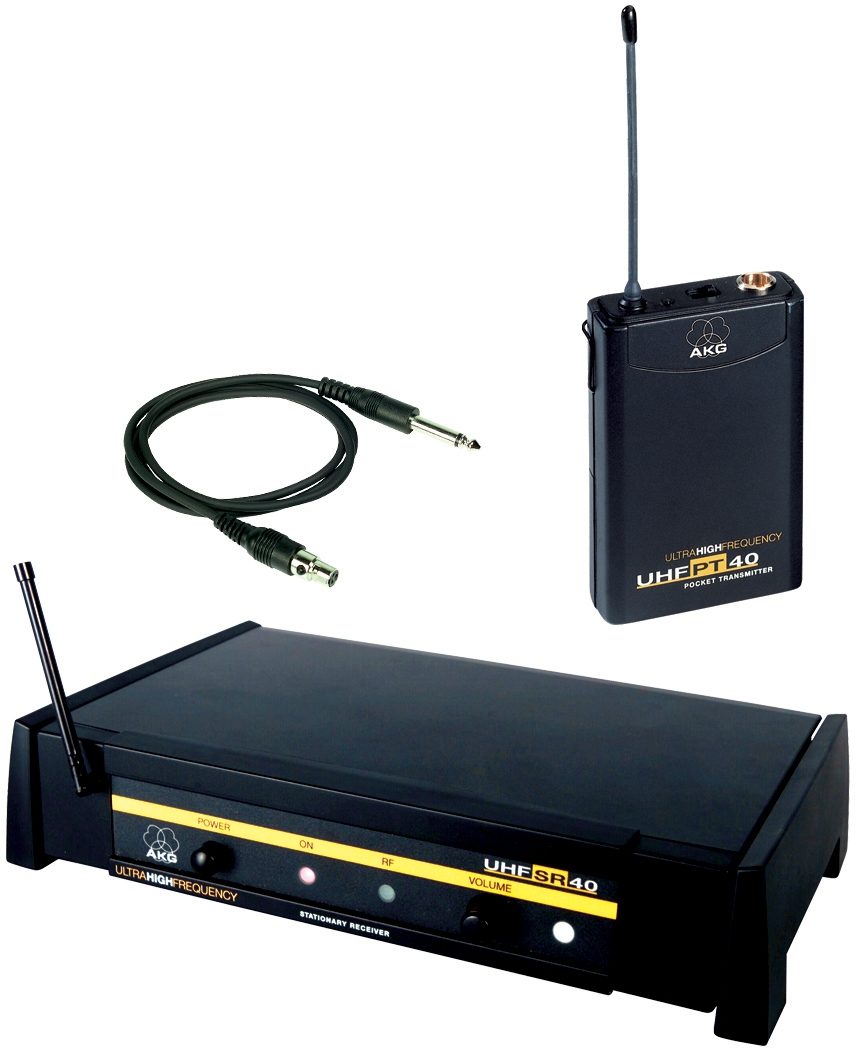

System Includes: PT40 Bodypack, SR40 Receiver, MKG/L Instrument Cable.
WMS 40 System
Carrier frequency range: 710 to 865 MHz
Modulation: FM
Audio bandwidth: 40 to 20,000 Hz
T.H.D. at 1 kHz: typ. 0.8%
Signal/noise ratio: typ. 108 dB(A)
PT 40 Bodypack Transmitter
RF output: 10 mW (ERP)
Battery life: >35 hours (2 x 1.5 V AA size batteries)
Size: 96 x 64 x 22 mm (3.8 x 2.5 x 0.9 in.)
Weight: 76 g (2.7 oz.)
Receiver SR 40
Audio outputs: balanced XLR and unbalanced 1/4" jack: adjustable from mic to line; 2 Vrms max.
Size: 235 x 142 x 43 mm (9.3 x 5.6 x 1.7 in.)
Weight: 470 g (16.6 oz.)
