AKG WMS40 Pro Vocal Set Flexx UHF Diversity Handheld System

Legendary AKG sound. Brilliant sound and ease of use.

Unique HDAP (High Definition Audio Performance) technology ensures the best possible, realistic sound at any time.

The rugged handheld transmitter with its soft-touch finish is extremely easy to use and fulfills the highest esthetic requirements.

The transmitters operate for 30 hours off a single AA size battery, saving frequent battery replacements and thus money.

Includes power supply, AA battery, stand adapter, and replacement clip.

SR 40 FLEXX Features
Three selectable UHF frequencies for interference-free reception.

Diversity: maximum transmission reliability even in difficult environments. The system automatically selects the antenna providing the best signal.

Adjustable squelch

Multichannel capability for simultaneous use of up to nine channels (maximum number of channel depends on local frequency plans).

All-metal case

High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.

HT 40 FLEXX Features
Three selectable UHF frequencies for interference-free reception.

Multichannel capability for simultaneous use of up to nine channels (maximum number of channel depends on local frequency plans).

High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.

Transmitter operates for at least 30 hours off a single AA size battery, saving cost, maximizing dependability, and minimizing onstage stress.

Technical Info

Channel Frequencies
Channel 40A: US45
A1: 660.700 MHz
A2: 661.100 MHz
A3: 662.300 MHz

Channel 40B: US58
B1: 734.600 MHz
B2: 736.025 MHz
B3: 736.975 MHz

Channel 40C: US60
C1: 748.875 MHz
C2: 750.900 MHz
C3: 751.550 MHz

SR 40 FLEXX
Carrier frequency range: 660 to 865 MHz, 3 selectable frequencies

Modulation: FM

Audio bandwidth: 35 Hz to 20 kHz

THD: typical 0.8 % (at 1 kHz)

Signal/noise ratio: typical 110 dB(A)

Power supply: 120/230 V AC

Audio outputs: bal. XLR and unbal. 1/4 in. jack, output level adjustable, at rated deviation: 500 mV rms.

Dimensions: 200 x 190 x 44 mm (7.8 x 7.4 x 1.7 in.)

Net weight: 665 g (1.5 lbs.)

HT 40 FLEXX
Carrier frequency range: 660 to 865 MHz, 3 selectable frequencies

Modulation: FM

Audio bandwidth: 65 Hz to 20 kHz

THD: typical 0.8 % (at 1 kHz)

Signal/noise ratio: typical 110 dB(A)

Power supply: 1 AA size battery

RF output: typical 10 mW (ERP)

Battery life: typical 30 h (for 2200 mAh)

Dimensions: 229 x 53 dia. mm (9 x 2.1 in.)

Net weight: 195 g (6.95 oz.)

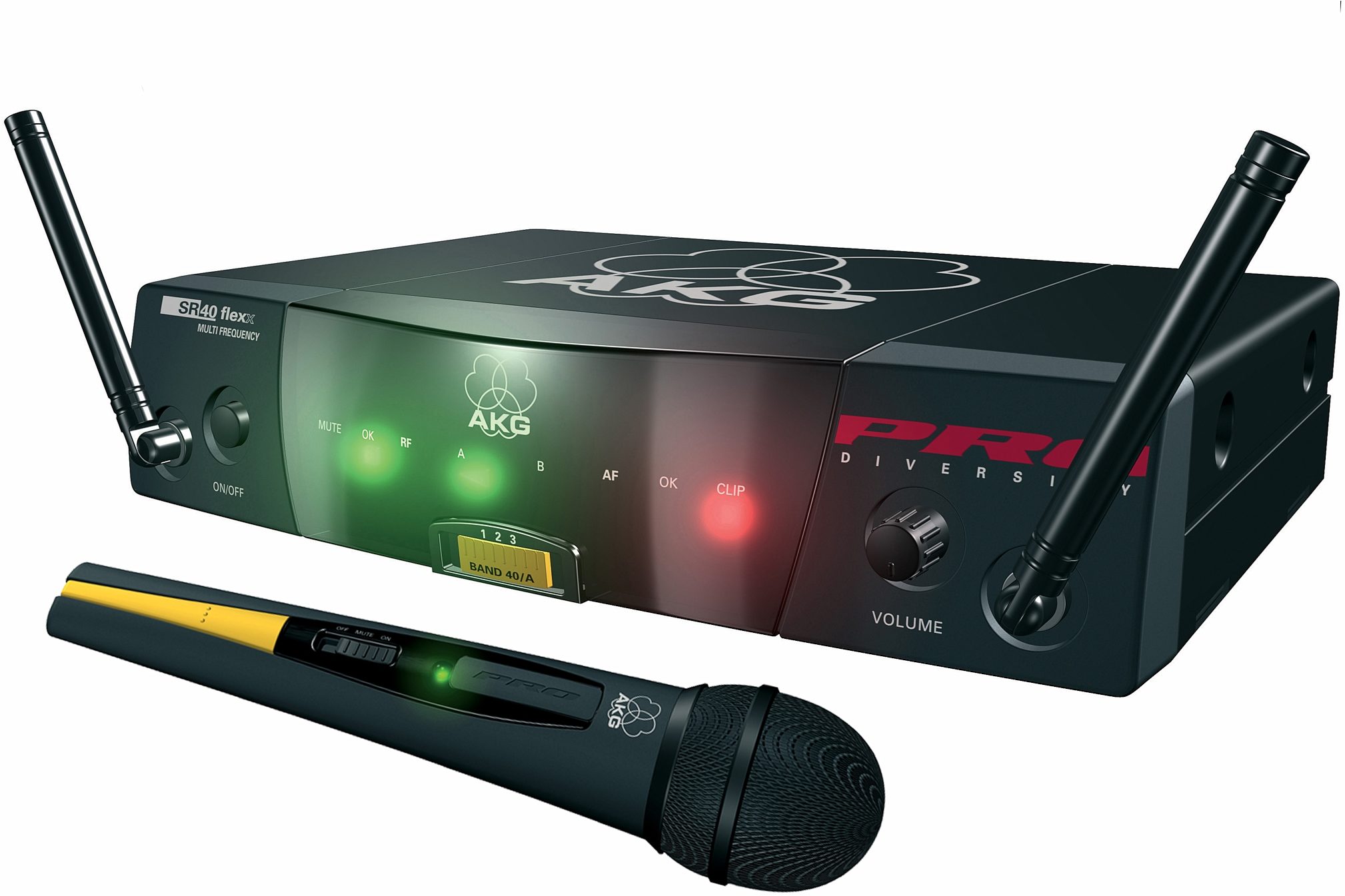

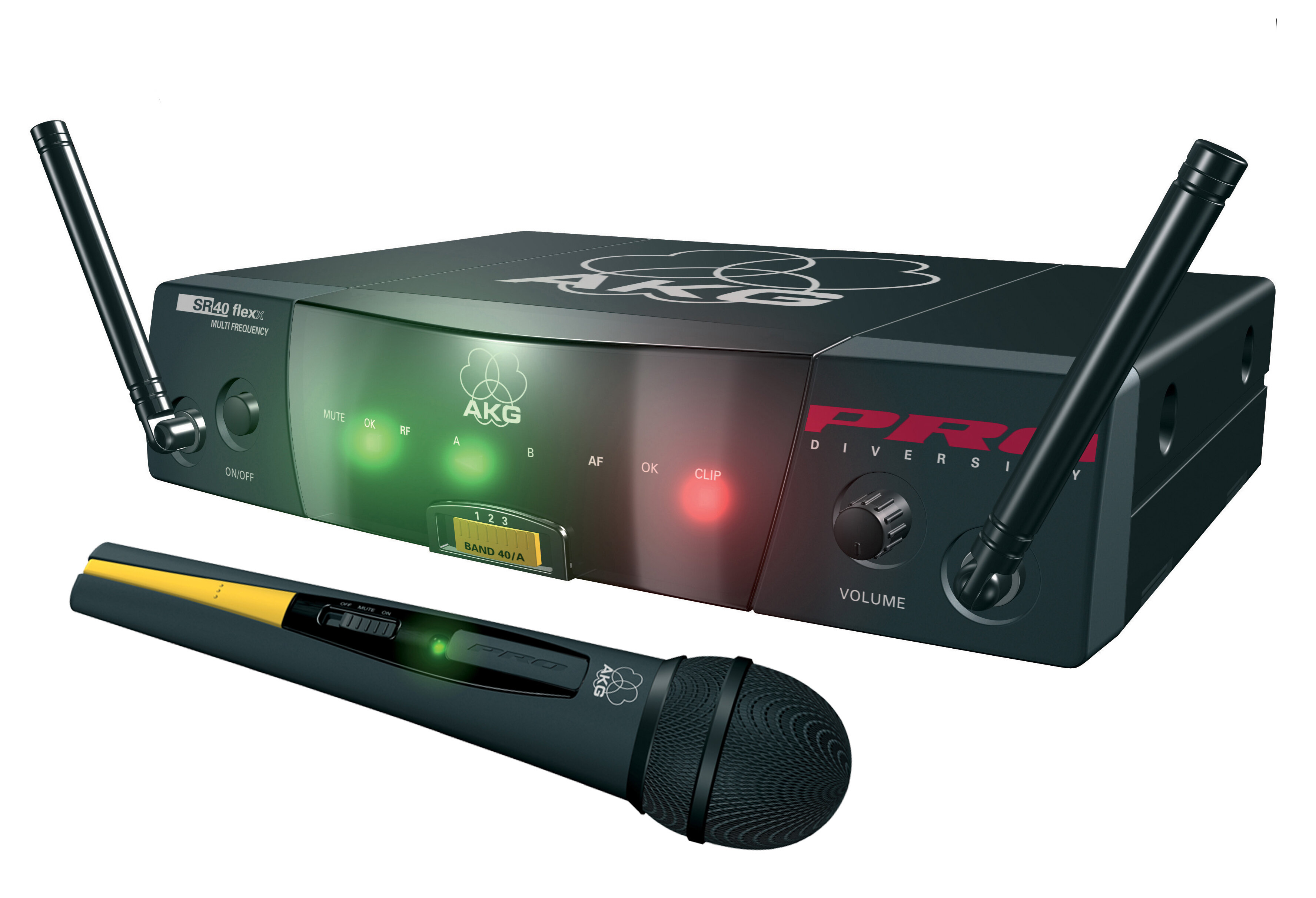

With SR 40 FLEXX diversity receiver and HT 40 FLEXX handheld transmitter with dynamic mic capsule.
