AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

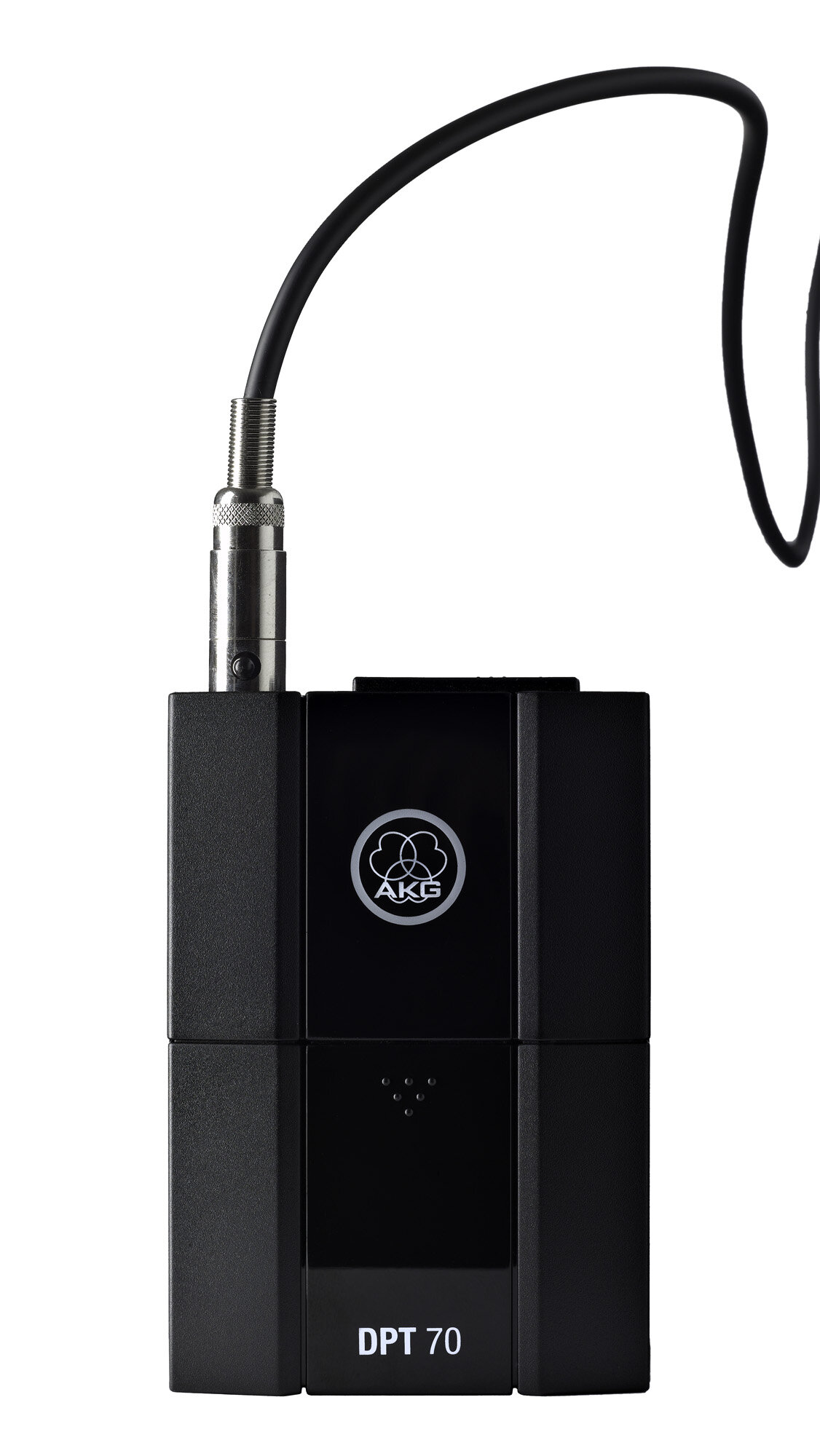

AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Main

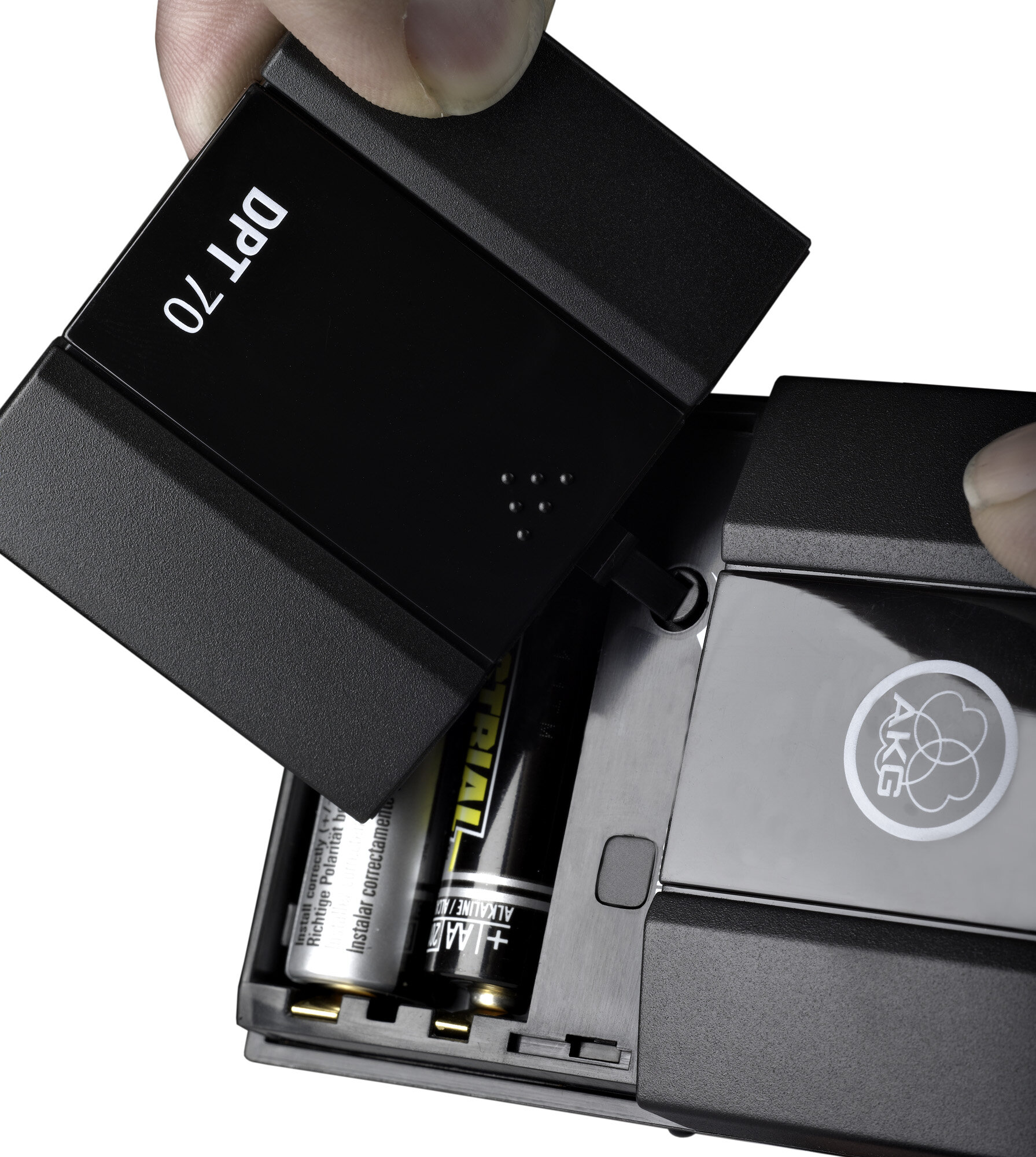

AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Battery Compartment

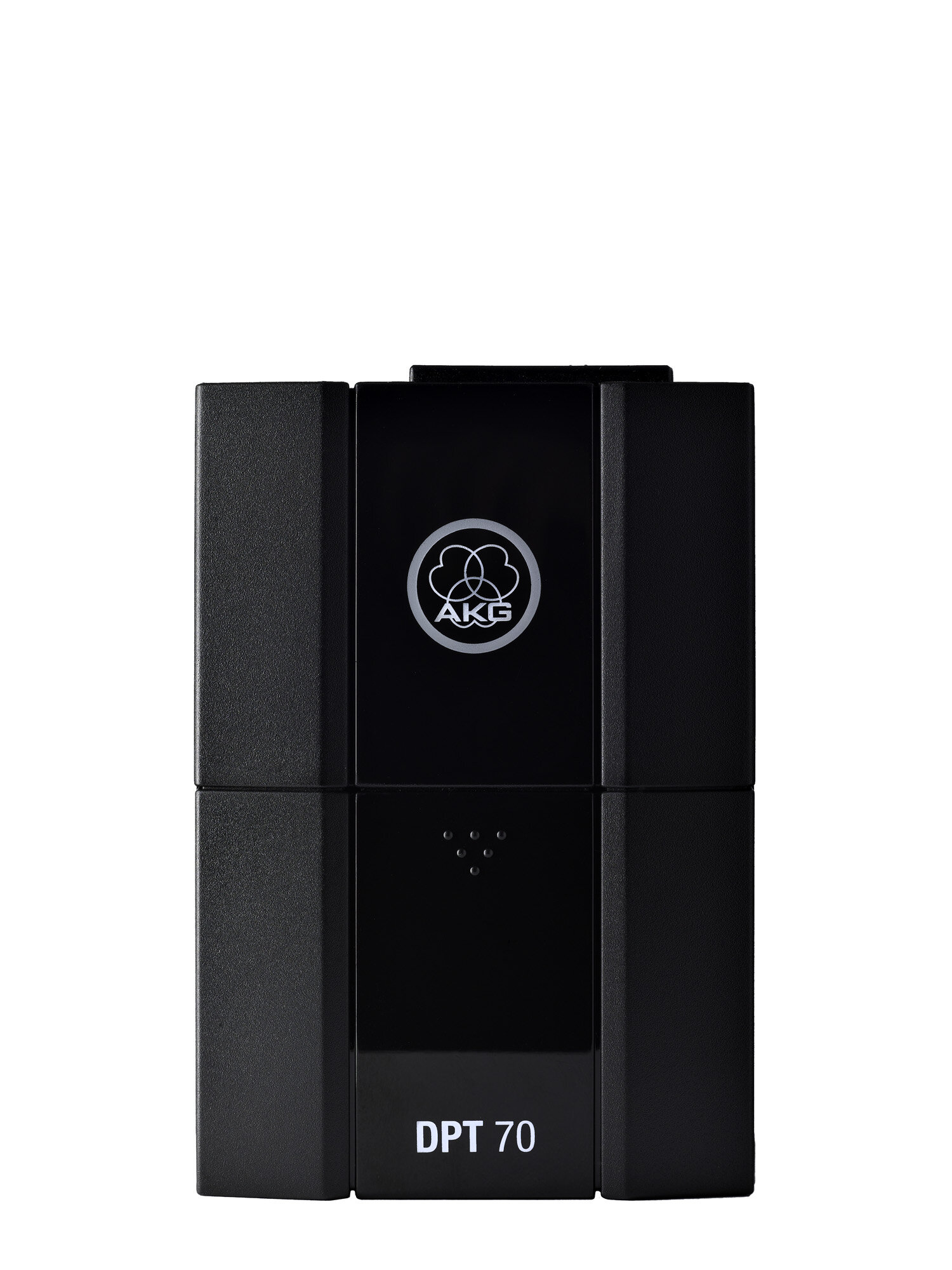

AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Front

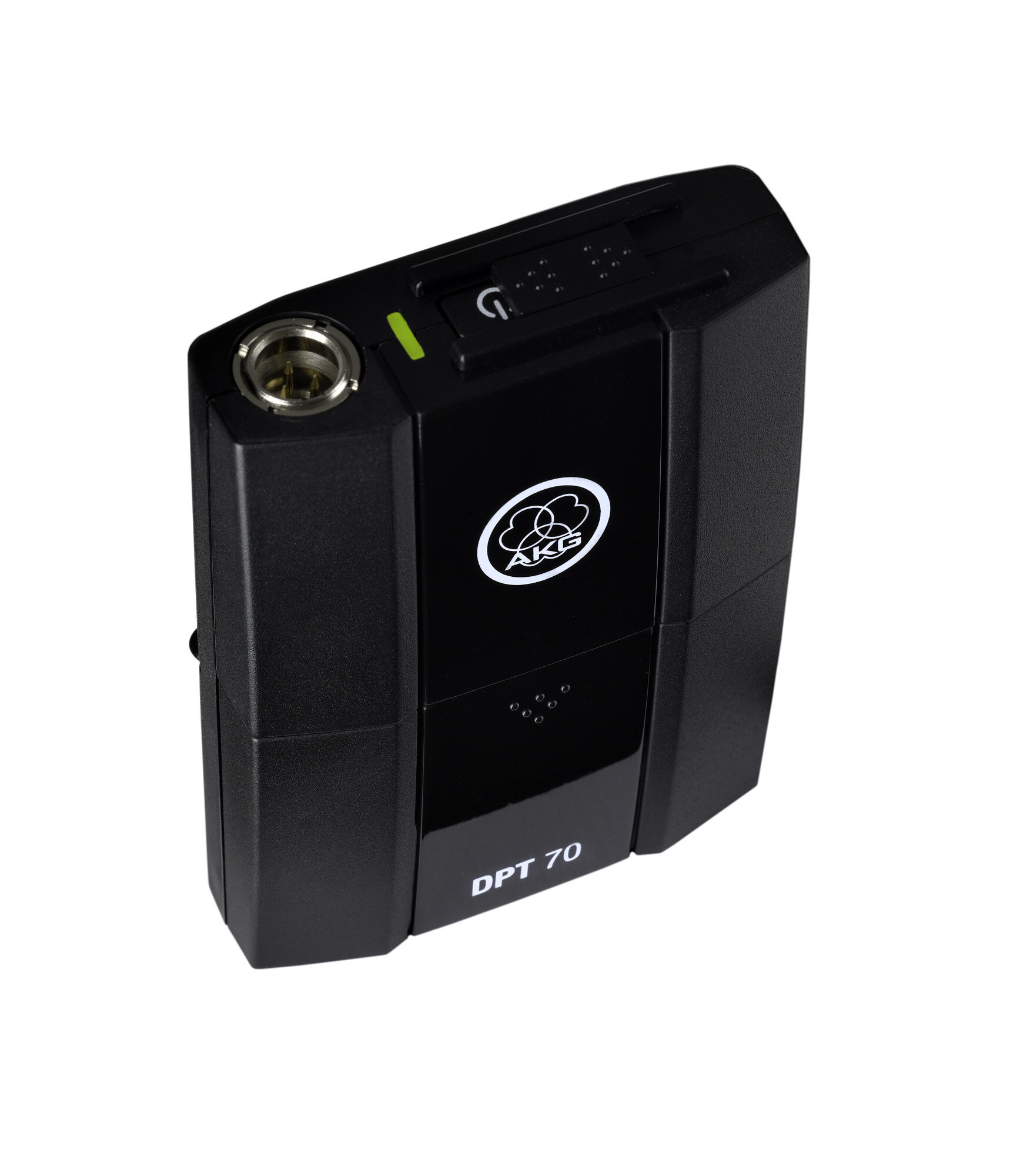

AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Top
AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Main AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Battery Compartment AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Front AKG DPT70 Digital Bodypack Transmitter with Instrument Cable for DSR70 Wireless, Top
Pair this AKG DPT70 bodypack transmitter with your DSR70 digital wireless receiver. It comes with a 1/4" instrument cable to plug in your guitar or bass.

The AKG DPT70 is a professional digital 2.4GHz body-pack transmitter for worldwide, license-free operation. With 24-bit, 48kHz audio coding it provides uncompressed studio-quality transmission and a linear frequency response, perfect for demanding instrumental performances. 128-bit AES standard encryption prevents tapping of the audio signal, which makes it a perfect companion for high-security conferences.

The AKG DPT70 provides digital diversity and an out-of-range warning function to ensure a stable and drop-free signal within the entire operating area. Its input is fully adjustable between mic and line level for noise- and distortion-free signal reproduction from loud guitars or gentle microphone signals.

This DPT70 bodypack comes with an MKG L instrument cable, with a straight 1/4" plug on one end and mini-XLR plug on the other.

You may also use your DPT70 transmitter with the following microphones (not included): CK97, CK77 WR, HC577 L

Features

- Professional three-pin mini XLR connector, compatible with guitar cables, headset and instrument mics
- True uncompressed transmission for best audio quality
- Plug-and-play solution, up and running in a second
- Out-of-range warning for drop-free operation
- Auto power off function saves battery life and reduces operating cost

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the… read more system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. read less

- Carrier frequency range: Dynamic frequency selection (DFS) in 2,4 GHz ISM band (2,404 - 2,470 GHz)
- Audio bandwidth: 20 Hz to 20 MHz (+/- 3 dB)
- Overall dynamic range: typ. 120 dB(A)
- THD: <= 0.05 %
- Gain Potis: 0 (2,2 Vrms) - 30 dB (70 mVrms) max input-level: < 3Vrms (gain = min)
- Operating range: Indoor 30m (LOS), Outdoor 30m (LOS)
- Modulation: Orthogonal Frequency-Division Multiplexing - OFDM
- Bandwidth: 3x16MHz
- Encryption: 128 Bit AES
- Diversity system: Digital controlled antenna diversity
- RF output power: max. 100mW
- Power supply: 2x AA Alkaline approx. 6h , 2x AA NiMH approx. 7h
- Dimensions: 92 mm x 64 mm x 22 mm (3.6" x 2.5" x 0.9")
- Net weight: 70 g (2.5 oz.)

For support or warranty questions, please contact the manufacturer:
Phone: 818-920-3212
Cut Sheet
Manual
Quick Start Guide

Reviewers gave this product an overall rating of 5 out of 5 stars. (1 ratings)
Submitted May 8, 2014 by a customer from hotmail.com

"Great Product!"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
This product works great and I have reception throughout most of the house. Thank You!!
Did you find this review helpful?
Thanks for your opinion!
Rate and Review this Product
Read more reviews

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
