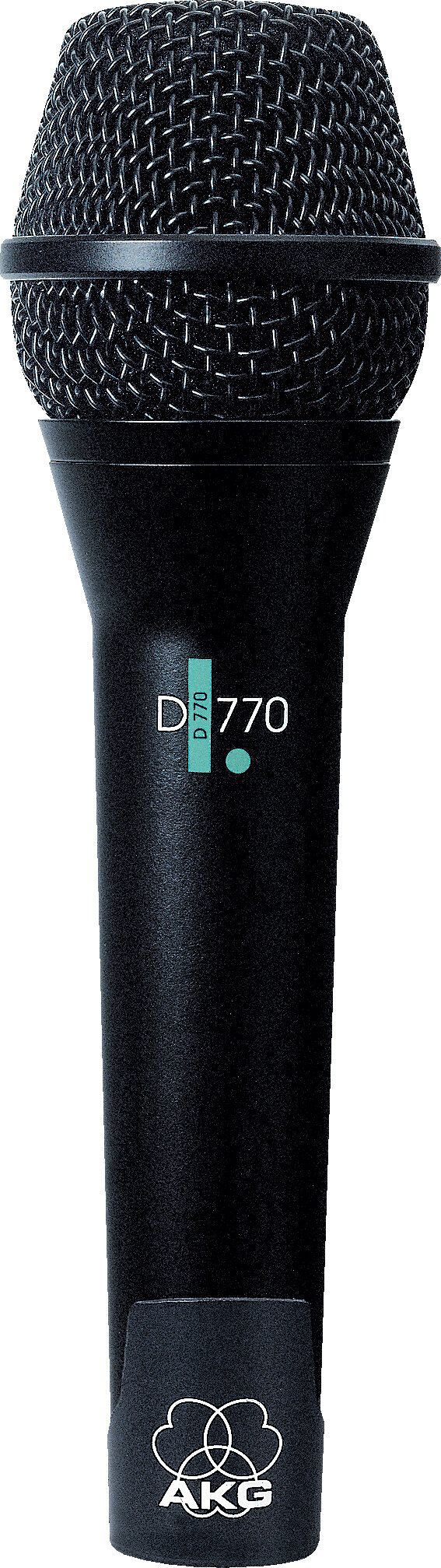

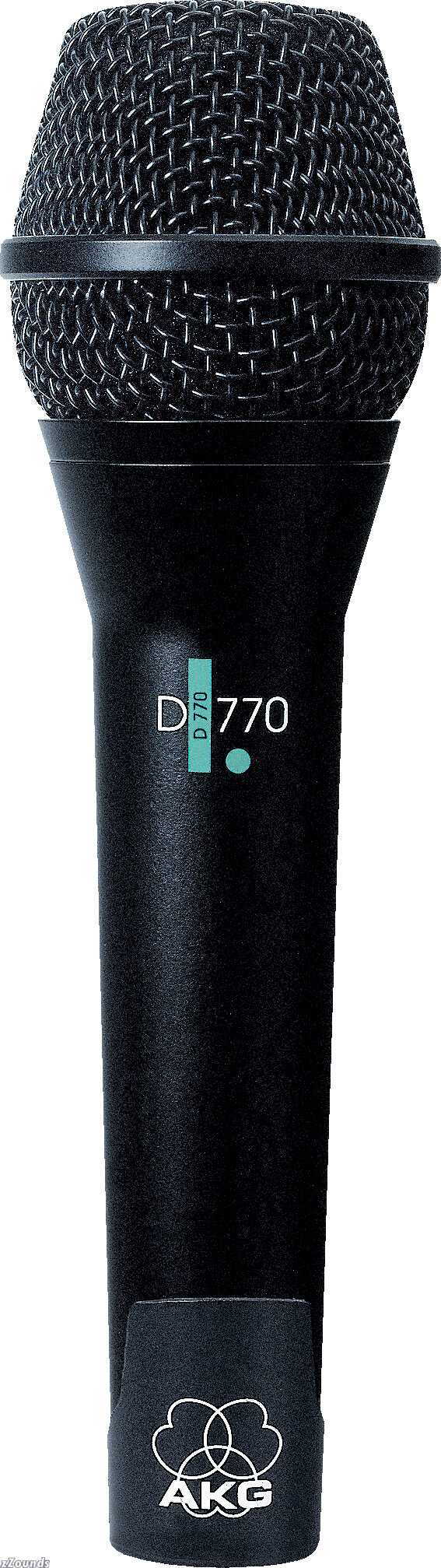

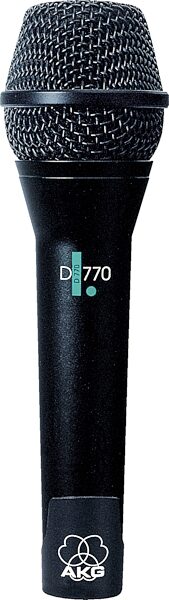

Dynamic microphone for miking instruments and backing vocals in tough night-after-night onstage use. The D 770 features a cardioid polar pattern that is virtually the same for all frequencies ("frequency independent") and uses a patented AKG Varimotion diaphragm.
The D 770 is fitted with a shock absorbing steel wire-mesh inner grill and a wire-mesh outer grill for transducer protection against damage. The outer grill and a layer of special fabric beneath it form a very effective windscreen that will suppress pop and breath noise as well as sibilance. The extended frequency response of the D 770 slightly emphasizes the mid and treble ranges to ensure good intelligibility.
Features:
High-output neodymium transducer
Rugged construction
Highly efficient windscreen
Frequency response optimized for intelligibility
Technical Info

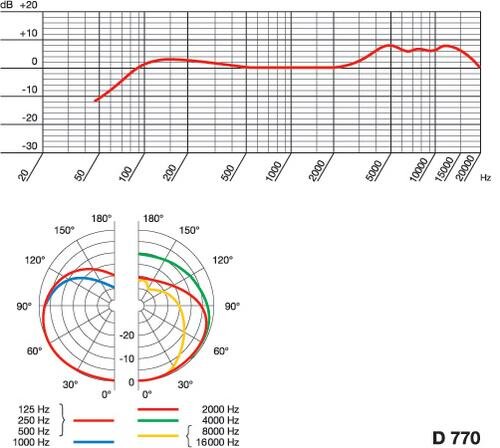

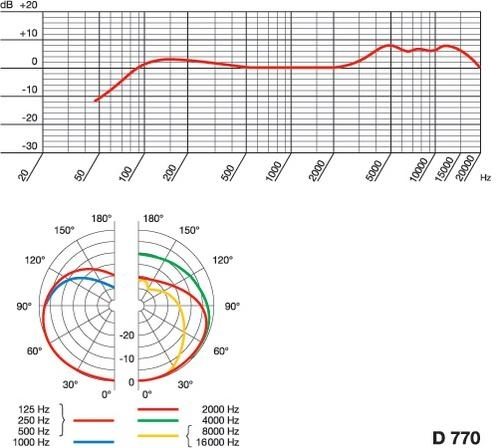

Polar Pattern: Cardioid
Frequency Range: 60 to 20,000 Hz
Sensitivity: 2.5 mV/Pa (-52 dBV re 1 µbar)
Max. SPL: 147 dB SPL (156 dB SPL) for 1% (3%) THD
Equivalent Noise Level: 22 dB (A) to DIN 45412
Impedance: <=600 ohms
Recommended load impedance: >=2000 ohms
Connector: 3-pin male XLR
Finish: Matte black enamel
Dimensions: 50 dia. x 181 mm (2 x 7.1 in.)
Net Weight: 290 g / 10.4 oz.
Shipping Weight: 650 g / 1.4 lbs.
