This product is no longer available at zZounds.

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

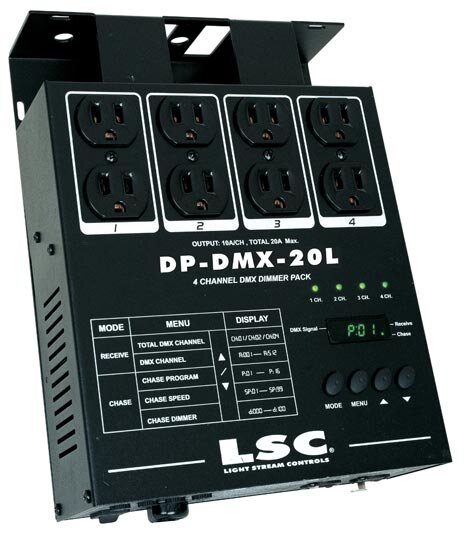

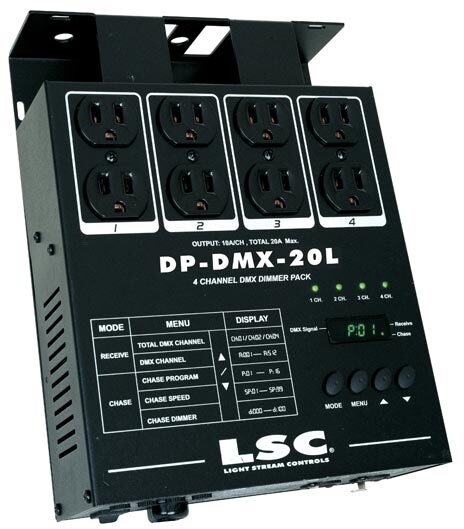

American DJ DPDMX20L Dimmer Pack

Protect your equipment from all sorts of electronic maladies and make sure everything is running on just the right amount of power with this dimmer pack. 6 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized American DJ and Audio dealer

The DP-DMX20L is a 4-channel DMX dimmer pack. This pack can serve as a stand-alone chaser or a DMX dimmer pack. This pack is designed for zero-crossing circuitry which protects against inductive loads, so it is safe for use with all lighting effects that include transformers (such as pin spots). Each channel comes with two 3-prong Edison socket inputs for a total of eight. This unit features XLR female and male connection for DMX compatability. Each channel is equipped with a fuse, and a maximum output load of 6A per channel or 15A total. This revision of the DP-DMX20 has a great new case design that makes it great for permanent or mobile applications.

Features
Easy to use LCD display -- no more dip switches

Built-in 4-channel chaser

May be used as a 1, 2, or 4 channel pack

600 watts per channel - 2400 watts max

20 amps maximum draw zZounds is an authorized dealer of American DJ and Audio products.

- 4 channel DMX Dimmer Pack

- Digital display- used to set starting DMX address channels and set all other menu options

- Selectable 1, 2, or 4 channel operation

- Adjustable master dim level.

- Two three prong Edison sockets per channel

- 3 pin XLR DMX Input & Output

- Four LED's display channel activity

- External channel fuses for quick and easy replacement

- Sleek reversible mounting panel on the rear

- Zero crossing circuitry for protection of transformer loads when switching

- 16 built in Chases when in Chase mode with adjustable speed setting

- Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene

- Reversible mounting brackets.

- Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller

- Power Input: 120V ~ 60Hz

- Maximum Load: 10A per channel / 20A total

- Dimensions: 10.25"L x 8.25"W x 3"H

- Weight: 6 lbs

Manual

American DJ and Audio Warranty

American DJ Warranty

If you have additional warranty questions, please call the manufacturer at 323-582-2650
