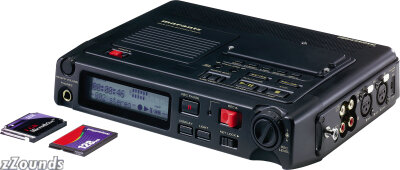

Marantz PMD670 Professional Solid-State Recorder
The easiest way to get sound into a computer! This professional, solid-state, stereo digital recorder provides the ultimate in convenience for just about any remote recording application. The PMD670 records your choice of uncompressed WAV or MP2, and now - MP3 files (selectable compression rates) that you can immediately drag-n-drop onto your computer hard drive via USB. The PMD670's Type II PC Card slot is compatible with type II compact flash cards, which are widely available at computer/electronics retailers. The slot is also designed to accept cost-effective IBM MicroDrives, miniature removable hard disks with capacities as high as 10 gigabytes for over 12 hours of continuous WAV file recording. To ensure that everybody's comments are captured, the PMD670 provides Automatic Level Control, and noise filters to filter out such things as the hum from an air conditioning system. Inputs include XLR (w/+48V phantom power) and 1/4 in. mic/line inputs for use with quality PZM or condenser mics. A built-in mic is also provided. Outputs include coax digital and RCA analog. Other features include a 2-second Pre-Record Buffer (continuously records audio before record button is pressed), a built-in speaker, a time/date generator and a Silent Skip feature (defeatable) that pauses recording during silences. Includes carrying strap, AC adaptor & battery holder.
Like its predecessors, the PMD670 is a rugged and reliable portable recorder specifically designed for applications like meeting recording, voice dictation, high quality sound gathering and everything in between. The PMD670 includes a built-in microphone, built-in speaker, and professional mic/line inputs and outputs. You can record many hours of quality stereo or mono audio on a single CF (compact flash) memory card or Microdrive. Transfer audio files into a computer for editing or distribution by simply placing a recorded card into your computer PC card drive or use the built in computer I/O port for a no hassle approach to file transfer. The PMD670 is also fully compatible with Marantz Professional's PMDEdit editing and file management software.
Features
Records onto inexpensive and reliable solid state CF cards (compact flash) or Microdrives (64 MB Flash Card formatted and ships with unit)
Records up to 5 1/2 hours (stereo, 48kHz)(when media becomes available)
Records in .mp2, .mp3, .wav, and .bwf digital audio formats
Over 40 assignable bitrates and sampling frequency combinations for many quality and media space saving settings
FAT 32 File Allocation Table allows for larger future media and files
One touch record
Simultaneously close and start new recordings
Improved menu-driven remote operation (contact closure)
Computer I/O port for direct to computer file transfer
Security screw for media door
Security panel to lock out sensitive recording parameters from being altered
Noise filters
Automatic level control
2 second pre-record audio cache
Built in mic and speaker
Digital in and out (s/pdif format)
XLR mic inputs
+48V phantom power
Extensive capability
Designed with compatibility for MP3, MP2, BWF, WAV formats the PMD670 boasts an impressive 40 assignable quality settings as well as a FAT32 File Allocation Table for future multi-gig file capability.
Simple Operation
With the flip of a switch record audio files to affordable and widely available Microdrives or compact flash cards.
Transfer audio files to PC
A table-top portable model, the PMD670 features a computer I/O connection that allows it to be easily linked for easy file transfer. Drag and drop recorded audio files to your computer's hard drive in minutes without the real-time delay disadvantages of cassette, MiniDisc, and DAT recording! The optional "PMDEdit" software enables easy file management and editing with its combined use.
Technical Info
Specifications
General
System: Solid State Recorder
Number of channels: 2 (stereo),1 (mono)
Usable media: CF memory cards, Microdrives
Recording and media methods
.mp2: MPEG1 Layer II compression
.mp3: MPEG1 Layer III compression
.mp3: MPEG2 Layer III compression* *for all half sample rates
PCM: 16 bit linear PCM
Power Consumption
Recording/Playback: 5.2 W
Charging: 12 W
Standby (battery driven): 2.2mW
Headphone Output power: 20 mW/32 ohms
Speaker Output power: 100 mW
Phantom power: +48V, 10mA
Dimensions (Maximum)
Width: 10.4 in. (264 mm)
Height: 2 in. (55 mm)
Depth: 7.3 in. (185 mm)
Weight: 2 lbs. 14 oz.(1.3 Kg)
Audio
Recording bit rate (selectable)
MP2 stereo: 384, 256, 192, 128, 96, 64 kbps
MP2 mono: 192, 128, 96, 64, 48, 32 kbps
MP3 stereo: 320, 256, 160, 128, 80, 64 kbps
MP3 mono: 160, 128, 80, 64, 40, 32 kbps
Sampling Frequency
Analog: 48, 44.1, 32, 24*, 22.050*, 16* kHz
*except MP2
Digital: 48, 44.1kHz
Frequency response (PCM 44.1kHz): 20,000 Hz (-0.5dB)
Signal-to-Noise Ratio IEC-A Weighted:
LINE: 86dB
MIC: 65dB
Total Harmonic Distortion at 0 VU (PCM)
LINE: 0.03%
MIC: 0.08%
Dynamic Range: 86 dB
Inputs / Outputs
MIC IN L/R
Type: XLR (1:GND, 2:HOT, 3:COLD)
Input Sensitivity: 1.2mVrms/6.5 kohms
LINE IN L/R
Type: RCA jack
Input Sensitivity: 300mVrms/20 kohms
LINE OUT L/R
Type: RCA jack
Standard Level: 2 Vrms max./2 kohms
DIGITAL IN/OUT
Type: RCA jack
Impedance: 75 ohms
Standard level: 0.5 Vp-p
Sampling frequency: 44.1/48 kHz
Format: SPDIF (IEC-958 Type II)
Specifications are based on measurement conditions and proper care for the machine, and are subject to change without notice.
