Explore the expressive options of sound-on-sound performance by layering your own phrases to create a massive "one-person band" experience. Stack as many layers as you like until you fill up the 16 minutes of ample recording space. Build the ultimate solo, and do it all live in real time with hands-free, footpedal-based operation! After you've dazzled the crowd with your layered masterpiece, bring it to a proper end with one of the three Stop options - immediate stop, end-of-phrase stop, or fade it out.

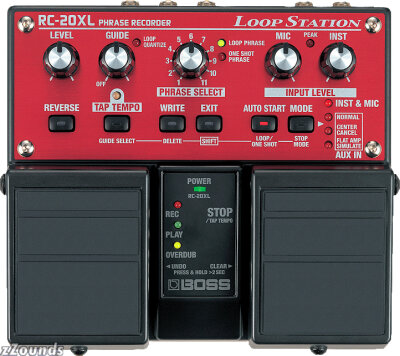

Whether for use onstage or at home, the new RC-20XL will add depth and excitement to your performances by allowing you to layer phrases in real time - as many stacks as you like until you fill up the 16 minutes of ample recording space on the RC-20XL. Explore the expressive options of sound-on-sound performance by layering your own phrases to create a massive "one-person band" experience. Build the ultimate solo, and do it all live in real time.
Features
Super long recording time: up to 16 minutes!
Save up to 11 loops at a time
Undo function makes it easy to create perfect loops
Built-in auto quantize for simple and accurate loop timing
Change loop tempo without changing pitch
Footswitchable loop select (with optional FS-5U/FS-6)
More, Better
The RC-20XL picks up where the popular RC-20 leaves off, as it offers more recording time and more features, but at the same affordable price as its predecessor. The RC-20XL inherits the same 'hands-free' pedal operation from the RC-20: Record, Play, and Overdub can be done with the left pedal - all the while your hands are free to play your instruments. But now you get approximately 16 minutes of recording time to capture and store loops or one-shot phrases (three times that of the RC-20), and you can work your way backward thanks to the new Undo function, a necessity when making mistakes during overdub.
Performance Tools
The RC-20XL has 11 memory tracks, in which you have the choice of storing either one-shot phrases or loop phrases. During your performance, you can switch between the tracks with an optional FS-6 Dual Footswitch, or two FS-5U footswitches (momentary-type). The Undo function can be a useful and musical function for erasing your previous phrase and instantly layering a new one. After you have dazzled your crowd, now its time to bring it to an end. The RC-20XL offers three stop options for this purpose. When you hit the pedal, you can either immediately stop the playback, let the phrase play until the end, or fade it out.
Technical Info
Nominal Input Level:
Inst: -20 dBu (variable)
Mic: -40 dBu (variable)
Aux In:-10 dBu
Input Impedance:
Inst: 1 M ohms
Mic: 1 k ohms
Aux In: 47 k ohms
Nominal Output Level
Output: -20 dBu
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Internal Memory: Recording time: 16 min.(max.)
Maximum number of saved phrases: 11 phrases (max.)
Connectors: Inst jack (1/4 in. phone type), Mic jack (1/4 in. phone type), Aux In jack (Stereo?miniature phone type), Phrase Shift jack (1/4 in. TRS phone type), Reverse jack?(1/4 in. phone type), Output jack (1/4 in. phone type), AC Adaptor jack
Power Supply
DC 9V: Dry battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA-series)
Current Draw: 120 mA (9 V max.)
Accessories: Owner's Manual, Dry battery (AA type) x 6, Sound Library for RC-20XL (Sample Phrase CD)
Options: AC Adaptor (PSA-series), Foot Switch (FS-5U)
Dimensions (W x D x H): 6-13/16 x 6-1/4 x 2-1/4 in. (173 x 158 x 57 mm)
Weight ( incl. batteries ): 1.2 kg (2 lbs. 11 oz.)
* 0 dBu=0.775 Vrms
* The specifications are subject to change without notice.
