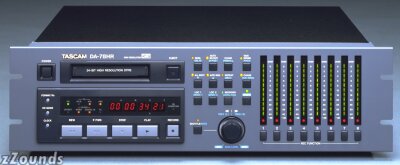

This is a total-pro 8-track multi-track digital tape recorder. Nowadays, the trend swings toward hard-disk recording, but there's still a long way to go before all the benefits of tape are outweighed. This is a machine that you can build a serious project studio behind, or use as a tool in any pro studio.
This is a 24-bit machine, with built-in time code capabilities. The built-in digital mixer combined with the S/PDIF I/O ports lets you digitally transfer from DAT or CD for mixes, or for bouncing purposes. That same mixer allows you to mix down all 8 tracks into 2 tracks within the machine itself with no extra gear required.
Features
Ý Selectable 16-bit or 24-bit high resolution audio
Ý 24-bit A/D and D/A converters
Ý >104dB Dynamic range
Ý 20Hz - 20kHz frequency response ±.5dB
Ý 1 hr. 48 min. recording time on a single 120 tape
Ý Onboard SMPTE synchronizer — chase or generate time code
Ý Onboard support for MIDI Machine Control
Ý Internal digital mixer with level and pan for internal bouncing or for quick mixes
Ý Track slip from -200 to +7200 samples
Ý Expandable up to 128 tracks (16 machines)
Ý Word Sync In/Out/Thru
Ý Analog output on DB25 balanced and RCA unbalanced
Ý Digital output on TDIF and 2 channels of S/PDIF
Technical Info
Frequency Response
20Hz-20kHz +/-0.5dB
Record Time
108 minutes (NTSC 120 Hi8 tape)
Signal to Noise Ratio
>104dB DTRS-HR
>100dB DTRS (Fs=48kHz. 22k LPF and A Weight)
Total Harmonic Distortion
<0.004% (DTRS-HR)
<0.005% (DTRS)
Channel Separation
>90dB 1kHz BPF
Wow/Flutter
Unmeasurable
Audio I/O
Analog: RCA unbalanced DB25 8-channel Balanced
Digital: TDIF
Clock I/O
TDIF In/Out
Word Sync out
DTRS Sync
In/Out
Control
DTRS Sync
MIDI Machine Control
Time Code I/O
Follow/Generate MIDI Time Code
Power Consumption
34W
Weight
8.1kg
Optional Accessories
IFAE8 AES/EBU digital audio converter (Convert 8 channels of digital audio between the TDIF1 and SIDF2 format. For use with DASH format digital multi-track recorders.
