DBX DB12 Active 48-Volt Phantom Power Direct Box

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

Docs

News

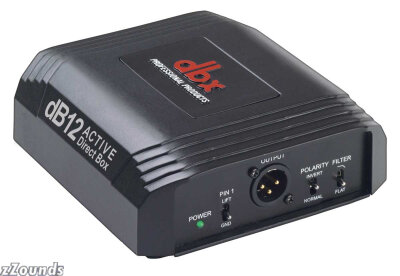

The DB12 Active Direct Box includes all the features of the DB10 (1/4-inch input and parallel thru jacks, transformer isolation, balanced XLR output, ground lift switch, 3-position pad switch, premium chrome toggle switches, a gold-plated Neutrik XLR output jack), but in an active version. The aggressive styling of its solid, road-worthy, cast-metal chassis is a departure from the usual utilitarian look of most direct boxes.

Driven by phantom power supplied by a mixing console’s mic input, the DB12’s active circuitry operates from 20V to 48V. A green power LED shows the status of the phantom power source.

The DB12’s high input impedance and low-noise buffered active circuitry faithfully preserve the tone and signal characteristics of the instrument source. It also includes a custom dbx mu-metal-shielded isolation transformer, tailored to complement the active circuitry and provide a clean balanced output signal.

In addition to its rugged design, a unique feature of the the DB12 is its heavy-duty molded rubber skid pad, which not only provides a solid, non-skid surface, but is contoured to mate with the tiered surface of the chassis top, making stable stacking of multiple boxes possible for a cleaner, compact arrangement.
