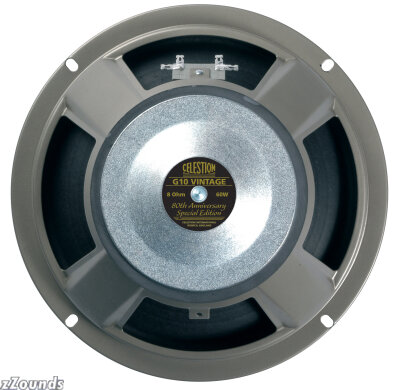

Celestion G10 Vintage Guitar Speaker (60 Watts, 10 in.)

Certain items must be exchanged directly through the manufacturer if they are found to be defective. This includes tubes, strings, pickups, raw frame speakers, drum heads, drumsticks, cymbals, cowbells, and harmonicas. These items can only be returned to us if they are unopened. details

About This Product!

Description

Docs

News

The G10 Vintage is the natural evolution of the well-respected Vintage 10. Closer to the sound of the Vintage 30 than its predecessor, the G10 Vintage still maintains a distinctive tonal flavour of its own. All of these speakers use the same voice coil designs and similar ceramic magnet structures to achieve their familiar, hard-rocking Celestion sound.

Harking back to the original British rock invasion, the G10 Vintage provides a meaty 60W power handling with solid bass, muscular mids and an articulate top-end, making it perfect for anyone looking to upgrade the sound of an existing 2x10 in. or 4 x10 in. A particularly versatile performer, the G10 Vintage is also well suited for use in a single speaker cab.

Technical Info

General Specifications
Nominal Diameter: 10 in., 254mm

Power Rating: 60 watts

Nominal Impedance: 8 ohms or 16 ohms

Sensitivity: 97dB

Chassis Type: Pressed Steel

Voice Coil Diameter: 1.75 in., 44.5mm

Voice Coil Material: Round copper

Magnet Type: Ceramic

Frequency Range: 100-5500Hz

Resonance Frequency, Fs: 115Hz

DC resistance, Re: 7.47 ohms or 12.33 ohms

Mounting Information
Diameter: 10.1 in.\ in., 256mm

Overall Depth: 4.1 in., 104mm

Magnet Structure Diameter: 5.3 in., 134mm

Cut-Out Diameter: 9.0 in., 229mm

Mounting Slot Dimensions: 0.2 x 0.3 in., 6 x 8 mm diameter

Number of Mounting Slots: 4

Mounting slot PCD: 9.6 in., 245mm

Unit Weight: 5.3lb, 2.4kg
