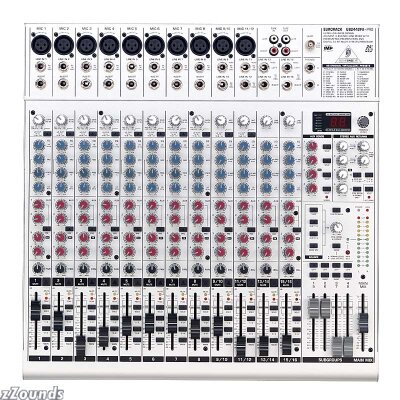

This is the big cajuna of the whole UB Series. You get all the features you'd expect in an ultra high-quality compact mixer: 16 balanced high-headroom line inputs with dedicated gain controls on stereo channels 13-16, 10 new state-of-the-art, studio-grade IMP "Invisible" Mic Preamps, and an effective, extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels. There is also an integrated 24-bit digital stereo FX processor with 99 great-sounding Virtualizer presets.
Because of their extensive and carefully thought-out routing possibilities, these consoles lend themselves equally to both live and studio use. The prime suspects are high-quality recording studios as well as MIDI-studio applications, small-size PA applications (solo entertainers, duos to quartets, small bands), video edits, and similar setups.
Every crucial development stage of the new UB Series has Uli Behringer's name on it - literally: from the design study to the circuitry layout to the mechanical makeup of the consoles. He has personally selected each and every individual component, all with the goal of squeezing the very most out of every single one of them. These consoles have been pushed as far as the technology permits to-date.
Features
Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio
10 new state-of-the-art, studio-grade IMP "Invisible" Mic Preamps with:
130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
Ultra-wide 60 dB gain range
Lowest possible distortion 0.0007% (20 Hz - 20 kHz)
Integrated 24-bit digital stereo FX processor with 99 great-sounding Virtualizer(TM) presets including reverb, delay, chorus, compressor, tube distortion, vinylizer, and more - plus 1 kHz test tone generator.
Effective, extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels.
Channel inserts and direct outputs on each mono channel plus main mix inserts for flexible connection of outboard equipment.
16 balanced high-headroom line inputs with dedicated gain controls on stereo channels 13 - 16.
State-of-the-art 4580 operational amplifiers provide lowest noise and distortion - better than 4560 op amps.
2 headphones outputs
4 aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)
Peak LEDs, mute, main mix, and subgroup routing switches, solo and PFL functions on all channels
4 subgroups with separate outputs for added routing flexibility
4 multi-functional stereo aux returns with flexible routing
Balanced main mix outputs with TRS and gold-plated XLR connectors, separate control room, headphones, and stereo tape outputs
Control room/phones outputs with multi-input source matrix
Tape inputs assignable to main mix or control room/phones outputs
Switchable +48 V phantom power for condenser microphones
Long-wearing 60 mm logarithmic-taper ALPS(TM) faders and sealed rotary controls
BNC connector for standard gooseneck lamps
Internal switch-mode power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus lowest possible power consumption for energy saving
Extremely rugged steel construction ensures long life even under the most demanding conditions
Rack mount brackets included
Manufactured under ISO9000 certified management system
Invisible Mic Preamp (IMP)
Five years in the making, the Invisible Mic Preamp (IMP) is a superior mic preamp that delivers crystal-clear audio with incredible reproduction of the slightest nuances. It matches or exceeds the performance of outboard mic preamps. You get extreme bandwidth of 5 Hz to 100 kHz coupled to unusually neutral, noise- and distortion-free circuitry. The Behringer IMP provides ultra-linear frequency response up to 100 kHz. The result of perfect design. Almost unmeasurable distortion for your signal integrity.
24-bit/ 46 kHz
Digital recordings are often done at a depth of 16 bits, which breaks up the dynamic range between the loudest and quietest portions of a signal into 65,536 steps. They use the finer resolution of 24 bits, which divides the signals loudest-to-softest dynamic range into 16,777,216 steps, allowing for far more accurate rendering of the quieter parts of the audio.
Audio signals change constantly, so a digital device must capture these changes as faithfully as possible. The higher the sampling rate, the better. The consoles use a sampling rate of 46,000 times per second. To capture any given frequency, a digital signal's sampling rate must be roughly twice that frequency. The sampling rate of 46 kHz is more than adequate for capturing all signals in the audible range - the human ear cannot hear the sounds whose frequency is higher than 20 kHz.
Ultra Low-Noise (ULN)
ULN stands for the Ultra low-noise design of our circuitry. It is based on extremely low-impedance components that keep thermal inherent noise and crosstalk at an absolute minimum. The result: your console is considerably less noisy and crosstalk between neighboring channels is virtually non-existent. The result of perfect design. Almost unmeasurable distortion for your signal integrity.
Switch-Mode Power Supply (SMPS)
Every console in the PRO Series uses a state-of-the-art, over-sized, switch-mode power supply with lots of headroom. One of the great advantages is that (compared to conventional circuits) a switch-mode power supply adapts to mains voltages between 100 and 240 volts automatically. Furthermore, due to its much greater efficiency, it consumes much less energy than a conventional supply unit. Even more important is the fact that conventional transformers always induce 50 Hz hum (check it out on other mixers when you turn up all volume controls). Their switch-mode supply operates at very high frequency and therefore keeps the mixer "dead" quiet.
XPQ 3D Surround
The XPQ 3D surround effect available in the UB1832FX-PRO widens the stereo image and adds life and transparency to your sound - an easy way to put a unique final polish on your music and turn your performance into an incomparable experience.
