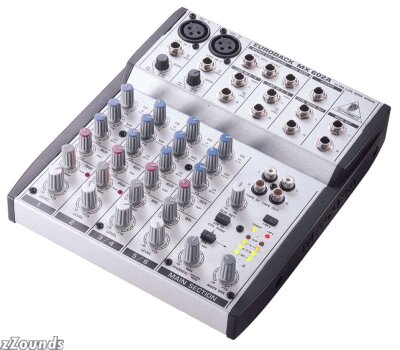

The World's Smallest Eurorack
The ultra-compact MX602A features the same discrete microphone preamps and super-clean ULN circuitry. Its 2 mono and 2 stereo channels each sport a complete 3-band EQ with 15 dB of boost/attenuation. The success of the award-winning MX802A proved we were right: there is a demand for high-quality consoles in miniature format - whether for audio/video, home stereo, or other general audio applications. Our development engineers had an ambitious goal with the MX602A: to offer everything you'd expect from a Behringer console in spite of the miniscule size. Things like first-class audio quality, an auxiliary path, a stereo aux return, a 2-track input/output, precise LED level meters, and a phones output. It goes without saying that we also included +48 V phantom power for your valuable condenser microphones. What more do you need? And with balanced inputs and flexible main mix and control room outputs you'll always be able to connect.
Eurorack MX602A: Ultra Compact, Ultra Noise-Free!
Features:
Ultra-low noise 6-Channel, 2-Bus Mixer
2 Mono Input Channels with gold plated XLR and Line Inputs
Ultra-low noise dicrete Mic Preamps with +48 V Phantom Power
2 Stereo input Channels with balanced TRS Jacks
Additional multifunctional Stereo Aux Return
Extremely high headroom - offering a huge dynamic range
Balanced Inputs for highest signal integrity
Ultra-musical 3-band EQ on all channels
Peak LEDs on all Mono Channels
Aux Send for external effects and monitoring
Separate Main Mix, Control Room, and Headphone Outputs
2-Track Inputs assignable to Main Mix, Control Room/Headphone Outputs
Highly accurate 4 segment Bargraph Meters
High-quality sealed potentiometers
Rugged design Power Supply ensures superior transient response
State-of-the-art 4580 ICs and highest quality components ensure crystal-clear audio performance and ultra-low noise performance
Extremely rugged construction ensures long life even under the most demanding conditions
Manufactured under ISO9000 certified management system
Technical Info
Mono Input Channels
Mic Input: electronically balanced, discrete input configuration
Mic E.I.N. (22 Hz - 22 kHz) -129.5 dBu, 150 Ohm source
-117.3 dBqp, 150 Ohm source
-132.0 dBu, input shorted
-122.0 dBqp, input shorted
Bandwidth: 10 Hz to 60 kHz, +/- 3 dB
Distortion: (THD&N) 0.007 % at +4 dBu, 1 kHz, Bandwidth 80 kHz
Gain range: +10 dB to +60 dB
Signal-to-noise ratio: 113,6 dB
Line Input: electronically balanced
Bandwidth: 10 Hz to 60 kHz, +/- 3 dB
Distortion: (THD&N) 0.007 % at +4 dBu, 1 kHz, Bandwidth 80 kHz
Line level range: +10 dBu to -40 dBu
Equalization:
Hi Shelving 12 kHz +/-15 dB
Mid Range 2.5 kHz +/-15 dB
Lo Shelving 80 Hz +/-15 dB
Stereo Inputs
Line Input: unbalanced
Bandwidth: 10 Hz to 55 kHz, +/- 3 dB
Distortion: (THD&N) 0.007 % at +4 dBu, 1 kHz, Bandwidth 80 kHz
Equalization:
Hi Shelving 12 kHz +/-15 dB
Mid Range 2.5 kHz +/-15 dB
Lo Shelving 80 Hz +/-15 dB
Main Mix Section
Max output: +22 dBu unbalanced
Aux send max out: +22 dBu unbalanced
Control room out: +22 dBu unbalanced
Signal to noise ratio: 112 dB
Equivalent Input Noise: -90 dBu (all channels open, Unity Gain)
Power supply
Mains Voltages: USA/Canada 115 V ~, 60 Hz, power supply unit MXUL3
U.K./Australia 240 V ~, 50 Hz, power supply unit MXUK3
Europe 230 V ~, 50 Hz, power supply unit MXEU3
Japan 100 V ~, 60 Hz, power supply unit MXJP3
Physical
Dimensions (H x W x D): 1.46 x 7.4 x 8.35 in. (37/48 mm x 188 x 212 mm), approximately
Net weight: 1.3 kg, approximately (PSU not included)
