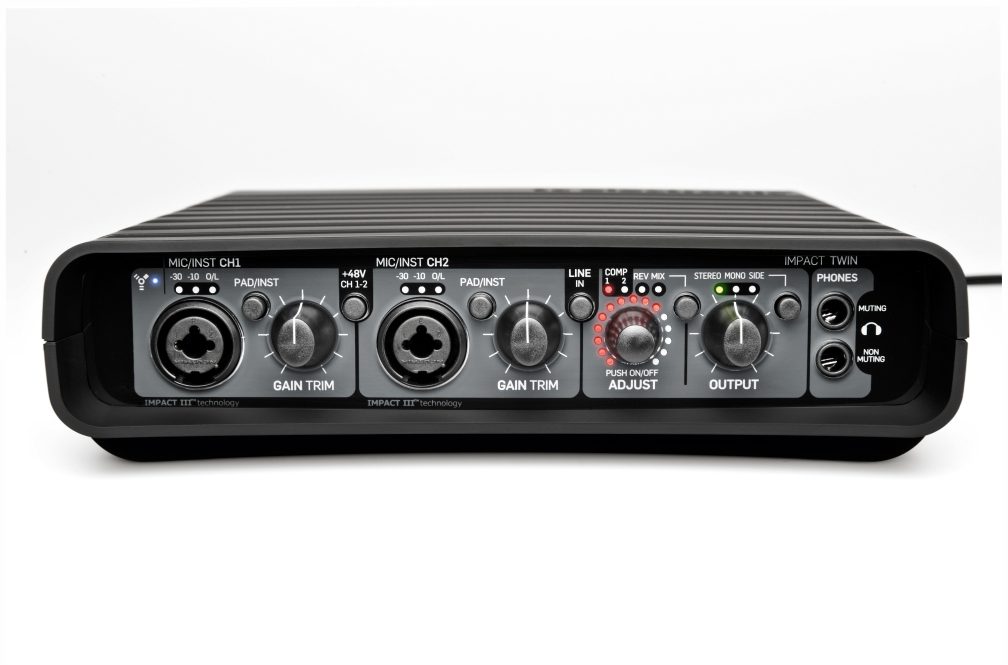

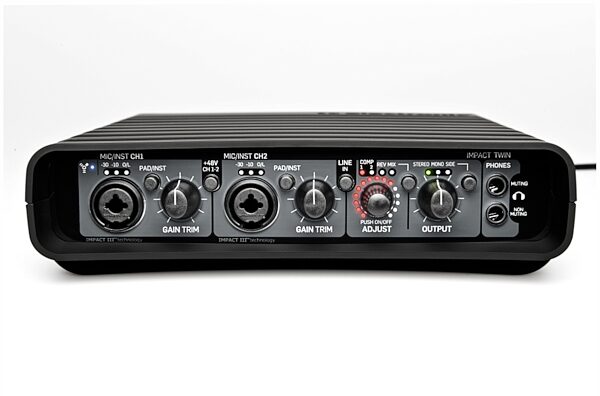

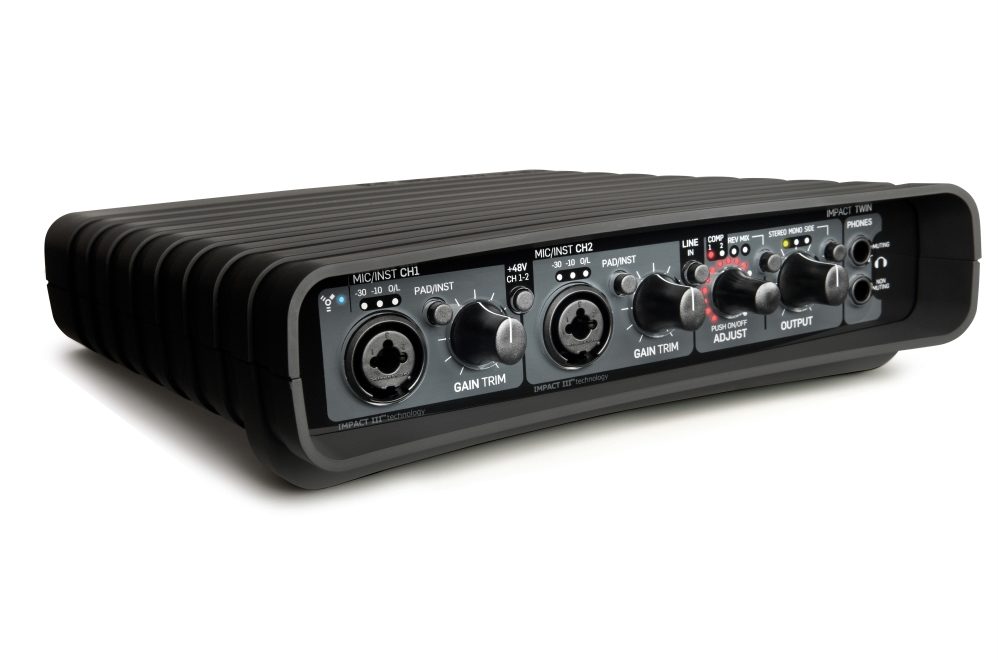

TC Electronic Impact Twin Firewire Audio Interface
No longer available at zZounds
Impact Twin's two mic preamps utilize Impact III(TM) Technology which itself features three stages of top level processing. 24-bit, 192 kHz operation.
Overview

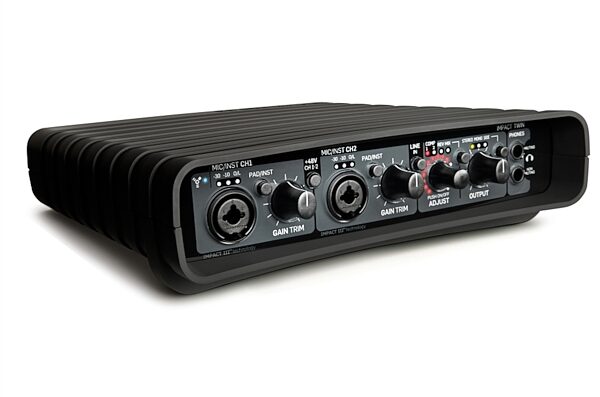

Impact Twin is a brand new, state of the art audio interface that features ground-breaking technology to ensure that the music you record sounds as good on the inside of your computer as it does on the outside. How?
Well, Impact Twin's two mic preamps utilize Impact III(TM) Technology which itself features three stages of top level processing. You get a high quality and very flexible mic preamp, superior 24/192 HD Conversion, plus a set of recording Channel Tools that lets you shape and optimize your sound making it the perfect recording. With each of these stages carefully combined behind Impact Twin's rugged and cool looking exterior, you have a 'take anywhere' device that offers the ultimate in recording quality.
Let's look in more detail at those all-important stages.
The Impact III Mic preamp makes the best of any microphone. So whether you record with the finest vintage tube mics, the most demanding low-budget condensers, or even a handheld dynamic, Impact Twin has been designed from the ground up to maximize the signal you record into your DAW. And with the two Impact III mic preamps, Impact Twin gives you maximum flexibility. Whether recording instrument, line or mic, with or without phantom power, Impact Twin works the way you need it to.
However, no matter how good your mic preamps, if your signal path doesn't then lead on to the best converters then you may as well pack up and go home. Impact Twin's 24/192 HD Convertors let you select your conversion rate - all… read more the way from 44.1kHz right up to High Definition 192kHz for the ultimate in pristine audio capture, maintaining the essential transients of your sound.
For years we've been innovating in the world of signal enhancement, so Impact Twin includes essential recording Channel Tools that go even further to optimize your sound with onboard EQ, Compressor and De-esser that quickly, simply and invisibly tame and enhance those signals - no matter what you're recording.
Two mic preamps featuring IMPACT III(TM) Technology
With these two pristine mic preamps you never have to worry about recording quality again

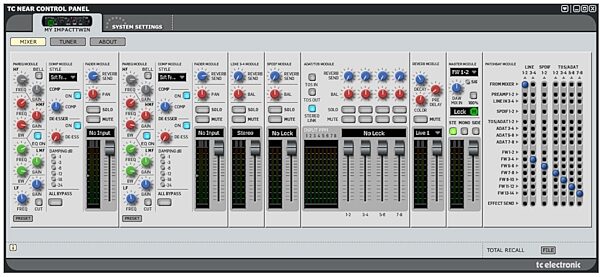

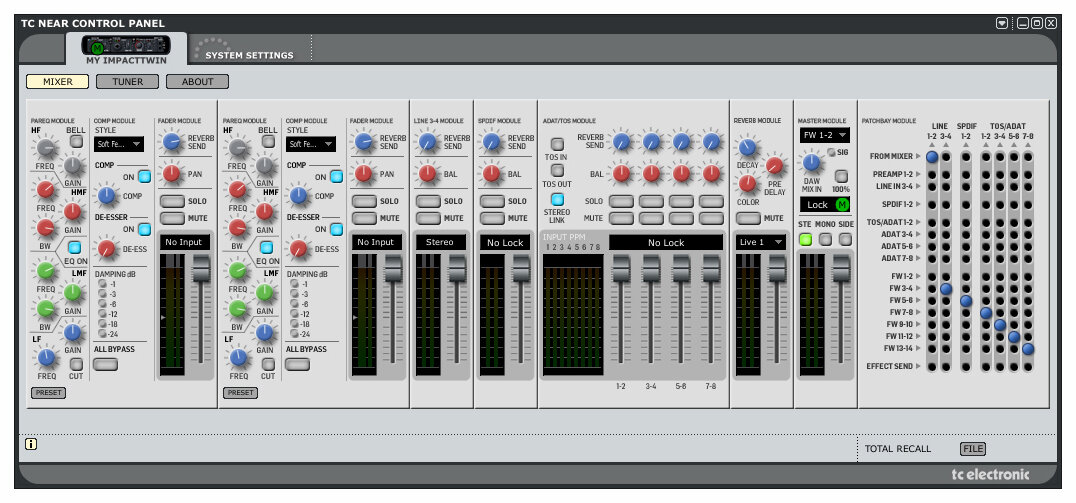

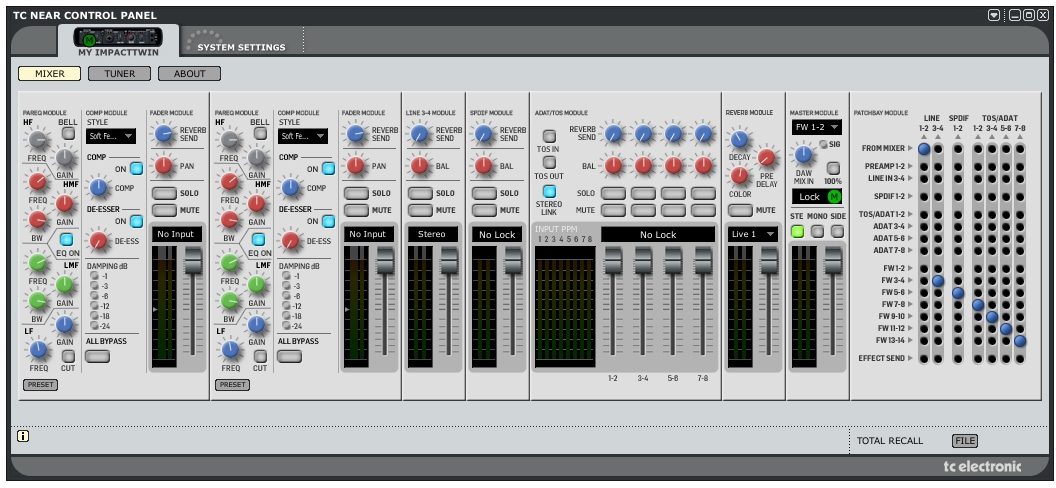

Channel Tools
Quickly and easily optimize the tone of your recordings with Impact Twin's built-in channel tools
Hi-Z Guitar optimized inputs
Ensure the tone of your guitars is beautifully preserved with two front-panel mounted Hi-Z guitar-optimized inputs
Direct Monitor Reverb
A simple way to add reverb at the monitor stage so the singer can enjoy quality reverb through their headphones
iCheck
The iCheck (Integrity Check) feature provides a shortcut for revealing artifacts of data reduction - essential when encoding mp3 or AAC files

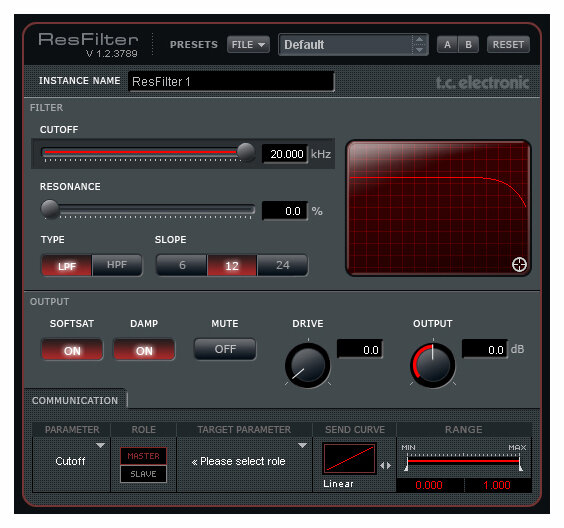

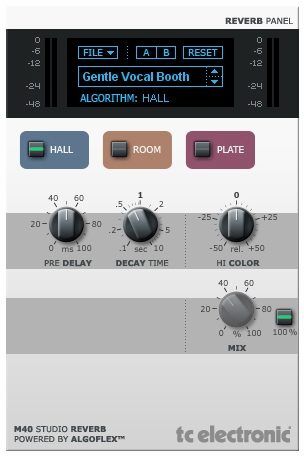

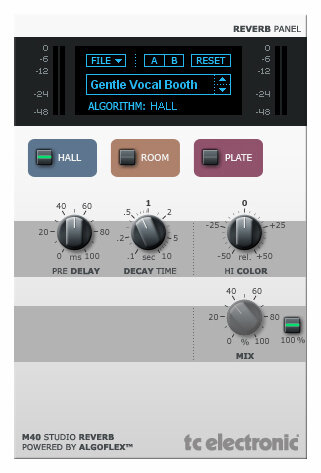

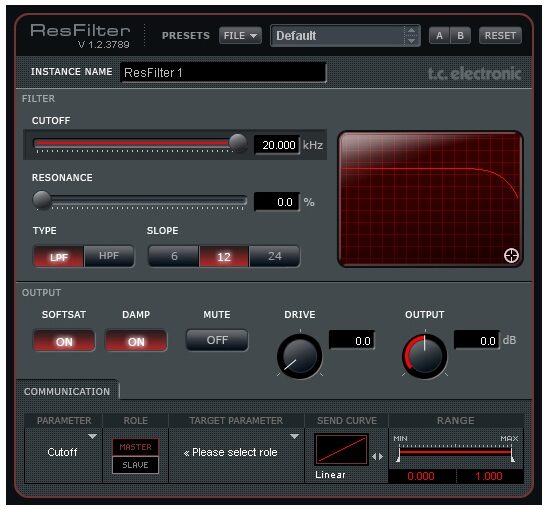

Included plug-ins (M40 reverb, ResFilter, Assimilator)
Impact Twin comes bundled with pristine TC effects processing. The M40 Studio Reverb is based on an algorithm from our acclaimed Reverb 4000 processor. The multi-purpose ResFilter provides ultra-fat filter sound. The Assimilator EQ curve assimilation tool lets you quickly grab an EQ curve from any sound and apply it to your own
Quick compressor access and feedback
Access the crucial compressor setting directly from Impact Twin's front panel - the light ring instantly shows gain reduction
JetPLL jitter reduction
Everybody talks about analog sound quality, but what about digital? With built-in JetPLL jitter reduction technology, Impact Twin ensures superb audio quality all the way through the device
192/24 HD Conversion
Impact Twin's HD Convertors let you select your conversion rate - all the way from 44.1kHz right up to High Definition 192kHz for the ultimate in pristine audio capture, maintaining the essential transients of your sound.
Ableton Live Lite 8 TC Electronic Edition included
Bundled with Impact Twin is Ableton Live Lite 8 TC Electronic Edition

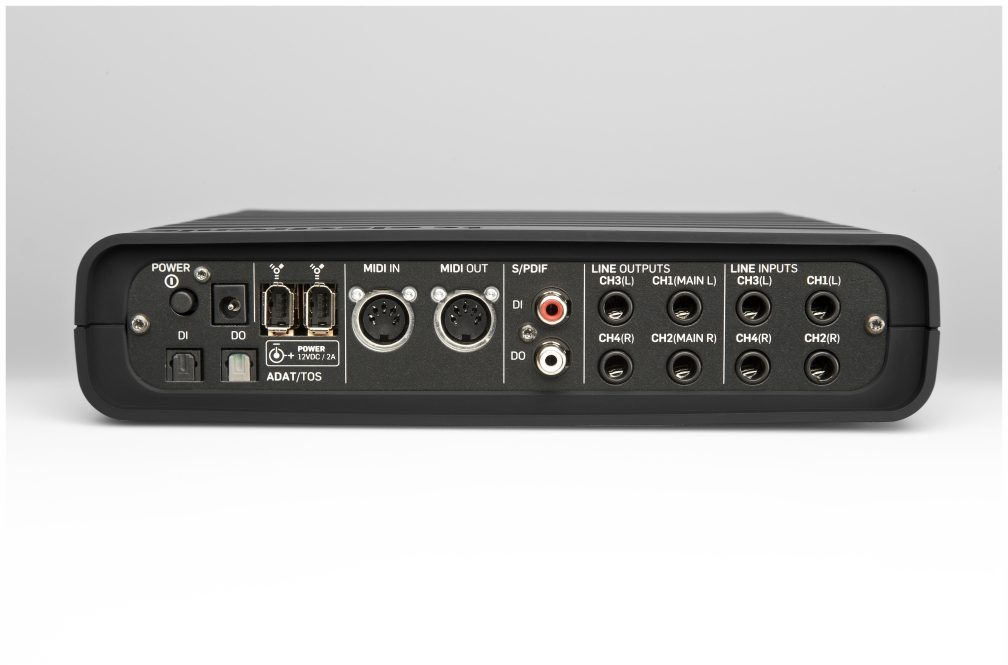

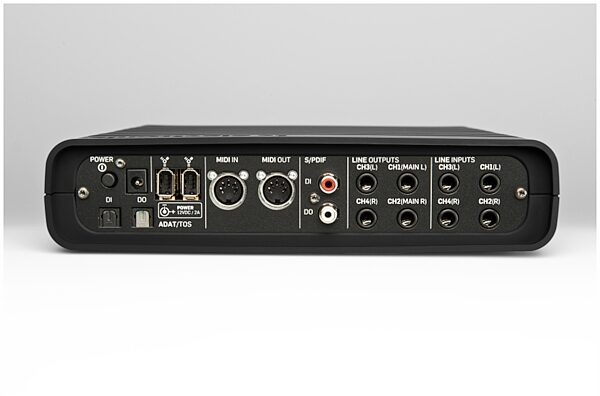

14/14 I/O (4 analog, 10 digital I/O)
14 ins and 14 outs give the flexibility to record and monitor just about any device you can think of read less
Well, Impact Twin's two mic preamps utilize Impact III(TM) Technology which itself features three stages of top level processing. You get a high quality and very flexible mic preamp, superior 24/192 HD Conversion, plus a set of recording Channel Tools that lets you shape and optimize your sound making it the perfect recording. With each of these stages carefully combined behind Impact Twin's rugged and cool looking exterior, you have a 'take anywhere' device that offers the ultimate in recording quality.
Let's look in more detail at those all-important stages.
The Impact III Mic preamp makes the best of any microphone. So whether you record with the finest vintage tube mics, the most demanding low-budget condensers, or even a handheld dynamic, Impact Twin has been designed from the ground up to maximize the signal you record into your DAW. And with the two Impact III mic preamps, Impact Twin gives you maximum flexibility. Whether recording instrument, line or mic, with or without phantom power, Impact Twin works the way you need it to.
However, no matter how good your mic preamps, if your signal path doesn't then lead on to the best converters then you may as well pack up and go home. Impact Twin's 24/192 HD Convertors let you select your conversion rate - all… read more the way from 44.1kHz right up to High Definition 192kHz for the ultimate in pristine audio capture, maintaining the essential transients of your sound.
For years we've been innovating in the world of signal enhancement, so Impact Twin includes essential recording Channel Tools that go even further to optimize your sound with onboard EQ, Compressor and De-esser that quickly, simply and invisibly tame and enhance those signals - no matter what you're recording.
Two mic preamps featuring IMPACT III(TM) Technology
With these two pristine mic preamps you never have to worry about recording quality again
Channel Tools
Quickly and easily optimize the tone of your recordings with Impact Twin's built-in channel tools
Hi-Z Guitar optimized inputs
Ensure the tone of your guitars is beautifully preserved with two front-panel mounted Hi-Z guitar-optimized inputs
Direct Monitor Reverb
A simple way to add reverb at the monitor stage so the singer can enjoy quality reverb through their headphones
iCheck
The iCheck (Integrity Check) feature provides a shortcut for revealing artifacts of data reduction - essential when encoding mp3 or AAC files
Included plug-ins (M40 reverb, ResFilter, Assimilator)
Impact Twin comes bundled with pristine TC effects processing. The M40 Studio Reverb is based on an algorithm from our acclaimed Reverb 4000 processor. The multi-purpose ResFilter provides ultra-fat filter sound. The Assimilator EQ curve assimilation tool lets you quickly grab an EQ curve from any sound and apply it to your own
Quick compressor access and feedback
Access the crucial compressor setting directly from Impact Twin's front panel - the light ring instantly shows gain reduction
JetPLL jitter reduction
Everybody talks about analog sound quality, but what about digital? With built-in JetPLL jitter reduction technology, Impact Twin ensures superb audio quality all the way through the device
192/24 HD Conversion
Impact Twin's HD Convertors let you select your conversion rate - all the way from 44.1kHz right up to High Definition 192kHz for the ultimate in pristine audio capture, maintaining the essential transients of your sound.
Ableton Live Lite 8 TC Electronic Edition included
Bundled with Impact Twin is Ableton Live Lite 8 TC Electronic Edition
14/14 I/O (4 analog, 10 digital I/O)
14 ins and 14 outs give the flexibility to record and monitor just about any device you can think of read less
Specs
Digital Inputs and Outputs
Connector (S/PDIF): RCA Phono, 75 Ohm
Formats (S/PDIF and TOSLINK): S/PDIF (24 bit), IEC 958, Pro-status bits
Connector (ADAT(R) or TOSLINK): Optical Pipe
Format (ADAT(R)): 8-ch. @ 48 kHz, 4-ch. SMUX @ 96 kHz
Digital IO Engine: TCAT DICE II, handling all IO formats
Clock and Jitter
Internal Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz
External Sample Rates: 43 to 193 kHz, jitter rejection at all rates
Jitter Rejection Engine: JET(TM) technology in TCAT DICE II
Jitter Rejection Filter (4th order): > 3 dB @ 10 Hz, > 100 dB @ 600 Hz
DIO Interface Jitter: < 1 ns peak, BW: 700 Hz to 100 kHz
AD/DA Conversion Jitter: < 42 ps RMS, BW: 100 Hz to 40 kHz
Digital Output Phase (stand-alone and across network): < 0.5 % of Sample Period
Input Slip Sample Tolerance(all DIs): +50 % to -50 % of sample period
Processing Delay DIO @ 96/48 kHz: 0.15/0.3 ms
Frequency Response DIO: DC to 23.9 kHz +/- 0.01 dB @ 48 kHz
Line Inputs Ch. 1, 2, 3, 4
Connectors: 1/4 in. Phone Jack (balanced)
Impedance, Bal./Unbal.: 20 kOhm/25 kOhm
Full Scale Input Level @ 0 dBFS: +13 dBu
THD+N: < -100 dB (0.001 %) @ 1 kHz, -1 dBFS
SNR: >111 dB(A), >108 dB, 20 Hz to 20 kHz
Freq. Response: +0/-0.5 dB, 20 Hz to 20 kHz
Crosstalk: < -100 dB, 20 Hz to 20 kHz
ADC
A to D Conversion: 24 bit, 128 x oversampling bitstream
A to D Delay: 0.68 ms / 0.63 ms @ 44.1 kHz / 48 kHz
Mic. Inputs Ch. 1, 2
Connectors: Neutrik Combo (XLR)
Sensitivity Full Range Pad on/off: -10/+10 dBu <> -52/ -32 dBu
Total Preamp gain: 62 dB
Impedance, Pad on/off: 2000/1300 ohm
NF @ Rg = 150 ohm, Max. Gain: < 4 dB
EIN @ Rg = 150 ohm, Max. Gain: < -127 dBu
THD+N, Min. Gain: < -100 dB (0.001%) @ 1 kHz, -1 dBFS
SNR, Min. Gain: >109 dB(A), >106 dB, 20 Hz to 20 kHz
48 bit Precision EQ
Hi Gain: +/- 12 dB
Hi Frequency: 200 Hz to 40 kHz
Hi Bell: On: 6 dB/oct. shelve / Off: Parametric
Hi Mid Gain: +/- 12 dB
Hi Mid Frequency: 200 Hz to 20 kHz
Hi Mid Bandwith: 0.10 to 4.0
Lo Mid Gain: +/- 12 dB
Lo Mid Frequency: 20 Hz to 2 kHz
Lo Mid Bandwidth: 0.10 to 4.0
Lo Gain: +/- 12 dB (only available when Lo cut is off)
Lo Frequency: 20 Hz - 400 Hz
Lo CUT: On: Cut / Off: 6 dB/oct. shelve
Compression/De-Essing
Compression/De-Essing styles: "Female Voice", "SoftFemale Voice", "HardMale Voice", "SoftMale "Voice", "Hard", "Guitar", "Bass", "Speak", "Sax", "Trumpet", "Snare", "Percussion", "All purpose"
Instr. Inputs Ch. 1, 2
Connectors: Neutrik Combo (1/4 in. Phone Jack)
Sensitivity Range: -25 dBu <> +17 dBu
Total Preamp gain: 42 dB
Impedance: 1 MOhm
THD+N, Min. Gain: < -100 dB (0.001%) @ 1 kHz, -1 dBFS
SNR, Min. Gain: >107 dB(A), >104 dB, 20 Hz to 20 kHz
Crosstalk: < -100 dB, 20 Hz to 20 kHz
Monitor/Line Outputs Ch. 1, 2, 3, 4
Connectors: 1/4 in. Phone Jack. Ground sensing design.
Impedance: < 100 Ohm
Level Range (Ch. 1, 2): -40 dBu <> +12 dBu (analog gain scale)
Fixed Full Scale Range (Ch. 3, 4): +12 dBu
THD+N: < -94 dB (0.002%) @ 1 kHz, -1 dBFS
SNR: >111 dB(A), >108 dB, 20 Hz to 20 kHz
Freq. Response: +0/-0.1 dB, 20 Hz to 20 kHz
Crosstalk: < -100 dB, 20 Hz to 20 kHz
DAC
D to A Conversion: 24 bit, 128 x Oversampling Bitstream
D to A Delay: 0.70 ms / 0.65 ms @ 44.1 kHz / 48 kHz
Headphone Outputs
Connectors: 2 x 1/4 in. Phone Jack (Stereo)
Impedance: 80 Ohm
Gain Level Range: -80 dBu <> +16 dBu @ 300 ohm (analog gain scale)
THD+N: < -94 dB (0.002%) @ 1 kHz, -1 dBFS
SNR: >103 dB(A), > 100 dB, 20 Hz to 20 kHz
Freq. Response: +0/-0.1 dB, 20 Hz to 20 kHz
Crosstalk: < -100 dB, 20 Hz to 20 kHz
Power @ 40 Ohm Load: 200 mW
Power @ 600 Ohm Load: 93 mW
EMC
Complies With: EN 55103-1 and EN 55103-2, FCC part 15
Class B, CISPR 22 Class B
Certified To: IEC 60065, EN 60065, UL60065 and CSA
E60065 CSA FILE #LR108093
Environment
Operating Temperature: 32* F to 122* F (0* C to 50* C)
Storage Temperature: -22* F to 167* F (-30* C to 70* C)
Humidity: Max. 90 % non-condensing
Control Interface
MIDI: In/Out: 5 Pin DIN
FireWire (DAW): IEEE 1394a, IEC 61883
General
Dimensions (W x H x D): 9.28 x 2.48 x 9.5 (235.8 x 63 x 241.2 mm)
Weight: 3.3 lb. (1.5 kg)
Finish: Acrylic front panel. Plated and coated steel back plate. Rubber coated soft touch cover surrounding metal chassis.
PPM Meter (Ch. 1, 2): 3 LEDs per channel
Mains Power Supply (included): 12V DC, Adapter for 90 to 240 VAC, 50 to 60 Hz (auto select)
FireWire bus-powered: 8 to 30 VDC
Power Consumption: <14 W
Warranty Parts and labor: 1 Year
