TASCAM LA-80MKII 8-Channel Unbalanced to Balanced Line Amplifier
No longer available at zZounds
Want to run consumer audio gear in a pro rig? The LA-80 converts 8 channels from unbalanced RCA to balanced XLR, with channel trim pots for +/-12dB of gain.
Overview

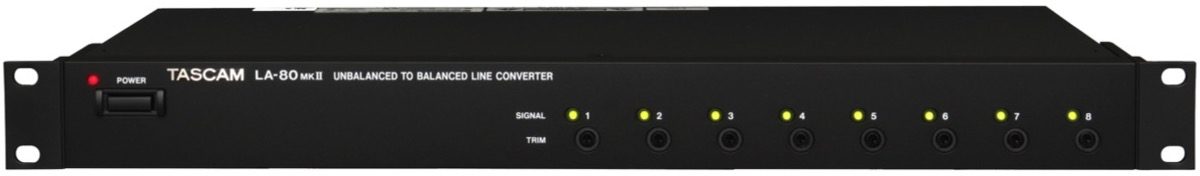

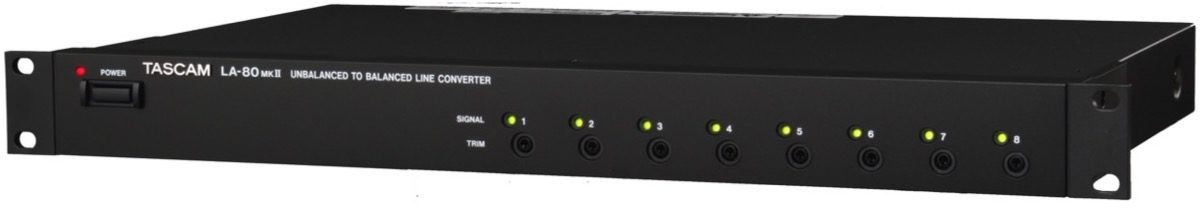

The TASCAM LA-80MKII is an eight-channel unbalanced to balanced line amplifier. The new models include a +/- 12dB trim control for better matching of levels between components. A signal present LED proves useful during system design and troubleshooting. These models are packaged in black rack cases with standard chassis depth for easier wiring. All of this is offered for a lower price than ever before.

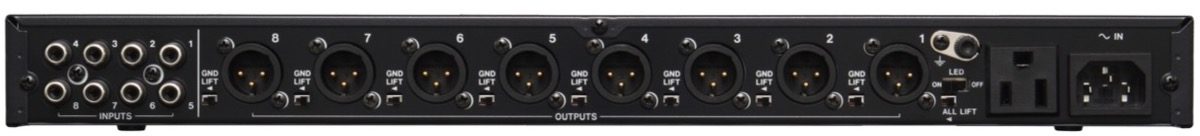

- Ground Lift switch per channel
- All Lift Switch disables ground connections for entire unit
- Earth terminal
- Signal Present LED per channel
Features:
- Trim control for fine level adjustment of +/- 12dB- Ground Lift switch per channel
- All Lift Switch disables ground connections for entire unit
- Earth terminal
- Signal Present LED per channel
Specs
- Unbalanced connectors: RCA
- Balanced connectors: XLR
- Input level: +4dBu/-20dBu
- Output level: -10dBV, selectable per channel
- Dimensions: 19" W x 1.74" H x 11" D (482 x 44 x 280 mm)
- Weight: 6.6lbs (3 kg)
- Balanced connectors: XLR
- Input level: +4dBu/-20dBu
- Output level: -10dBV, selectable per channel
- Dimensions: 19" W x 1.74" H x 11" D (482 x 44 x 280 mm)
- Weight: 6.6lbs (3 kg)
