Shure UT Series Guitarist UHF Wireless System
No longer available at zZounds

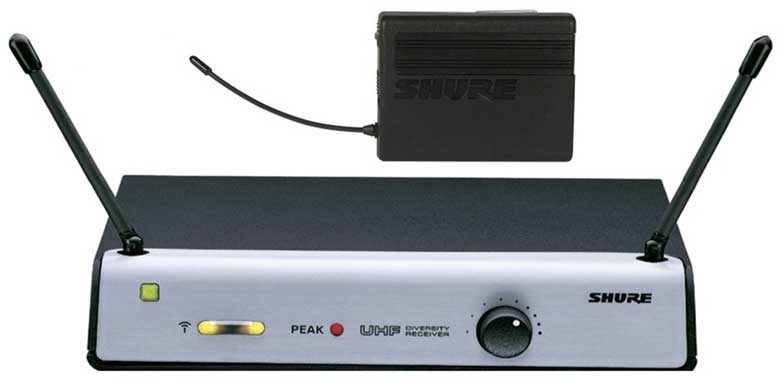

System Includes: UT4 MARCAD Diversity Receiver, UT1 Bodypack Transmitter, WA302 Intrument Cable, WA303 Standard Guitar Cable.
Overview
With the Guitarist UHF, you can really let it fly. Its comfortable body-pack design sets you free, while it provides uncompromising sound quality without changing tone.
Such exceptional performance, along with features like Shure's exclusive 20 dB pad switch, make The Guitarist UHF: ideal for a wide variety of playing styles and instruments, including electric guitar, bass, and even brass and woodwinds (with optional WM98).
System Includes: UT4 MARCAD Diversity Receiver, UT1 Bodypack Transmitter, WA302 Intrument Cable, WA303 Standard Guitar Cable.
Such exceptional performance, along with features like Shure's exclusive 20 dB pad switch, make The Guitarist UHF: ideal for a wide variety of playing styles and instruments, including electric guitar, bass, and even brass and woodwinds (with optional WM98).
System Includes: UT4 MARCAD Diversity Receiver, UT1 Bodypack Transmitter, WA302 Intrument Cable, WA303 Standard Guitar Cable.
Specs
System Includes: UT4 MARCAD Diversity Receiver, UT1 Bodypack Transmitter, WA302 Intrument Cable, WA303 Standard Guitar Cable
RF Carrier Frequency Range:
Approximately 596 to 862 MHz (Available frequencies depend on applicable regulations in country where system is used)
Operating Range: 100 m (approximately 300 ft) under typical conditions
Audio Frequency Response: 20 to 16,000 Hz, +/-3 dB
Image Rejection: 75 dB typical
Spurious Rejection: 75 dB typical
System Distortion (ref. +/- 45 kHz deviation, 1 kHz modulation): 0.1% THD typical
Signal/Noise Ratio: 90 dB
Sensitivity: 110 dBm for 12 dB SINAD typical
Maximum Recommended Input Level, UT1 (attenuation switch at 20 dB, gain at minimum): +32 dBV
Minimum Recommended Input Level, UT1 (attenuation switch at 0 dB, gain at maximum): 80 dBV
Operating Temperature Range
-29 to 74 degrees C (20 to 165 degrees F) NOTE: Battery characteristics may limit this range.
Battery Life
UT1: 12 hours with 9V alkaline battery (Duracell MN1604 recommended)
UT1
RF Output: 15 mW Typical
Input Configuration: Unbalanced
Connector Type: 4-pin Miniature connector (male), TB4M
Actual Impedance: 1 Megohm
Connector Pin Assignments:
Pin 1: Ground
Pin 2: +5 V Bias
Pin 3: Audio In
Pin 4: 20k Resistor to Audio Ground
Dimensions (H x W x D): 82.6 x 63.5 x 26.2 mm (3.25 x 2.50 x 1.03 in.)
Net Weight: 125 g (4.4 oz.), including battery
Power Requirements:
9 V alkaline battery (Duracell MN1604 recommended)
9 V lithium ULTRALIFE battery optional
Nominal Current Drain: 40 mA
UT4
Maximum Output Levels:
XLR Line Level: +10 dBV, Mic Level: 22 dBV
1/4 in.: +4 dBV
Nominal Output Levels:
XLR: Line Level: 26 dBV, Mic Level: 62 dBV
1/4 in.: 32 dBV
Output Configuration: Active Balanced Unbalanced
Actual Impedance:
XLR: Line Level: 138 Ω, Mic Level: 500 Ω
1/4 in.: 1 k
Connector Pin Assignments:
XLR: Pin 1: ground, Pin 2: hot, Pin 3: cold
1/4 in.: Tip: hot, sleeve: ground
Dimensions (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)
Net Weight 419.6 g (14.8 oz.)
Power Requirements: 12-18 Vdc nominal, 200mA
Power Supply: 120 V or 230V ac adaptor with 2.1 mm female plug
Voltage/Current/Phantom Power Protection: Yes
RF Carrier Frequency Range:
Approximately 596 to 862 MHz (Available frequencies depend on applicable regulations in country where system is used)
Operating Range: 100 m (approximately 300 ft) under typical conditions
Audio Frequency Response: 20 to 16,000 Hz, +/-3 dB
Image Rejection: 75 dB typical
Spurious Rejection: 75 dB typical
System Distortion (ref. +/- 45 kHz deviation, 1 kHz modulation): 0.1% THD typical
Signal/Noise Ratio: 90 dB
Sensitivity: 110 dBm for 12 dB SINAD typical
Maximum Recommended Input Level, UT1 (attenuation switch at 20 dB, gain at minimum): +32 dBV
Minimum Recommended Input Level, UT1 (attenuation switch at 0 dB, gain at maximum): 80 dBV
Operating Temperature Range
-29 to 74 degrees C (20 to 165 degrees F) NOTE: Battery characteristics may limit this range.
Battery Life
UT1: 12 hours with 9V alkaline battery (Duracell MN1604 recommended)
UT1
RF Output: 15 mW Typical
Input Configuration: Unbalanced
Connector Type: 4-pin Miniature connector (male), TB4M
Actual Impedance: 1 Megohm
Connector Pin Assignments:
Pin 1: Ground
Pin 2: +5 V Bias
Pin 3: Audio In
Pin 4: 20k Resistor to Audio Ground
Dimensions (H x W x D): 82.6 x 63.5 x 26.2 mm (3.25 x 2.50 x 1.03 in.)
Net Weight: 125 g (4.4 oz.), including battery
Power Requirements:
9 V alkaline battery (Duracell MN1604 recommended)
9 V lithium ULTRALIFE battery optional
Nominal Current Drain: 40 mA
UT4
Maximum Output Levels:
XLR Line Level: +10 dBV, Mic Level: 22 dBV
1/4 in.: +4 dBV
Nominal Output Levels:
XLR: Line Level: 26 dBV, Mic Level: 62 dBV
1/4 in.: 32 dBV
Output Configuration: Active Balanced Unbalanced
Actual Impedance:
XLR: Line Level: 138 Ω, Mic Level: 500 Ω
1/4 in.: 1 k
Connector Pin Assignments:
XLR: Pin 1: ground, Pin 2: hot, Pin 3: cold
1/4 in.: Tip: hot, sleeve: ground
Dimensions (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)
Net Weight 419.6 g (14.8 oz.)
Power Requirements: 12-18 Vdc nominal, 200mA
Power Supply: 120 V or 230V ac adaptor with 2.1 mm female plug
Voltage/Current/Phantom Power Protection: Yes
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-516-2525
Email: service@shure.com
Phone: 800-516-2525
Email: service@shure.com
Reviews
"Shoddy craftsmanship"
Sound
This wireless comes in a very shoddy plastic casing, and does not survive any type of traveling. I've had mine for about a year, and it's been in the shop 4 different times, having bad connections fixed, and the likes. I'm upgrading now, because for the year that I've owned this wireless, it has only work half of the time. I don't like what it does to my guitar's tone either.
Quality
Terrible quality
5 of 9 people (56%) people found this review helpful. Did you?
Thanks for your opinion!
