Shure UA505-RSMA Wall Mount for GLX-D or PA805-RSMA

Installing a Shure wireless system? Wall-mount an antenna with the Shure UA505-RSMA remote antenna mounting bracket kit, and get better wireless reception.

Overview

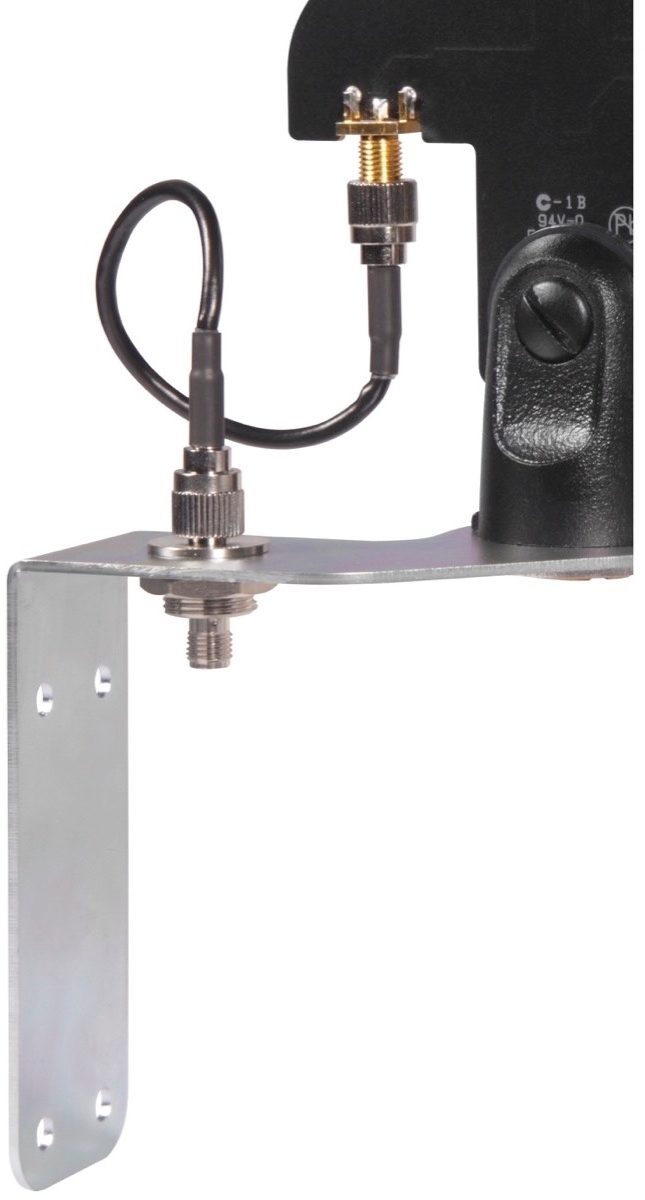

The Shure UA505-RSMA Remote Antenna Mounting Bracket Kit lets you mount an antenna away from the receiver or equipment rack.

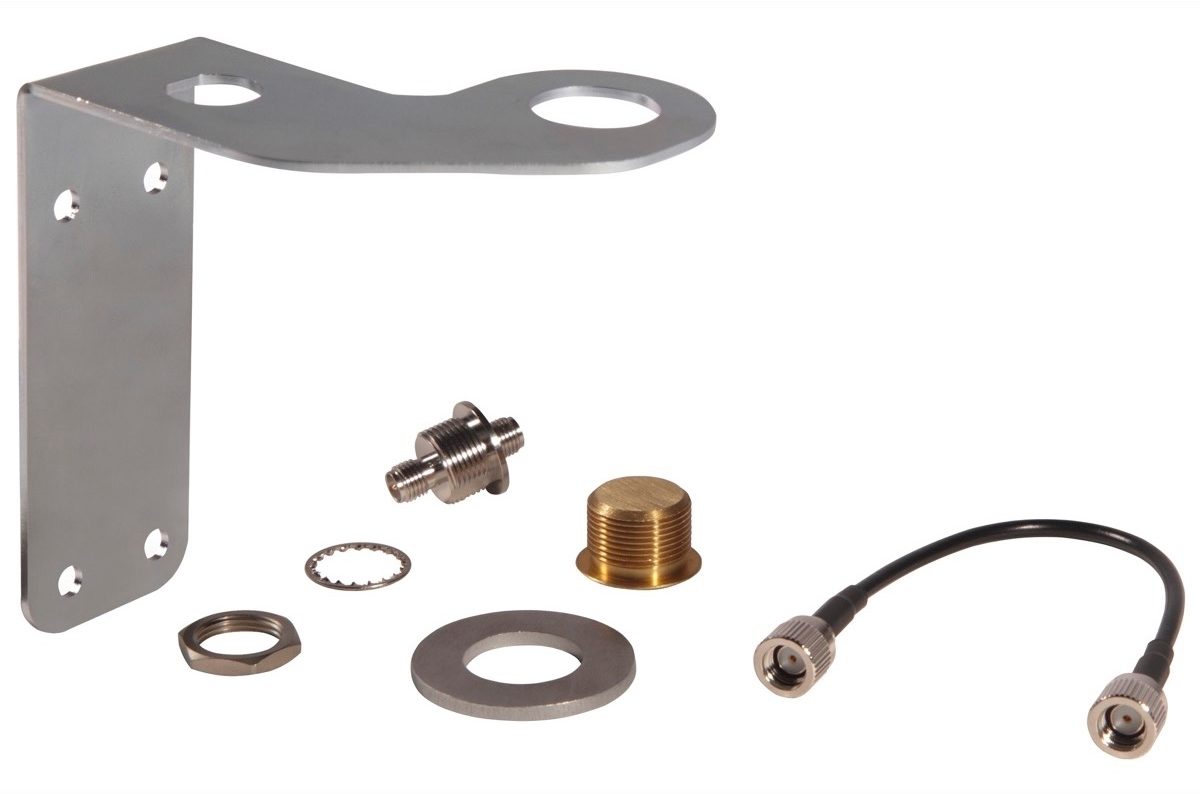

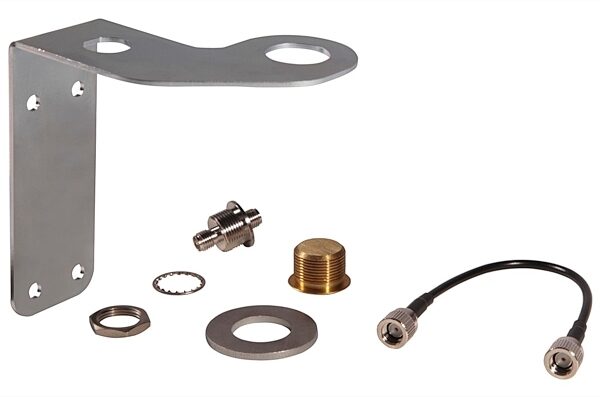

Shure UA505-RSMA Includes

- (1) Reverse SMA Bulkhead Adapters, lockwasher and nut
- (1) Remote Antenna Mounting Bracket Kit
- (1) 6" Reverse SMA Cable

Note: Antennas and bracket mounting hardware (screws, washers and nuts) are not included in this kit.

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Follow these guidelines when mounting antennas remotely
- Reduce distance between transmitter and antenna
- Mount antennas farther from each other to improve performance
- Position antennas so there is nothing obstructing the line of sight to the transmitter, including the audience
- Keep antennas away from metal objects and any other antennas
- Use only low-loss reverse SMA cable to avoid poor RF signal
- Consult cable's specifications and calculate signal loss for desired cable run
- Use one continuous length of cable from the antenna to the receiver to increase signal reliability
- Always perform a walk-around test to verify coverage before using a wireless system during a speech or performance Experiment with antenna placement to find the optimum location If necessary, mark any trouble spots and ask presenters or performers to avoid those areas

- Included Components
- Reverse SMA Bulkhead Adapters, lockwasher, nut (1) 95A32436
- Remote Antenna Mounting Bracket Kit (1) UA505-RSMA
- 6" Reverse SMA Cable 95F31216

Wall bracket dimensions: 8452 x 635 x 7702 mm (H x W x D)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 0.5 lbs; Shipping Dimensions: 5 x 4 x 3 in; Manufacturer Part Number (MPN): UA505-RSMA

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
