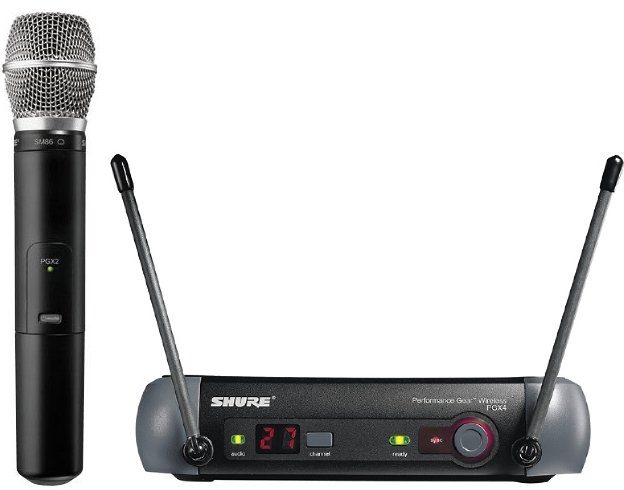

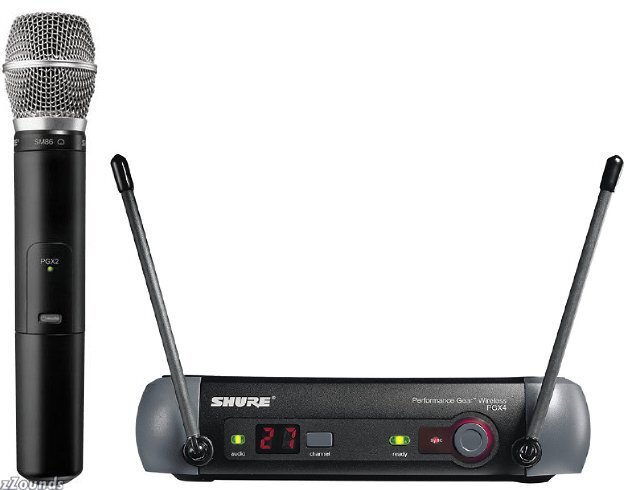

Shure PGX24/SM86 UHF Handheld Wireless System

Product Description

Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.

Shure SM86 Microphone with PGX2 Transmitter

The Shure SM86 is a unidirectional (cardioid) condenser vocal microphone for professional use in live performance. An extremely rugged microphone, the SM86 withstands the rigors of touring while delivering studio-quality sound. The tailored frequency response of the SM86 reproduces vocals with clarity. A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The built-in three-point shock mount minimizes handling noise, and a two-stage pop filter reduces wind and breath "pop" noise. The SM86 is an excellent selection for use with both stage monitors and personal in-ear monitors.

Features

- Condenser cartridge for studio quality sound
- Tailored frequency response for a clear reproduction of vocals
- Rugged construction withstands the rigors of touring sound
- Cardioid polar pattern minimizes unwanted background noise
- Excellent choice for stage monitors and personal in-ear monitors
- Built-in three-point shock mount minimizes handling noise
- Two-stage "pop" filter reduces wind and breath noise

SM86 Features

- Shure PGX4 receiver
- Shure SM86 Microphone with PGX2 Transmitter
- (2) AA batteries
- Power supply
- User guide

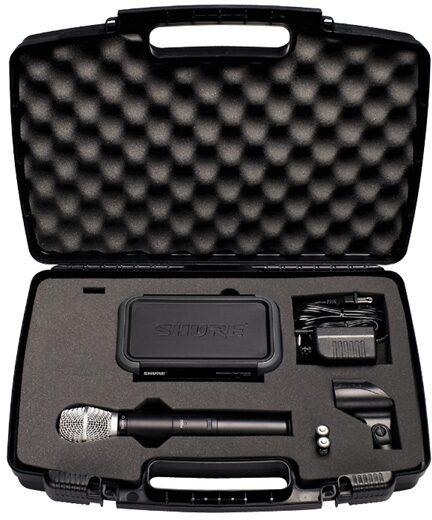

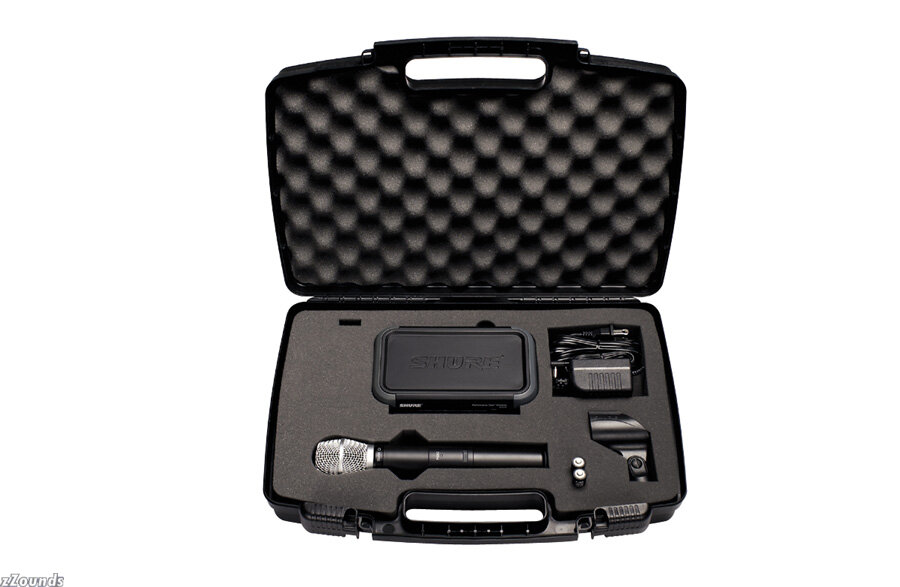

- Carrying case
- Microphone clip

Optional Accessories

- Zipper Bag (PGX2): model # 26A14
- Universal Rack Tray: model #URT

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of Shure products.

Channel Frequencies
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz

System Working Range: 100 m (300 ft.)
Note: actual range depends on RF signal absorption, reflection, and interference

Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)

Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical

Dynamic Range: >100 dB A-weighted

Operating Temperature Range:
18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range

Transmitter Audio Polarity:
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PGX4 Receiver
Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)

Weight: 327 g (11.5 oz.)

Housing: ABS

Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV

Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm

XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

Sensitivity: 105 dBm for 12 dB SINAD, typical

Image Rejection: >70 dB, typical

Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

PGX2 Handheld Transmitter
Audio Input Level:
+2 dBV maximum at -10dB position
-8 dBV maximum at 0dB position

Gain Adjustment Range: 10dB

RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)

Dimensions: 254 mm x 51 mm dia. (10 x 2 in.) (including SM58 cartridge)

Weight: 290 grams (10.2 oz.) (without batteries)

Housing: Molded PC/ABS handle and battery cup

Power Requirements: 2 AA-size alkaline or rechargeable batteries

Battery Life: >8 hours (alkaline batteries)

Dimensions and Weight in Packaging

Shipping Weight: 6 lbs

Shipping Dimensions: 18 x 13 x 5 in
