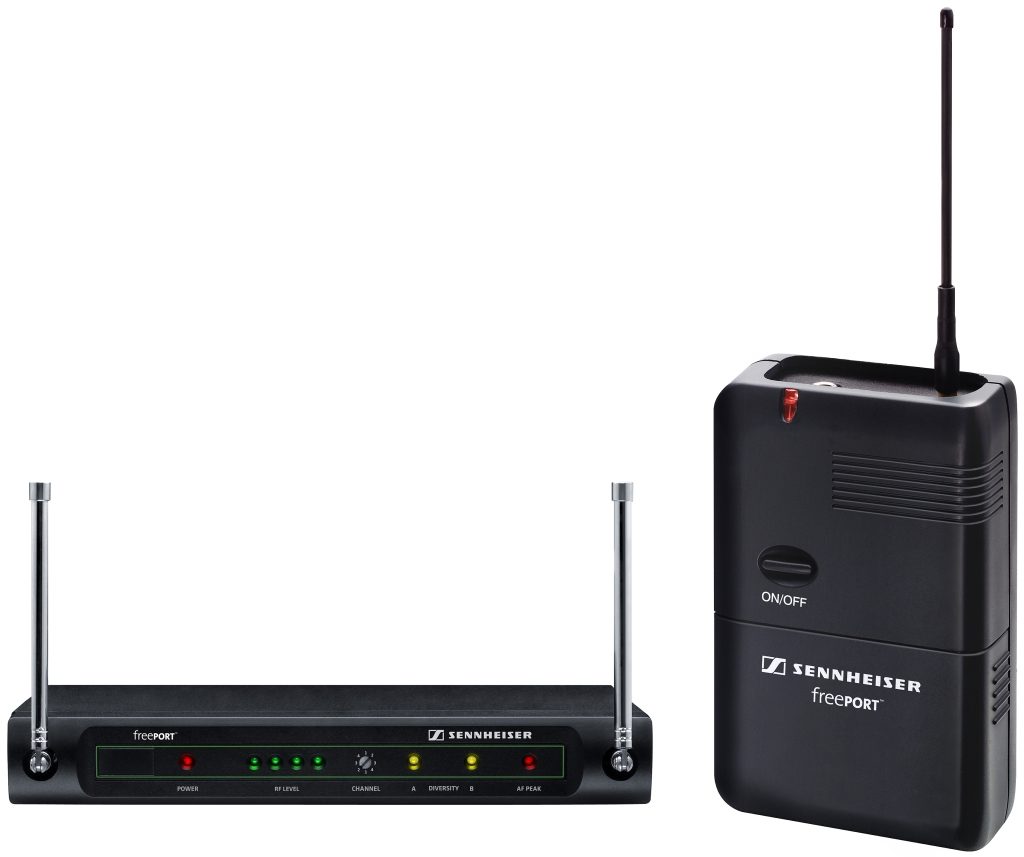

Sturdiness, excellent sound and wide dynamics are the impressive features of the Instrument Set. It consists of a bodypack transmitter with a jack plug cable and a diversity receiver and is ideally suited for electric guitars and other instruments with a jack plug socket.
Features:
4 switchable UHF frequencies for interference-free reception
Absolutely safe transmission
Diversity Technology for highest reception quality
Adjustable Squelch for undisturbed operation
Receivers built in robust metal housing
Dynamic processor for crystal-clear sound
Includes:
1 bodypack transmitter SK 2
1 diversity receiver EM 1
1 jack plug cable
1 power supply
1 user manual
Technical Info
RF Frequency Range: UHF
Transmission/Receiving Frequencies: 4
Switching Bandwidth: 2 MHz
Frequency Response: 80-16.000 Hz
Signal-to-Noise Ratio: 95 dB(A)
THD, Total Harmonic Distortion: < 1%
Audio Output Level (Balanced): XLR, +16 dBu
Audio Output Level (Unbalanced): Jack, +10 dBu
Power Supply: 12 VDC nom
Dimensions (Receiver): 35 x 213 x 98 mm
Weight (Receiver): 570g
RF Output Power: 10 mW
Operating Time: 10 h
Power Supply (Bodypack Transmitter): 9V PP3
Dimensions (Bodypack Transmitter): 60x100x30mm w clip
Weight (Bodypack Transmitter): 90 g
Bodypack transmitter for guitar, bass - anything with a 1/4" output.
