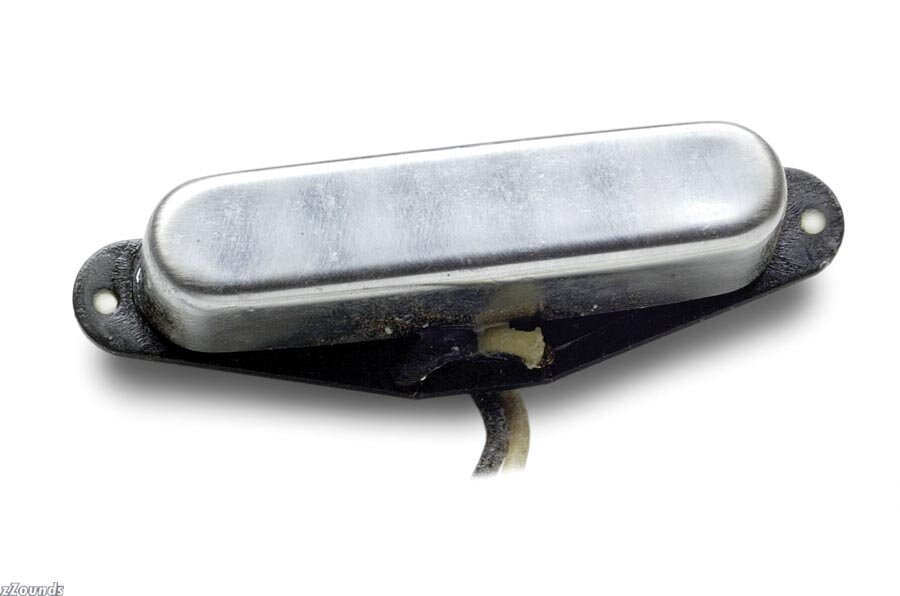

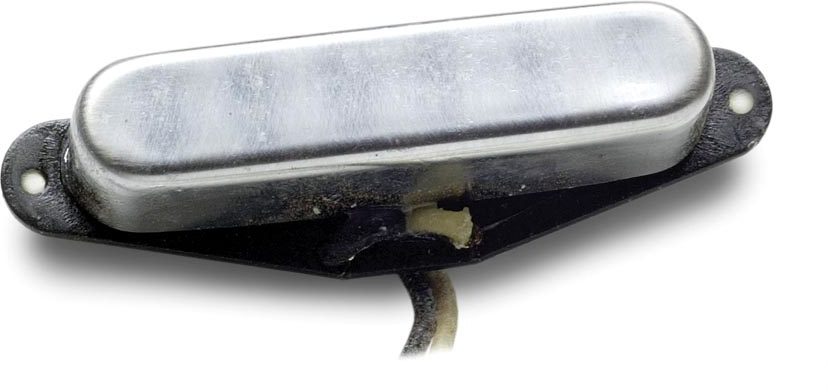

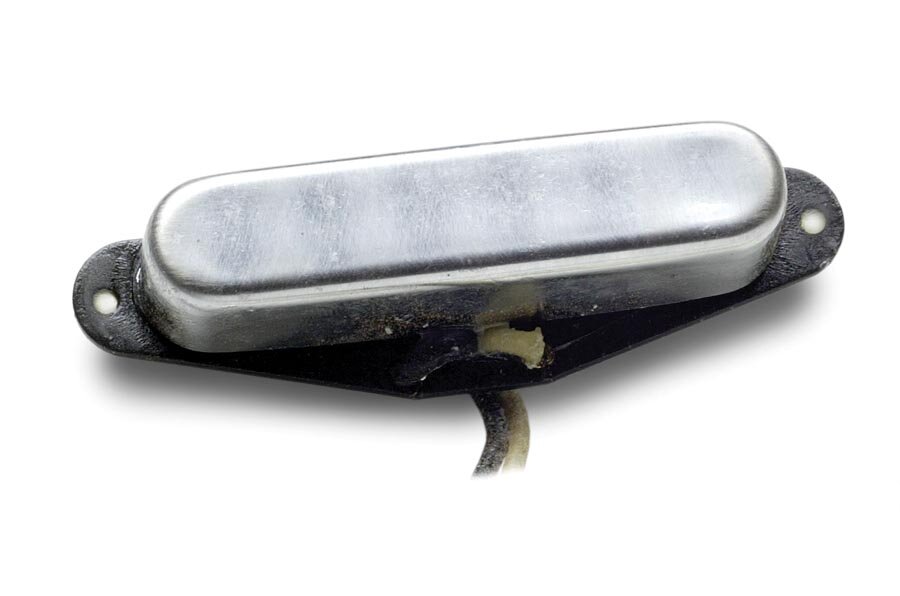

This neck pickup for Telecaster guitars is wound as a full-sounding rhythm pickup. It comes with an aged, deep drawn cover for vintage looks and added coil protection. The neck pickup comes with schematic and mounting screws. Each pickup re-creates the look and sound of an aged early '50s pickup. The pickup comes complete with screws, schematics and vintage "push back" cloth-braid hookup wire.
Technical Info
Top Pickup Length: See cover
Top Pickup Width: See cover
Bottom Pickup Length: 3.150
Bottom Pickup Width: .780
Total Pickup Height: .670
Total Magnet Height: .625
Winding Direction: Top going
Magnet Polarity: North
Calibrated: No
Pickup Cover Length: 2.565
Pickup Cover Width: .585
Pickup Cover Height: .570
Height Adjustment: screwed into body cavity
Magnet Pattern: Flush with top & bottom of pickup
DC Ohms: 7.6K
Inductance: 2.13 Henries
Q : 1.80
09/04
Price cut, New, Neck, was $84.95, now only $71.95.
