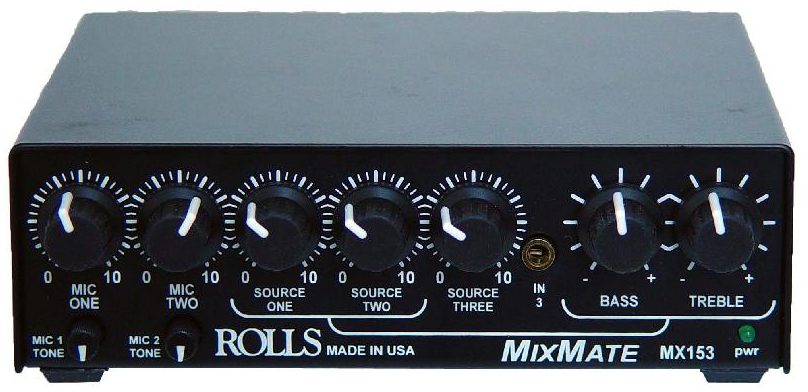

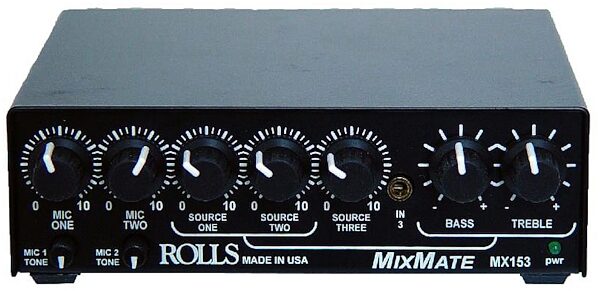

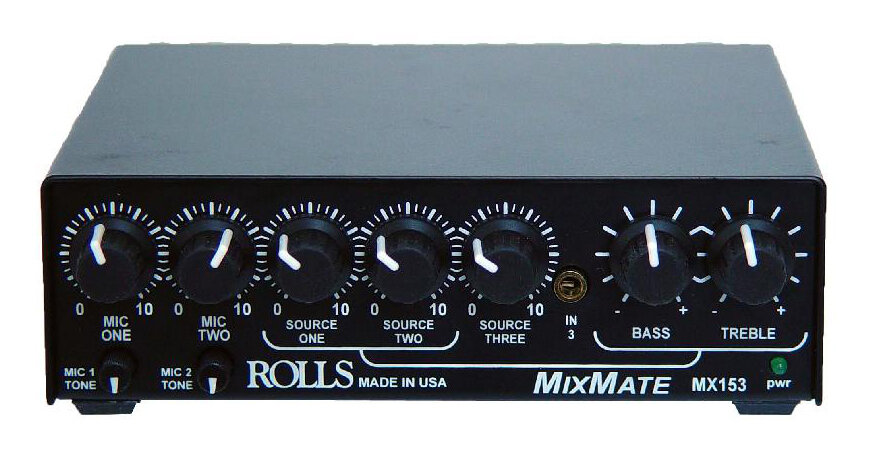

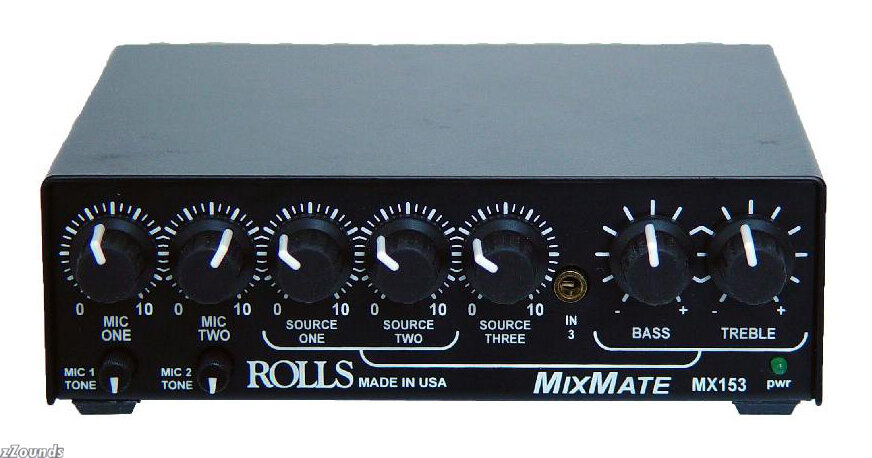

Rolls MX153 Mix Mate 5-Channel Mixer

The MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones. Applications include background music and paging for small clubs, churches, schools, restaurants, and much more.

Features
- Two Mic inputs with available phantom power

- Treble or Bass cut controls for each mic

- Three stereo source inputs

- Bass and Treble controls on source 1 & 2

- Signal muting (ducking) on mic 1 & source 3

- Switchable Mono or Stereo mode on unbalanced outputs

- Uses 12VDC power for easy use in mobile applications

Each microphone channel has a Level and Tone control. Sources One and Two have Level adjustments and pass through combined Bass and Treble controls. Source Three has a Level adjustment only. The Microphone inputs are balanced XLR jacks, all Source inputs are stereo RCA except for the front 1/8 jack on CH3 for an MP3 player, etc. The main output is stereo RCA.

An included 12VDC adapter (Rolls PS27) provides power to the unit. A series of six DIP switches provide important features to the MX153. Two switches apply the 12VDC of phantom power to the individual Microphone Inputs. A second switch sums the program material of Source Three to mono, and a third sums the overall output to mono. Another switch provides priority ducking to Source Three input allowing that channel to mute the other source inputs for use with a jukebox. The final switch configures Microphone Input One as a paging input, ducking the other microphone and Sources One and Two.

Technical Info

Specifications
Mic input: Z 600 ohm balanced

Source input: Z >10K ohms RCA

Mic Max input: -14dBV

Max source input: 24dBV

Phantom Voltage: 12VDC

Max Gain: 60 dBV mic

Max Gain: 24 dBV/Channel source

Muting: 60dBV

Power: 12VDC 100Ma.

Size (W x H x D): 6.5 x 1.5 x 5 in.

Weight: 2 lbs (0.8 kg)
