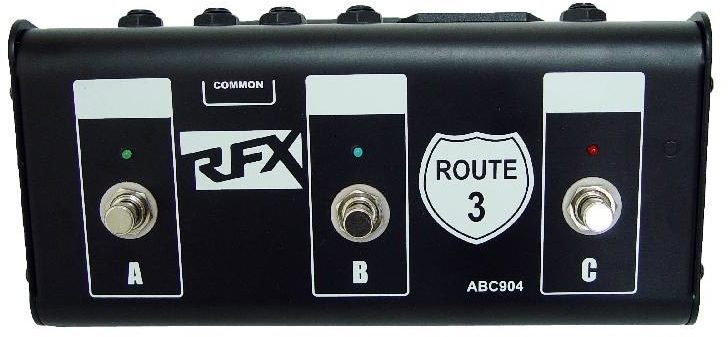

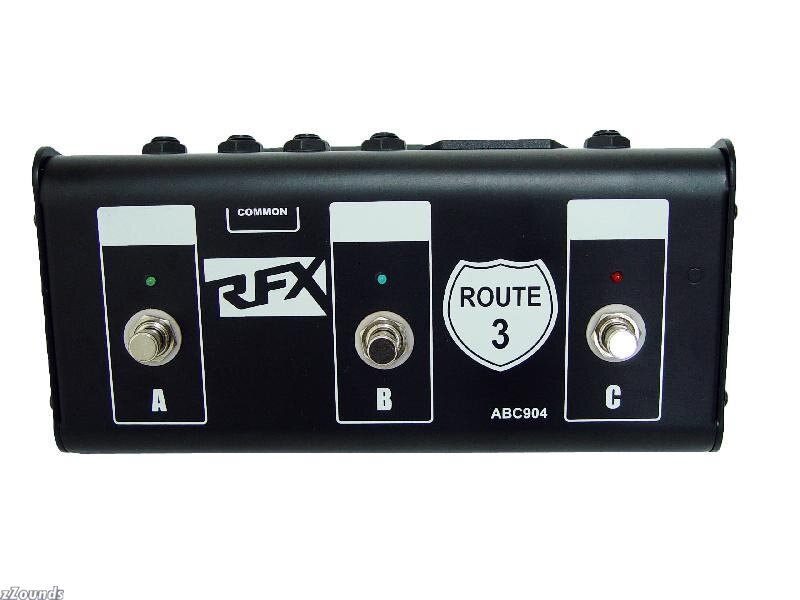

The ABC904 is a passive stereo or mono signal switching device designed to route a single signal to three outputs, or three input signals to a single output. For the guitarist, the ABC904 is used to select between three guitars to a single amplifier, or possibly a single guitar switched to three separate amplifiers.
Features
1/4 in. Tip-Ring-Sleeve jacks
Uses a single 9V battery to power the indicator LEDs
Housed in a sturdy 13 guage (.090 in.) steel chassis
The RFX line of effects pedals feature dual operation, top-loaded; easy-access battery replacement, silent FET switching, headphone output, optional MIDI control and more.
Technical Info
Connectors: 5 ea; 1/4 in. Tip-Ring-Sleeve jacks
Indicators: 3 ea; T1 LEDs (1 Green, 1 Blue, 1 Red)
Switches: 3 ea; Triple pull / double throw push switches
Power: 9 Volt (for the LEDs)
Size (WxHxD): 4 x 1.9 (at highest point) x 4.13 in.
Weight: 3 lbs.
08/10
First time in stock, Blemished, be the first on your block to order!
