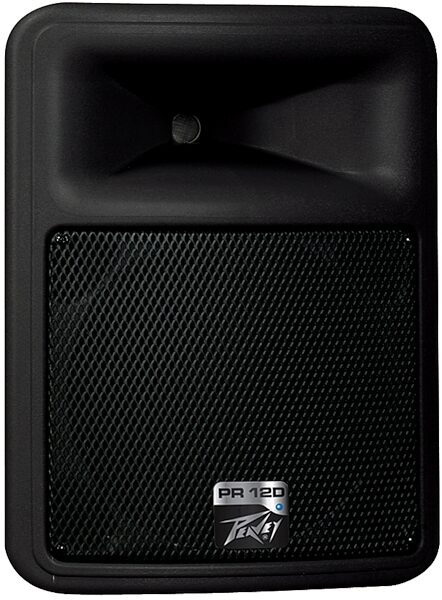

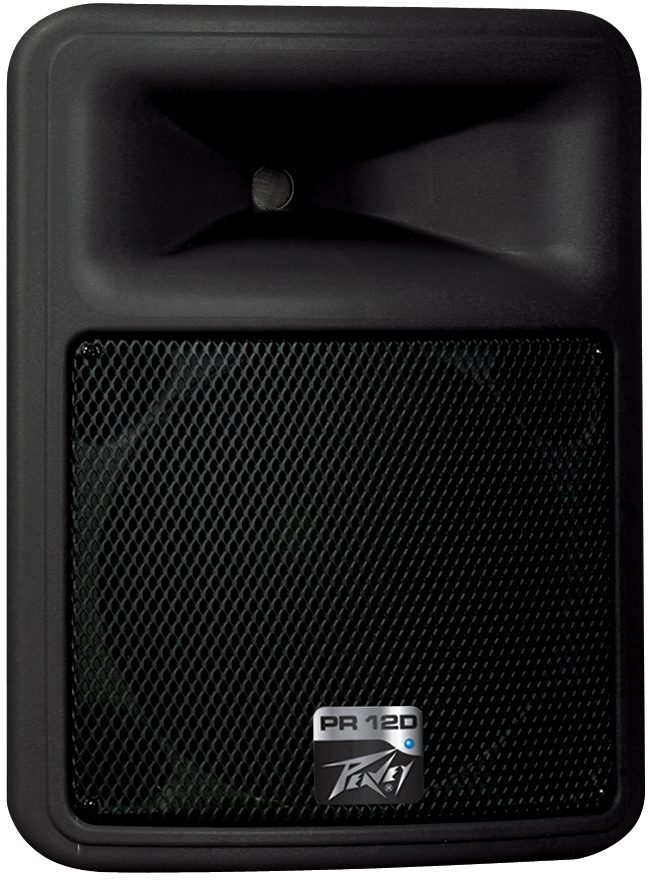

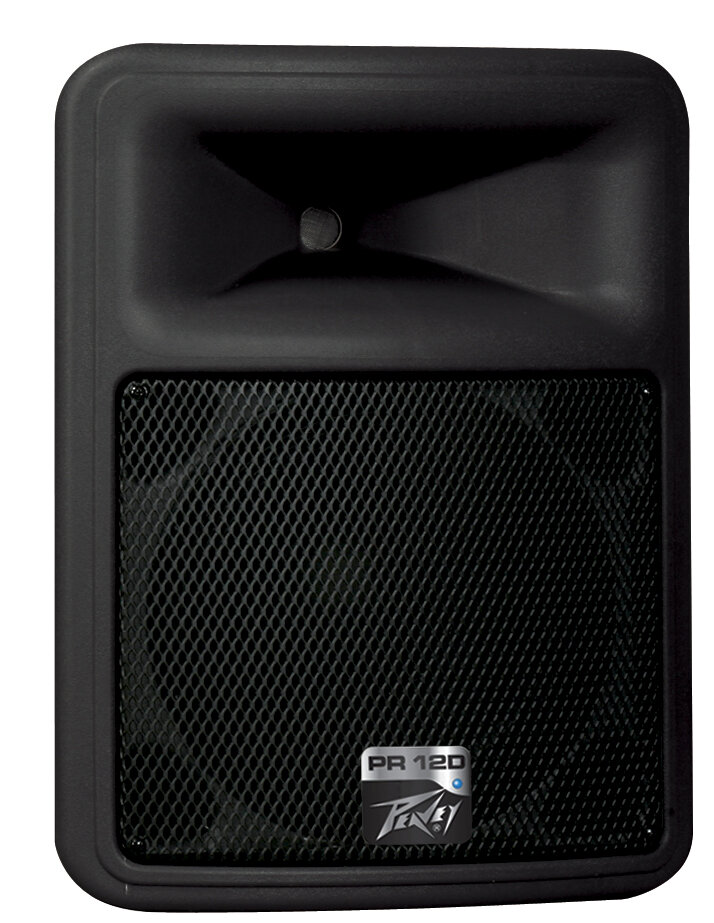

Peavey PR12D Powered Loudspeaker (1x12 in.)

The Peavey PR12D is a powered, bi-amplified, two-way speaker system engineered to provide very high levels of performance in a compact powered loudspeaker. The PR12PD is capable of up to 120 dB peak SPL. The enclosure utilizes tough polypropylene in an injection-molded plastic trapezoidal form, with a coated steel grille to offer an attractive yet-durable powered speaker system. This two-way powered system is comprised of a 150 W class D power amplifier driving a 12 in. heavy duty woofer.

The RX(TM)14 compression driver is driven by a 50 W class D power amplifier and features a 1.4in. titanium diaphragm coupled to an extremely smooth and well-controlled constant directivity horn (with a coverage pattern of 90* by 40*) that is molded integrally into the enclosure. A balanced input to the preamp/EQ electronics consists of one combo female XLR and 1/4in. TRS phone jack. It is switchable between mic-level and line-level sensitivity. Two 1/4 in. phone jacks are provided for link-out / direct-in capability. The link-out is post- level and pre-crossover. While the direct-in is a direct pre-crossover input. A woofer servo senses back-EMF from the woofer voice coil that is not a result of the drive signal, and subtracts the error so that the woofer cone follows the drive waveform precisely. Constant Loudness (Fletcher-Munson) circuit for accenuating bass and treble at low listening volume levels.

The power amplifiers providing the bi-amplification are low-distortion units providing 150 W continuous RMS into the nominal 8 ohm load of the woofer, and a 50 W continuous RMS into the nominal 8 ohm load of the tweeter. They were selected for their reliability and superb musical performance capability. Both amplifiers feature our patented DDT(TM) compression, which virtually eliminates audible power amplifier clipping. A molded-in handle provides ease of transport, while multiple mounting points (top and bottom) for the Peavey Versamount(TM) allow maximum utility.

Technical Info

Bi-amplified powered system with 200 watts maximum output

Both power amps have DDT(TM) compression

One 12 in. neodymium, 2.375 in. voice coil woofer

Woofer servo

RX(TM) 14 1.4 in. titanium compression driver

Automatic equal loudness (Fletcher-Munson) compensation

Combo jack with 1/4 in. TRS & female XLR mic or line-level balanced input

Two 1/4 in. phone jack inputs for link-out/ link-in capability

Molded-in horn has exceptionally smooth response & pattern control

Top & side handgrips

Pole mount molded-in

Top & bottom flyng point inserts

12" woofer and 1.4" compression driver. 200 watts maximum output.
