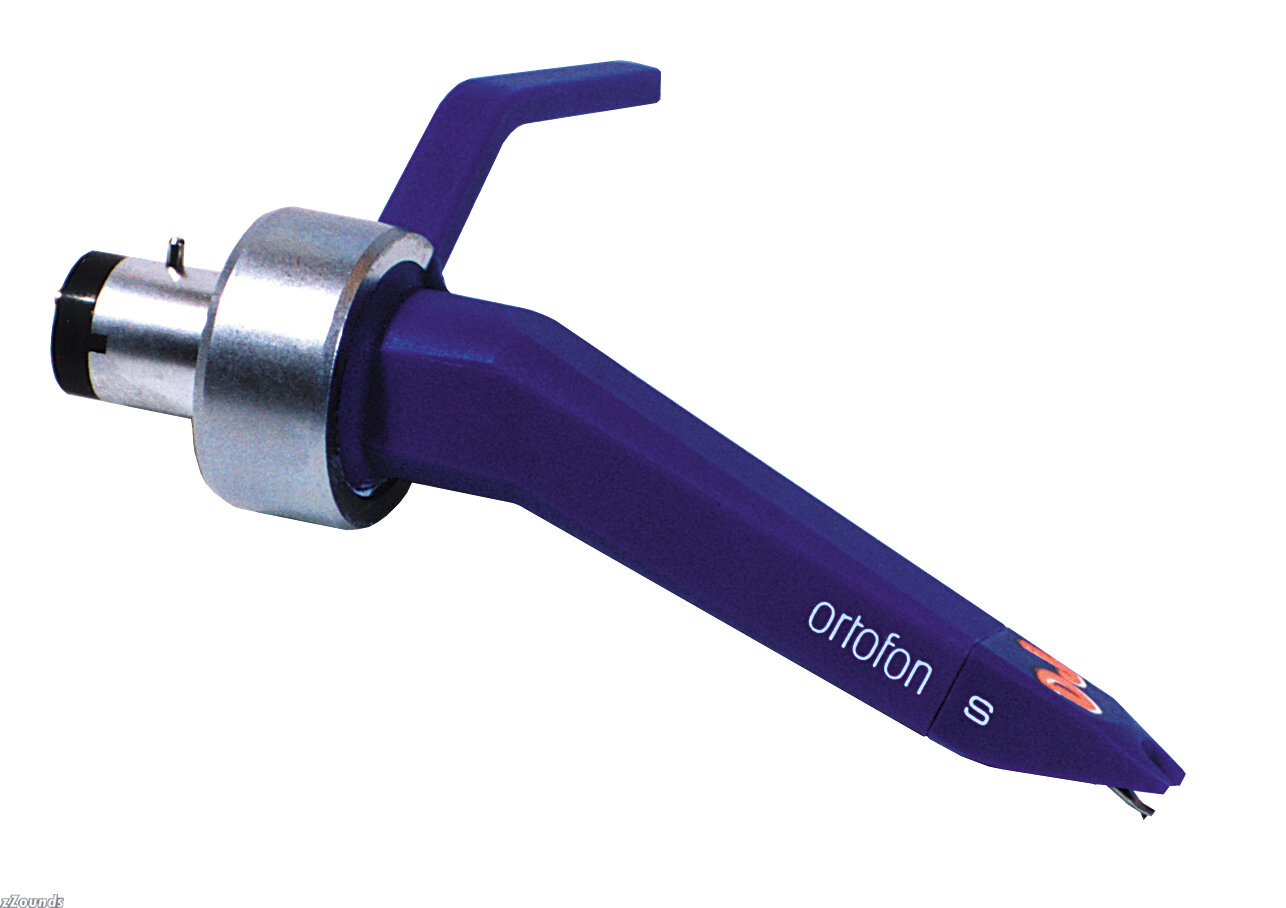

Ortofon Concorde DJ S Cartridge (Spherical)

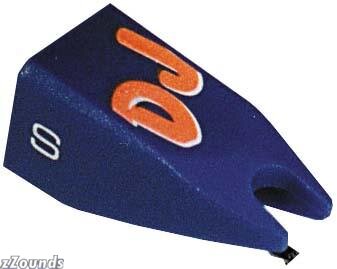

Reminder: a replacement stylus is just the needle portion, which is useful only to those already owning the cartridge.
Loading...
This item cannot be returned once opened due to the possibility that it has been used. details
Description
News
DJ's all over the world claim very high demands to their professional equipment, among which the cartridges "plays" their decisive part by realizing the scratching, back-cueing, and live artistic performance, as a big part of the show. Reliability and robustness is vital, when the cartridges night after night will have to withstand these demands in environments with extreme sound pressure and vibration.
Scratching and back-cueing impose heavy mechanical stress on the cantilever and its rubber bearing. Therefore, the Ortofon disco cartridges are equipped with cantilevers made from aluminum tube with increased wall thickness. Special attention has also been paid to the attachment of the bearing and the design of the bearing itself. This means that rough treatment will neither damage the cartridge nor degrade its stability.
The OrtofonPro cartridges were the first to combine the unrivaled Ortofon sound quality with the ruggedness that is a must for professional use.
Channel balance at 1 kHz: 2 dB
Channel separation at 1 kHz: 23 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-20,000 Hz
Frequency response: 20-18,000 Hz + 3 / - 2 dB
FIM distortion at recommended tracking force, DIN 45.542: < 1%
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 9 µm/mN
Stylus type: Spherical
Stylus tip radius: R 18 µm
Equivalent stylus tip mass: 0.6 mg
Tracking force range: 2.0-4.0 g (20-40 mN)
Tracking force, recommended: 3.0 g (30 mN)
Tracking angle: 20 degrees
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge color, body/stylus: Blue/Blue
Cartridge weight: 18.5 g
Replacement stylus unit: DJ S
Scratching and back-cueing impose heavy mechanical stress on the cantilever and its rubber bearing. Therefore, the Ortofon disco cartridges are equipped with cantilevers made from aluminum tube with increased wall thickness. Special attention has also been paid to the attachment of the bearing and the design of the bearing itself. This means that rough treatment will neither damage the cartridge nor degrade its stability.
The OrtofonPro cartridges were the first to combine the unrivaled Ortofon sound quality with the ruggedness that is a must for professional use.
Technical Info
Output voltage at 1000 Hz, 5cm/sec.: 6 mVChannel balance at 1 kHz: 2 dB
Channel separation at 1 kHz: 23 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-20,000 Hz
Frequency response: 20-18,000 Hz + 3 / - 2 dB
FIM distortion at recommended tracking force, DIN 45.542: < 1%
Tracking ability at 315Hz at recommended tracking force: 80 µm
Compliance, dynamic, lateral: 9 µm/mN
Stylus type: Spherical
Stylus tip radius: R 18 µm
Equivalent stylus tip mass: 0.6 mg
Tracking force range: 2.0-4.0 g (20-40 mN)
Tracking force, recommended: 3.0 g (30 mN)
Tracking angle: 20 degrees
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge color, body/stylus: Blue/Blue
Cartridge weight: 18.5 g
Replacement stylus unit: DJ S
11/13
Just delivered to our warehouse! New, Cartridge With 2 Styli, order before they are gone!
11/04
Just back in stock, New, Replacement Stylus Only, will ship immediately.
10/27
BLOWOUT! Warehouse Resealed, Cartridge With 2 Styli, get one before it's gone!
09/29
Just added to zZounds! Warehouse Resealed, Cartridge With 2 Styli, be the first on your block to order!
09/04
Price cut, New, Replacement Stylus Only, was $49.95, now only $41.95.
09/04
Price cut, New, Cartridge With 2 Styli, saves you $23.00, now $126.95.
What Our Customers Say About zZounds
"Super fast shipping. My son is thrilled!" - customer on November 14, 2009
Call
800.ZZOUNDS (996.8637)
and mention priority code: 7FDLWXD
Item: ORTCCDJS
Choose a model below and select "Add to Cart"
related accessories
Ortofon Concorde DJ S Cartridge (Spherical) Reviews
9 out of 10
"Sweet needles."
Feature:
Looks dead sexy, comes in Elizabeth Duke style velour case for lugging about. Also includes little brushes and stylus caps for protection.
Quality:
Perfect. Nuff said.
Value:
Bit pricey, but you want it, you need it, you buy it.
Desirability:
Very sexy and sleek. Blue is my favourite colour.
Sound:
Sounds lovely, good response for all freq's.
Ease of Use:
A doddle. No setting up required. Just lock on and go.
Support:
Needs no support. Everyone stocks stylus. Nothing ever goes wrong with them.
Overall:
I dont think I will ever change from concordes. They are easy to cue up ('cos they are pointy), pick up zero fluff, look great, wear well (I have not broken one in three years) I recomend them to every one.
Looks dead sexy, comes in Elizabeth Duke style velour case for lugging about. Also includes little brushes and stylus caps for protection.
Quality:
Perfect. Nuff said.
Value:
Bit pricey, but you want it, you need it, you buy it.
Desirability:
Very sexy and sleek. Blue is my favourite colour.
Sound:
Sounds lovely, good response for all freq's.
Ease of Use:
A doddle. No setting up required. Just lock on and go.
Support:
Needs no support. Everyone stocks stylus. Nothing ever goes wrong with them.
Overall:
I dont think I will ever change from concordes. They are easy to cue up ('cos they are pointy), pick up zero fluff, look great, wear well (I have not broken one in three years) I recomend them to every one.
Submitted: 12/27/2007
Style of Music: anything at 120 to 140 bpm
9 out of 10
zZounds has verified that this customer bought this product from us.
"some words"
Quality:
Yes, this product is professional in every way.
Value:
little on the pricey side, but well worth the investment.
Desirability:
sexy as a long legged model-type chick
Sound:
Spinning Dnb I can say that this really contrasts hi and low frequency sounds very well. unlike shure cartriges that focus too much on output and bass, I choose this needle for its response, sound spectrum and detail of the sound.
Overall:
my friend has it I just use it to spin my dnb, you will be golden for a long time if you take care of this gem. Very durable, sound is vivid, quick response, stable when scratching, and overall quality. just ordered my s night club ortofons.
Yes, this product is professional in every way.
Value:
little on the pricey side, but well worth the investment.
Desirability:
sexy as a long legged model-type chick
Sound:
Spinning Dnb I can say that this really contrasts hi and low frequency sounds very well. unlike shure cartriges that focus too much on output and bass, I choose this needle for its response, sound spectrum and detail of the sound.
Overall:
my friend has it I just use it to spin my dnb, you will be golden for a long time if you take care of this gem. Very durable, sound is vivid, quick response, stable when scratching, and overall quality. just ordered my s night club ortofons.
Submitted: 12/06/2005
Style of Music: Drum and bass
