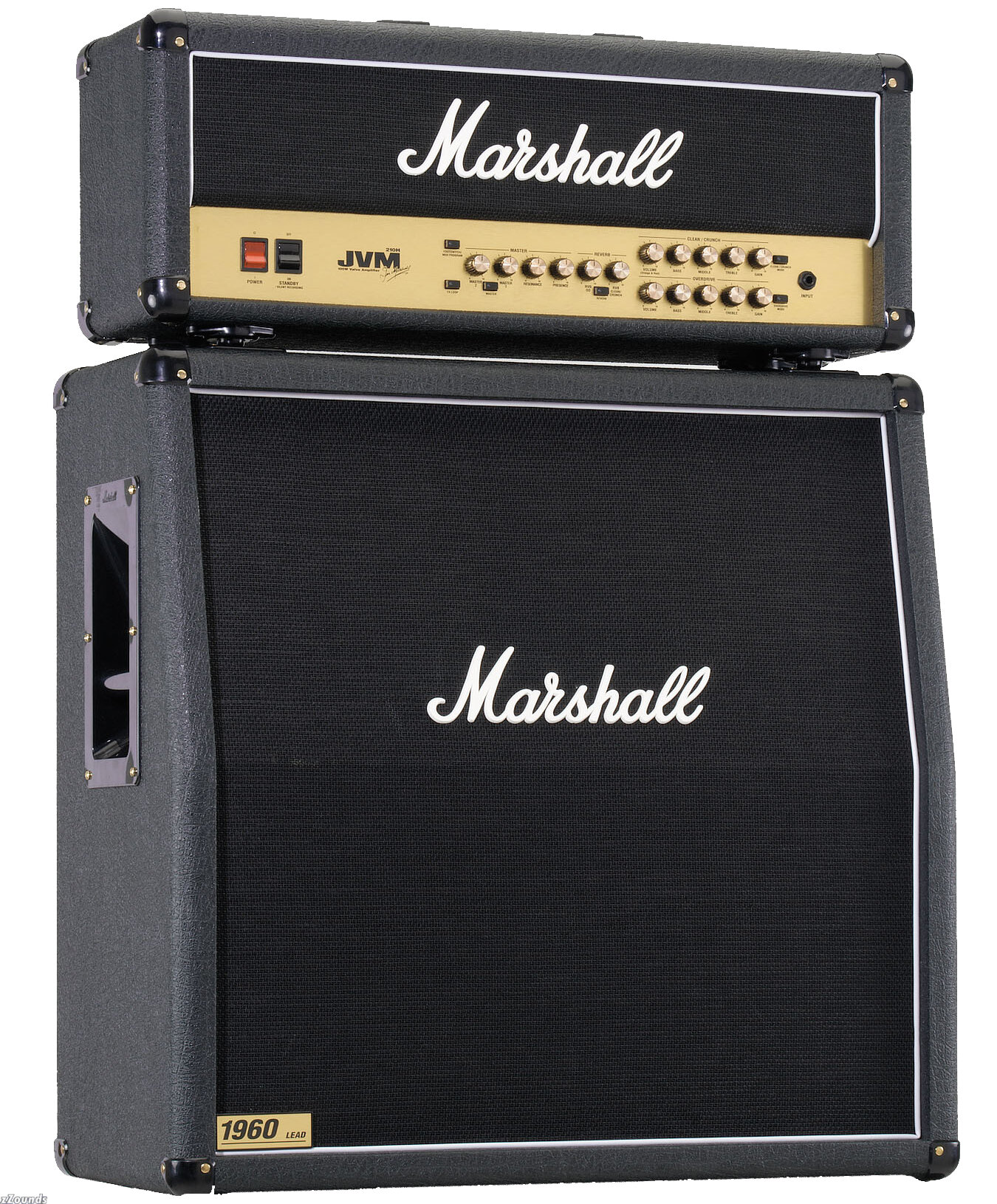

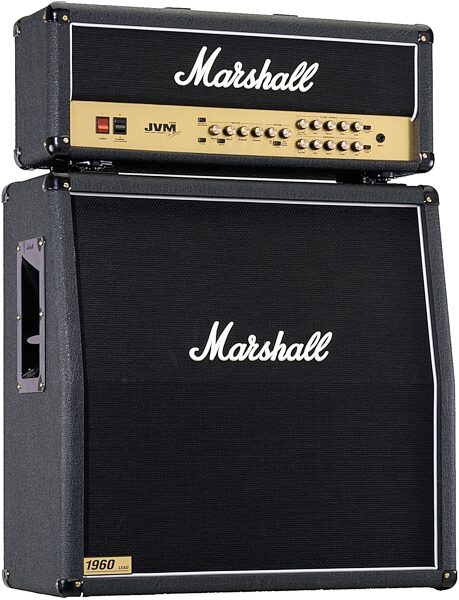

Marshall JVM Guitar Amplifier Half Stack with JVM210H Head and JCM1960A Cabinet

The JVM Series from Marshall is the most comprehensive range of professional, all-valve amplifiers ever offered. No other multi-channel, multi-mode amplifier delivers the amazing all-valve tone offered by the JVM at any price. Multiple, all-valve voicings provide an amazing array of tones which are accessible from the front-panel switches, MIDI or via the revolutionary technology of the supplied footswitch. Hailed as a breakthrough in amplification by the world’s
guitar press, the JVM Series offers a powerstage built on the peerless EL34 designs responsible for the legendary Marshall roar.

The JVM4 range delivers an enormous arsenal of valve tone with vast flexibility, while the JVM2 range is its logical evolutionary partner, delivering JVM’s
sophisticated functionality in a refined format. Handbuilt with pride and meticulously tested in Marshall’s world famous British factory, the JVM range
comes in a variety of models to suit every guitarist.

Outstanding Tone
The JVM Series uses a carefully designed, 4 x ECC83 pre-amp stage to generate the desired amount of gain, from the cleanest, yet complex, clean imaginable to a vast palette of overdrives that range from sophisticated and subtle to explosive and extreme. Boasting a truly amazing array of instantly switchable sounds, overflowing with harmonically rich tones and responsive fluidity, every JVM mode exudes that unmistakable Marshall sound and expands on it, effectively
offering multiple Marshalls in one easy-to-use package.

Ultimate Flexibility
Each totally independent JVM channel offers three footswitchable modes which progressively add gain while offering a complimentary tonal topology, making the JVM the perfect amplifier for any situation.

The JVM’s layout is simple and uncompromising with dedicated Gain, 3-band EQ, Volume and Reverb for each channel. The Master section, featuring Dual Master Volumes, Resonance and Presence, finishes the concise layout, making each JVM a familiar “old friend” that’s intuitive to use. Even with its programmability, multiple channels and modes plus switchable Reverb, FX Loop and Master Volume, each JVM is incredibly easy to navigate and understand.

Seamless, Silent Switching
The onboard logic ensures swift silent-switching and remembers the position of each front panel switch in every mode: Reverb (on/off), FX Loop (on/off) and Master Volume (1 or 2). When returning to any mode, switch settings will be
exactly as you left them, even after you’ve powered the amp down. This groundbreaking technology combined with revolutionary footswitch technology, plus MIDI switching capabilities, add even further to the JVM’s already incredible flexibility.

Ultimate Control and Connectivity
Every JVM is supplied with a fully programmable footswitch. This revolutionary, patent-pending technology allows single front panel switching (SWITCH STORE) or entire set-ups (PRESET STORE – Channel/Mode, Reverb, FX Loop, Master Volume) to be simply assigned to any footswitch . . . or, even cooler, a mix ‘n’ match of both modes. Housed in a rugged metal casing with blank panels on its surface which allow the user to label the pedal exactly as they want, the JVM pedal has no restrictive factory set-ups or functionality barriers, plus it’s a breeze to program. The multi-coloured LEDs reflect every front panel switch status so you know exactly where you are, in the heat of a performance, without the need to glance at the amplifier itself.

The JVM’s MIDI In and Thru connection means it can easily be integrated in a MIDI switching set-up, allowing you to store and recall 128 amplifier set-ups and enabling your MIDI effects board to easily control the amp. With its built-in memory and switching options the possibilities are endless!

Studio-Quality Reverb
The onboard, studio quality Digital Reverb is routed in parallel (ensuring no digital degradation of the direct signal) and mixed with the direct signal by means of a valve. Specifically developed for the JVM, the Reverb retains signal clarity in its tail and low noise, analogue switching allows it to decay naturally when switching the effect off or changing channels. In addition, when the Reverb is switched off, it is totally removed from the circuit.

Effective Control
Each JVM boasts two FX Loops that live on its rear panel. A footswitchable Parallel/Series Loop with Level and Mix controls plus a Series Loop with a Bypass switch. Combine the JVM with a MIDI FX processor and a MIDI footswitch and the sky’s the limit!

Silence is Golden
When on Standby, the JVM’s emulated XLR output is fully operational, allowing you to record in total silence, a godsend for those late night recording sessions.

The Tone of the Cone
Speakers aren’t just there to move air, they’re an integral part of an amplifier’s tonal voice. To that end, all JVM heads have been designed to be sonically complimented by every single one of Marshall’s vast array of 4x12”and 2x12 in. cabinet offerings.

In the case of the 2x12 in. JVM combos, after exhaustive testing of every speaker available, all agreed that the pairing of a Marshall/Celestion ‘Heritage’ with a Marshall/Celestion ‘Vintage’ was the only way to go as the combination produces a fantastic depth and breadth of sound while maintaining a tight, musical response and a solid low-end thump. In the case of the 50 Watt 1x12”combo, a Celestion G12B delivers a full, wide sound that is much “bigger” than the JVM215C’s compact size would suggest.

Building a better Marshall
Every JVM is made at the Marshall factory in the heart of England. Time-tested craftsmanship and construction are combined with the latest advances in manufacturing technology, ensuring world-class build quality and roadworthiness.

Internally, the JVM circuitry and layout has been kept as simple and logical as possible, ensuring the integrity of the guitar tone and an incredibly low noise-floor for such a high gain beast. Four, double-sided PCBs are used and
connections are kept to a minimum to ensure maximum reliability. Only the best components are used to ensure very high quality and all of the internal wiring and amplifier assembly is performed by hand. Strict quality controls ensure every unit made is worthy of the world-renowned and respected white script Marshall logo. Meticulous valve selection adds further to the all-important tone and reliability that are both synonymous with the Marshall
legend.

JCM1960A Cabinet
The 1960A is switchable from mono [4 or 16 Ohms] to stereo [8 Ohms per side], and is equipped with Celestion G12T-75 speakers.

The highest quality woodwork includes the "corner locking" of each and every joint. This helps give Marshall cabinets the incredible strength and durability, which has become as legendary as the Marshall sound itself.

Heavy-duty Grab Handles are fitted to all Marshall cabinets. Their tough, ergonomic recessed casing design gives easy access to the bar of the handle without affecting the cabinet's smooth lines.

No sharp metal edges or rough fittings - the smooth ABS plastic Marshall corner fits perfectly and offers excellent protection to all 8 cabinet corners.

Technical Info

JVM210H Details
Output (RMS): 100 Watts

Speakers: No

Pre-amp Valves: 4 x ECC83

Power Amp Valves: 1 x ECC83, 4 x EL34

Footswitch (Supplied): PEDL-00045

Dimensions (Millimeters): 750 x 310 x 215

Weight: 22 kg, 48.5 lbs

1960A Details
Black grille cloth

White piping

Black elephant grain vinyl

Speaker: 4 x 12 in. G12T-75

Power: 300 watt

Impedance: 4 or 16 ohms mono/8 ohms stereo

Dimensions: 760 x 830 x 360mm

Weight: 36.4 kg
