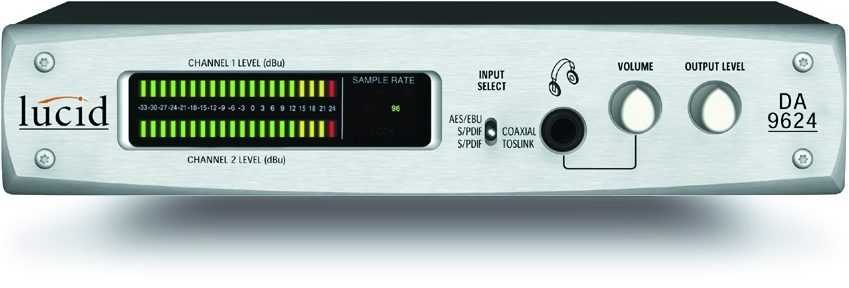

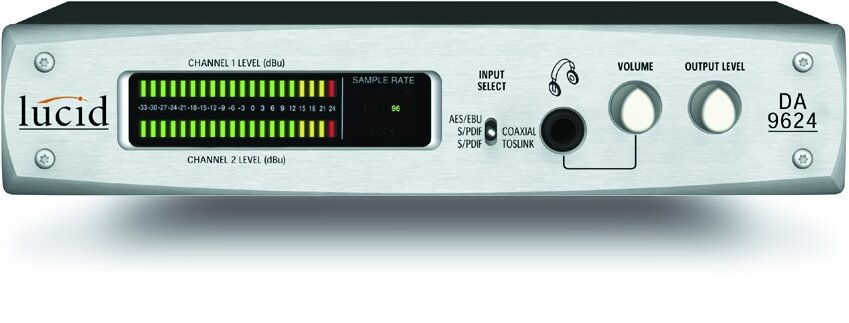

Lucid DA9624 24/96 kHz D/A Converter
No longer available at zZounds
Take your digital recording system to the next level with the addition of the DA9624.
Overview
Take your digital recording system to the next level with the addition of the DA9624. This converter bridges the gap between analog and digital equipment with transparent audio conversion. True 24-bit resolution is the best way to record and process all the detail the human ear can hear. The DA9624 supports sample rates of 96kHz, 88.2kHz, 48kHz, 44.1kHz, and 32kHz.
Multiple connections for flexible operation.
The DA9624 receives input through professional AES/EBU and consumer S/PDIF (coaxial and optical TOSLINK) connectors, and it delivers analog output through XLR and 1/4" connectors for interfacing with balanced or unbalanced equipment. A front panel headphone output provides a convenient way to monitor audio levels.
Finishing touches make all the difference.
Easy-to-read, 20-segment LED ladders show you exactly where to set I/O controls for optimal D/A conversion. Rack the DA9624 next to the AD9624 using a Lucid RM-4 rack mount tray, or use the DA9624 on its own for your specific interface requirements.
Features
Stereo D/A conversion at samples rates of 96kHz, 88.2kHz, 48kHz, 44.1kHz, and 32kHz
Separate headphone volume control and front panel output
True 24-bit resolution using high-precision converters
Digital input via AES/EBU (XLR), S/PDIF (coaxial), or S/PDIF (TOSLINK) connectors
20-segment output level LED ladders
Multiple connections for flexible operation.
The DA9624 receives input through professional AES/EBU and consumer S/PDIF (coaxial and optical TOSLINK) connectors, and it delivers analog output through XLR and 1/4" connectors for interfacing with balanced or unbalanced equipment. A front panel headphone output provides a convenient way to monitor audio levels.
Finishing touches make all the difference.
Easy-to-read, 20-segment LED ladders show you exactly where to set I/O controls for optimal D/A conversion. Rack the DA9624 next to the AD9624 using a Lucid RM-4 rack mount tray, or use the DA9624 on its own for your specific interface requirements.
Features
Stereo D/A conversion at samples rates of 96kHz, 88.2kHz, 48kHz, 44.1kHz, and 32kHz
Separate headphone volume control and front panel output
True 24-bit resolution using high-precision converters
Digital input via AES/EBU (XLR), S/PDIF (coaxial), or S/PDIF (TOSLINK) connectors
20-segment output level LED ladders
Specs
Performance
Frequency response:
For sample rates of 88.2 and 96 kHz: 20 Hz to 40 kHz (+/-1 dB)
For sample rates of 44.1 and 48kHz: 20 Hz to 20 kHz (+/-1 dB)
For 32kHz Sample rate: 20 Hz to 15 kHz (+/-1 dB)
Dynamic range: >114 dB, A-weighted
Analog output impedance: 100 ohms balanced, 50 ohms unbalanced
Maximum analog output level: +25 dBu, balanced @ 0 dBFS
Maximum headphone output level: 20 V peak to peak into 2000 ohms, 160 ohm output impedance
Analog output attenuation range: infinity to 0dB, +/-2 dB
Connectors
Digital inputs: AES3 (XLR,) S/PDIF (coaxial,) and TOS-LINK (optical)
Analog outputs: Balanced XLR, balanced/unbalanced 1/4 in. TRS, and front panel-mounted output: stereo 1/4 in. TRS
Power supply: External AC (Lucid PS-3 or PS-3E) using 7-pim DIN connector
Physical
1/2 unit Chassis (H x W x D): 1.72 x 8.5 x 8 in. (4.37 x 21.59 x 20.32 cm)
Weight: 6.7 lb (shipping)
Frequency response:
For sample rates of 88.2 and 96 kHz: 20 Hz to 40 kHz (+/-1 dB)
For sample rates of 44.1 and 48kHz: 20 Hz to 20 kHz (+/-1 dB)
For 32kHz Sample rate: 20 Hz to 15 kHz (+/-1 dB)
Dynamic range: >114 dB, A-weighted
Analog output impedance: 100 ohms balanced, 50 ohms unbalanced
Maximum analog output level: +25 dBu, balanced @ 0 dBFS
Maximum headphone output level: 20 V peak to peak into 2000 ohms, 160 ohm output impedance
Analog output attenuation range: infinity to 0dB, +/-2 dB
Connectors
Digital inputs: AES3 (XLR,) S/PDIF (coaxial,) and TOS-LINK (optical)
Analog outputs: Balanced XLR, balanced/unbalanced 1/4 in. TRS, and front panel-mounted output: stereo 1/4 in. TRS
Power supply: External AC (Lucid PS-3 or PS-3E) using 7-pim DIN connector
Physical
1/2 unit Chassis (H x W x D): 1.72 x 8.5 x 8 in. (4.37 x 21.59 x 20.32 cm)
Weight: 6.7 lb (shipping)
