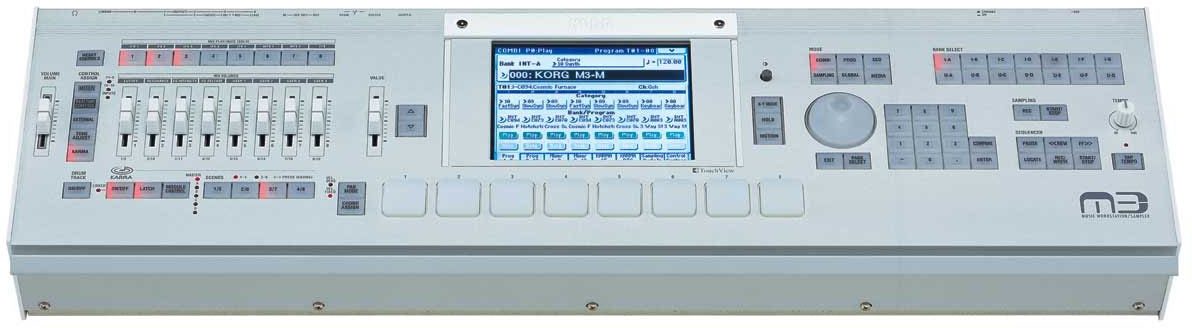

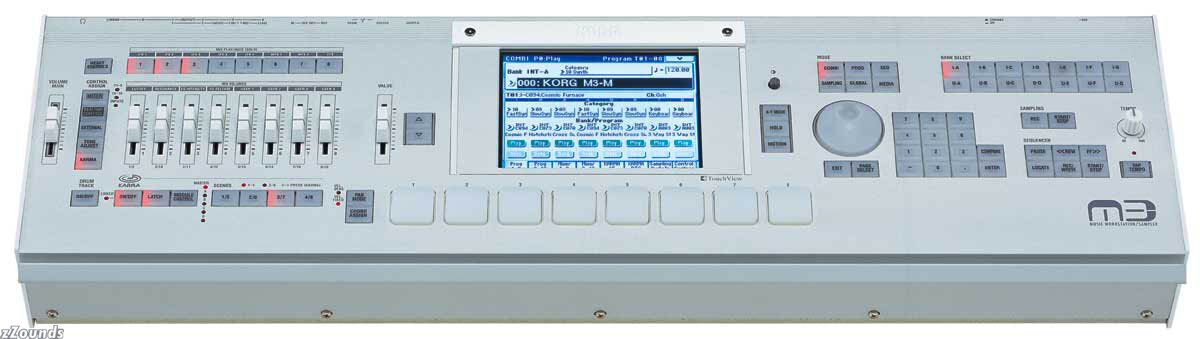

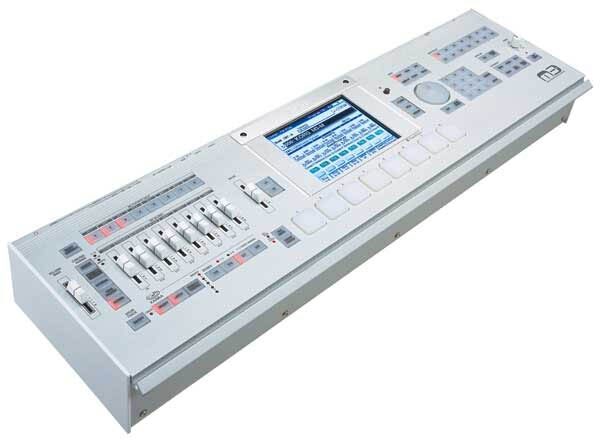

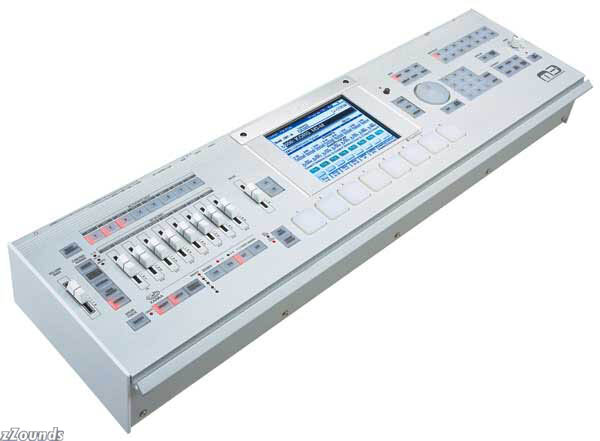

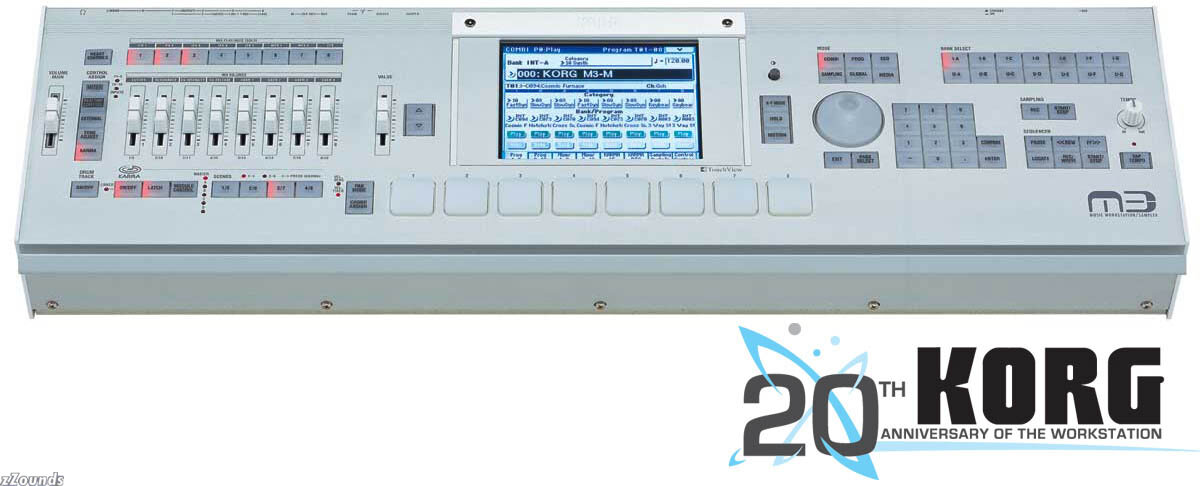

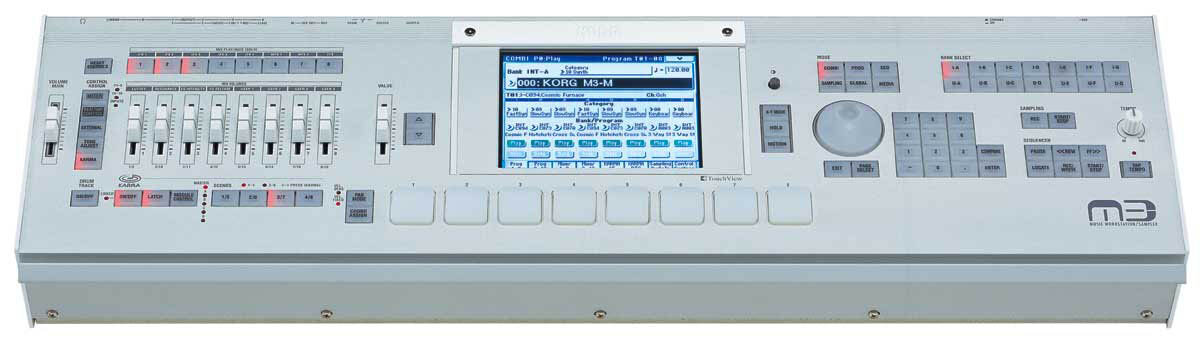

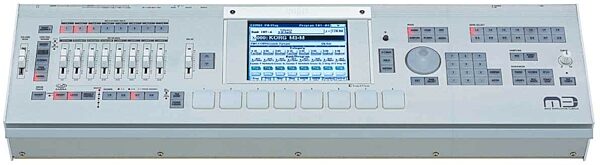

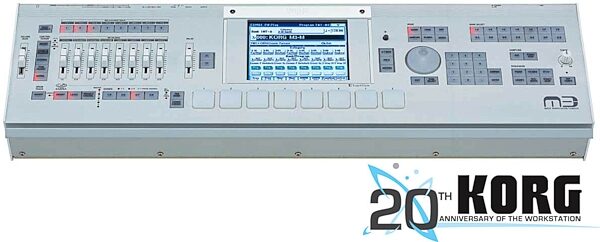

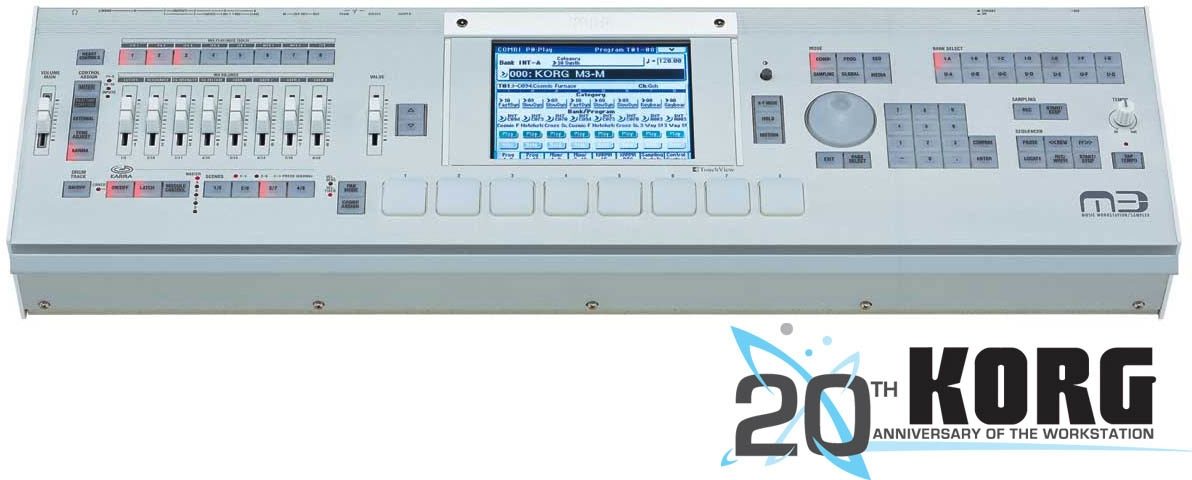

Korg M3-M Synth Workstation Sampler Module

Welcome to the next generation of workstation sampling. This versatile module arms you with everything you need for creating and storing your sounds. (10) Read 1 review for this product | Rate and review this product
Ships to: Can ship to United States
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)

Sorry, this product is no longer available on zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer

Please shop our site for related products:

Product Description

The Korg M3-M features a number of innovations distilled from the flagship Oasys including the new EDS (Enhanced Definition Synthesis) sound generator derived from the HD-1 engine design, the advanced second-generation Karma functionality, and the multi-purpose control surface. Adding innovations such as the new concept of "virtualized hardware" that allows an even closer integration with DAW systems, Drum Tracks which provide an instant groove to play along with, and the new "Korg Komponent System" concept that facilitates more flexible system construction, the M3-M music workstation/sampler opens a new and exciting page in music making -- it's the workstation that rightfully deserves to wear the "M" that started it all.

Enhanced Definition Synthesis
The Korg M3-M features a newly developed "EDS" sound generating system based on a new chip design that was developed in parallel with the HD-1 engine from the flagship Oasys. It takes full advantage of the M3-M's 256 Mbytes of PCM source material which is a veritable "best of" from the OASYS.

Using Korg's advanced voicing technology, the 1,028 multi-samples, 1,606 drum samples, dual oscillators, 4-level velocity switching/crossfading/layering, and stereo sampling allow for an enormous range of high-quality, detailed, and expressive sounds.

The filter section, a vital part of the sound-creation process, lets you simultaneously use 2 resonant filters for each oscillator, and can be configured in series or parallel. Four filter types are provided: low-pass, high-pass, band-pass, and band-reject.

The amp section features a driver circuit that gives the sound a sense of edge and character, along with low boost to help shake the walls when needed. Integrated 3-band EQ allows tonal sculpting without needing to go to the effects section. Detailed envelope generators, abundant modulation routings, plus the all-new AMS Mixers for advanced processing all combine to provide a level of sound shaping far beyond previous possibilities.

Effects

The all-important effect section provides up to 5 Insert effects, 2 Master effects, and 1 Total effect. In addition to great choruses, flangers, phasers, delays and reverbs, the 170 effect types include dynamic processing effects such as compressor and limiter, amp modeling and speaker simulation effects using Korg's proprietary "REMS" modeling technology, and evocative effects like the Grain Shifter and Talking Modulator.

The Korg M3-M includes professional features that allow for many cool applications and routings. Dual Common LFOs allow multiple effects to use the same modulation source; an advanced Control Bus provides triggering input from external audio or internal timbres to effects such as compressor/limiters and the vocoder; and the audio inputs can be freely routed to various effect chains and then run to individual outputs allowing the M3-M to be used as a 2-in/6-output effects processor.

Funky Drummer
A drumkit in the Korg M3-M can be created from ROM or RAM samples, mono or stereo, with up to four-way velocity switching and cross-fading for incredible realism. Powerful sound shaping can occur here, with EQ, drive and low boost plus individual effects routing per key, delivering incredible results.

New Drum Track
The Korg M3-M provides a new Drum Track function that adds a groove to each sound you play. Combined with Karma it makes a Program a complete sonic adventure that is sure to inspire. You can select patterns from over 500 in internal memory and start them with a dedicated button, from a desired region of the keyboard or by playing a velocity that's above a specified threshold.

Since the Drum Track uses MIDI data stored in a Pattern, it is easy for you to create your own in the Sequencer Mode, either recording them, importing them from SMF data or other user's songs, or converting recorded Karma data as MIDI events for further manipulation. Even sampled loops can be used! This is a powerful feature with uses ranging from creating music-production memos to inspirational jamming and realtime performance.

Expanded Combination Mode
Combination Mode is where multiple Programs can be freely assigned as splits and layers across the keyboard, including velocity switching and cross-fading for complex and expressive sounds. Sounds can be delayed either by time or by tempo, even when you release a key, allowing you to create sophisticated rhythmic soundscapes and performance effects. Monophonic sounds can be forced to be polyphonic, or vice-versa, and you can select only one of the oscillators if desired. For the more adventurous musician, each timbre can even use a different scale or tuning!

The Korg M3-M allows for 16 timbres at the same time, including a Drum Track, up to 4 Karma Modules, multiple effects and much more. Each timbre has dedicated 3-band EQ for getting the perfect mix, and a powerful Tone Adjust setup for detailed in-context sound shaping.

In addition to providing more sound elements, this means that Combis can be set up and saved as complete 16-part MIDI sequencing templates for use with an external sequencer and computer DAWs.

Great Sounds
In the end it's always about the sounds, and the Korg M3-M doesn't disappoint. Korg's acclaimed international voicing team delivers the goods once again: stunningly realistic imitative sounds, fat synth sounds, imaginative textures, evocative sound effects - it's all here. The Korg M3-M comes loaded with 512 Programs, and room for a total of 1,664 user sounds (13 Banks plus GM). All sound locations are fully editable (except GM banks), so you are always free to tweak a sound if needed. Adding in the EXB-Radias option delivers 128 powerful MMT synthesis sounds. There are 32 drumkits provided, and room for a total of 144. As for the 16-part Combinations, 384 come preloaded, with room for a total of 1,792 (14 Banks).

All sounds (Programs and Combinations) are organized by Categories and Sub-Categories for easy searching and selection, making it easy to find and organize your sounds.

2nd Generation Karma
The second generation Karma functionality that first appeared on the Oasys and received wide acclaim from artists and users world-wide is fully implemented in the Korg M3-M. Karma is the inspiring, real-time music generation system that can help you play everything from natural instrument gestures like intricate finger-picking, strumming and harp glissandos, to complex cascades of notes, dance-riffs, gated and chopping effects and "improvising" drum grooves. Karma continues to set the standard by which all other arpeggiators, phrase players, and musical effect generators are judged. The inspiration that Karma offers, coupled with the unheard-of phrase variability is second to none.

In Program Mode, one Karma Generated Effect (GE) can be assigned to a single drum groove, melodic phrase, comping gated part or other musical effect. Eight sliders, eight switches, and eight scenes provide dedicated real-time control and the ability to store complete snapshots of your settings.

In Combi and Sequencer modes, Karma's power increases exponentially, with four Karma Modules available simultaneously.

The Control Surface can access and manipulate each module individually on its own "Module Layer". In addition to the 4 individual Module Layers, there is a Master Layer that can be mapped to parameters from any of the modules, even grouping them together -- so one slider can control the swing feel of all four modules at the same time, or the rhythmic activity of 2 or 3 modules at once, to name a few. Each Module Layer has 8 Scenes that store the settings of the sliders and switches in 8 different snapshots, instantly recalling completely different settings for that layer.

The Master Layer's 8 Scenes, in addition to storing the settings of the 16 sliders and switches for its parameters, also control which scene is selected for each module. You can control each layer's scenes directly from the control surface, or from the innovative Scene Matrix Page, which also controls whether the Drum Track will play along in a given scene. With 8 Scenes in each Module, and 8 Master Scenes storing which of those scenes are selected at which time (a total of 40 scenes), the possibilities are mind-boggling.

The Korg M3-M has incredible control over each Karma element yet has been refined to be even easier to use, thanks to 13 "Real-Time Control Models" (RTC Models). An RTC Model standardizes which parameters of a Karma GE are available for real time control, and how they are assigned to the Control Surface. With multiple GEs sharing the same exact setup, what you learn while controlling one GE is consistent and applicable to the thousands of other included GEs as well.

Finally, the 2nd generation Karma provides a signature sonic effect called Karma Wave-Sequencing that can change a sound's waveforms rhythmically in realtime, along with everything else Karma is doing, allowing each note to access a different waveform as it is generated. The results can resemble traditional wave-sequencing, or enter completely new realms of sound design.

Ultimate Expressive Power
The Korg M3-M is remarkable not only for the freshness of its sounds, but also for its outstanding new control environment. The color LCD of the Korg M3-M music workstation/sampler not only provides a touch-view GUI that ensures intuitive and easy operation, but it also operates as an X-Y Pad, allowing sound and effect parameters to be controlled in real-time by sliding your finger across or tapping on the screen -- much like the innovative Korg Kaoss Pad. Further control is provided by a Motion function that lets you capture and play back your finger moves to shape your sound and performance in unique ways. The screen even changes colors in response to the movement of your finger for cool visual feedback to your performance.

The 8 dynamic, velocity-sensitive pads give you a great way to play drum sounds or up to 8-note chords, either live or as triggers for the powerful KARMA function.

Each note in the chord retains the individual velocity so it can play back with all the nuance of your original performance, and can even be scaled across a full velocity range without "breaking" the dynamic relationship of each note.

Each note in the chord retains the individual velocity so it can play back with all the nuance of your original performance, and can even be scaled across a full velocity range without "breaking" the dynamic relationship of each note.

The 8 slider/eight switch control surface offers the same multi-functionality as on the Oasys: it can be used as a mixer, a set of expressive sound controls, an editing interface, a realtime Karma performance interface, or to control external software and hardware synths and effects.

There's also a joystick, assignable Value slider, two switches and a ribbon controller that give you convenient ways to express subtle nuances of sound. A newly designed proprietary keyboard with refined aftertouch delivers superb feel and expression that's better than ever before.

Radias Inside
You can add an internal Radias analog modeling synthesizer sound generator board (one timbre, up to 24 voices), with on-screen integration of all its parameters and full integration with the Korg M3-M's effects, control surface and Karma functionality.

This powerful MMT-based (Multiple Modeling Technology) synth engine features dual oscillators which combine to offer analog-modeled waves, DWGS (PCM) waves, noise, ring mod and more. Waveform modulation, Variable Phase Modulation (VPM), Unison voice thickening, PWM and cross-mod expand the sonic palette.

Dual Filters can run in series, parallel, or side by side (individual for each oscillator). Filter1 features a resonant filter design covering 24 dB low pass, 12 dB low pass plus 12 dB high and band pass, with continuously variable "morphing" between these states. Filter2 offers 12dB versions of the low, high and band pass modes, plus a unique comb filter.

Two LFOs and 3 ADSR envelopes shape the sound and add cyclic motion to nearly any voice parameter. Three 16-step Modulation Sequencers provide discrete values to a modulation parameter that change over time, either in stepped or smooth motion, and can loop over and over.

Internal or external audio can be run through the EXB-Radias to be gated and filtered using the internal synthesis and effects. Drive adds analog warmth, Punch brings increased definition to the attack of a sound, and 12-types of Wave Shaping provides dramatic timbral shaping -- even offering virtual "pickup" response.

The EXB-Radias offers the same vocoder as the Radias, offering 16 bands with individual control over level and panning. Formant Motion records the formant of a sung or spoken phrase so it can be recreated anytime.

And of course, all of Karmas's generative features can be used with the Radias to provide even more options, including Radias Wave-Sequencing.

Open Sampling
The Korg M3-M's Open Sampling System lets you sample and resample in any mode to produce new remixed combinations of sounds and effects, or to capture full performances "In-Track" within the sequencer. Cutting-edge editing tools include Time Slice, Time Stretch, Crossfade Looping, Rate Change and Normalize.

An easy-to-use Auto-Setup function makes all the right sampling settings for you, with the press of a button. Stock sampling memory is 64 MB, and can be increased to 320 MB by adding the optional EXB-M256 memory expansion board. Samples in Korg native format, AIFF, WAV, Soundfont V2.0 and AKAI (S-1000/3000 with advanced Program parameter conversion) formats can be used, and internal samples can be exported as WAV or AIFF if needed.

Sampling can also be done to attached media, so USB memory sticks and hard drives can be used to extend memory size to resample a complete song as a WAV file to be burned to a USB CD-R/RW as an audio disc, or for moving to a computer for further editing and manipulation. Audio files on the media can even be edited directly to normalize, trim, and perform other essential editing tasks.

New High-Resolution Sequencer
The sequencer that's at the heart of the Korg M3-M's song production is an intuitively-understandable 16-track design that holds up to 128 songs and 210,000 notes.

The new high timing resolution of 480 PPQ captures every nuance and detail of your performance. Three-band EQ per track provides detailed sound-shaping, as does the Tone Adjust sound "tweaking" function.

The Cue List function that has been a popular feature ever since the now-classic Triton series lets you create songs in sections, or play back completed songs as a medley.

All the now-classic Korg features are included, such as the one-touch "Auto Song Setup" feature, which takes you from playing a Program or Combination to "ready-to-record" status in one easy step, automatically arming tracks and routing voices behind the scenes. All Karma settings are also set up, so you can record every note and controller as they're generated, and even edit them later.

Song Templates contain pre-assigned effect routings and program assignments, providing one more shortcut to help you capture your creative outbursts. The M3 comes with 16 of these Song Templates, plus another 16 you can custom-tailor to your own needs. Each Template Song also provides a number of rhythm patterns -- including intro, fills and endings -- that you can use to instantly create a rhythm track.

Individual track looping allows flexible manipulation of repeated phrases such as drum grooves against longer parts like melodies and solos.

Advanced editing tools like variable quantization with selectable intensity and swing allow for nuanced adjustments to your recordings. Detailed event editing lets you work on your tracks with surgical precision, and a Compare function acts like an Undo for your last change to easily judge the effect of your edits.

Realtime Pattern Play and Record (RPPR) can be used to assign sequenced Patterns to individual keys on the keyboard for an interactive performance, or to quickly build up tracks. You can record controller data, Sys. Ex., or even Karma phrases and trigger them as you like.

Time-tested features that have been proven to aid in inspiration and song creation combine to deliver an intuitive and enjoyable songwriting experience -- the Korg M3-M has it all!

Virtualized Hardware
In addition to being a highly-developed music workstation, the Korg M3-M is also able to closely integrate with your computer. By connecting the M3-M to your computer via USB and using the included stand-alone "M3 Editor" software, you can edit sounds and settings from your computer.

A plug-in version of "M3 Editor" is also provided, so you can use it from within your DAW as a plug-in instrument. The editor runs as a VST, AU or RTAS plug-in for maximum compatibility. For even more complete integration, Korg's new "Virtualized Hardware" concept comes into play. When the optional EXB-FW FireWire board is installed, a single FireWire cable will convey both the M3-M's MIDI and audio signals to the tracks of your DAW in which the plug-in is running. This means that you can construct a highly integrated environment that adds the reliability of hardware to your software music production system, adding additional power to your virtual world.

4 Models
The Korg M3 music workstation/sampler is available as a lineup of four models: 61-key, 73-key, and weighted 88-key models, as well as the module-only M3-M. The 61-key and 73-key models use a proprietary new semi-weighted synth action keyboard developed by Korg for great playing feel and expressive aftertouch response. The 88-key model features the RH3 (Real Weighted Hammer Action 3) keyboard that reproduces the playing sensation of a grand piano, in which the low range has a heavier feel, with the touch becoming lighter as you play upward on the keyboard, allowing superb response to fine movements of your fingers.

Korg Komponent System
The Korg M3 music workstation/sampler introduces the new Korg Komponent System, featuring detachable keyboard and sound generator sections. The 61-key model lets you mount a Radias-R analog modeling synthesizer instead of the M3-M sound generator, the 73-key model lets you mount the M3-M together with a Radias-R analog modeling synthesizer, and the 88-key model supports the combination of M3-M and Radias-R or even mounting two M3-M units simultaneously. Of course you can detach the M3-M sound generator and use it as a sound module, giving you great flexibility for constructing the system you need whenever you want.

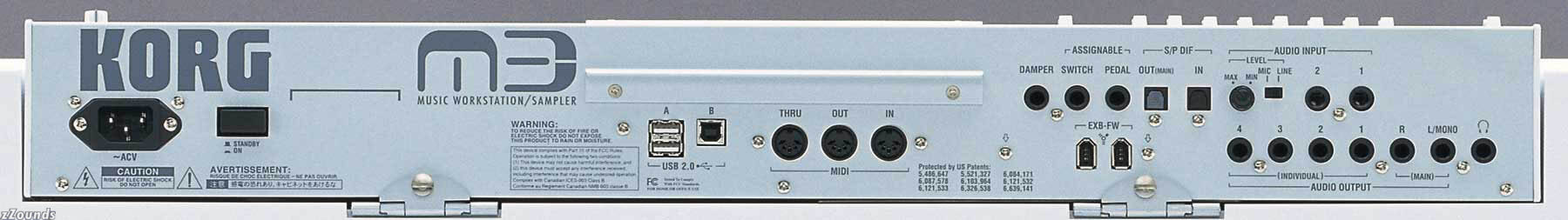

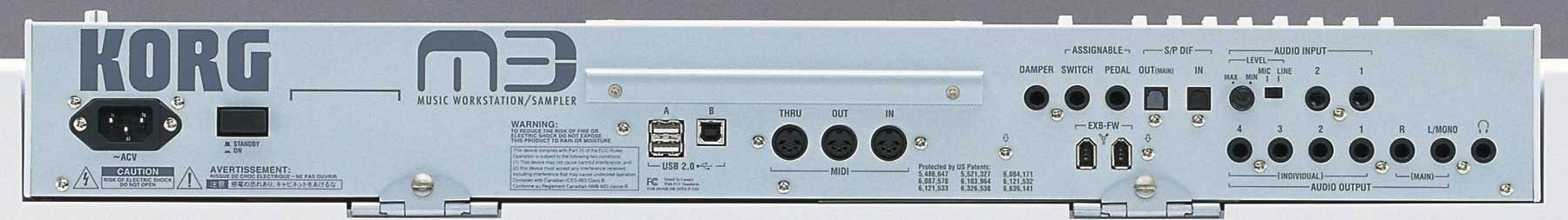

Rich Array of Input/Output Jacks
The Korg M3-M provides 2 analog and 2 digital (S/P DIF) inputs as standard. In addition to the main 2-channel output (L/Mono, R), there are 4 independent outputs as well as 2-channel digital output (24-bit optical S/P DIF), meeting the needs of professionals.

Two USB connectors are provided: a type-B USB connector for connection to your computer as a MIDI interface, and dual type-A connectors for connecting external storage media. USB 2.0 is supported to ensure high-speed transfer of large amounts of data.

The optional EXB-FW adds two FireWire ports for conveying both audio and MIDI to your computer, and for daisy-chaining the Korg M3-M in your FireWire-based studio setup.

Three pedal inputs are provided, including damper jack support for half-damper sensing. The footswitch and footpedal jacks can be assigned to wide choice of functions including modulation, sostenuto, Program advance, punch-in recording and much more.

zZounds is an authorized dealer of Korg products.
Customer Reviews
4.5 out of 5 (10 ratings) Rate and Review This Product
"A Workstation for the Ages. (but be careful about the touch screen)"
Sound: EXB piano is great. The Korg combos are mostly good or great. I love the organs. There are so many sounds on this thing, It would take too much time to go into detail. I wouldn't call any sound bank weak. It all depends on what you wat. I like the orchestral combis a lot. Feature: 2 features make this synth stand out. KARMA gen 2.0 and the pads. Added up, this synth is a composer's dream come true. Ease of Use: This is not as easy to use as it should be. KARMA is easy. The pads are easy. But there are too many hidden menus inside the touch screen. Quality: Many people, including myself have had trouble with the touch screen. Be careful here. Test the unit you buy carefully or get a warranty. This problem is serious because so much of the synth's operation requires the touch screen. The good news is you can do a lot just with the manual controls, which are solid. But you can't do basic operations like sampling, editing, sequencing or even saving without using the touch screen. And there are a lot of touch screen problems with this unit. Value: Because of the pads, KARMA and the quality of the sounds, this synth is for all time. Just be careful with the touch screen. Korg should make an iPad controller app for this synth because there have been so many users with touch screen problems. Manufacturer Support: I live far away from any dealer. I've never used support despite the touch screen problems. The Wow Factor: The M3M has made my music a lot more polished and professional. Overall: Korg's new Kronos line does not have the pad. No synth has pads integrated with KARMA. I will never give this synth up.
Style of Music: Any
10 of 12 people (83.33%) found this review helpful. Did you?
