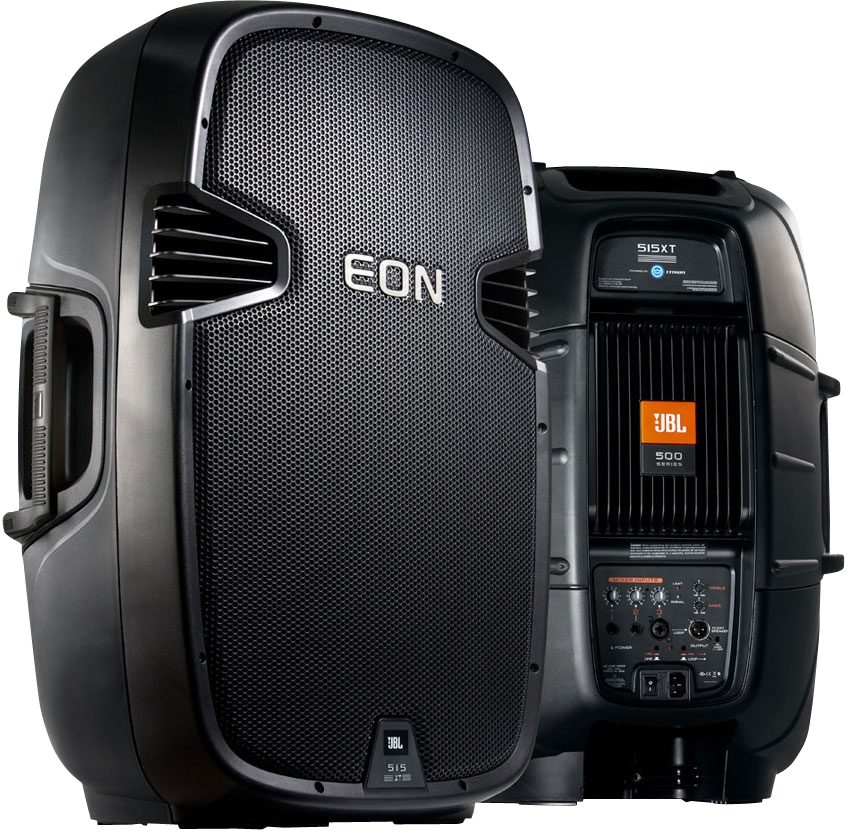

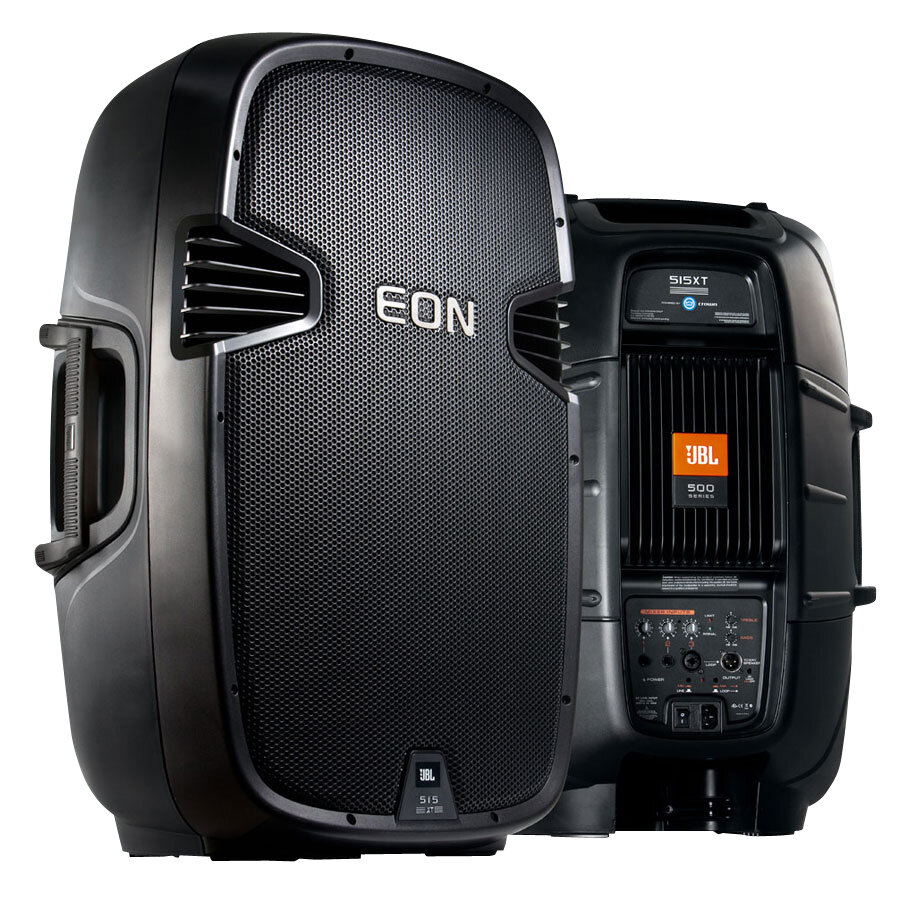

The ever-popular EON series from JBL has become synonymous with reliability and value. As the current flagship of the venerable line, the EON 515XT offers improved specs and enhanced usability for an even better EON. Building on the trusted design and features of the previous two generations, JBL again delivers a powered speaker to meet the needs of any user. Easy to use and easier to carry around, the versatile 515XT is a fantastic choice for mobile DJs and bands. Packing an ample 625 watts through a two-way system, the EON 515XT delivers all the power and versatility you need in an intuitive and portable package.
Durable and Portable

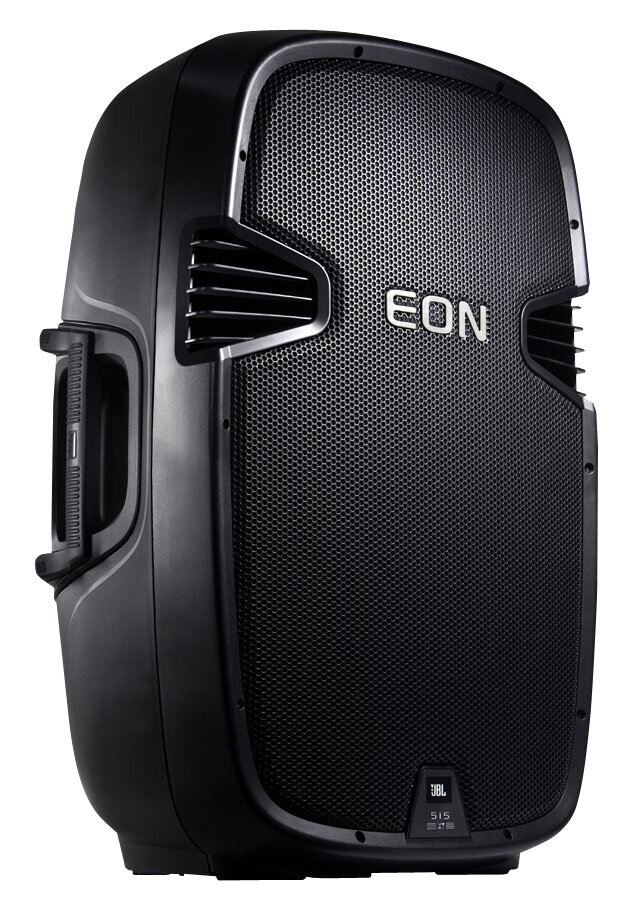

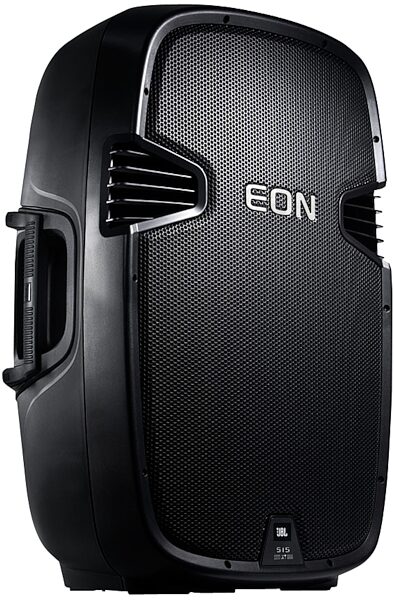

The EON 515XT maintains its predecessors' reputation for durability with a newly designed composite enclosure built for enhanced performance and unmatched sturdiness. The casing is rugged enough to withstand the pressures of the road, and the new black powder-coating on the front grill protects from moisture allowing for comfortable outdoor use. The enclosure's multi-angled design enables the 515XT to switch between floor monitor and main placements, and the integrated M10 suspension points combined with a strong 36mm pole socket make for easy rigging and mounting options. All weighing in at a manageable 32.5 lbs (14.8 kg) with multiple rubber gripped handles, the 515XTs are truly portable making set-up and break-down a breeze.
The Best-Sound EON Yet
Beyond the EON's renowned durability and solid construction, the new 515XT's boast expanded sound enhancements to appease discerning ears and fill booming rooms. With an efficient Crown designed Class D power amp pushing a full 625 watts, the 515XT is loud and banging. The max SPL has been increased to 132 dBs through amplifier optimization and restructured gain stages, and the system has been re-voiced for a more even spectral balance. With its 15" woofer, 1.5" high frequency driver, and an extended 39 Hz-20 kHz frequency range, the 515XT's can add some low-end thump to a DJ set, clarity to vocal reinforcement, with all the balance needed for simple audio playback.
Updated Mixing Features

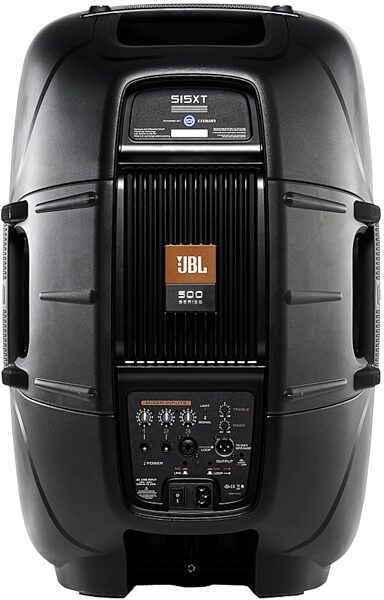

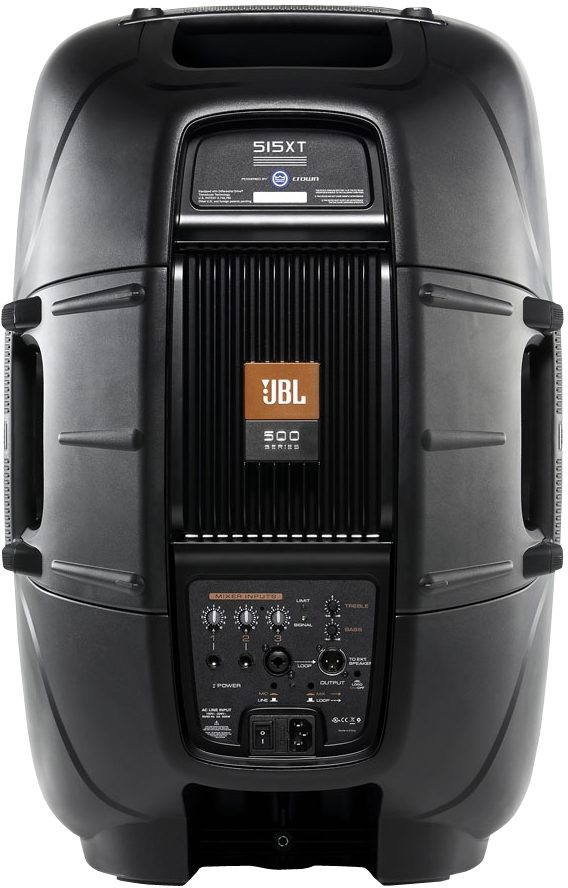

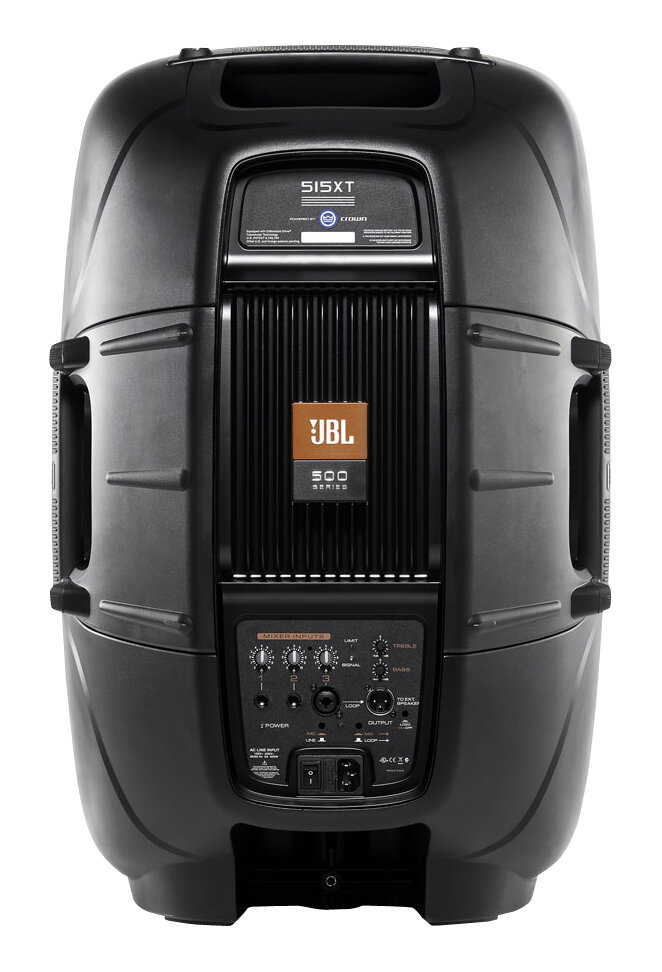

With all these sound improvements making this the best sounding EON yet, JBL has also raised the bar with an expanded set of on-board mixing features. The 515XT rear mixer offers two 1/4" TRS balanced/unbalanced inputs as well as a combo XLR/1/4" jack each with separate gain control for true on-the-go mixing. With input sensitivity increased by 10dB, the 515XT can easily accept direct inputs from keyboards, media players, and a range of DJ Gear, and the independent treble and bass controls allow even further sonic customization. These ample input options make a single 515XT suitable for application as a stand-alone portable PA; the XLR through output makes it easy to daisy-chain a string of EONs together to fill those bigger venues.
With all these features packed in a single rugged speaker carrying on the EON legacy, the 515XT is an outstanding choice for a wide range of applications and users.
zZounds is an authorized dealer of
JBL products.
- System Type: Self-Powered 15 in., Two-Way, Bass-Reflex
- Maximum SPL Output: 132 dB
- Frequency Range (-10 dB): 39 Hz - 20 kHz
- Frequency Response (+/-3 dB): 42 Hz - 18 kHz
- EQ: Individual Bass and Treble controls, center detent, +/-6 dB cut and boost
- Amplifier Design: Crown Class-D
- System Power Rating: 625 Watts (525 + 100)
- LF Driver: 1 x JBL 265F-1 380 mm (15 in. ) Differential Drive integrated woofer with dual 2 in. voice coils
- HF Driver: 1 x JBL 2414H 37.5 mm (1.5 in. ) annular polymer diaphragm, neodymium compression driver
- Coverage Pattern: 100 x 60 nominal
- Crossover Frequency: 1.7 kHz
- Enclosure Material: Polypropylene, multi-purpose main and monitor
- Suspension / Mounting: 36 mm pole socket with stabilizing screw, 5 x M10 suspension points
- Handles: One left / right side, one on top, with rubber grip
- Finish: Black Granite
- Grille: Powder coated perforated steel with acoustically transparent cloth backing
- Dimensions(HxWxD): 26.5 x 16 x 14.5 inches (673x406x368mm)
- Net Weight: 32.5 lbs (14.8 kg)
- Dimensions and Weight in Packaging
- Shipping Weight: 64 lbs
-
Shipping Dimensions:
17 x
15 x
28 in
JBL Warranty
If you have additional warranty questions,
please call the manufacturer at 800-852-5776
Product Description
The JBL EON 515XT powered PA speaker features sturdy construction and superior ergonomic design which will guarantee a lifetime of reliability and simplicity. Designed for enhanced audio precision plus improved input sensitivity, lowered noise floor, user selectable EQ control and re-voicing the system for peak performance are the improved features of the EON 515XT powered PA speaker. Put it all together and the EON 515XT is the toughest, smartest and most impressive EON ever.
Features:
-Rugged enclosure designed for optimal sound production and unmatched durability.
-Intuitive three channel on-board mixing options allowing for use as a standalone portable PA.
-Multiple rubber gripped handles for easy carrying.
-Integrated M10 suspension points for rigging installations.
-36mm mounting socket with dedicated screw compatible with most new speaker stands.
-Individual treble and bass EQs for optimal sound control.
-Expanded 39 Hz -20 kHz frequency range.
-Light weight at 32.5 lbs (14.8 kg) for true portability.
-Class-D Crown-designed power amplifier for extreme efficiency.
-Full 625 Watts through a 15” Differential Drive (R) integrated woofer with dual 2” voice coils, and a 1” annular polymer diaphragm, neodymium compression driver.
-100º H x 60º V asymmetrical wave guide for uniform audience coverage.
-Powder coated front grills for moisture protection and easy outdoor usage.
Powered by Crown
JBL and Crown collaborations result in designs of superior integration and efficiency. The EON 515XT engine features a proprietary Crown Class-D amplifier that is perfectly matched to the system's driver components. Expertly engineered, the Crown amplifier is masterful at managing high heat levels and huge dynamic peaks; conditions that can cause unwanted distortion.
