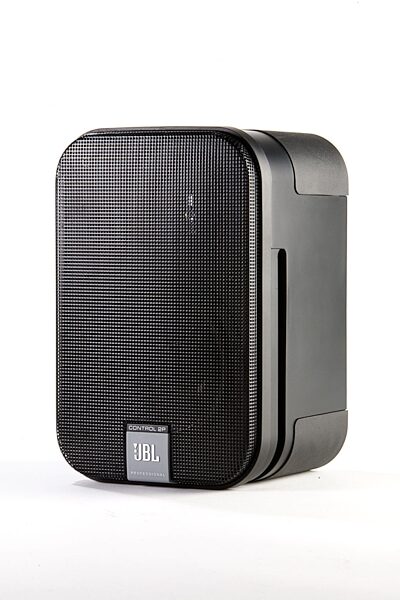

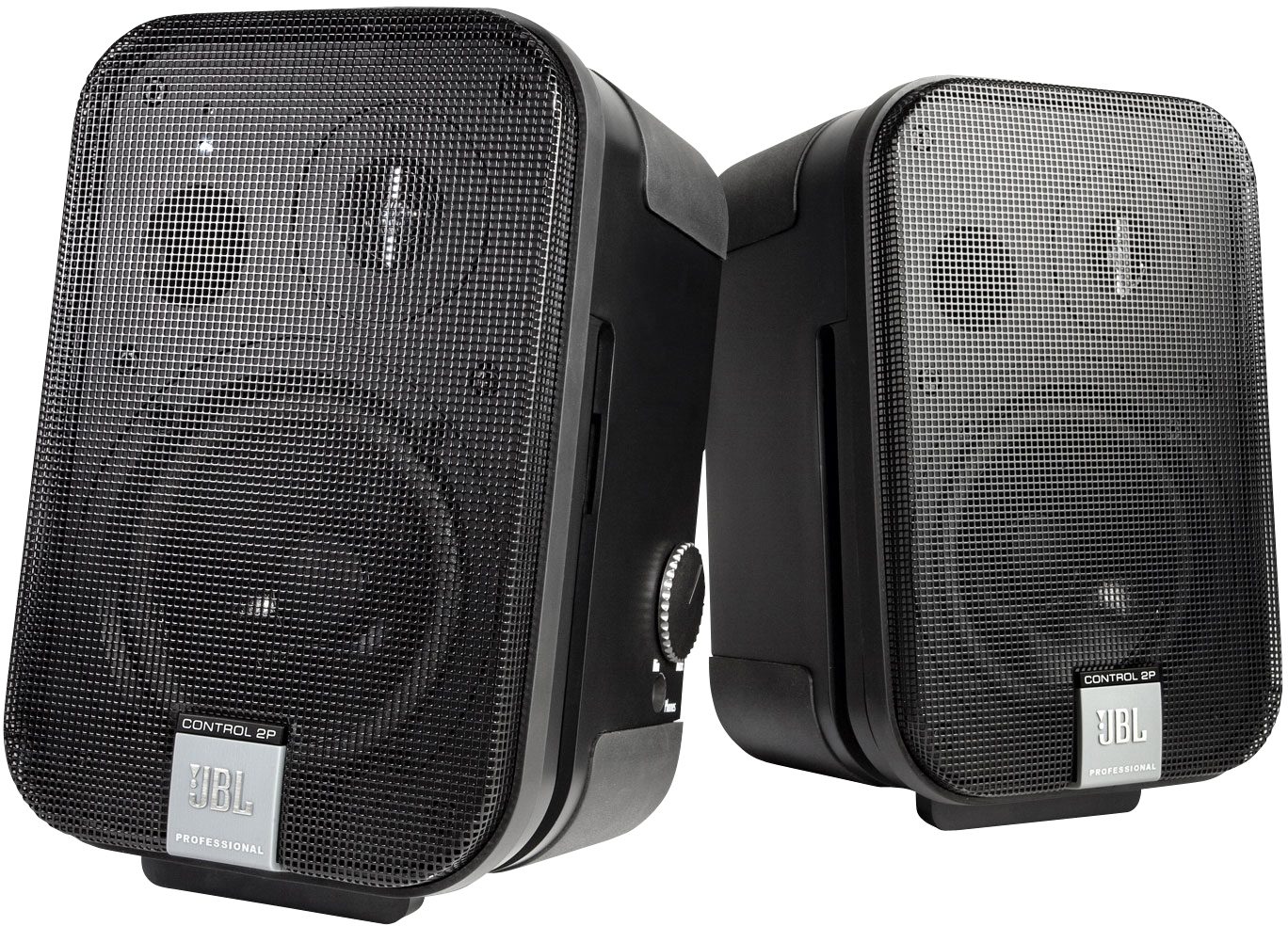

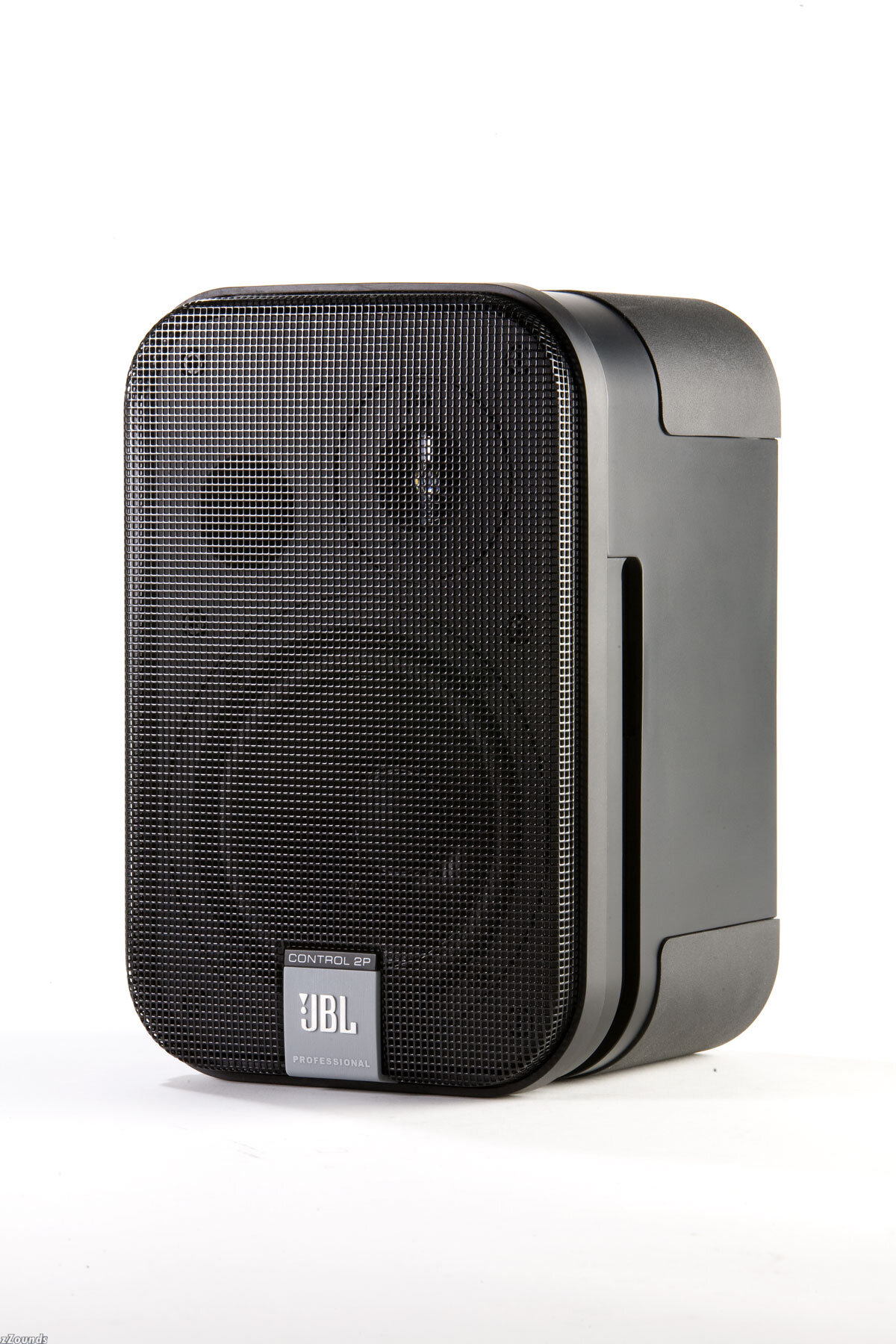

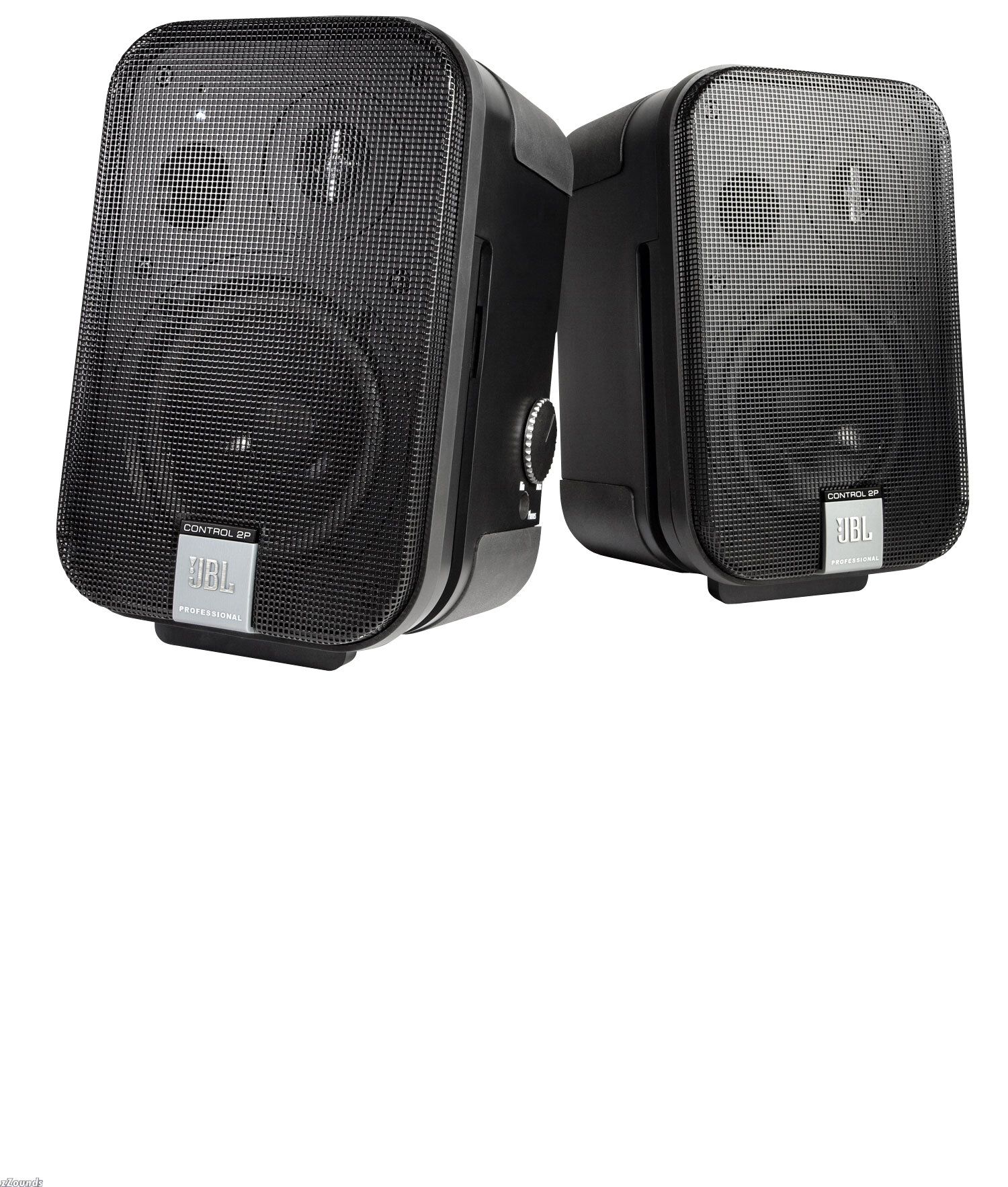

The Control 2P Compact Powered Reference Monitor System combines JBL's legendary loudspeaker design with powerful amplification to deliver rich, accurate performance for the most demanding audio applications. The compact design, rugged enclosure, and professional feature-set make the Control 2P Compact Powered Reference Monitor ideal for desk-top recording and video production, audio visual presentations, professional broadcast applications, and monitoring of electronic musical instruments.
Features
Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 Khz
35 watt per-channel power amplifier and high sensitivity drivers produce exceptional output: 115 DB max SPL per pair
Balanced XLR
Stereo headphone jack allows monitoring using headphones
Ergonomic, side-mounted volume control - simultaneously controls left and right speakers
High frequency adjust control - allows the user to contour HF response to application requirements
Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving
Wall-mount capable using optional MTC-2P mounting kit
Included snap-on pedestals optimize listening angle for desktop applications
Technical Info
Transducers:
- LF: 135 mm (5.25 in) low frequency loudspeaker
- HF: 19 mm (.75 in) Polycarbonate dome tweeter
Frequency Range: 80 Hz - 20 kHz
Amplifier Power: 35 Watts per channel
Maximum SPL Per Pair: 115 dB
Crossover Frequency: 4.2 kHz
Input Sensitivity: +4 dBu XLR 1/4"; 0 dBu RCA

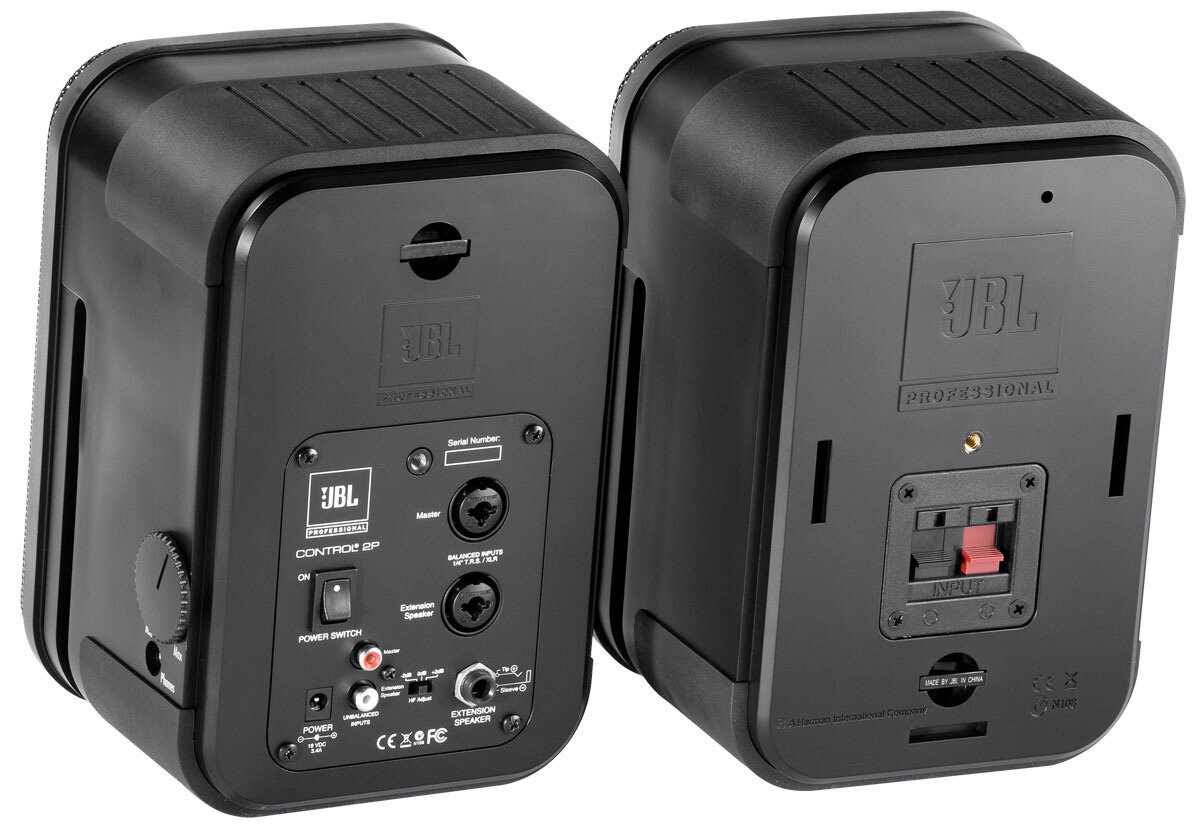

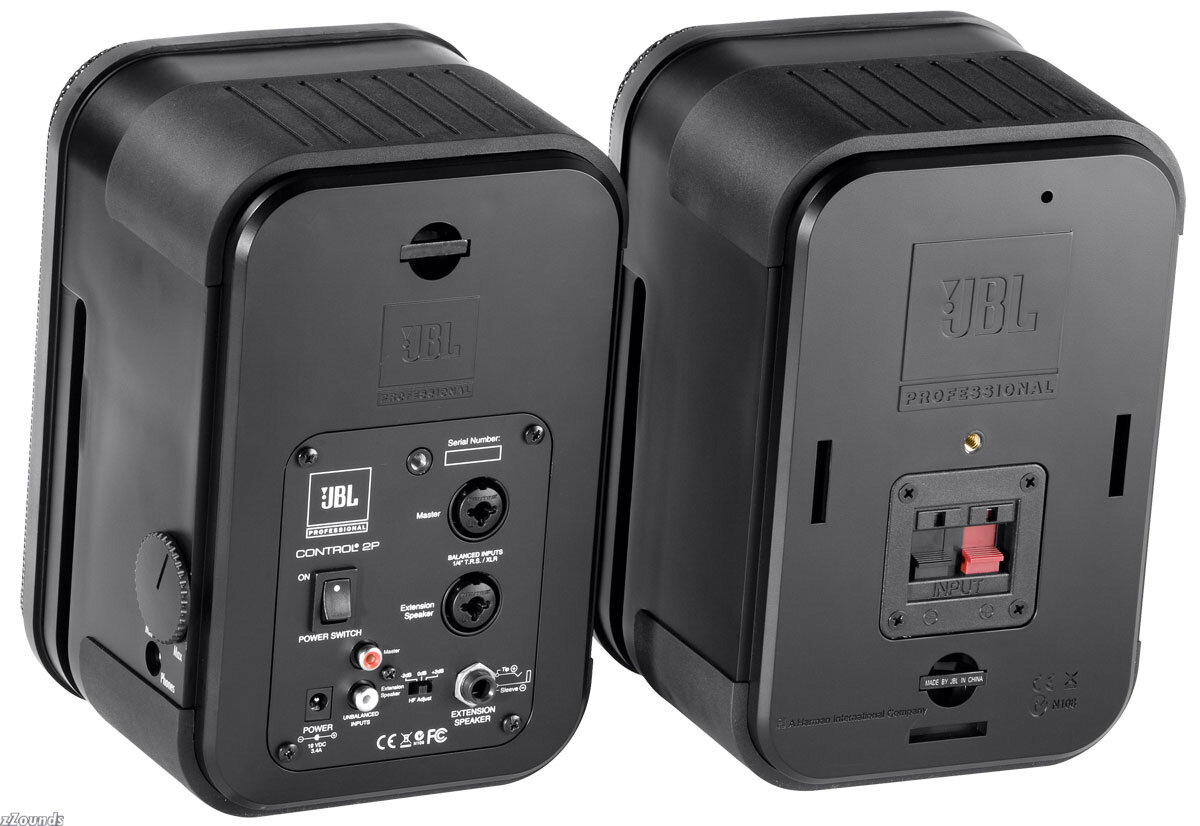

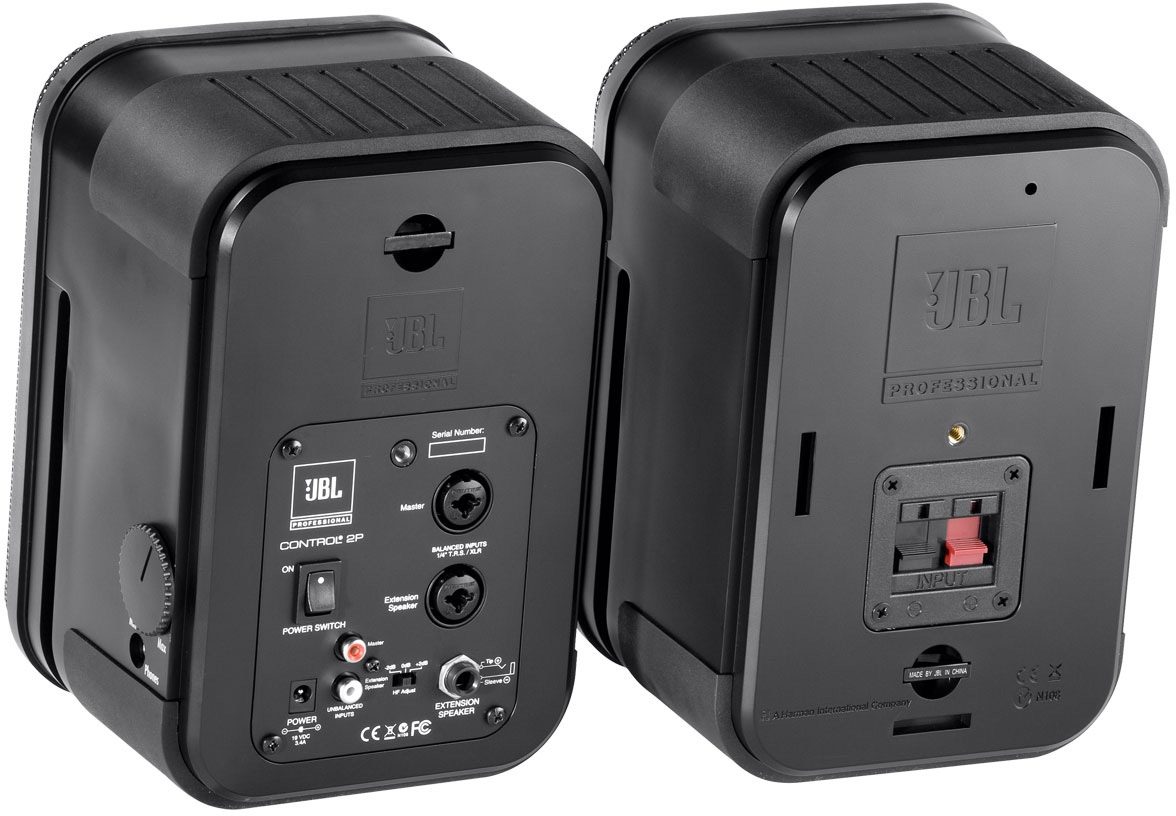

Signal Input Connectors (x2): Balanced Neutrik(R)* Combo XLR 1/4 in. TRS; Unbalanced RCA
Power Requirements: 19 VDC / 3.42 A - use only supplied power supply
Headphone Jack: 3.5 mm (1/8 in.)
Dimensions: 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in)
Net Weight: 4.8 kg (10 lb)
* Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks of Neutrik.
